VBD-012-030DD Dali Dimmable Constant Voltage LED Driver, 12V 2.5A 30W
VBD-012-030DD Dali Dimmable Constant Voltage LED Driver, 12V 2.5A 30W
SKU: SKU:666561427290
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
Model | VBD-012-030DD |
Input Voltage | 100-265V AC |
Input Current | 0.31~0.16A |
Frequency | 47/63 Hz |
Output Voltage | 12V DC |
Output regulated Current | 2.5A |
Output Power | 30W max |
Power Factor | 0.95 |
Dimmable | Yes (Dali Dimming) |
IP Rating | IP20 |

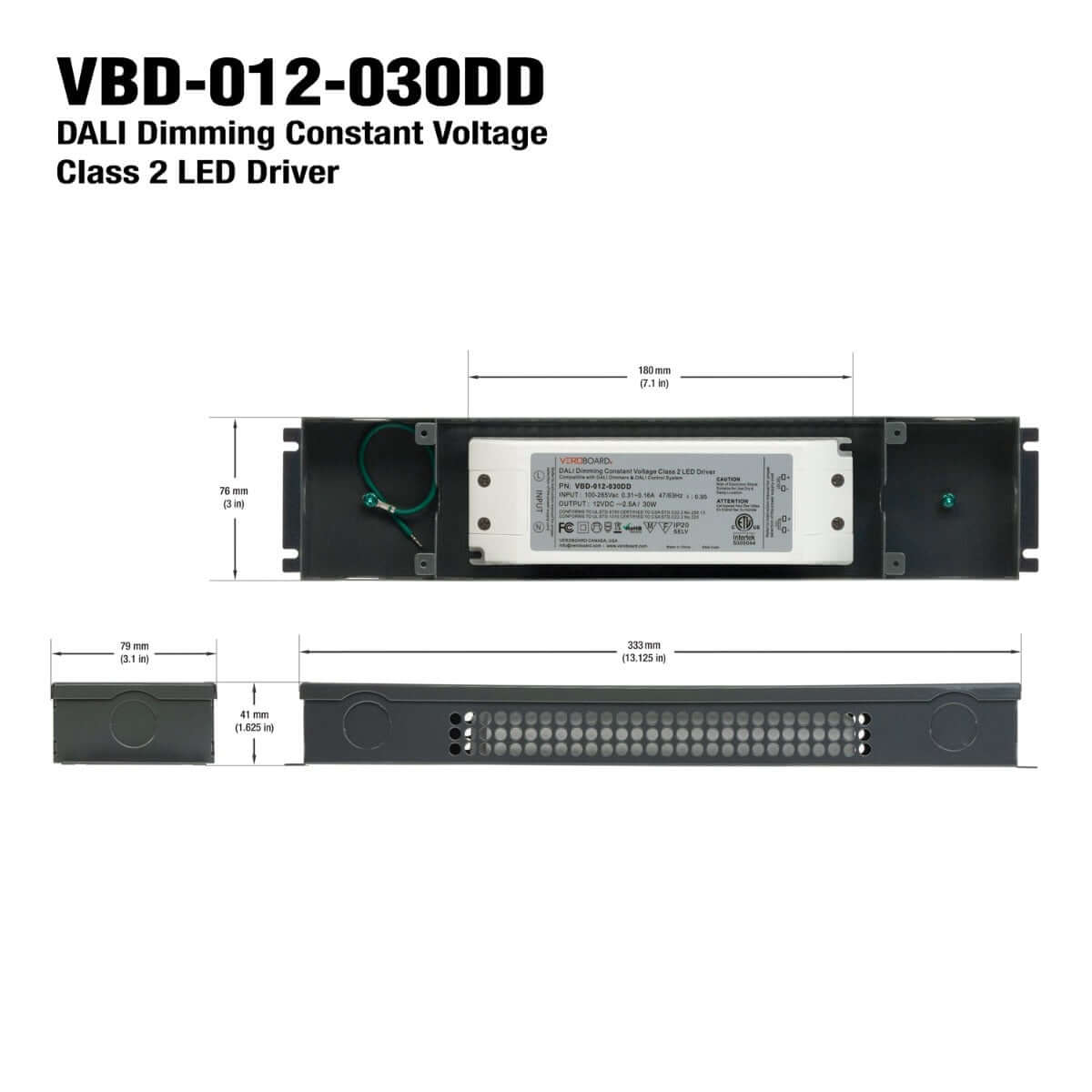

Dimensions (Without Box) | 180 x 60 x 35mm (7.1 x 2.3 x 1.3 in) |
Dimensions (Box) | 333 x 76 x 41mm (13.1 x 3 x 1.6 in) |
Certification |
|
The VBD-012-030DD LED driver is a Dali dimmable constant voltage driver designed for powering LED lights. It has an input voltage range of 100-265V AC with an input current of 0.31~0.16A at a frequency of 47/63 Hz.
The output voltage of this LED driver is 12V DC with a regulated output current of 2.5A and a maximum output power of 30W. It has a high power factor of 0.95, indicating high efficiency in power usage.
This LED driver is dimmable with Dali dimming, which allows for precise control over the lighting output. It is rated IP20, which means it is suitable for use in indoor dry environments.
The dimensions of this LED driver without the box are 180 x 60 x 35mm (7.1 x 2.3 x 1.3 in), and with the box are 333 x 76 x 41mm (13.1 x 3 x 1.6 in). It is certified by ETL and FCC, ensuring compliance with relevant safety and performance standards.
Overall, the VBD-012-030DD LED driver is a reliable and high-performance solution for powering LED lights in indoor environments, especially in applications that require precise dimming control using Dali dimming. With its high power factor and regulated output current, it offers efficient power usage and precise control over the lighting output, making it an excellent choice for a variety of lighting applications.
Features:
- Dali dimmable constant voltage LED driver
- Input voltage range of 100-265V AC
- Input current of 0.31~0.16A at a frequency of 47/63 Hz
- Output voltage of 12V DC
- Regulated output current of 2.5A
- Maximum output power of 30W
- High power factor of 0.95
- Dimmable with Dali dimming
- Rated IP20 for indoor dry environments
- Dimensions without the box: 180 x 60 x 35mm (7.1 x 2.3 x 1.3 in)
- Dimensions with the box: 333 x 76 x 41mm (13.1 x 3 x 1.6 in)
- Certified by ETL and FCC for safety and performance standards compliance
