VBD-012-060DD Dali Dimmable Constant Voltage LED Driver, 12V 5A 60W

  • $170.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427313
Title:
We only have 49 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model VBD-012-060DD
Input Voltage 100-265V AC
Input Current 0.62A
Frequency 50/60 Hz
Output Voltage 12V DC
Output regulated Current 5.0A
Output Power 60W max
Power Factor 0.95
Dimmable Yes (Dali Dimming)
IP Rating IP65

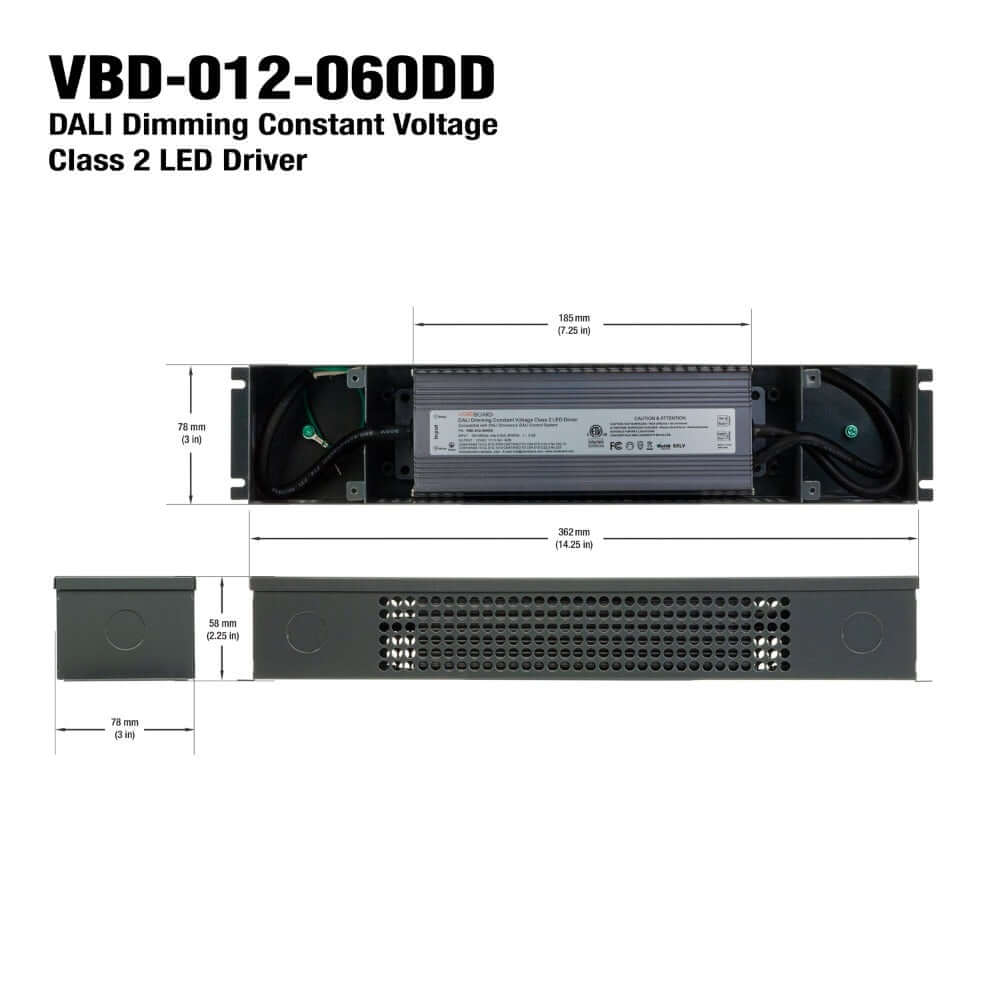

Dimensions (Without Box) 185 x 67 x 40mm (7.25 x 2.6 x 1.5 in)
Dimensions (Box) 362 x 78 x 58mm (14.25 x 3 x 2.25 in)
Certification




The VBD-012-060DD is a Dali dimmable constant voltage LED driver capable of delivering 12V DC with an output current of 5A and a maximum power output of 60W. The input voltage ranges from 100-265V AC with an input current of 0.62A and a frequency of 50/60 Hz. It has a power factor of 0.95 and is dimmable using Dali dimming technology. It has an IP rating of IP65, making it suitable for use in wet locations. The driver has dimensions of 185 x 67 x 40mm (7.25 x 2.6 x 1.5 in) without the box and 362 x 78 x 58mm (14.25 x 3 x 2.25 in) with the box. It is certified by ETL and FCC.

Features:

  • Dali dimmable constant voltage LED driver
  • Output voltage of 12V DC
  • Output current of 5A
  • Maximum power output of 60W
  • Input voltage range of 100-265V AC
  • Input current of 0.62A
  • Frequency of 50/60 Hz
  • Power factor of 0.95
  • Dimmable using Dali dimming technology
  • IP65 rating for use in wet locations
  • Dimensions without the box: 185 x 67 x 40mm (7.25 x 2.6 x 1.5 in)
  • Dimensions with the box: 362 x 78 x 58mm (14.25 x 3 x 2.25 in)
  • Certified by ETL and FCC
