VBD-012-096DD Dali Dimmable Constant Voltage LED Driver, 12V 8A 96W

  • $220.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427337
Title:
We only have 46 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model VBD-012-096DD
Input Voltage 100-265V AC
Input Current 1.0A
Frequency 50/60 Hz

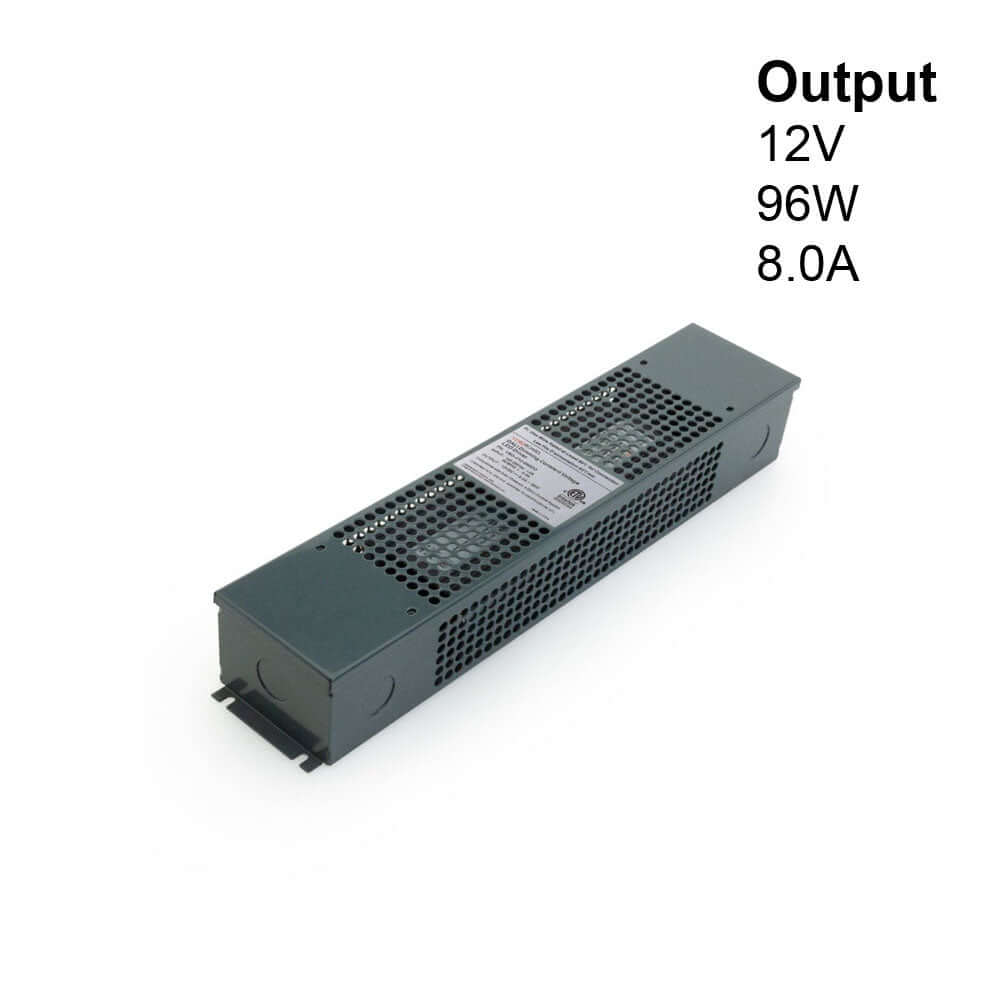

Output Voltage 12V DC
Output regulated Current 8.0A
Output Power 96W max
Power Factor 0.95
Dimmable Yes (Dali Dimming)
IP Rating IP65

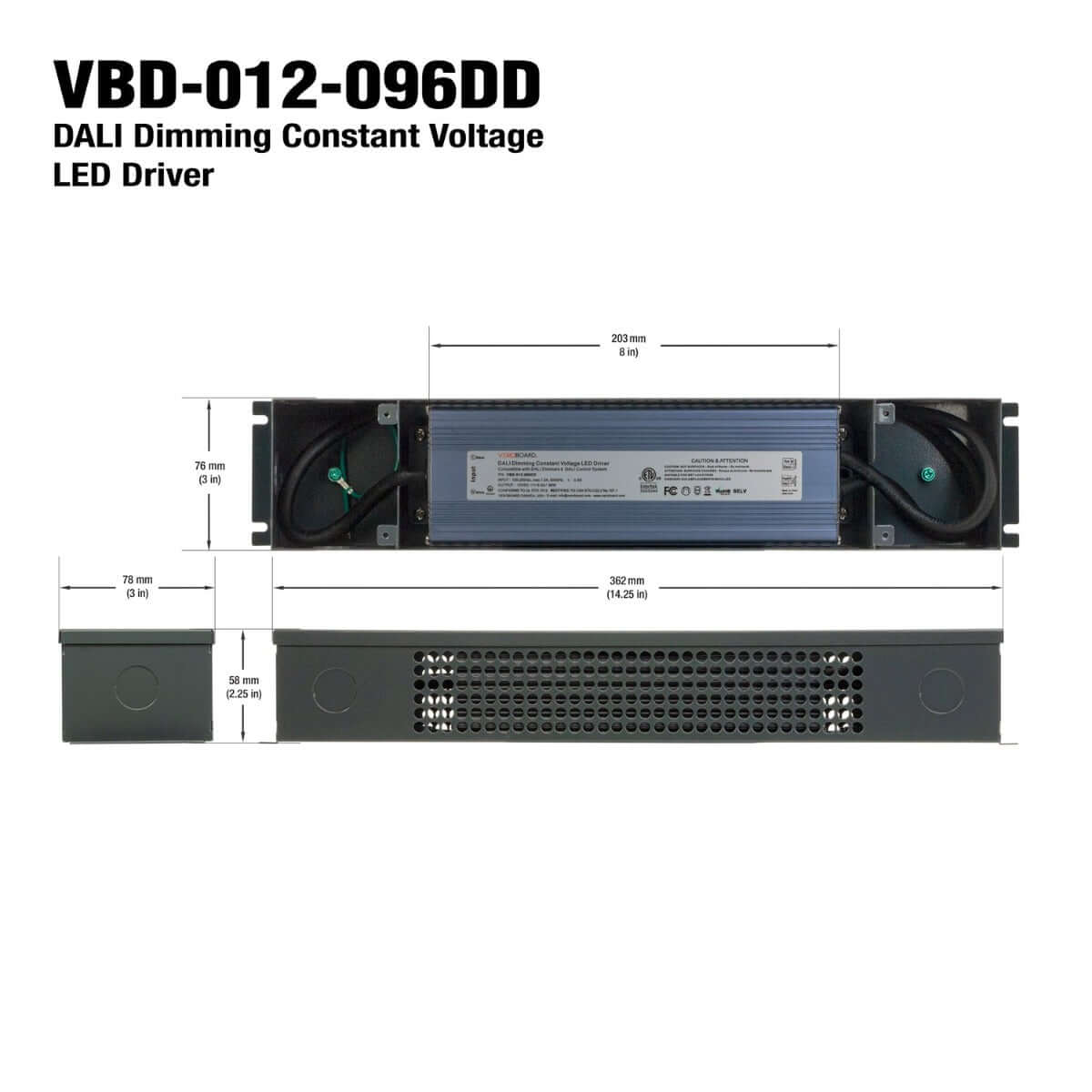

Dimensions (Without Box) 203 x 67 x 40mm (8 x 2.6 x 1.5 in)
Dimensions (Box) 362 x 78 x 58mm (14.25 x 3 x 2.25 in)
Certification




The VBD-012-096DD is a Dali Dimmable Constant Voltage LED Driver with an output voltage of 12V DC, output current of 8.0A, and maximum output power of 96W. It has an input voltage range of 100-265V AC with an input current of 1.0A and a frequency range of 50/60 Hz. The driver has a power factor of 0.95 and is dimmable with Dali dimming. It has an IP65 rating, making it suitable for use in wet and damp locations. The dimensions of the driver without the box are 203 x 67 x 40mm (8 x 2.6 x 1.5 in) and with the box are 362 x 78 x 58mm (14.25 x 3 x 2.25 in). It is certified by ETL and FCC.

Features:

  • Dali dimmable constant voltage LED driver
  • Output voltage of 12V DC
  • Output current of 8.0A
  • Maximum output power of 96W
  • Input voltage range of 100-265V AC
  • Input current of 1.0A
  • Frequency range of 50/60 Hz
  • Power factor of 0.95
  • IP65 rating for use in wet and damp locations
  • Dimensions without the box: 203 x 67 x 40mm (8 x 2.6 x 1.5 in)
  • Dimensions with the box: 362 x 78 x 58mm (14.25 x 3 x 2.25 in)
  • Certified by ETL and FCC
