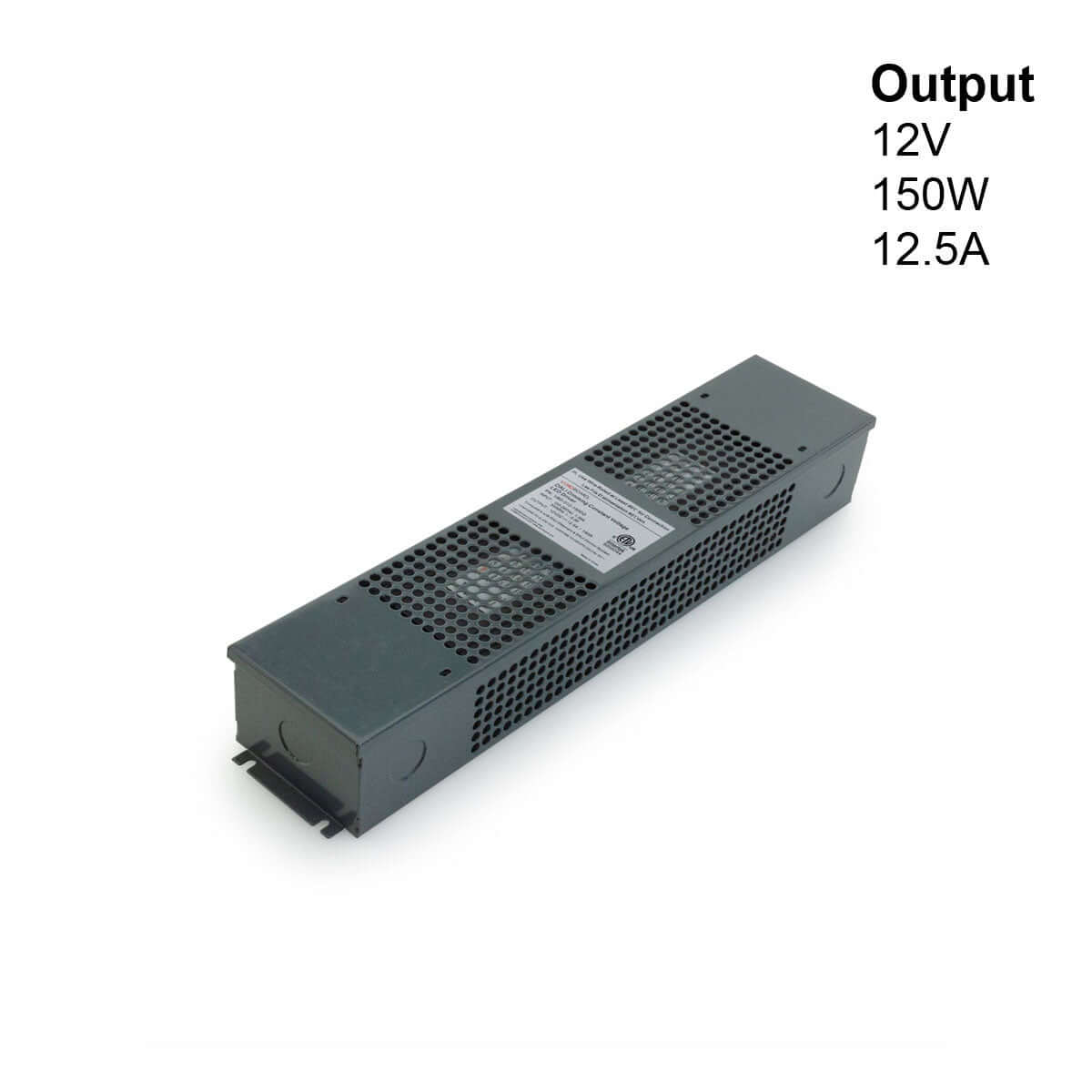

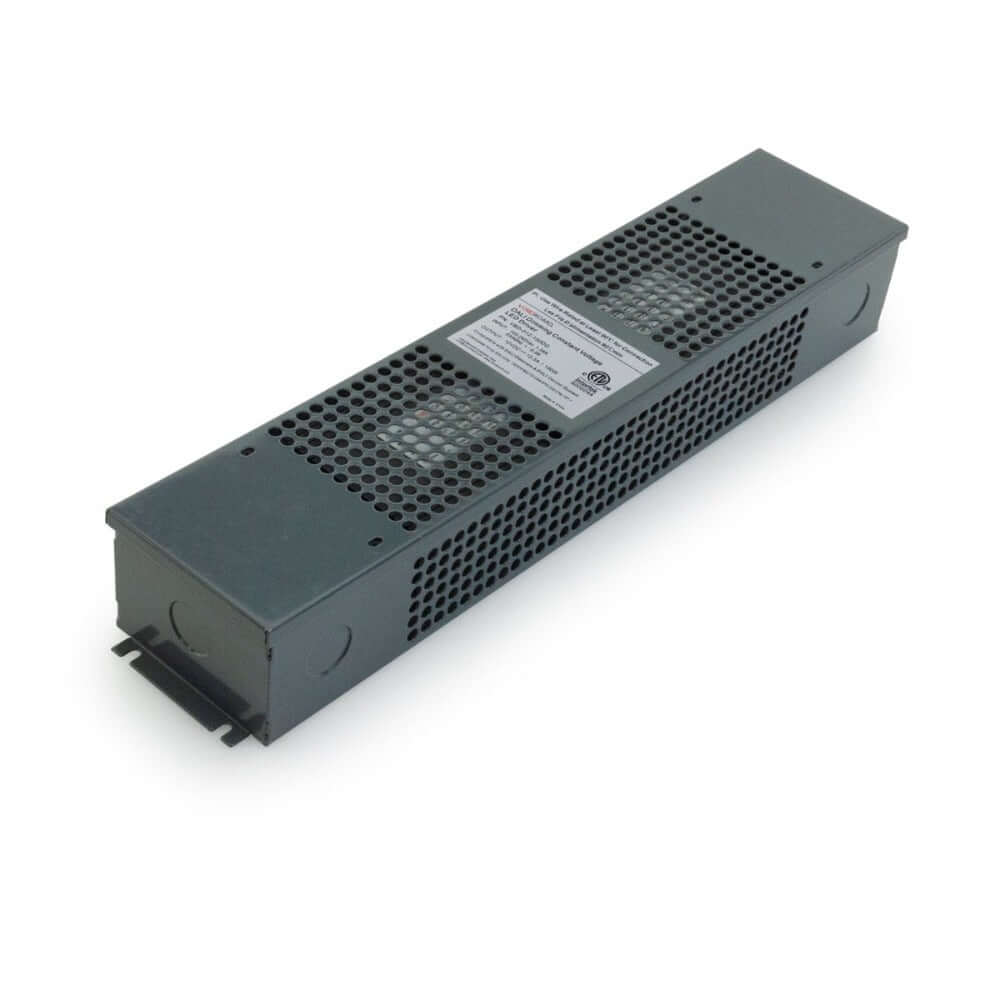

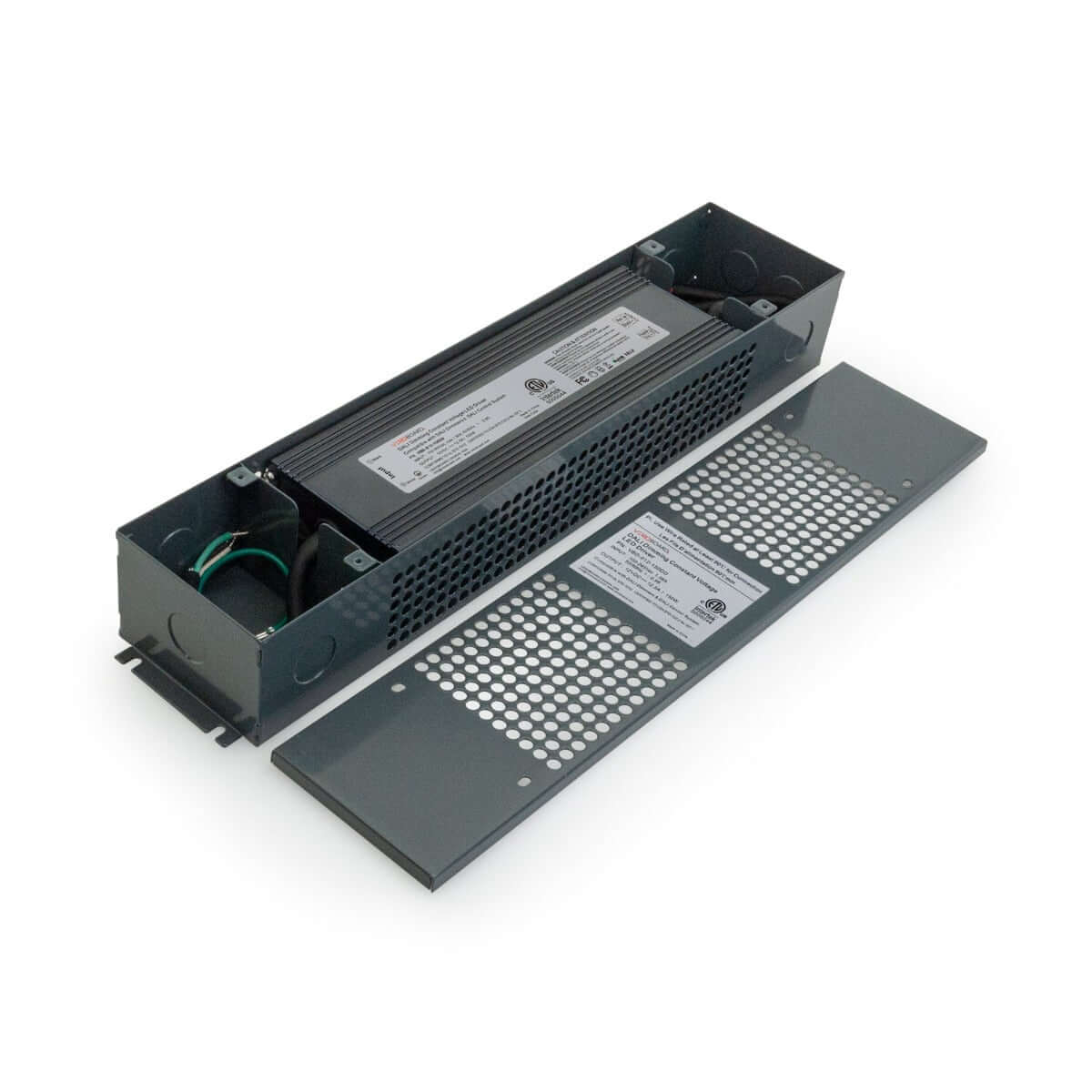

VBD-012-150DD Dali Dimmable Constant Voltage LED Driver, 12V 12.5A 150W

  • $265.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427351
Title:
We only have 50 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model VBD-012-150DD
Input Voltage 100-265V AC
Input Current 1.56A
Frequency 50/60 Hz
Output Voltage 12V DC
Output regulated Current 12.5A
Output Power 150W max
Power Factor 0.95
Dimmable Yes (Dali Dimming)
IP Rating IP65

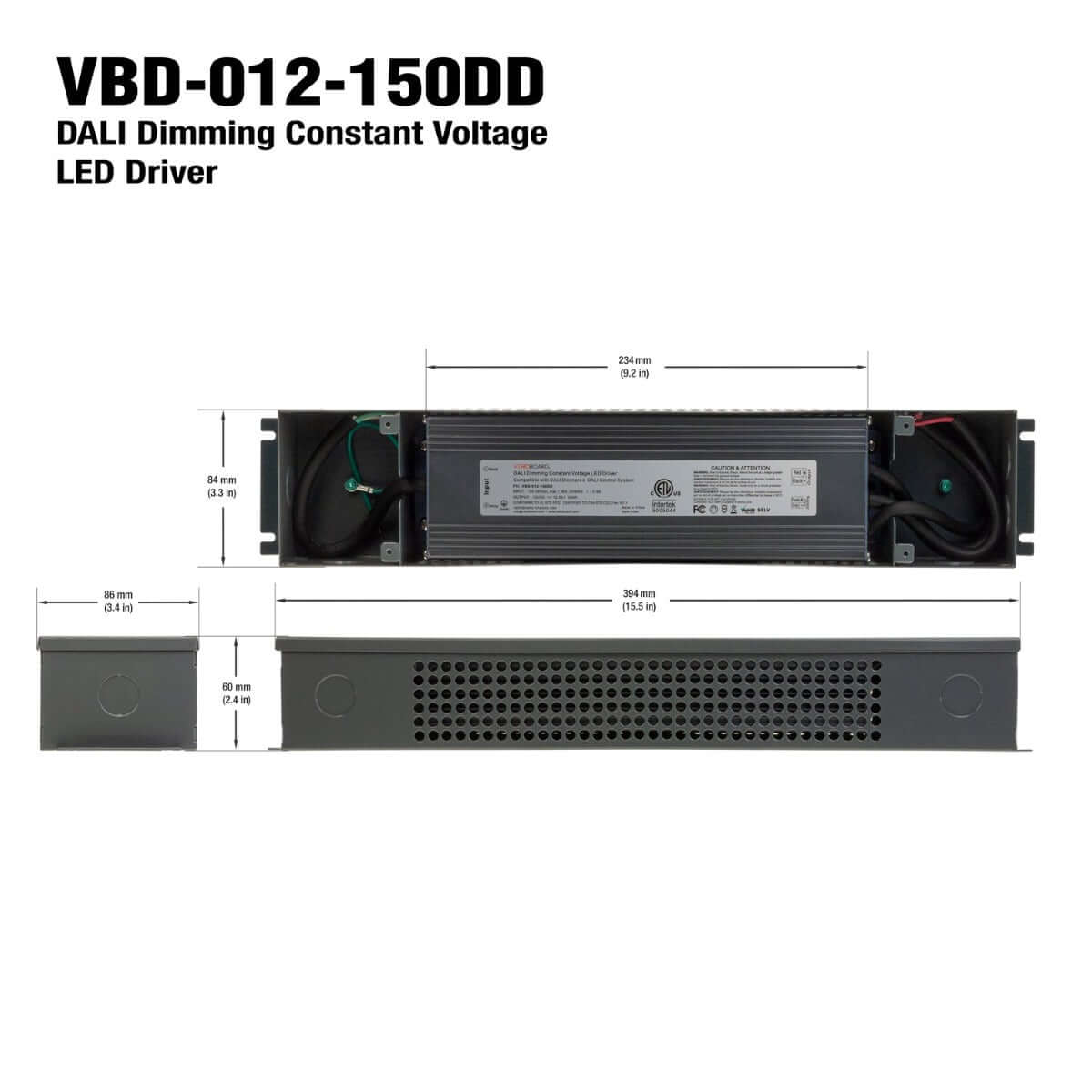

Dimensions (Without Box) 234 x 76 x 43mm (9.2 x 3 x 1.6 in)
Dimensions (Box) 394 x 84 x 60mm (15.5 x 3.3 x 2.5 in)
Certification




The VBD-012-150DD is a constant voltage LED driver with a maximum output power of 150W. It has an input voltage range of 100-265V AC and an input current of 1.56A. The driver has a frequency of 50/60 Hz and a power factor of 0.95.

The output voltage is 12V DC and the output regulated current is 12.5A. The driver is dimmable with Dali Dimming and has an IP rating of IP65. The dimensions of the driver without the box are 234 x 76 x 43mm (9.2 x 3 x 1.6 in) and with the box are 394 x 84 x 60mm (15.5 x 3.3 x 2.5 in).

Features:

  • Constant voltage LED driver with a maximum output power of 150W
  • Input voltage range of 100-265V AC and input current of 1.56A
  • Frequency of 50/60 Hz and power factor of 0.95 for efficient performance
  • Output voltage of 12V DC and output regulated current of 12.5A
  • Dimmable with Dali Dimming technology for precise control of lighting levels
  • IP65 rating, suitable for use in damp and wet locations
  • Dimensions without the box: 234 x 76 x 43mm (9.2 x 3 x 1.6 in)
  • Dimensions with the box: 394 x 84 x 60mm (15.5 x 3.3 x 2.5 in)
