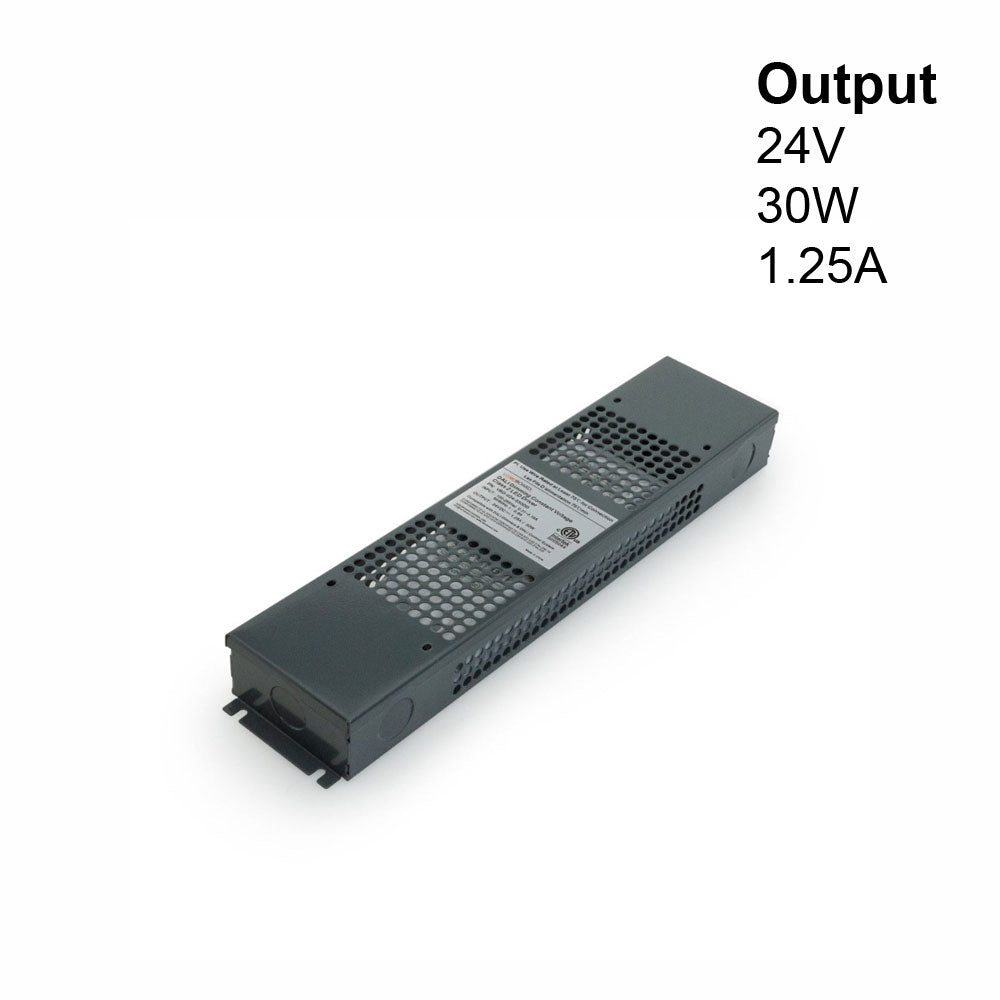

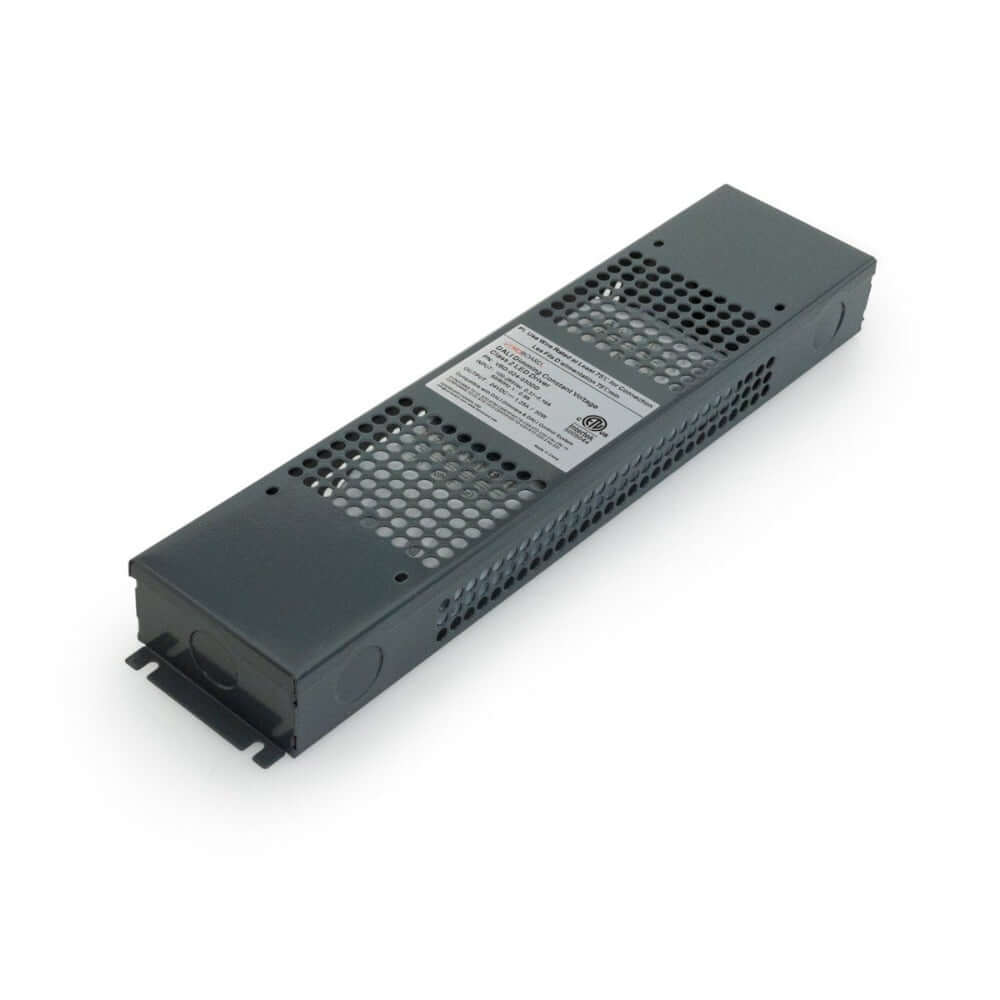

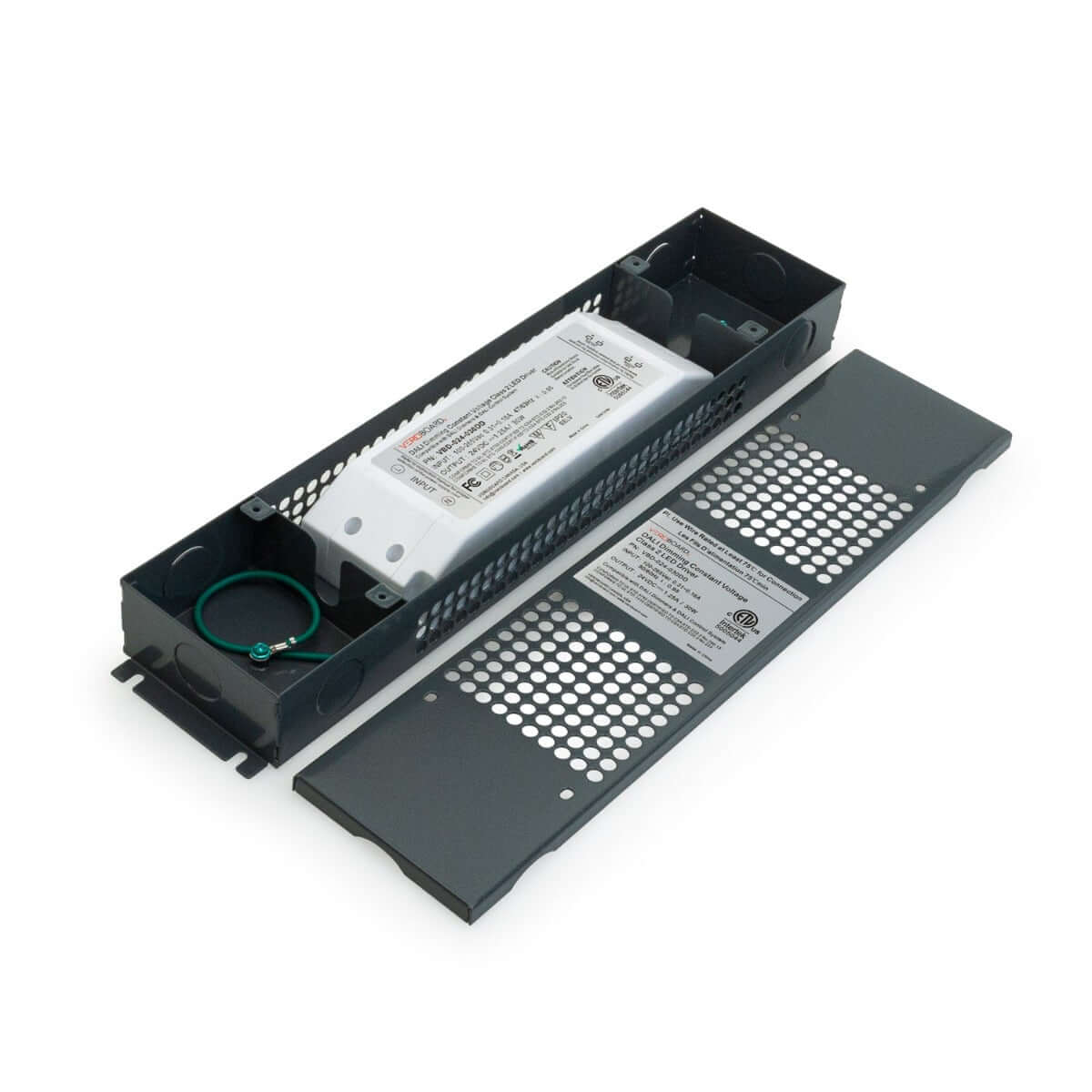

VBD-024-030DD Dali Dimmable Constant Voltage LED Driver, 24V 1.25A 30W

  • $135.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427306
Title:
We only have 46 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model VBD-024-030DD
Input Voltage 100-265V AC
Input Current 0.31~0.16A
Frequency 47/63 Hz
Output Voltage 24V DC
Output regulated Current 1.25A
Output Power 30W max
Power Factor 0.95
Dimmable Yes (Dali Dimming)
IP Rating IP20

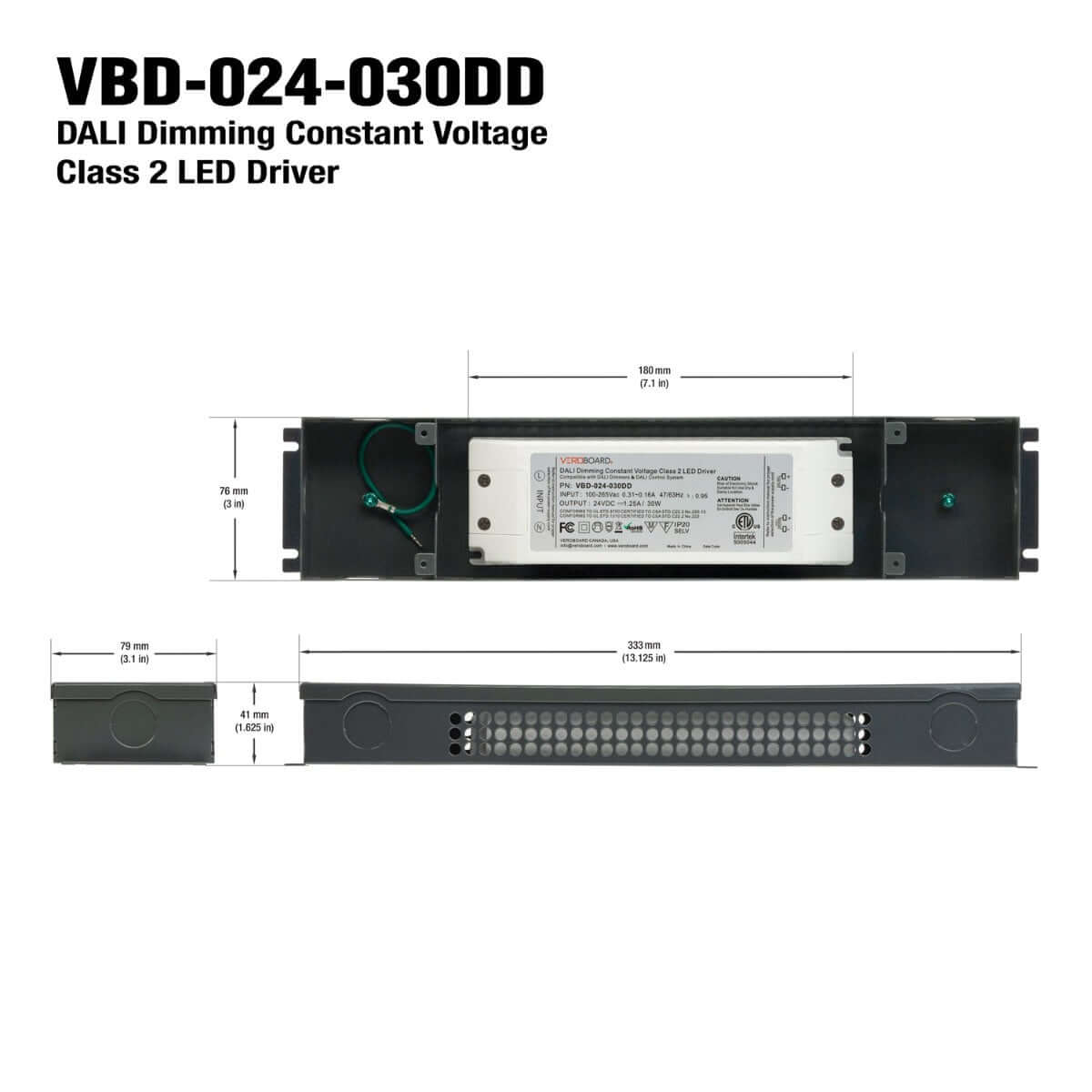

Dimensions (Without Box) 180 x 60 x 35mm (7.1 x 2.3 x 1.3 in)
Dimensions (Box) 333 x 76 x 41mm (13.1 x 3 x 1.6 in)
Certification




The VBD-024-030DD LED driver is a Dali dimmable constant voltage driver designed for powering LED lights. It has an input voltage range of 100-265V AC with an input current of 0.31~0.16A at a frequency of 47/63 Hz.

The output voltage of this LED driver is 24V DC with a regulated output current of 1.25A and a maximum output power of 30W. It has a high power factor of 0.95, indicating high efficiency in power usage.

This LED driver is dimmable with Dali dimming, which allows for precise control over the lighting output. It is rated IP20, which means it is suitable for use in indoor dry environments.

Overall, the VBD-024-030DD LED driver is a reliable and high-performance solution for powering LED lights in indoor environments, especially in applications that require precise dimming control using Dali dimming. With its high power factor and regulated output current, it offers efficient power usage and precise control over the lighting output, making it an excellent choice for a variety of lighting applications.

Features:

  • Input Voltage Range: 100-265V AC, compatible with a wide range of power sources.
  • Input Current: 0.31~0.16A, allowing for efficient power consumption.
  • Frequency: 47/63 Hz, suitable for various electrical systems.
  • Output Voltage: 24V DC, providing a constant voltage for LED lighting.
  • Regulated Output Current: 1.25A, delivering a stable current for LED applications.
  • Maximum Output Power: 30W, suitable for low-power LED lighting setups.
  • Dimming Capability: Dali dimming, enabling precise control over lighting output.
  • IP Rating: IP20, suitable for indoor dry environments.
  • Compact Dimensions (without box): 180 x 60 x 35mm (7.1 x 2.3 x 1.3 in), allowing for easy installation in tight spaces.
  • Dimensions (with box): 333 x 76 x 41mm (13.1 x 3 x 1.6 in), including the box dimensions.
  • Certification: ETL and FCC certified, ensuring safety and compliance with industry standards.
