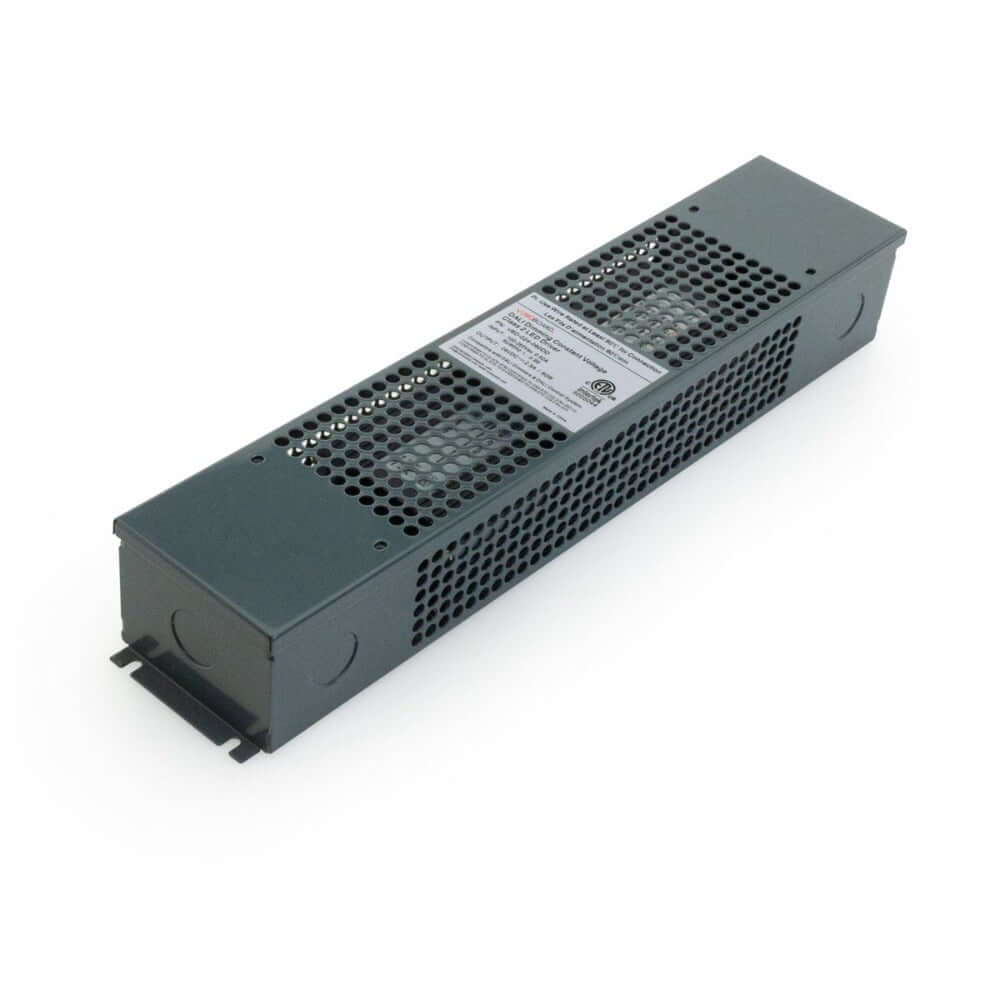

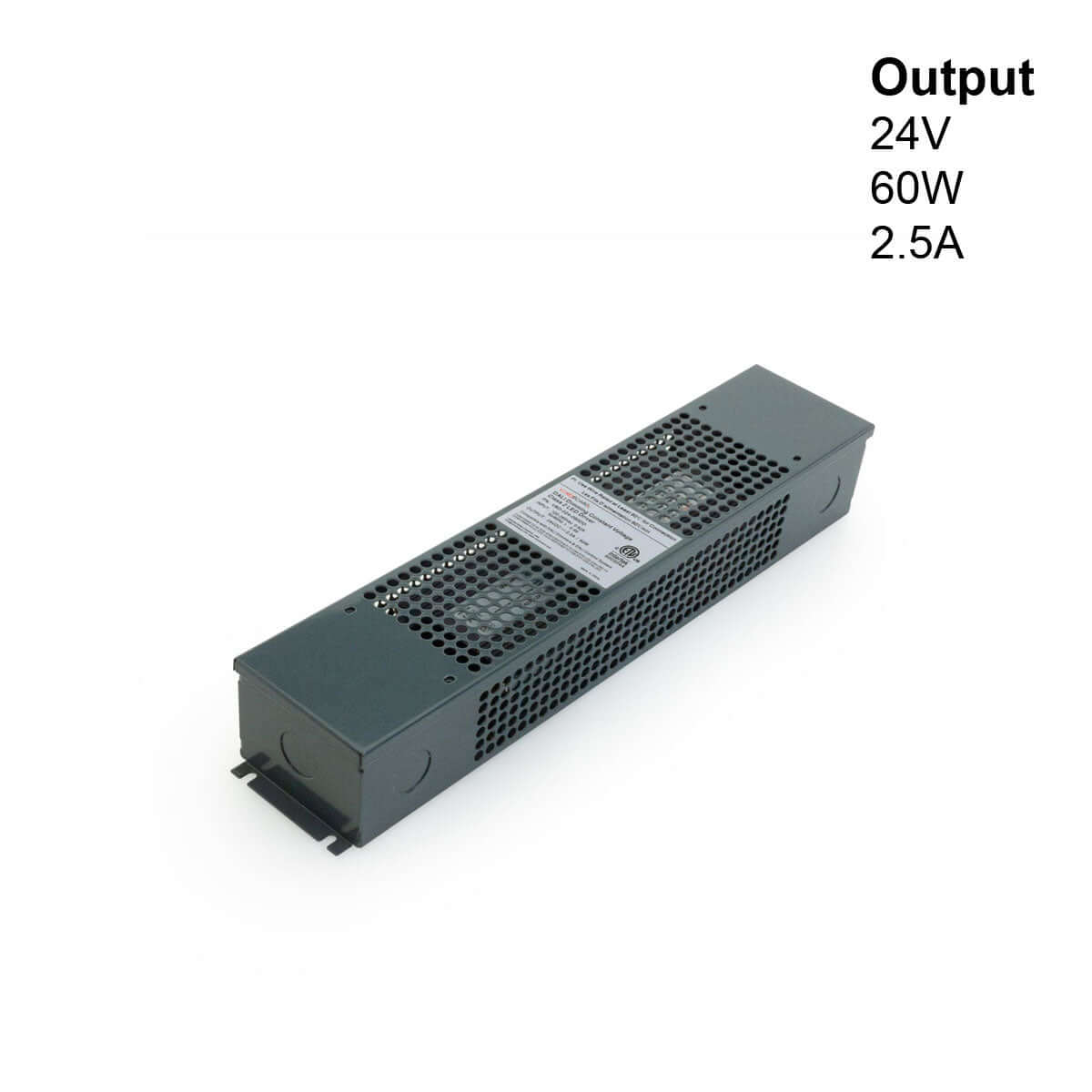

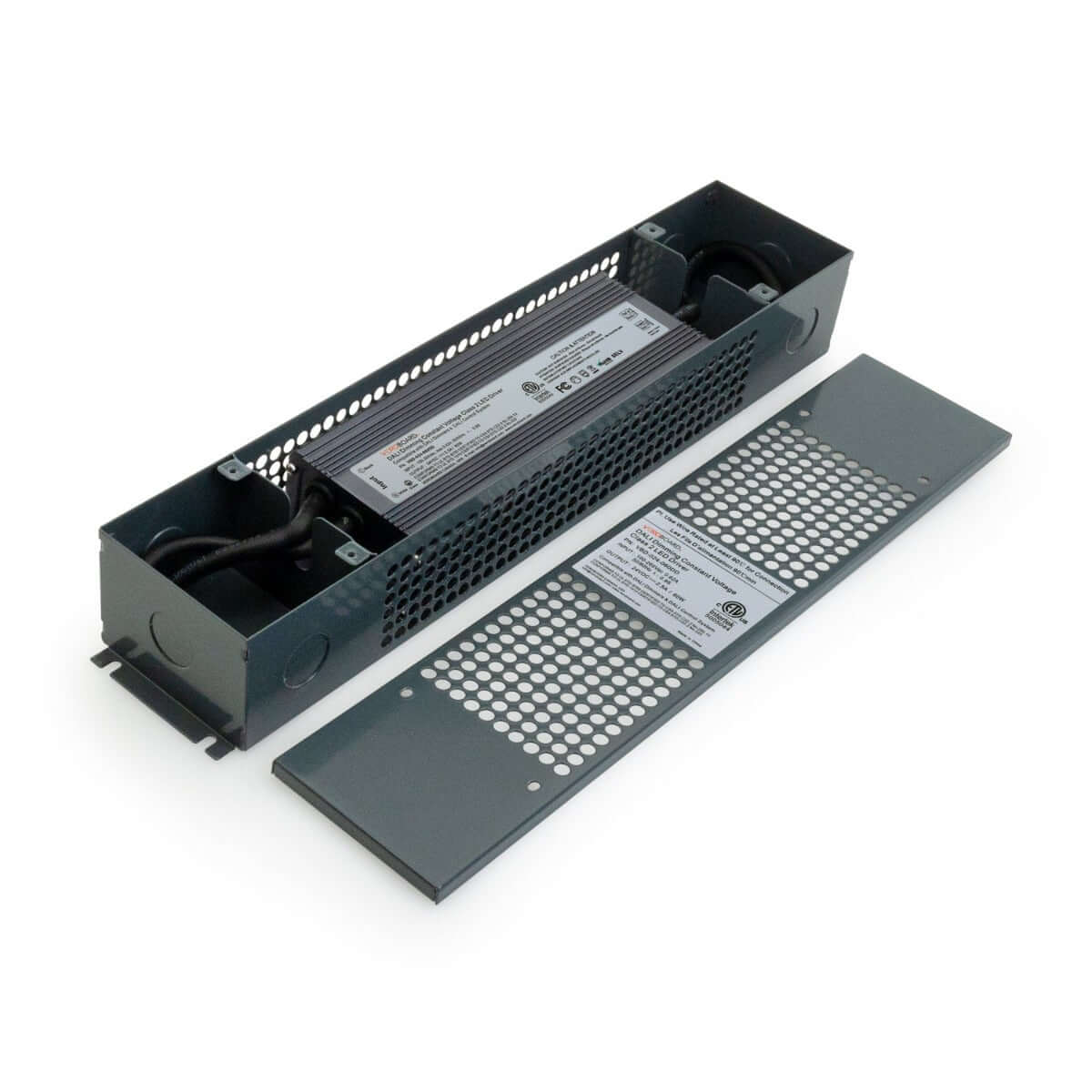

VBD-024-060DD Dali Dimmable Constant Voltage LED Driver, 24V 2.5A 60W

  • $170.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427320
Title:
We only have 50 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model VBD-024-060DD
Input Voltage 100-265V AC
Input Current 0.62A
Frequency 50/60 Hz
Output Voltage 24V DC
Output regulated Current 2.5A
Output Power 60W max
Power Factor 0.95
Dimmable Yes (Dali Dimming)
IP Rating IP65

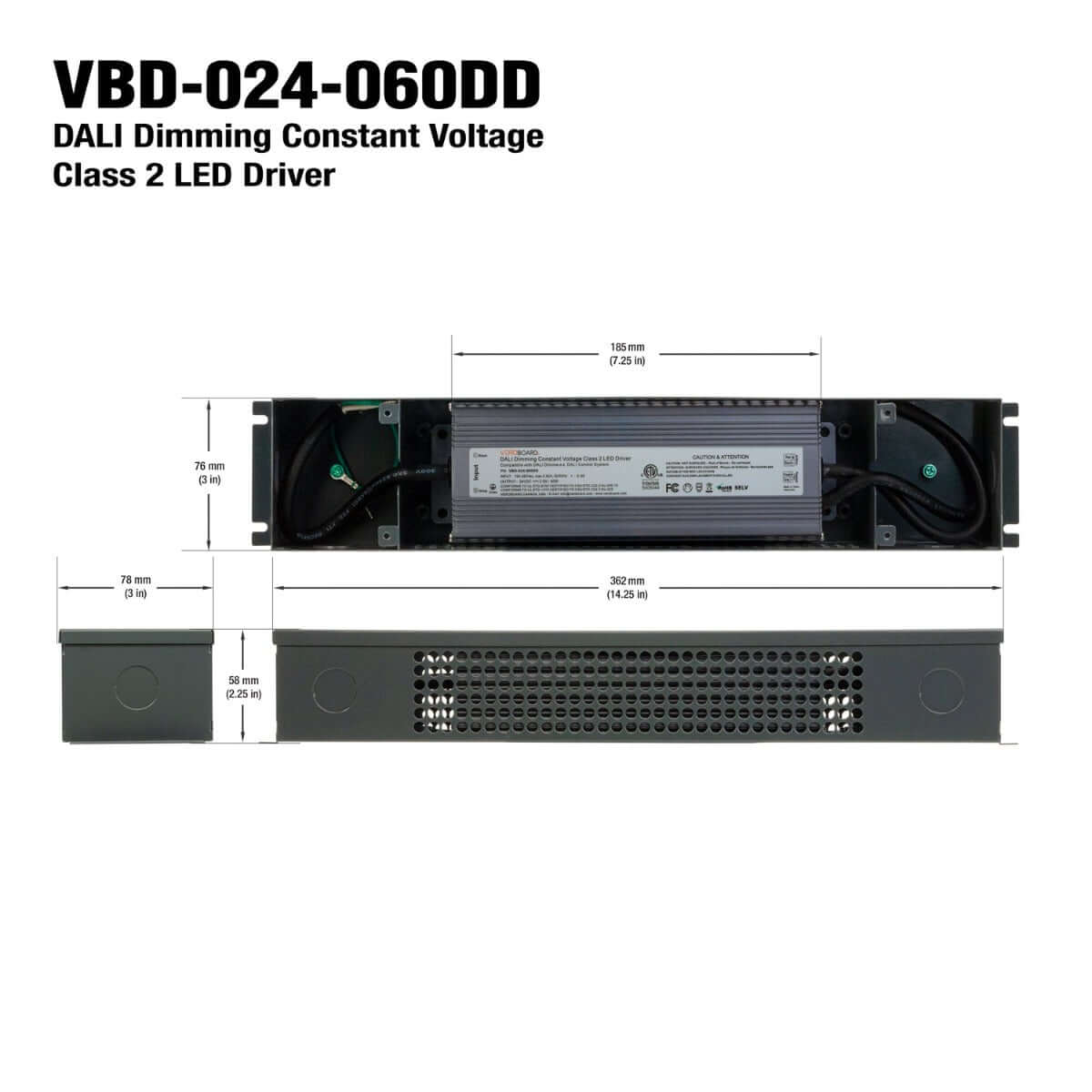

Dimensions (Without Box) 185 x 67 x 40mm (7.25 x 2.6 x 1.5 in)
Dimensions (Box) 362 x 78 x 58mm (14.25 x 3 x 2.25 in)
Certification




The VBD-024-060DD is a Dali dimmable constant voltage LED driver with an output voltage of 24V DC, output regulated current of 2.5A, and a maximum output power of 60W. It has an input voltage range of 100-265V AC, input current of 0.62A, and a frequency of 50/60 Hz. The driver is dimmable using Dali dimming technology and has an IP65 rating for protection against dust and water. The dimensions of the driver are 185 x 67 x 40mm (7.25 x 2.6 x 1.5 in) without the box and 362 x 78 x 58mm (14.25 x 3 x 2.25 in) with the box. The driver is certified by ETL and FCC.

Features:

  • Dali dimmable constant voltage LED driver
  • Output voltage of 24V DC
  • Output regulated current of 2.5A
  • Maximum output power of 60W
  • Input voltage range of 100-265V AC
  • Input current of 0.62A
  • Frequency of 50/60 Hz
  • Dimmable using Dali dimming technology
  • IP65 rating for protection against dust and water
  • Dimensions without the box: 185 x 67 x 40mm (7.25 x 2.6 x 1.5 in)
  • Dimensions with the box: 362 x 78 x 58mm (14.25 x 3 x 2.25 in)
  • Certified by ETL and FCC
