VBD-024-096DD Dali Dimmable Constant Voltage LED Driver, 24V 4A 96W

  • $220.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427344
Title:
We only have 42 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model VBD-024-096DD
Input Voltage 100-265V AC
Input Current 1.0A
Frequency 50/60 Hz
Output Voltage 24V DC
Output regulated Current 4.0A
Output Power 96W max
Power Factor 0.95
Dimmable Yes (Dali Dimming)
IP Rating IP65

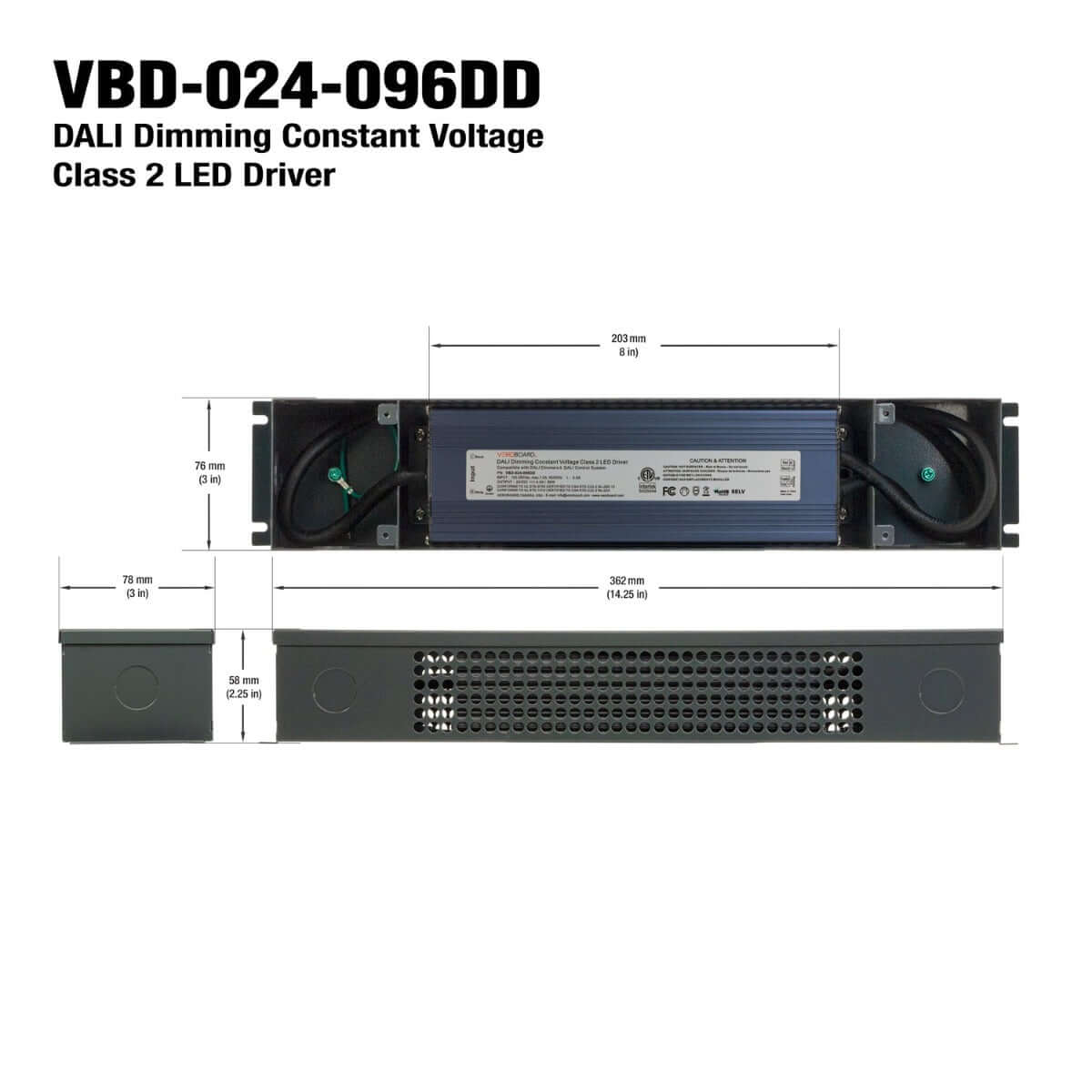

Dimensions (Without Box) 203 x 69 x 40mm (8 x 2.7 x 1.5 in)
Dimensions (Box) 362 x 78 x 58mm (14.25 x 3 x 2.25 in)
Certification




The VBD-024-096DD is a 24V 4A 96W constant voltage LED driver that features Dali dimming. It has an input voltage range of 100-265V AC with a power factor of 0.95. The output voltage is 24V DC with a regulated current of 4.0A and a maximum output power of 96W. It has an IP rating of IP65 and comes in a compact size with dimensions of 203 x 69 x 40mm (8 x 2.7 x 1.5 in) without box and 362 x 78 x 58mm (14.25 x 3 x 2.25 in) with box. It is certified by ETL and FCC.

Features:

  • Constant voltage LED driver with a maximum output power of 96W
  • Input voltage range of 100-265V AC with a power factor of 0.95
  • Output voltage of 24V DC with a regulated current of 4.0A
  • Dali dimming technology for precise control of lighting levels
  • IP65 rating, suitable for use in damp and wet locations
  • Compact size with dimensions of 203 x 69 x 40mm (8 x 2.7 x 1.5 in) without box and 362 x 78 x 58mm (14.25 x 3 x 2.25 in) with box
  • Certified by ETL and FCC for safety and compliance with industry standards.
