VBD-024-150DD Dali Dimmable Constant Voltage LED Driver, 24V 6.25A 150W

  • $265.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427368
Title:
We only have 46 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model VBD-024-150DD
Input Voltage 100-265V AC
Input Current 1.56A
Frequency 50/60 Hz
Output Voltage 24V DC
Output regulated Current 6.25A
Output Power 150W max
Power Factor 0.95
Dimmable Yes (Dali Dimming)
IP Rating IP67

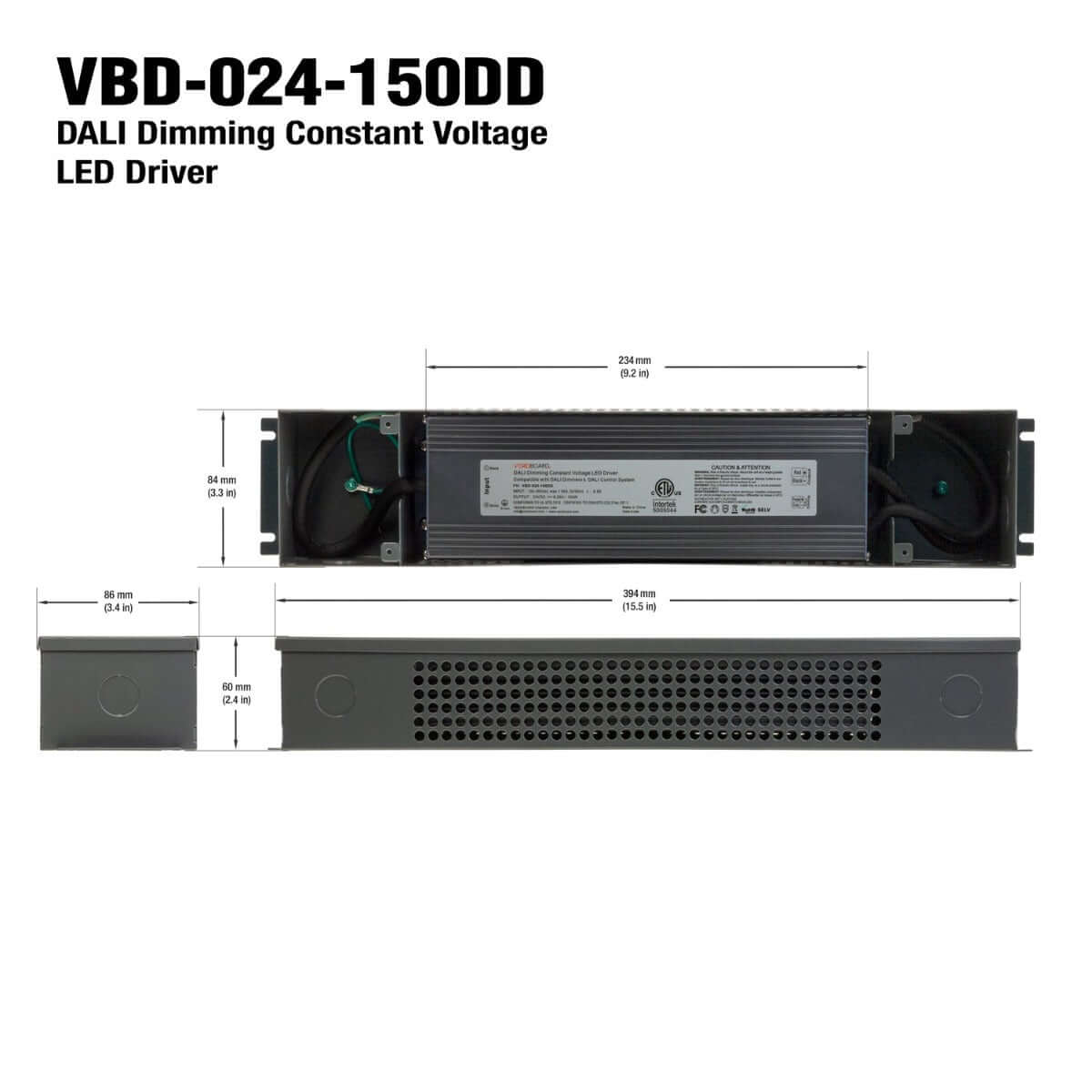

Dimensions (Without Box) 234 x 76 x 43mm (9.2 x 3 x 1.6 in)
Dimensions (Box) 394 x 84 x 60mm (15.5 x 3.3 x 2.4 in)
Certification




The VBD-024-150DD is a Dali Dimmable Constant Voltage LED Driver designed for 24V LED lighting systems. It has an input voltage range of 100-265V AC and an input current of 1.56A. The driver has a frequency range of 50/60 Hz and a power factor of 0.95, ensuring high efficiency and energy-saving performance.

The output voltage is 24V DC, with a regulated current of 6.25A, and a maximum output power of 150W. The driver is also dimmable using Dali Dimming technology, allowing for precise control of lighting levels.

The VBD-024-150DD has an IP67 rating, making it suitable for use in damp and wet locations. Its dimensions without the box are 234 x 76 x 43mm (9.2 x 3 x 1.6 in), while the dimensions with the box are 394 x 84 x 60mm (15.5 x 3.3 x 2.4 in).

The driver is ETL and FCC certified, ensuring safety and compliance with industry standards.

Features:

  • Dali Dimmable Constant Voltage LED Driver for 24V LED lighting systems
  • Input voltage range of 100-265V AC and input current of 1.56A
  • Frequency range of 50/60 Hz and power factor of 0.95 for high efficiency and energy-saving performance
  • Output voltage of 24V DC, with a regulated current of 6.25A and a maximum output power of 150W
  • Dimmable using Dali Dimming technology for precise control of lighting levels
  • IP67 rating, suitable for use in damp and wet locations
  • Dimensions without the box: 234 x 76 x 43mm (9.2 x 3 x 1.6 in)
  • Dimensions with the box: 394 x 84 x 60mm (15.5 x 3.3 x 2.4 in)
  • ETL and FCC certified for safety and compliance with industry standards.
