VBD-024-200DD Dali Dimmable Constant Voltage LED Driver, 24V 8.33A 200W

  • $297.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427375
Title:
We only have 40 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Model VBD-024-200DD
Input Voltage 100-265V AC
Input Current 2.08A
Frequency 50/60 Hz

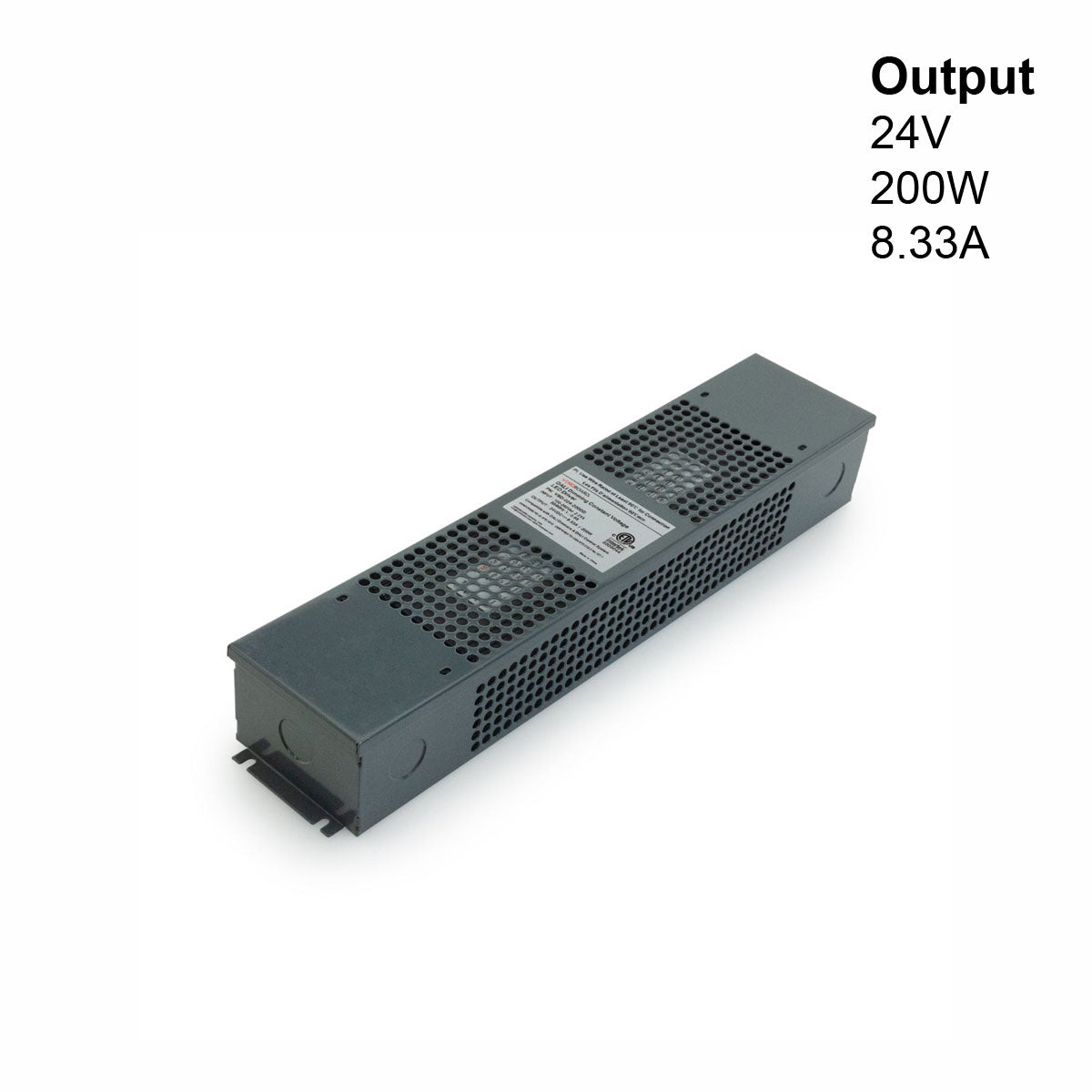

Output Voltage 24V DC
Output regulated Current 8.33A
Output Power 200W max
Power Factor 0.95
Dimmable Yes (Dali Dimming)
IP Rating IP65

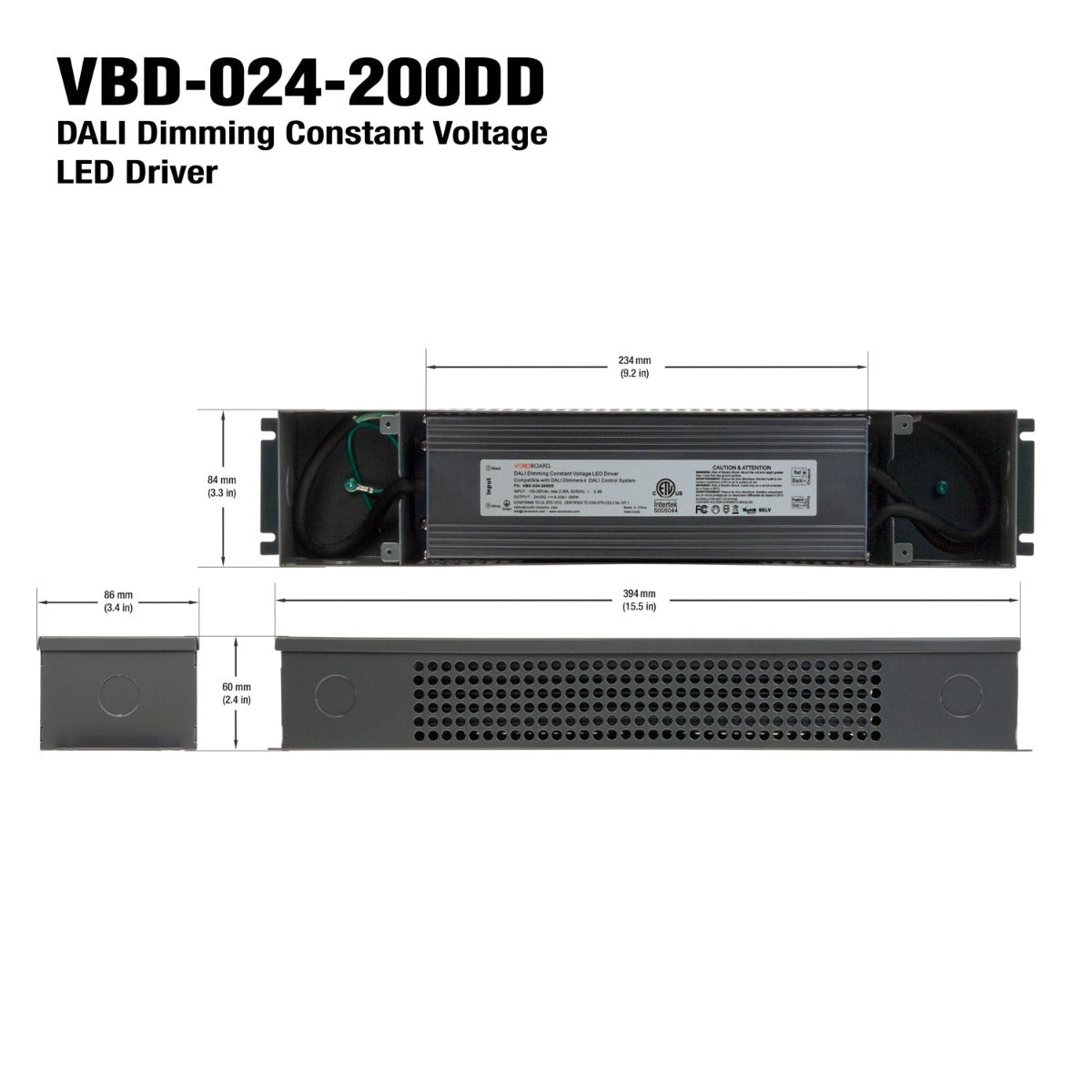

Dimensions (Without Box) 234 x 76 x 43mm (9.2 x 3 x 1.6 in)
Dimensions (Box) 394 x 84 x 60mm (15.5 x 3.3 x 2.5 in)
Certification




The VBD-024-200DD is a Dali Dimmable Constant Voltage LED Driver with an input voltage range of 100-265V AC and input current of 2.08A. It has an output voltage of 24V DC and output regulated current of 8.33A, with a maximum output power of 200W. The power factor is 0.95, and the driver is dimmable using Dali Dimming. It has an IP65 rating and its dimensions (without box) are 234 x 76 x 43mm (9.2 x 3 x 1.6 in). The dimensions with the box are 394 x 84 x 60mm (15.5 x 3.3 x 2.5 in). The VBD-024-200DD is certified by ETL and FCC.

Features:

  • Dali Dimmable Constant Voltage LED Driver
  • Input voltage range of 100-265V AC and input current of 2.08A
  • Output voltage of 24V DC and output regulated current of 8.33A, with a maximum output power of 200W
  • Power factor of 0.95 and dimmable using Dali Dimming
  • IP65 rating and dimensions (without box) of 234 x 76 x 43mm (9.2 x 3 x 1.6 in)
  • Dimensions with the box are 394 x 84 x 60mm (15.5 x 3.3 x 2.5 in)
  • Certified by ETL and FCC
