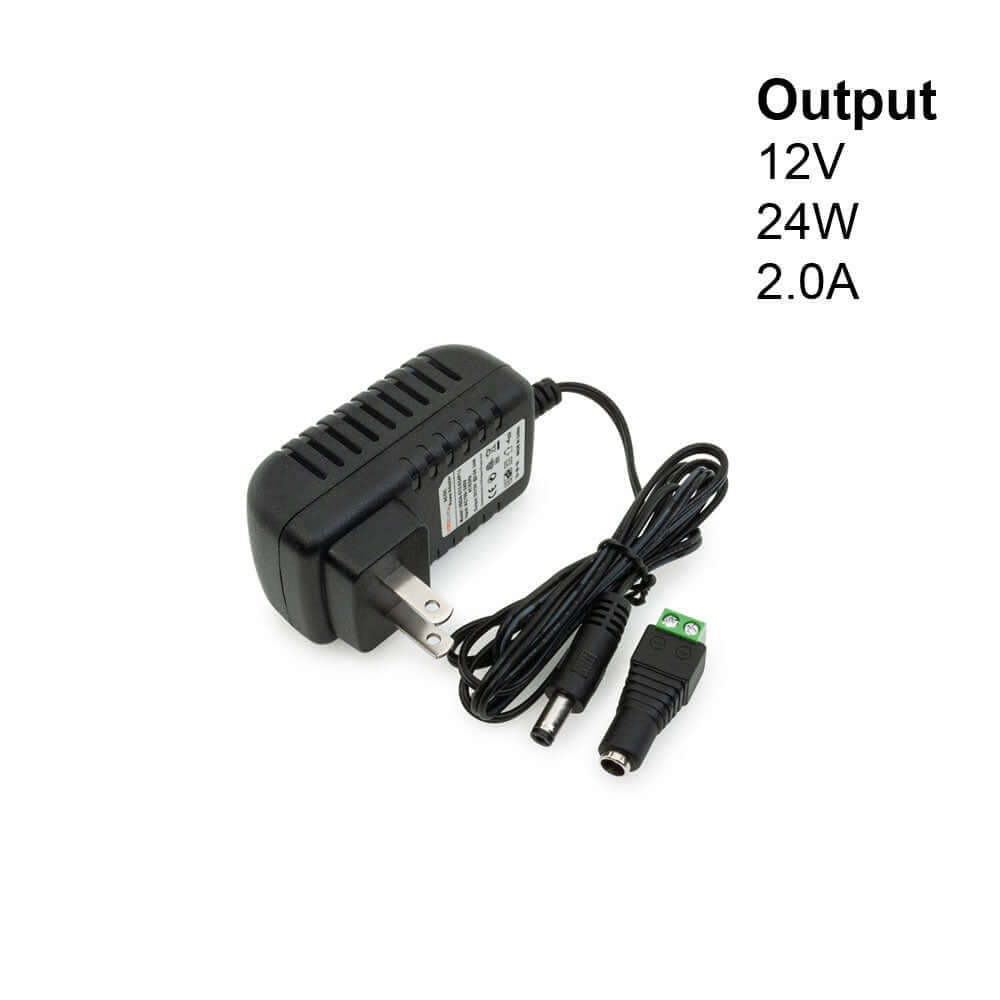

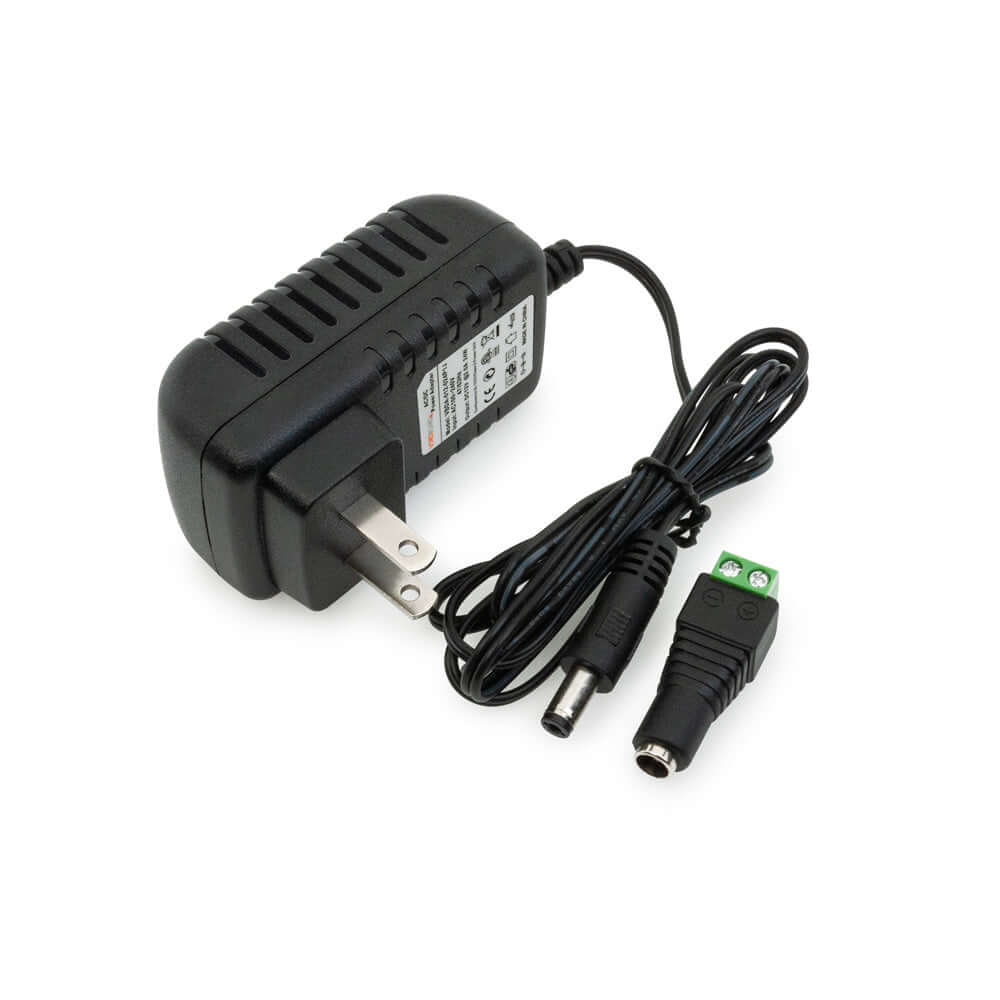

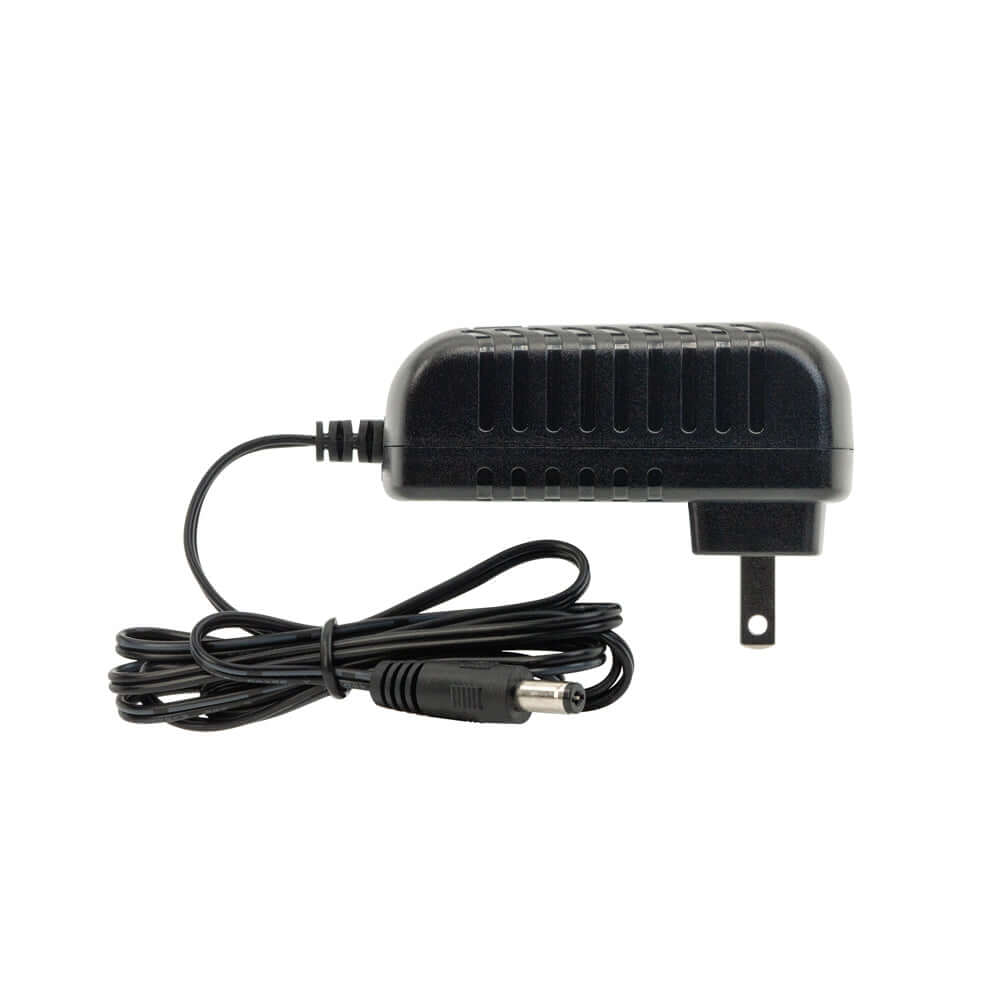

VBDA-012-024P1J Non-Dimmable Constant Voltage Plug-In Adaptor, 12V 24W
|Input voltage||100 - 240V AC|
|Output voltage||12V DC|
|Output max Power||24W max|
|IP Rating||IP20 (Indoor use only)|
|Class Certification||Class 2/ Class II|
|Dimensions||120 x 34 x 34mm (4.7 x 1.3 x 1.3in)|
The VBDA-012-024P1J is a constant voltage plug-in adaptor designed to convert 100-240V AC input voltage to 12V DC output voltage, with an output power of 24W maximum. The adaptor has an input current of 0.2A and a frequency of 47/63Hz.
This plug-in adaptor is not dimmable and has an IP20 rating, which means it is suitable for indoor use only. The wire length is 43 inches for flexibility in placement. The adaptor has Class 2/Class II certification, indicating that it provides double insulation and does not rely on an earth connection for safety.
The dimensions of the adaptor are 120 x 34 x 34mm (4.7 x 1.3 x 1.3in). The adaptor is certified with ETL certification, which indicates that it has been tested and certified to meet certain safety and performance standards.
- Converts 100-240V AC input voltage to 12V DC output voltage
- Maximum output power of 24W
- Input current of 0.2A and a frequency of 47/63Hz
- IP20 rating suitable for indoor use only
- 43-inch wire length for flexibility in placement
- Class 2/Class II certification provides double insulation and does not rely on an earth connection for safety
- Dimensions: 120 x 34 x 34mm (4.7 x 1.3 x 1.3in)
- ETL certification indicating that it has been tested and certified to meet certain safety and performance standards.
