VBDA-012-036P1J Constant Voltage Plug-In Adaptor, 12V 36W
Product Description
| Model | VBDA-012-036P1J |
| Input voltage | 100 - 240V AC |
| Input Current | 0.2A |
| Frequency | 47/63Hz |

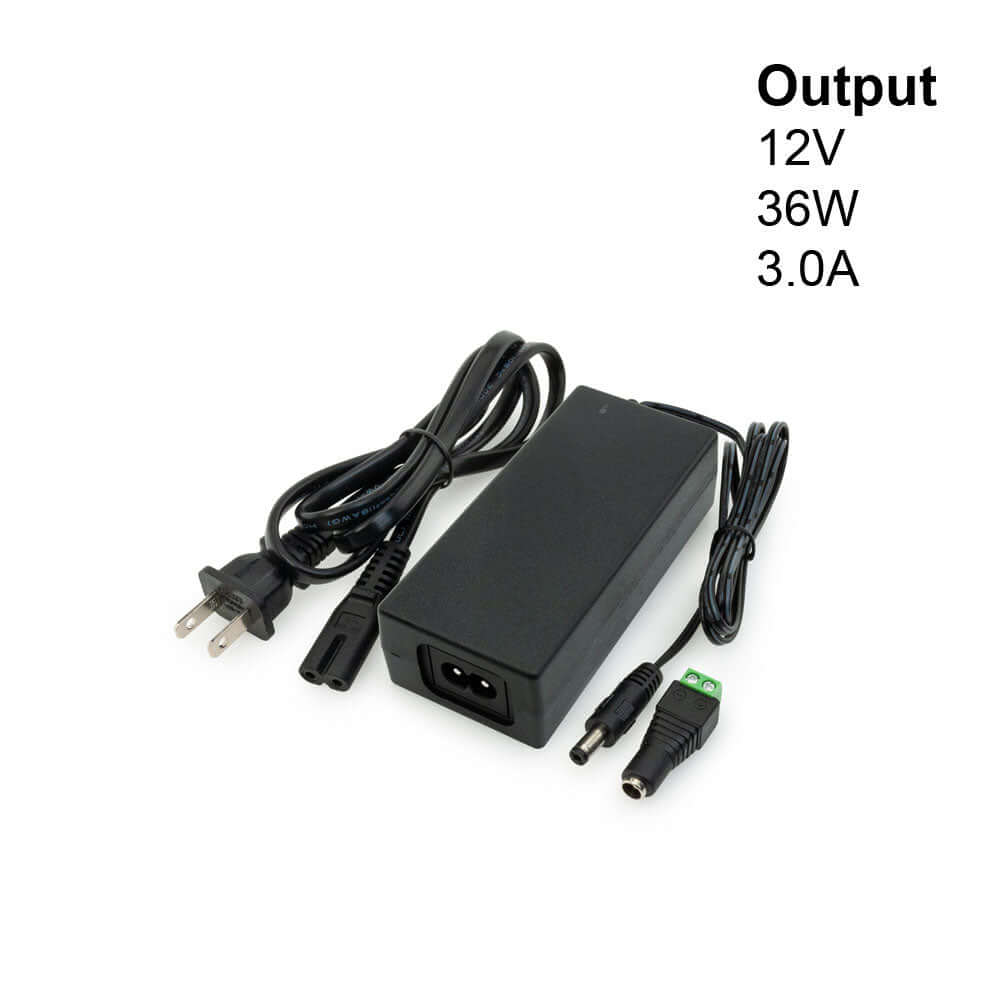

| Output voltage | 12V DC |
| Output Current | 3.0A |
| Output max Power | 36W max |
| Dimmable | No |
| IP Rating | IP20 (Indoor use only) |
| Wire Length | Power Cord: 43inch Low Voltage Wire: 43inch |

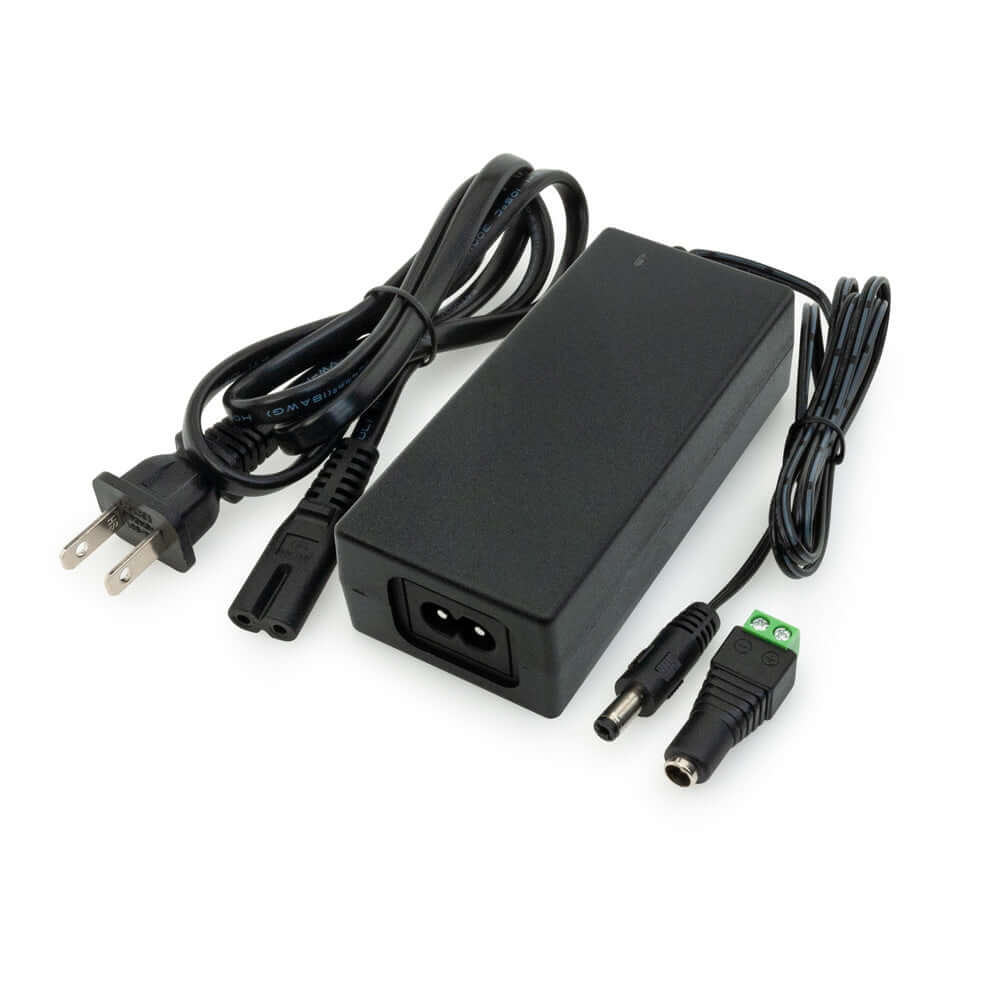

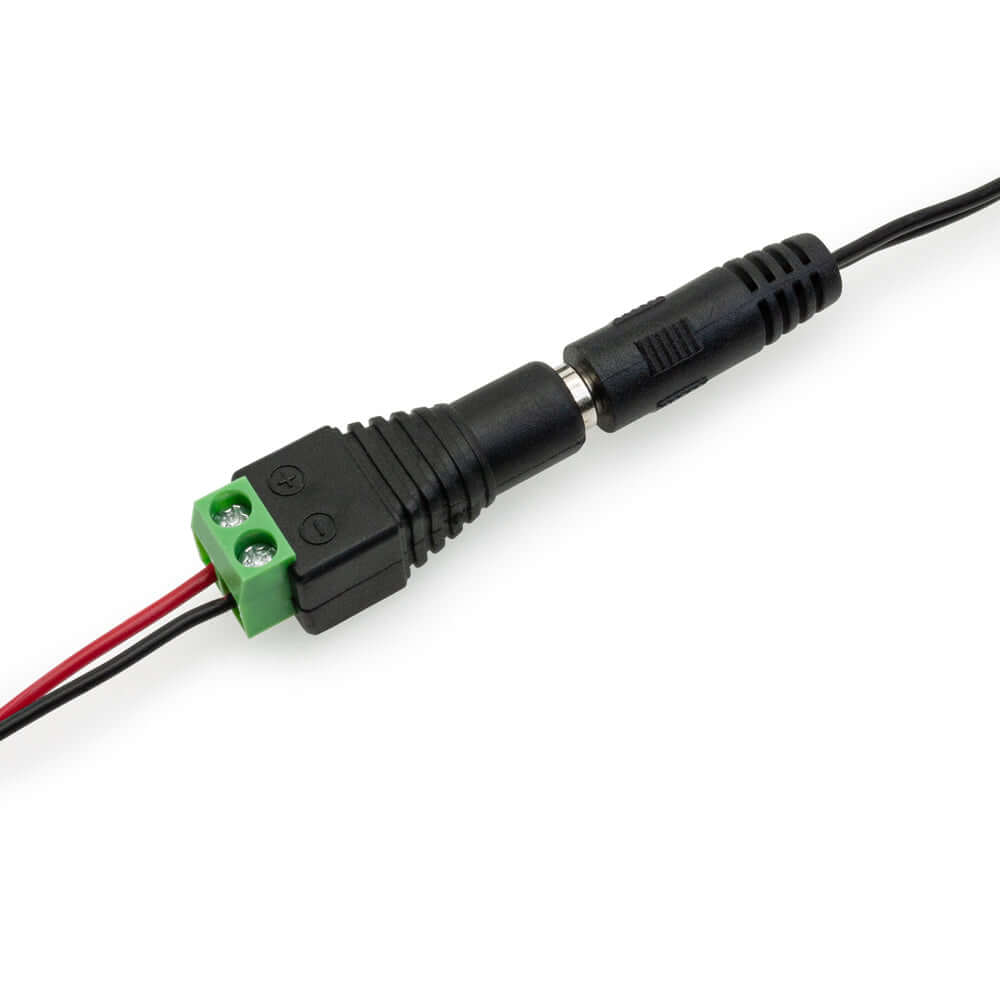

| Product Content | Power cord & 2.1mm connector to wire |
| Class Certification | Class 2/ Class II |

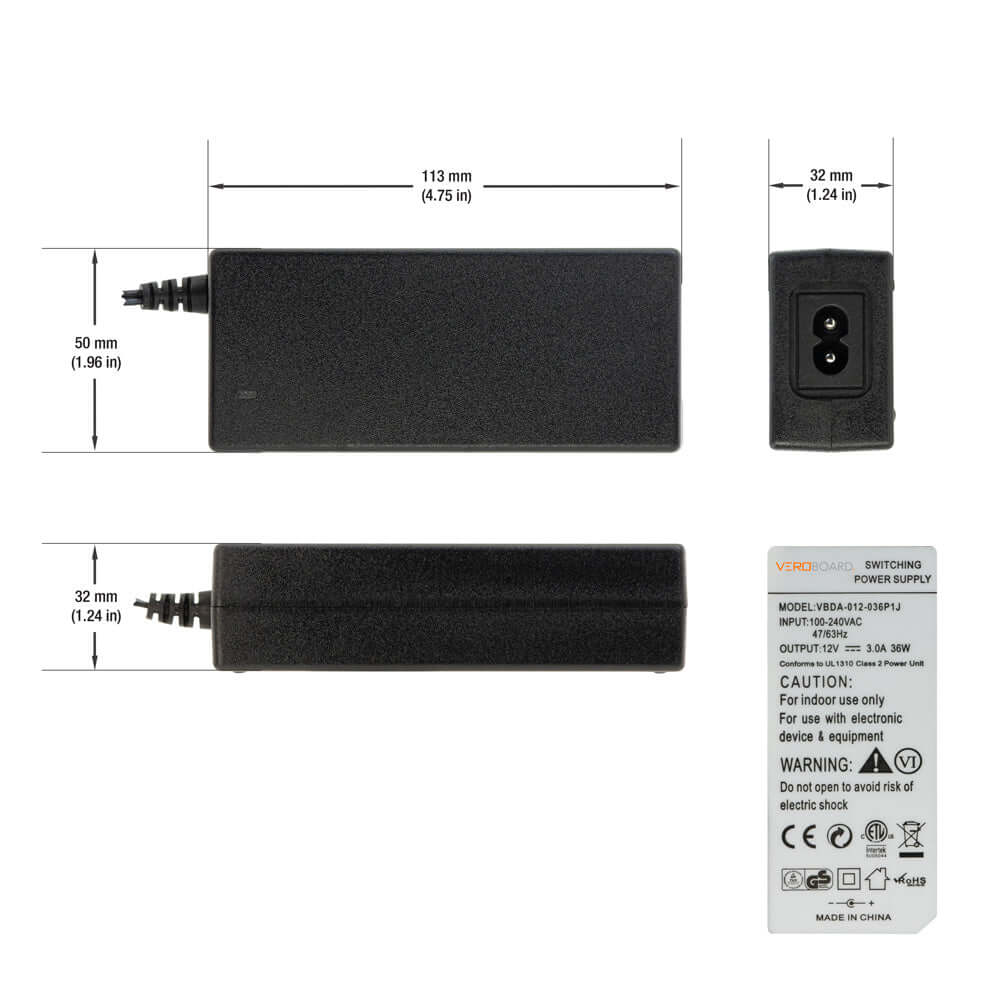

| Dimensions | 113 x 50 x 32mm (4.7 x 1.9 x 1.2in) |
| Certification |

|
The VBDA-012-036P1J is a constant voltage plug-in adaptor that is designed to convert input voltage ranging from 100-240V AC to 12V DC output voltage. It has an input current of 0.2A and a frequency of 47/63Hz. The maximum output power of the adaptor is 36W.
This plug-in adaptor is not dimmable and has an IP20 rating, which means it is suitable for indoor use only. It comes with a power cord and a 2.1mm connector to wire, and has a wire length of 43 inches for both the power cord and low voltage wire, allowing for flexibility in placement.
The adaptor has Class 2/Class II certification, providing double insulation and does not rely on an earth connection for safety. The dimensions of the adaptor are 113 x 50 x 32mm (4.7 x 1.9 x 1.2in), making it compact and easy to install.
The VBDA-012-036P1J is certified with ETL certification, indicating that it has been tested and certified to meet certain safety and performance standards.
Overall, the VBDA-012-036P1J is a reliable and efficient constant voltage plug-in adaptor suitable for indoor use, with a high level of safety certification and compact design for ease of use. It is an ideal solution for applications that require a 12V DC output voltage and up to 36W of power.
Features:
- Converts input voltage ranging from 100-240V AC to 12V DC output voltage
- Maximum output power of 36W
- Input current of 0.2A and frequency of 47/63Hz
- Non-dimmable and suitable for indoor use only with IP20 rating
- Comes with a power cord and a 2.1mm connector to wire, with a wire length of 43 inches for both the power cord and low voltage wire
- Class 2/Class II certification, providing double insulation and no reliance on an earth connection for safety
- Compact dimensions of 113 x 50 x 32mm (4.7 x 1.9 x 1.2in) for easy installation
- Certified with ETL certification for safety and performance standards
