VBDA-024-024P1J Non-Dimmable Constant Voltage Plug-In Adaptor, 24V 24W

  • $18.90 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428969
Title:
We only have 980 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Product Plug-In LED Driver
Model VBDA-024-024P1J
Input voltage 100 - 240V AC
Input Current 0.2A
Frequency 47/63Hz

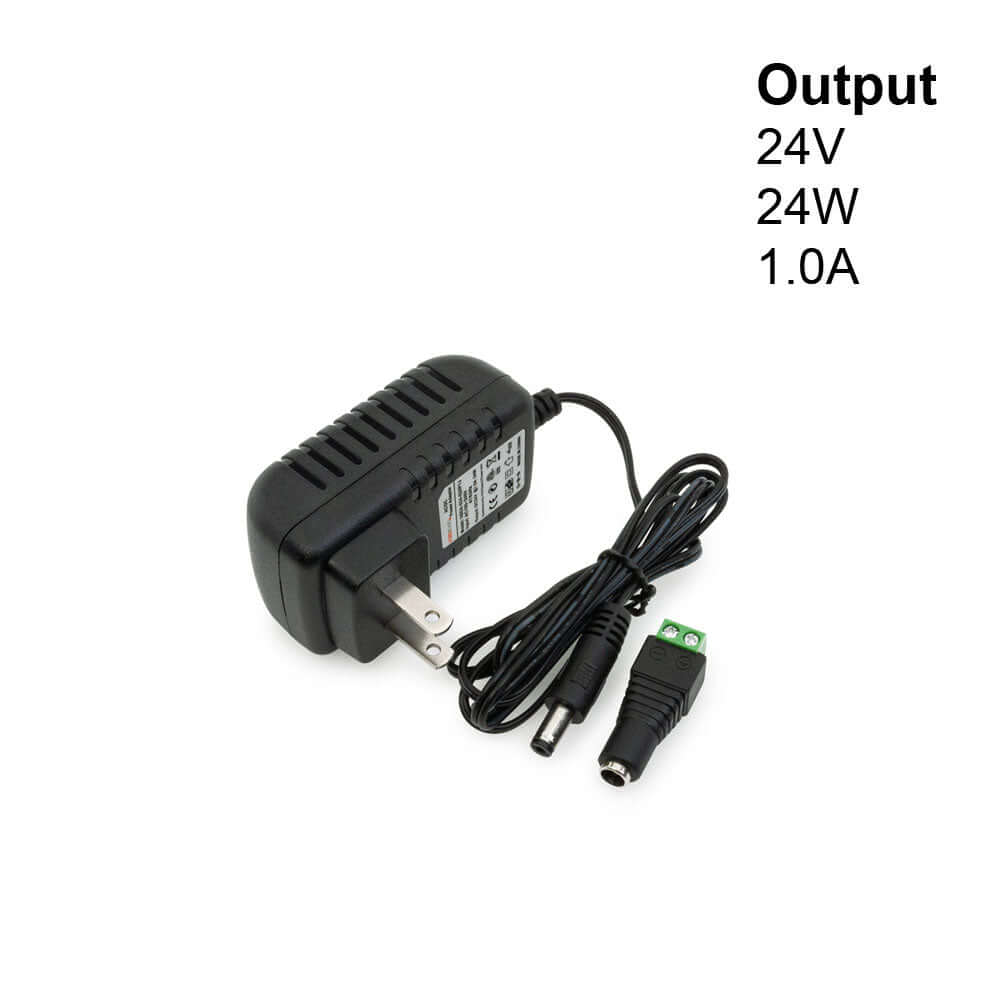

Output voltage 24V DC
Output Current 1.0A
Output max Power 24W max
Dimmable No
IP Rating IP20 (Indoor use only)
Wire Length 43inch
Class Certification Class 2/ Class II

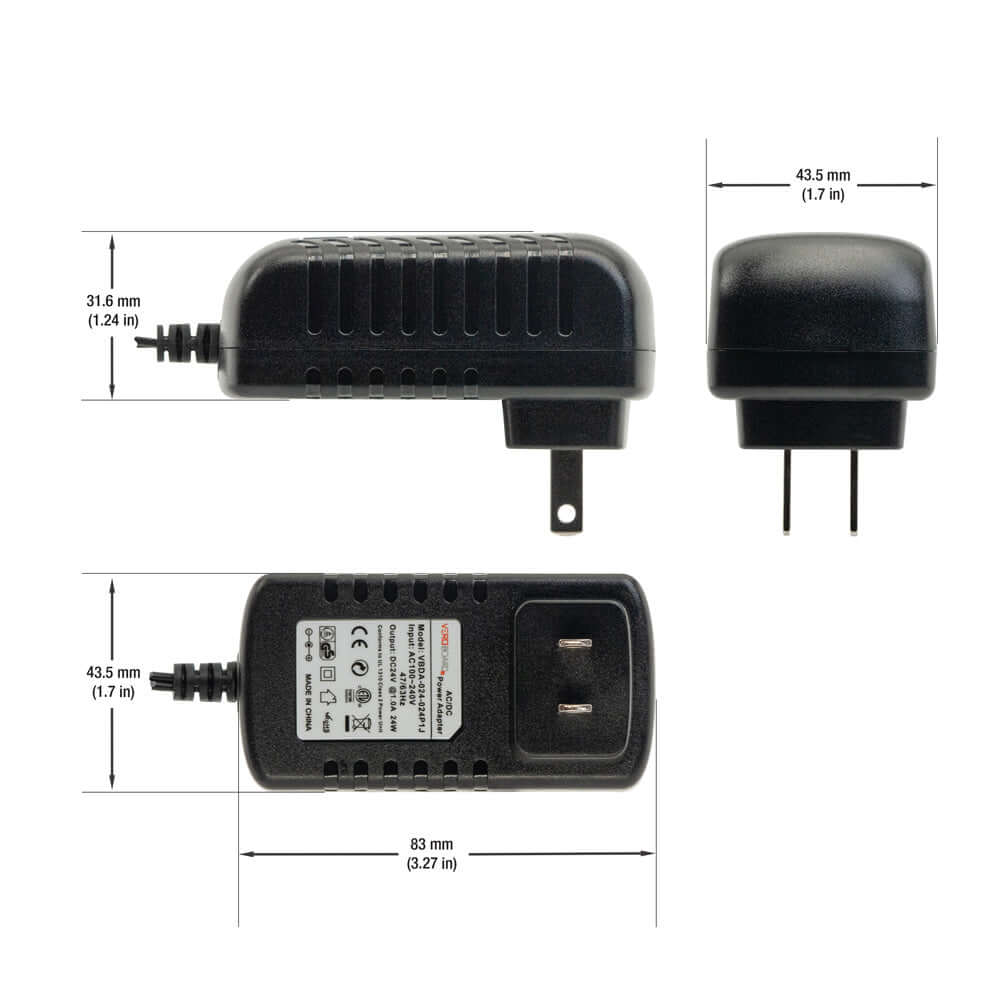

Dimensions 113 x 50 x 32mm (4.75 x 1.96 x 1.24in)
Certification



The VBDA-024-024P1J is a constant voltage plug-in adaptor that is designed to convert input voltage ranging from 100-240V AC to 24V DC output voltage. It has an input current of 0.2A and a frequency of 47/63Hz. The maximum output power of the adaptor is 24W.

This plug-in adaptor is not dimmable and has an IP20 rating, which means it is suitable for indoor use only. It has a wire length of 43 inches, which allows for flexibility in placement. The adaptor has Class 2/Class II certification, providing double insulation and does not rely on an earth connection for safety.

The dimensions of the adaptor are 113 x 50 x 32mm (4.75 x 1.96 x 1.24in), making it compact and easy to install. It is certified with ETL certification, indicating that it has been tested and certified to meet certain safety and performance standards.

Features:

  • Converts input voltage ranging from 100-240V AC to 24V DC output voltage
  • Input current of 0.2A and a frequency of 47/63Hz
  • Maximum output power of 24W
  • Non-dimmable
  • IP20 rating suitable for indoor use only
  • 43-inch wire length for flexibility in placement
  • Class 2/Class II certification provides double insulation and does not rely on an earth connection for safety
  • Dimensions: 113 x 50 x 32mm (4.75 x 1.96 x 1.24in)
  • ETL certification indicating that it has been tested and certified to meet certain safety and performance standards.
