VBDA-024-036P1J Non-Dimmable Constant Voltage Plug-In Adaptor, 24V 36W

  • $33.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428983
We only have 992 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).



Product Description

Product Plug-In LED Driver
Model VBDA-024-036P1J
Input voltage 100 - 240V AC
Input Current 0.2A
Frequency 47/63Hz
Output voltage 24V DC
Output Current 1.5A
Output max Power 36W max
Dimmable No
IP Rating IP20 (Indoor use only)
Wire Length Power Cord: 43inch
Low Voltage Wire: 43inch
Product Content Power cord & 2.1mm connector to wire
Class Certification Class 2/ Class II

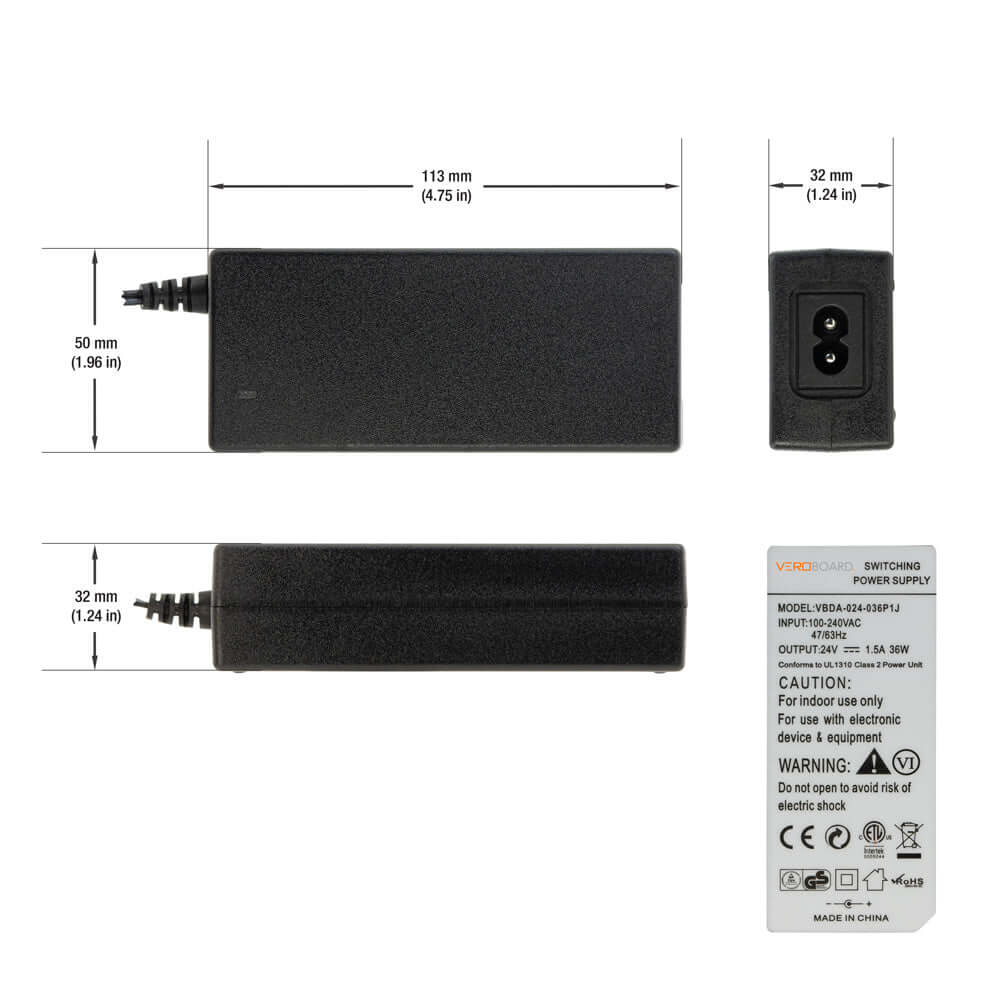

Dimensions 113 x 50 x 32mm (4.7 x 1.9 x 1.2in)
Certification



The VBDA-024-036P1J is a reliable constant voltage plug-in adaptor designed to convert input voltage ranging from 100-240V AC to a 24V DC output voltage, with an output current of 1.5A and a maximum output power of 36W.

This plug-in adaptor is not dimmable and has an IP20 rating, which makes it suitable for indoor use only. It comes with a power cord and a 2.1mm connector to wire, with a wire length of 43 inches for both the power cord and low voltage wire, providing flexibility in placement.



The VBDA-024-036P1J is an efficient and reliable constant voltage plug-in adaptor that is ideal for applications that require a 24V DC output voltage and up to 36W of power. With its high level of safety certification and compact design, it is a convenient and practical solution for indoor use.

Feature:

  • Reliable constant voltage plug-in adaptor
  • Converts input voltage ranging from 100-240V AC to a 24V DC output voltage
  • Output current of 1.5A and a maximum output power of 36W
  • Not dimmable and has an IP20 rating, suitable for indoor use only

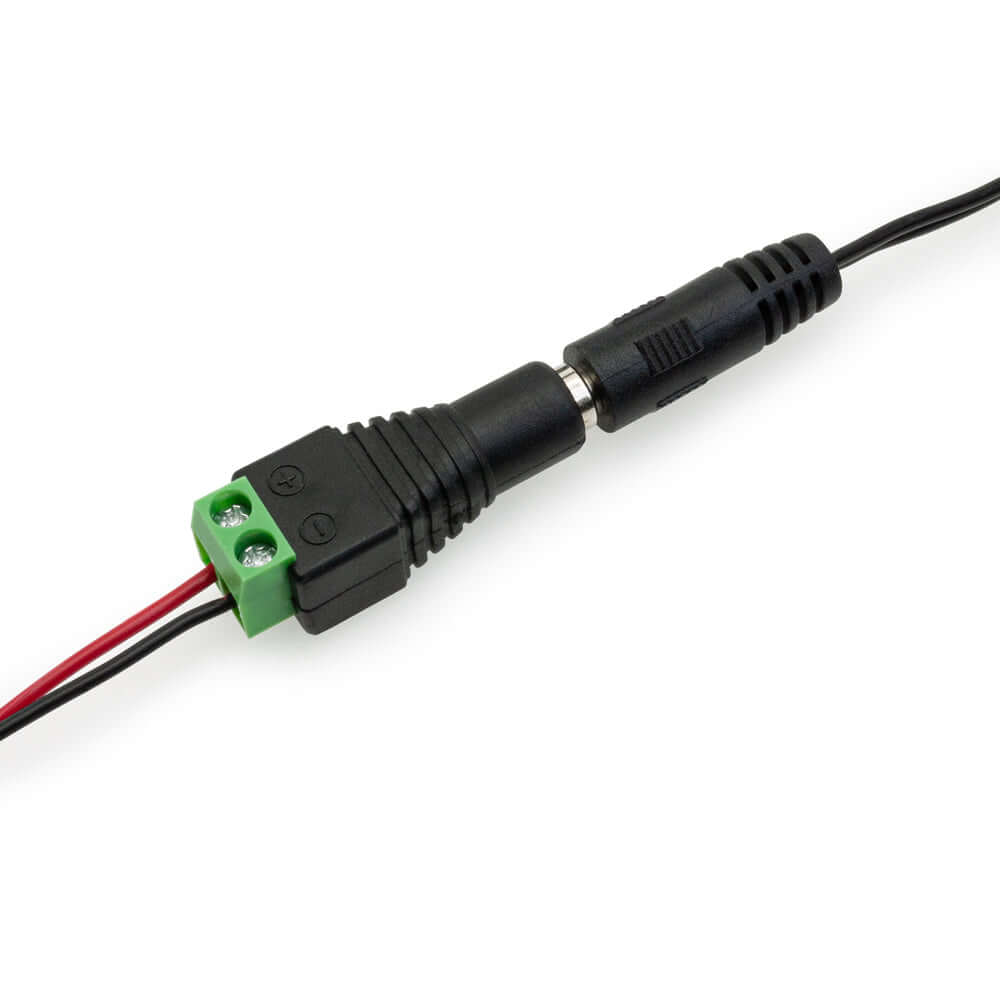

  • Comes with a power cord and a 2.1mm connector to wire
  • Wire length of 43 inches for both power cord and low voltage wire, providing flexibility in placement
  • Class 2/Class II certification, providing double insulation and no reliance on an earth connection for safety
  • Compact dimensions measuring 113 x 50 x 32mm (4.7 x 1.9 x 1.2in), making it easy to install
  • Certified with ETL certification, indicating it meets certain safety and performance standards
