VBUN-25-12-W3K-X3-6CP 3x Plug-In White Round LED Cabinet Lights Kit, 12V 2.5W 3000K (Pack of 3)

  • $78.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561433444
Title:
We only have 28 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Package Model: VBUN-25-12-W3K-X3-6CP

Product Under Cabinet Lights
Voltage 12V DC
Wattage 2.5W (each light)
LED Type 3 x 5730 SMD
Trim color White
Luminous Flux 200-240 Lumens
Beam Angle 120°
Color Temperature 3000K (Warm White)
Material Aluminum
IP Rating IP20 (Dry and Damp Locations)
Rendering Index CRI>90
Dimmable Yes
Wire length 39 inches (1 meter)
Installation Type Both Flush Mount/ Recessed and Surface Mount Installation

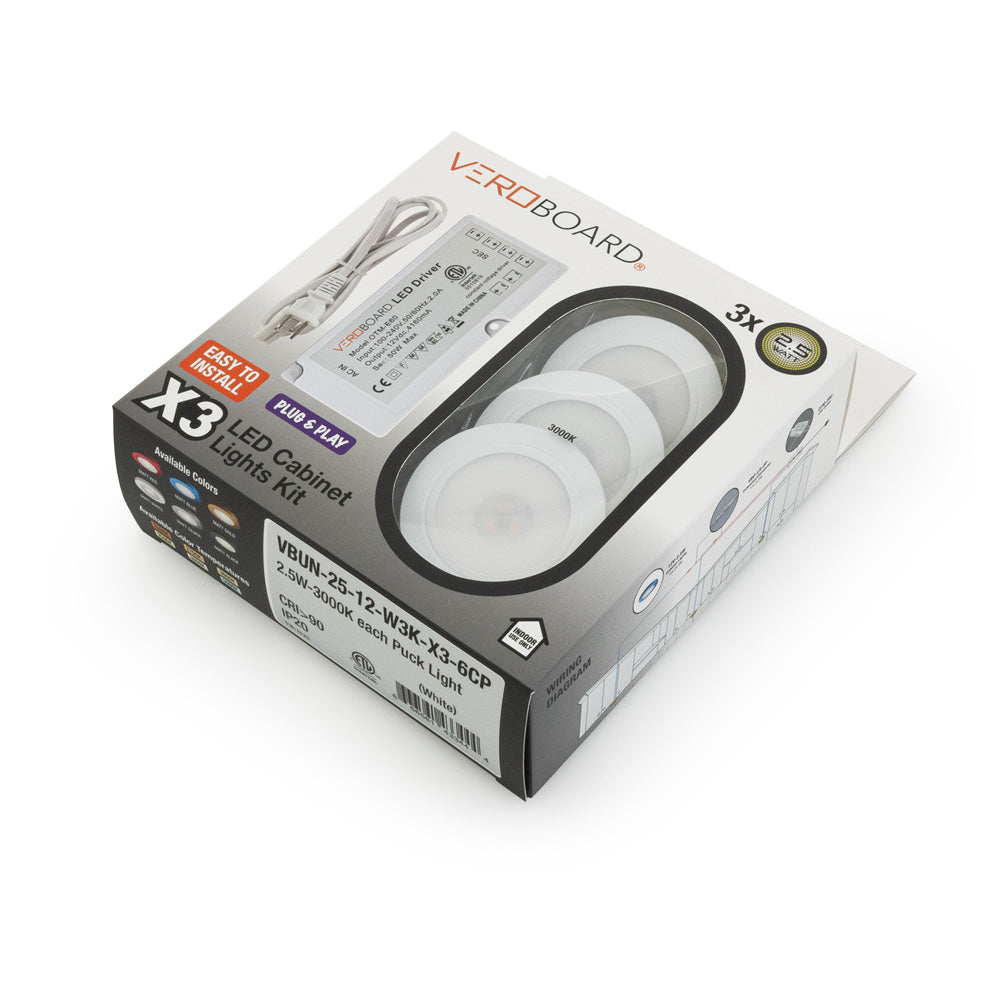

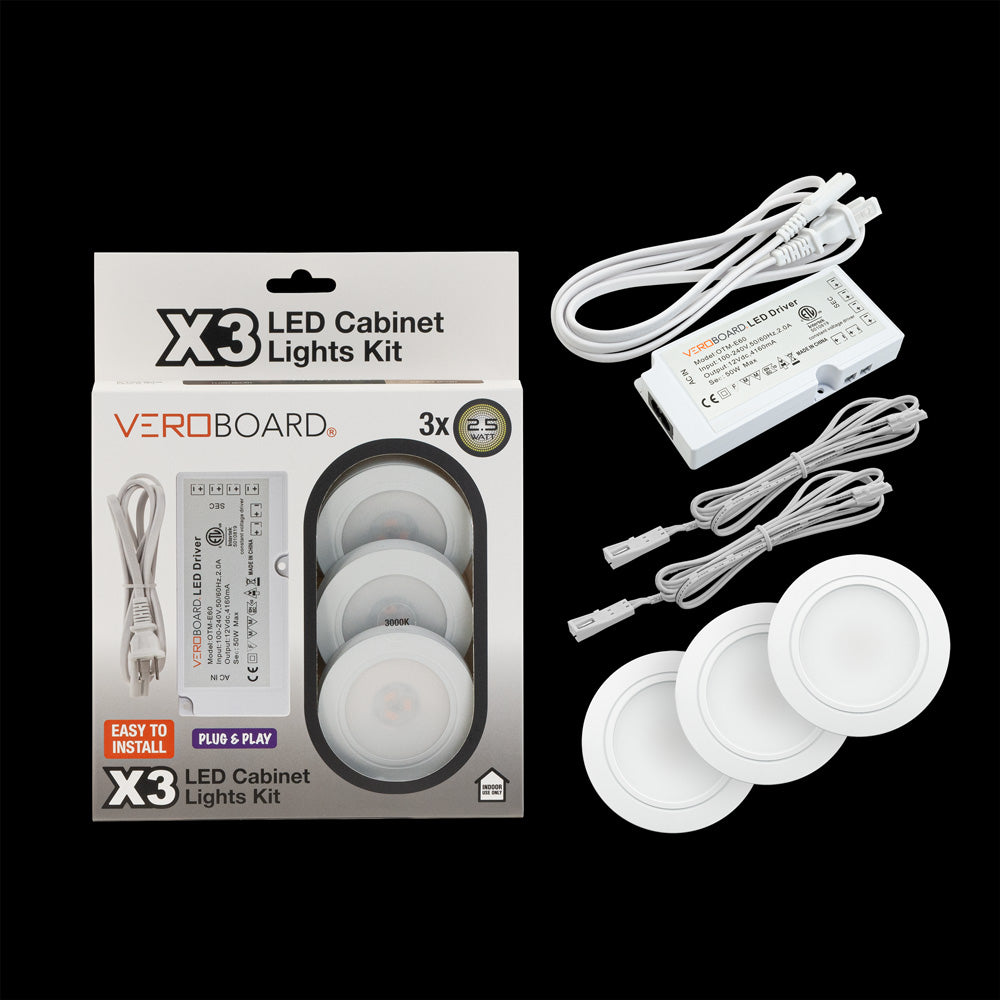

Package Content Three round Cabinet Lights
One 12V DC Multiple output CV Non-Dimmable LED Driver

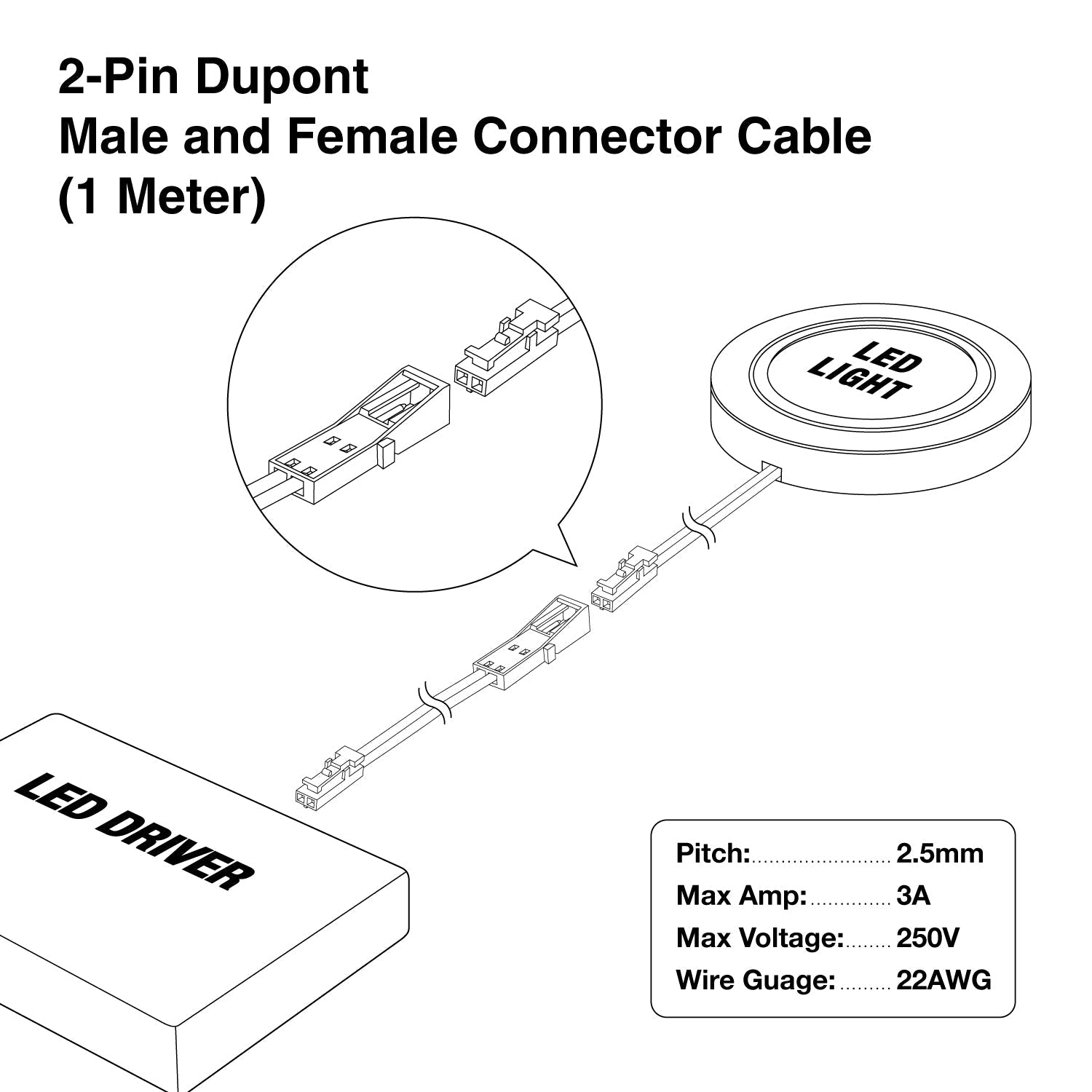

Two 2-pin Dupont Male and Female Extension/Connector Cable

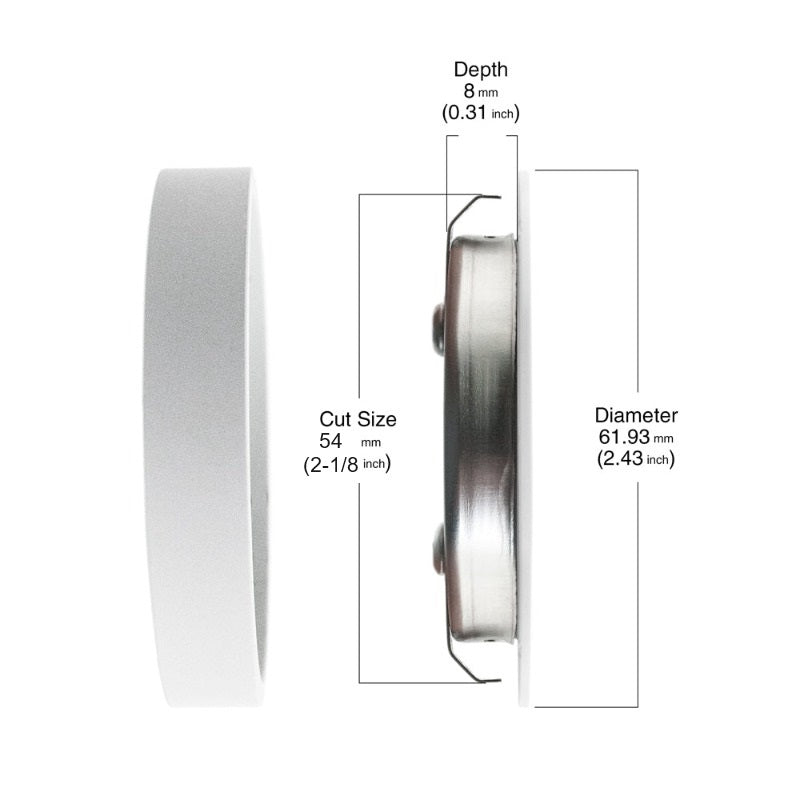

Dimensions 62 mm (2.43 in) Dia x 8 mm (0.31 in) Depth
Cut Size  54 mm (2-1/8 inch)
Certification

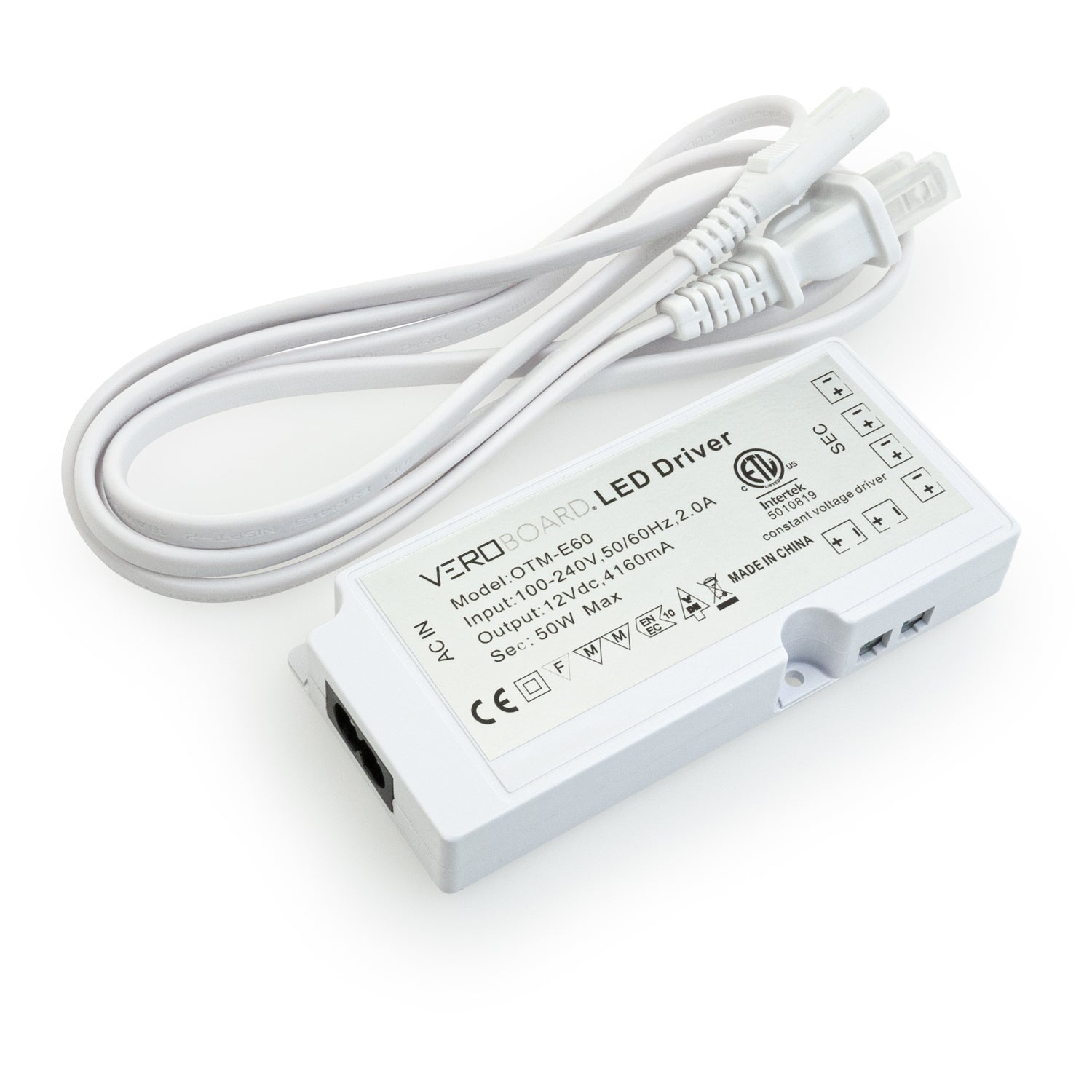

Product LED Driver
Input Voltage 100-240V AC
Input Current 2.0A
Frequently 50/60 Hz
Output Voltage 12V DC

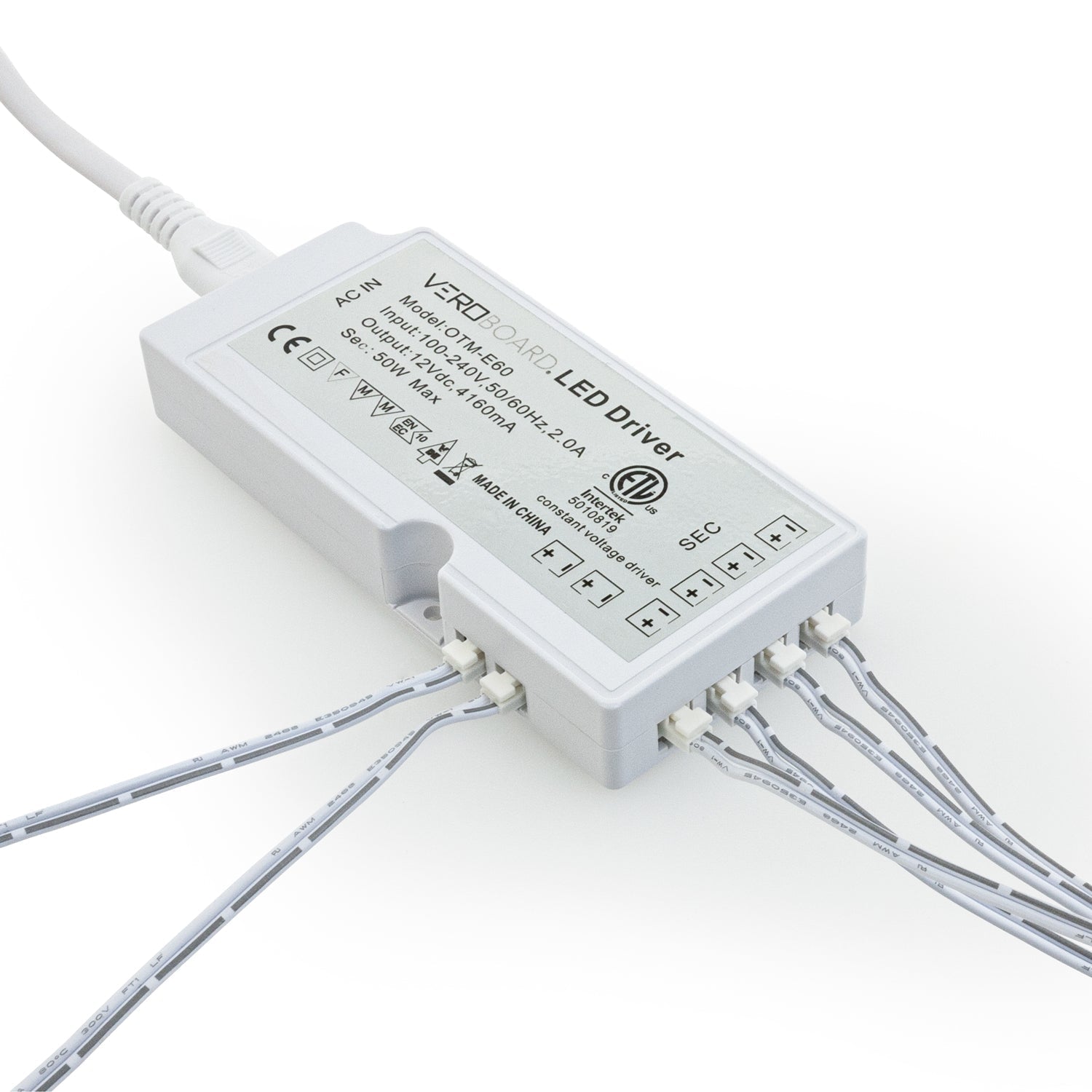

No. of Outputs 6 (Dupont connector type)
Output regulated Current 4.16A
Output Power 50W
Installation Type Plug-In
IP Rating IP20 (Dry and Damp Locations)
Class Certification Class II
Dimmable No

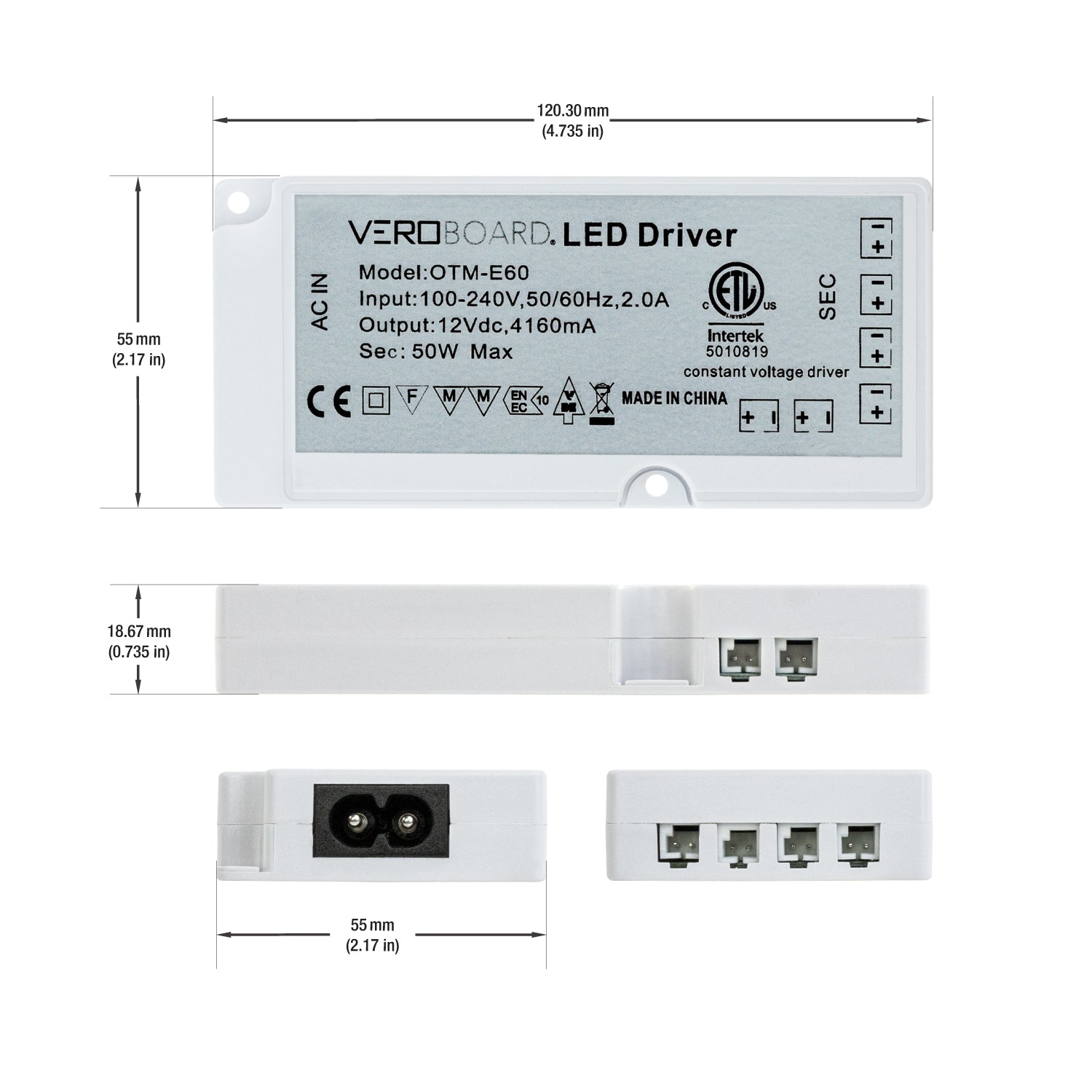

Dimensions 120.30 x 55 x 18.67mm (4.73 x 2.17 x 0.73 in)
Certification



The VBUN-25-12-W3K-X3-6CP Round LED Cabinet Lights are a type of cabinet lighting or puck lights used in the wardrobe, cabinet, and shelves of a modern kitchen. These lights have a voltage of 12V DC and a wattage of 2.5W for each light, with an LED type of 3 x 5730 SMD.

The LED driver has six output channels with input voltages between 100-240V AC at 50/60Hz frequency and an input current of 2.0A. And Dupont connector type, each providing a regulated output current of 4.16A at 12V DC. The device has a maximum output power of 50W, making it suitable for powering multiple LED lights in cabinets.

These lights are available in different color trims with the same brightness of different color temperatures. They come with 3 feet of wire AWG 22, and depending upon the wattage of the transformer, any number of lights can go on 1 switch. Overall, the VBUN-25-12-W3K-X3-6CP White Round LED Cabinet Lights are a great replacement for a halogen light fixture with a cut size of 54 mm (2 1/8 inch), providing high-quality lighting for cabinets and shelves.

Features:

  • Type of cabinet lighting or cabinet puck lights suitable for modern kitchen cabinets, wardrobes, and shelves
  • Voltage of 12V DC and wattage of 2.5W, with 3 x 5730 SMD LEDs
  • Aluminum housing allows for efficient heat dissipation, with a long lifespan and low light decay
  • Can be used as both flush mount and surface mount, with a rated CRI >90 and meeting Canadian and United States standards with UL STD. C22.2
  • IP20 rating makes them suitable for dry and damp locations

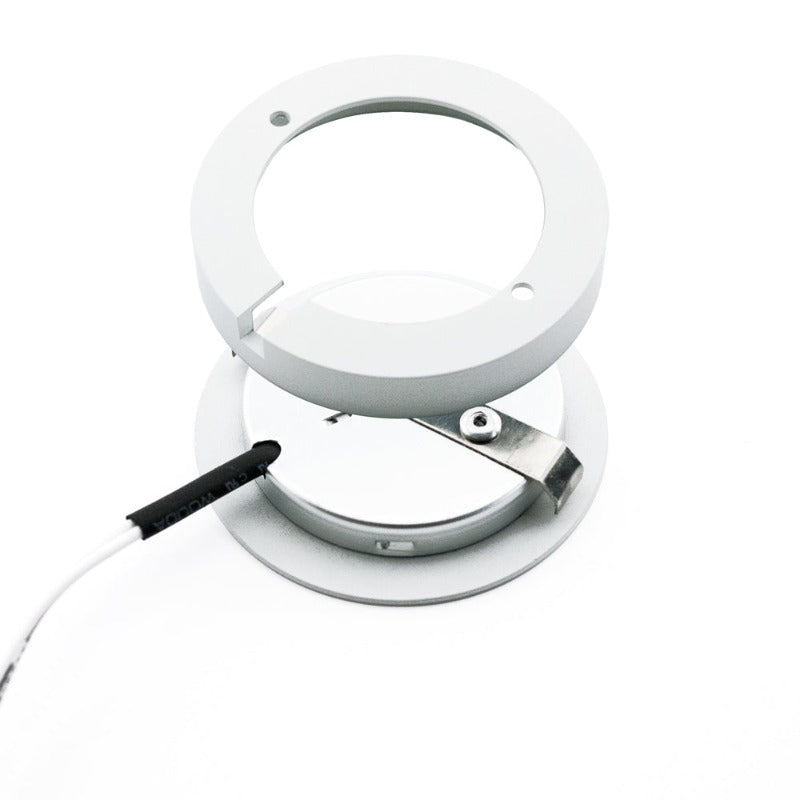

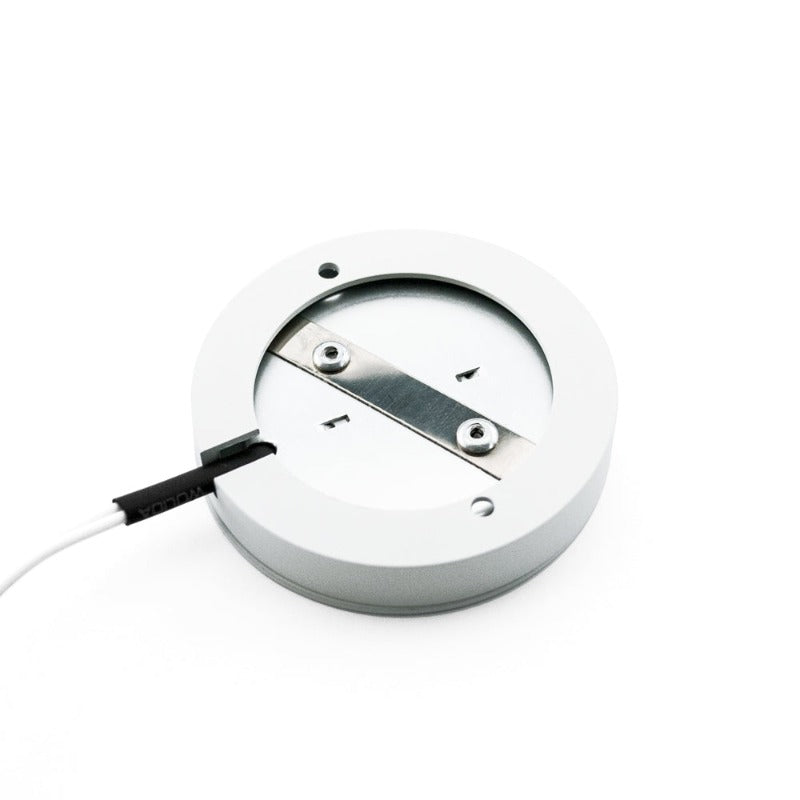

  • Easy to install with push springs for flush mount and direct screw-on surface mounting options
  • Great replacement for halogen light fixtures, with a cut size of 54 mm (2 1/8 inch), providing high-quality lighting for cabinets and shelves
  • input voltages between 100-240V AC at 50/60Hz frequency with an input current of 2.0A
  • 6 output channels with Dupont connector type and regulated output current of 4.16A at 12V DC
