OTM-TD12 Constant Voltage LED Driver, 0-10V Dimming J Box LED Driver 12V 12W

  • $37.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425494
Title:
We only have 73 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Model OTM-TD12
Input Voltage 100-130V AC
Input Current 0.1A
Frequency 50-60Hz
Efficiency >80%

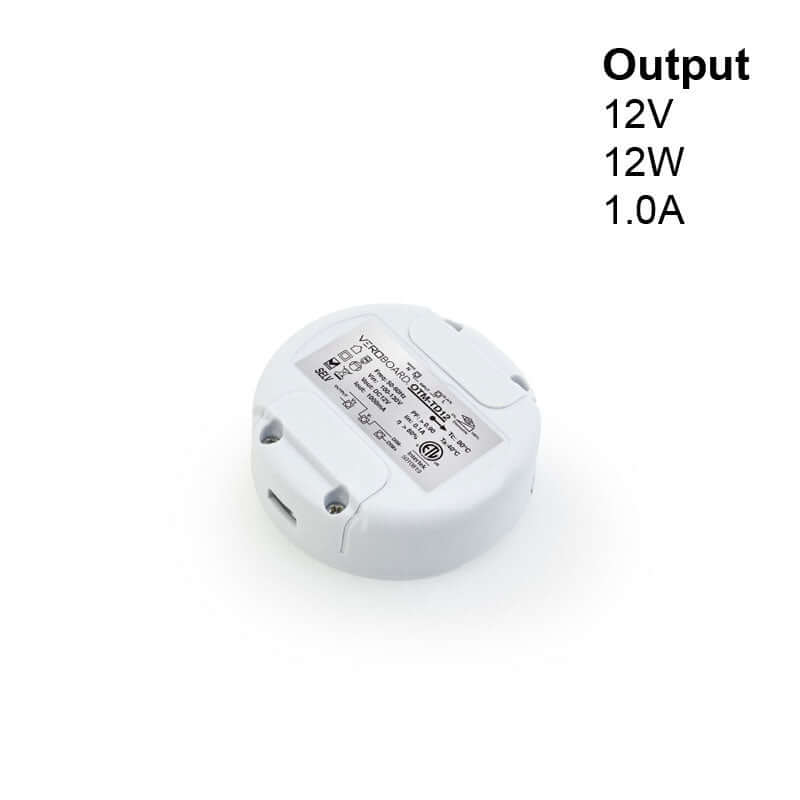

Output Voltage 12V DC
Output regulated Current 1000mA
Output Power 12W max
Power Factor >0.90
Dimmable Yes (0-10V Dimming)
IP Rating IP20
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
Class Certification Class II/ SELV

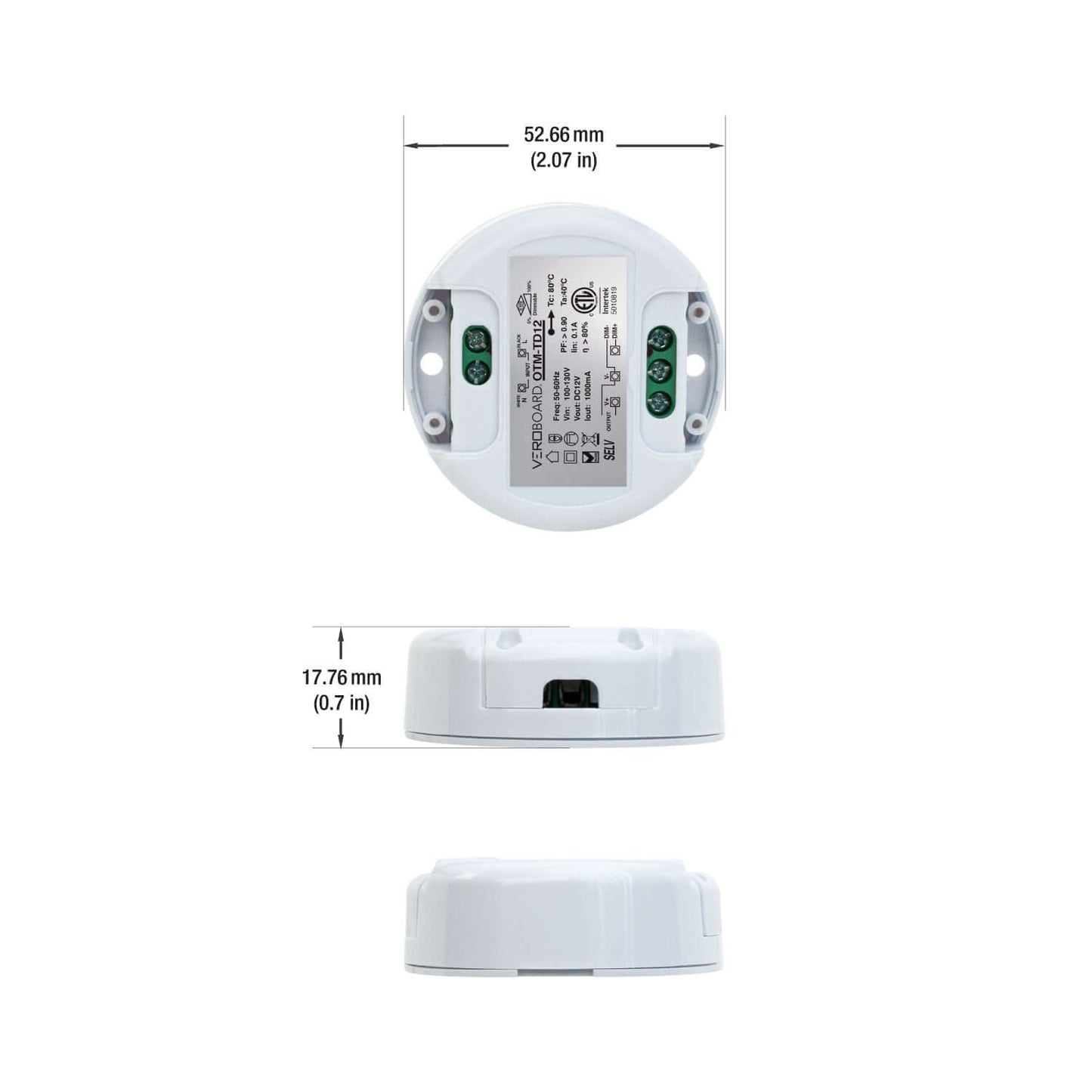

Dimensions Ø52.66mm (2.07 in)
Depth 17.76mm x (0.7 in)
Certification
Compatible with 0-10V Dimmers
Applicable for Dry and Damp locations
Short circuit and Overload Protected
Class II Power Supply, Double-layer insulation
Easily fits in a 1-Gang Standard Box or Single Gang Box



The OTM-TD12 is a constant voltage LED driver designed for use with LED lighting fixtures. The model number of the driver is OTM-TD12, and it is dimmable using 0-10V dimming methods. The input voltage of the driver is 100-130V AC, and it has an input current of 0.1A. The frequency of the driver is 50-60Hz.

The driver produces an output voltage of 12V DC, and it can regulate the output current at a maximum of 1000mA. The maximum power output of the driver is 12W. The driver has an IP20 rating, which means it is protected against solid objects greater than 12.5mm in diameter but is not protected against the ingress of water.

The driver has a power factor of greater than 0.90, and its efficiency is greater than 80%. It has a class II/SELV certification, which means it is considered safe for use in areas with low voltage electrical systems. The driver has a case temperature (Tc) of 80°C and can operate in ambient temperatures (Ta) of up to 40°C.

It has dimensions of 52.66mm x 17.76mm (2.07 in) in diameter and (0.7 in) in depth, making it small and compact. The driver is ETL certified, indicating that it meets regulatory requirements for use in North America.

Features:

  • Model: OTM-TD12
  • Designed for use with LED lighting fixtures
  • Dimmable using 0-10V dimming methods
  • Input voltage: 100-130V AC
  • Input current: 0.1A
  • Frequency: 50-60Hz
  • Output voltage: 12V DC
  • Maximum output current: 1000mA
  • Maximum power output: 12W
  • IP20 rating (protected against solid objects > 12.5mm, not protected against water)
  • Power factor > 0.90
  • Efficiency > 80%
  • Class II/SELV certification (safe for use in low voltage electrical systems)
  • Case temperature (Tc): 80°C
  • Ambient temperature (Ta) operating range: up to 40°C
  • Dimensions: 52.66mm x 17.76mm (2.07 in) in diameter, (0.7 in) in depth
  • ETL certified (meets regulatory requirements for use in North America)
