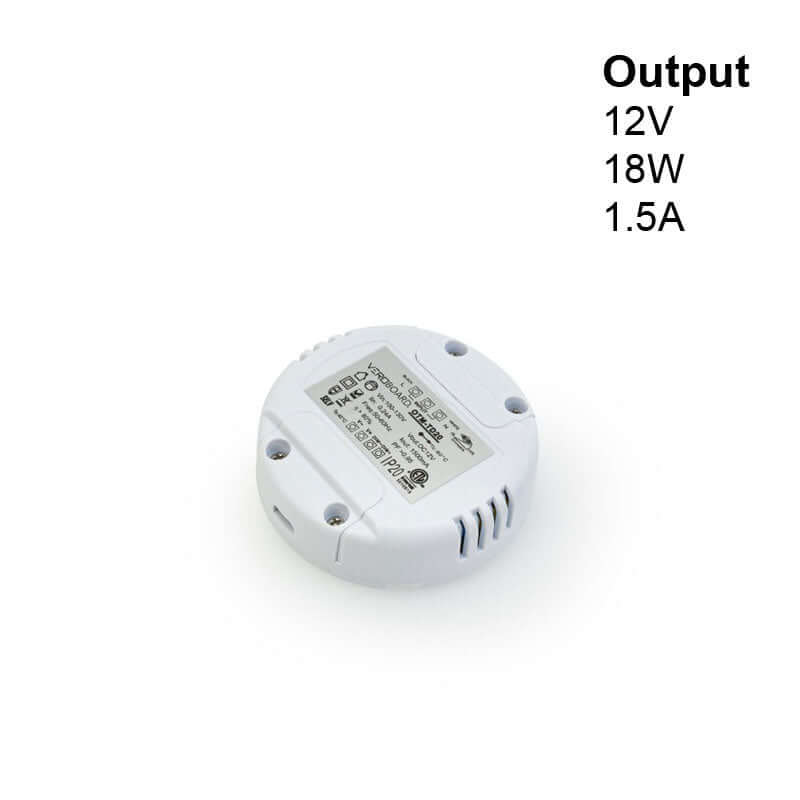

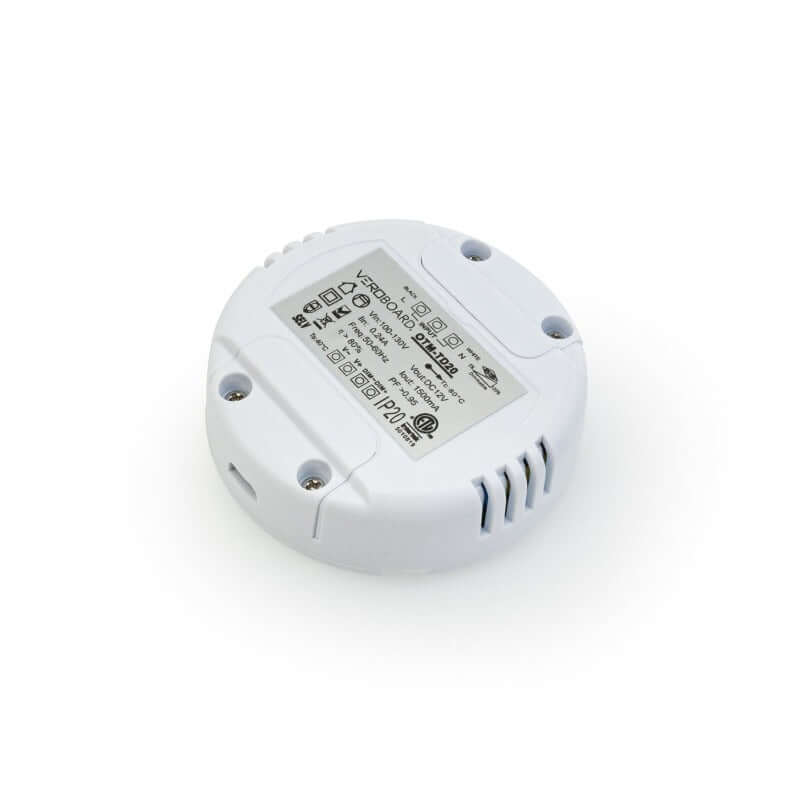

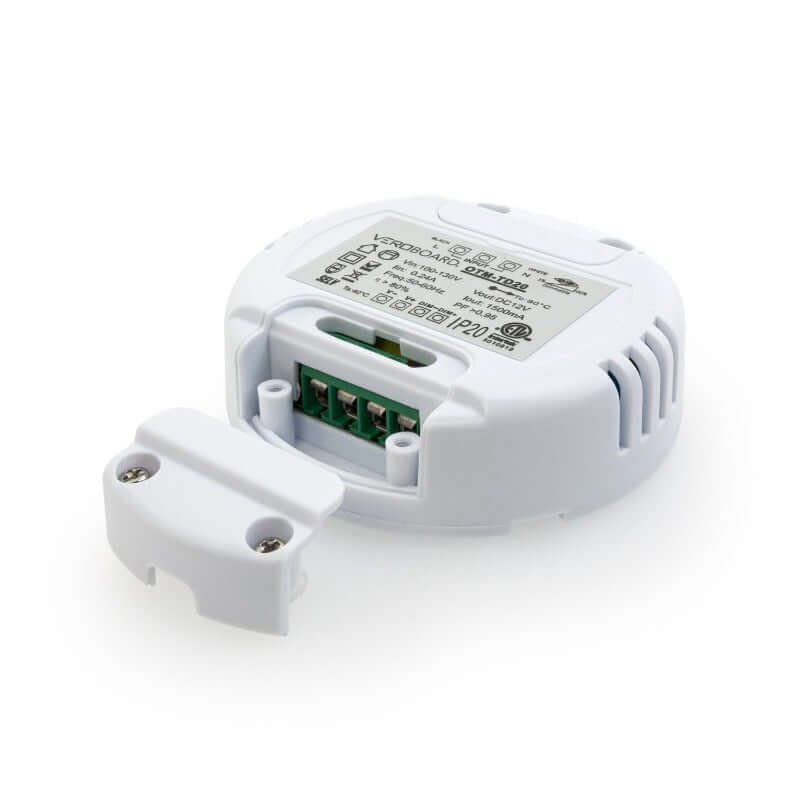

OTM-TD20 Constant Voltage Driver, 0-10V Dimming LED Driver 12V 18W

  • $42.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425517
Title:
We only have 5 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).





Product Description

Model OTM-TD20
Input Voltage 100-130V AC
Input Current 0.24A
Frequency 50-60Hz
Efficiency >80%
Output Voltage 12V DC
Output regulated Current 1500mA
Output Power 18W max
Power Factor >0.95
Dimmable Yes (0-10V Dimming)
IP Rating IP20
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
Class Certification Class II/ SELV

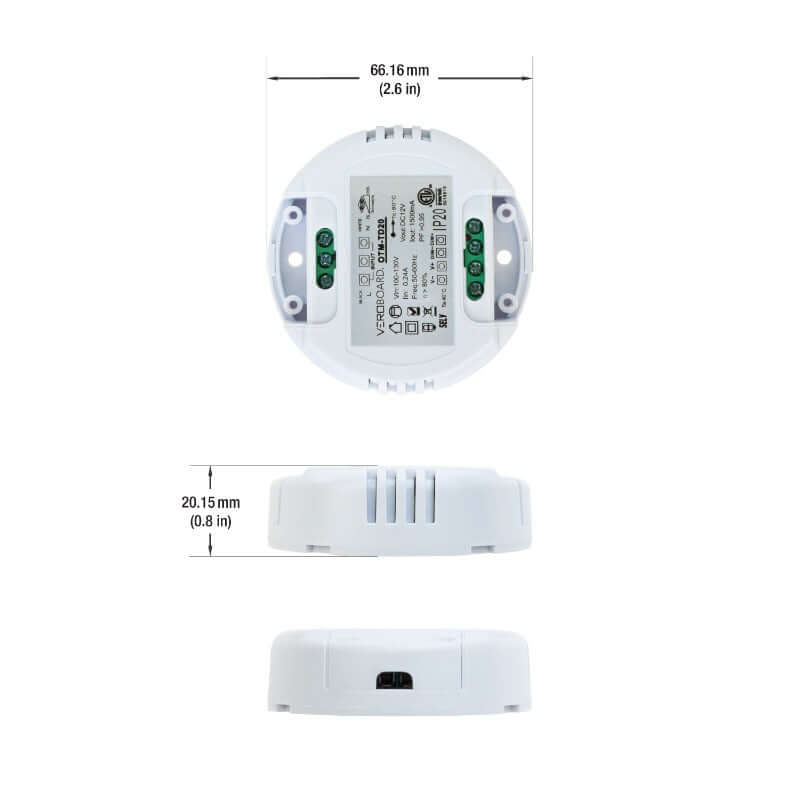

Dimensions Ø 66.16mm (2.6 in)
Depth 20.15mm (0.8 in)
Certification
Compatible with 0-10V Dimmers
Applicable for Dry and Damp locations
Short circuit and Overload Protected
Class II Power Supply, Double-layer insulation
Easily fits in a 1-Gang Standard Box or Single Gang Box



The OTM-TD20 is a constant voltage LED driver that supports 0-10V dimming. Its model number is OTM-TD20. The driver operates with an input voltage range of 100-130V AC and input current of 0.24A at a frequency of 50-60Hz. It has an efficiency of greater than 80%. The driver provides an output voltage of 12V DC with a regulated current of 1500mA and a maximum power output of 18W. The power factor of the driver is greater than 0.95. The OTM-TD20 is dimmable using 0-10V dimming and has an IP rating of IP20. It operates at an ambient temperature of 40°C and has a maximum case temperature of 80°C. The driver is Class II/ SELV certified and has dimensions of 66.16mm x 20.15mm (2.6 in) Dia x (0.8 in) Depth. It is certified by ETL.

Features:

  • Model number: OTM-TD20
  • Constant voltage LED driver with 0-10V dimming support
  • Input voltage range: 100-130V AC
  • Input current: 0.24A
  • Frequency: 50-60Hz
  • Efficiency >80%
  • Output voltage: 12V DC
  • Regulated current: 1500mA
  • Maximum power output: 18W
  • Power factor >0.95
  • IP rating: IP20
  • Ambient temperature: up to 40°C
  • Maximum case temperature: 80°C
  • Class II/SELV certified for protection against electric shock
  • Dimensions: 66.16mm x 20.15mm (2.6 in) diameter x (0.8 in) depth
  • ETL certified for safety and performance standards in the US and Canada.
