OTM-TD30 0-10V Dimmable Constant Voltage LED Driver, 12V 2.0A 24W

Product Description

Model	OTM-TD30
Input Voltage	100-130V AC
Input Current	0.24A
Frequency	50-60Hz
Efficiency	>85%
Output Voltage	12V DC
Output regulated Current	2.0A
Output Power	24W max
Power Factor	>0.95
Dimmable	Yes (0-10V Dimming)
IP Rating	IP20
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	80°C
Class Certification	Class II/ SELV

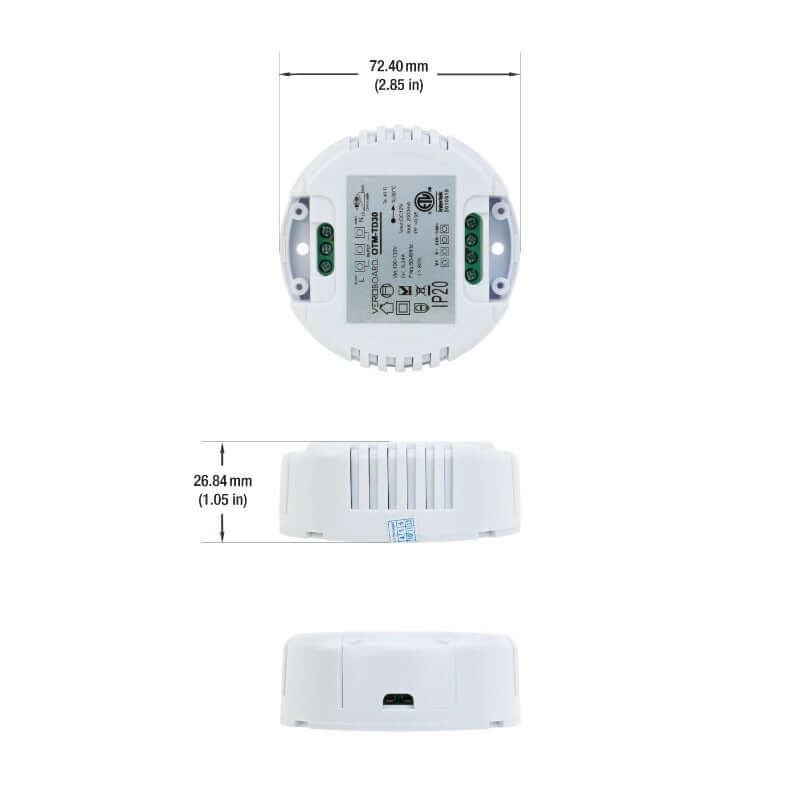

Dimensions	Ø72.40mm (2.85 in) Depth 26.84mm (1.05 in)
Certification

The OTM-TD30 LED driver is a dimmable constant voltage driver designed for use with LED lighting systems. It has an input voltage range of 100-130V AC, an input current of 0.24A, and a frequency of 50-60Hz. The driver has an efficiency rating of greater than 85% and an output voltage of 12V DC. It can regulate output current up to 2.0A and has a maximum output power of 24W. The power factor is greater than 0.95, indicating high power efficiency. The driver is dimmable, allowing for 0-10V dimming control. The driver is rated IP20 for indoor use only and can operate in ambient temperatures up to 40°C, with a case temperature limit of 80°C. It is Class II/SELV certified for electrical safety and has dimensions of 72.40 mm x 26.84mm (2.85 in) diameter x (1.05 in) depth, making it a compact driver. The driver is ETL certified, indicating it has met relevant safety standards.

Features:

• Dimmable constant voltage LED driver
• Input voltage range: 100-130V AC, input current: 0.24A, frequency: 50-60Hz
• Efficiency rating: >85%, output voltage: 12V DC
• Output current regulation up to 2.0A, maximum output power: 24W
• Power factor: >0.95, indicating high power efficiency
• Dimming control: 0-10V
• Rated IP20 for indoor use only, operating temperature: up to 40°C, case temperature limit: 80°C
• Class II/SELV certified for electrical safety
• Compact dimensions: 72.40mm x 26.84mm (2.85 in) diameter x (1.05 in) depth
• ETL certified, meeting relevant safety standards.
