Product Description
| Model | VBD-012-300VTHWJ |
| Input Voltage | 100 – 277V AC |
| Input Current | 3.4A |
| Frequency | 47/63Hz |
| Power Factor | 0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 25A |
| Output Power | 300W max |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage Dimming) |
| Class Certification | Class P Type HL/ SELV |
| IP Rating | IP65 |

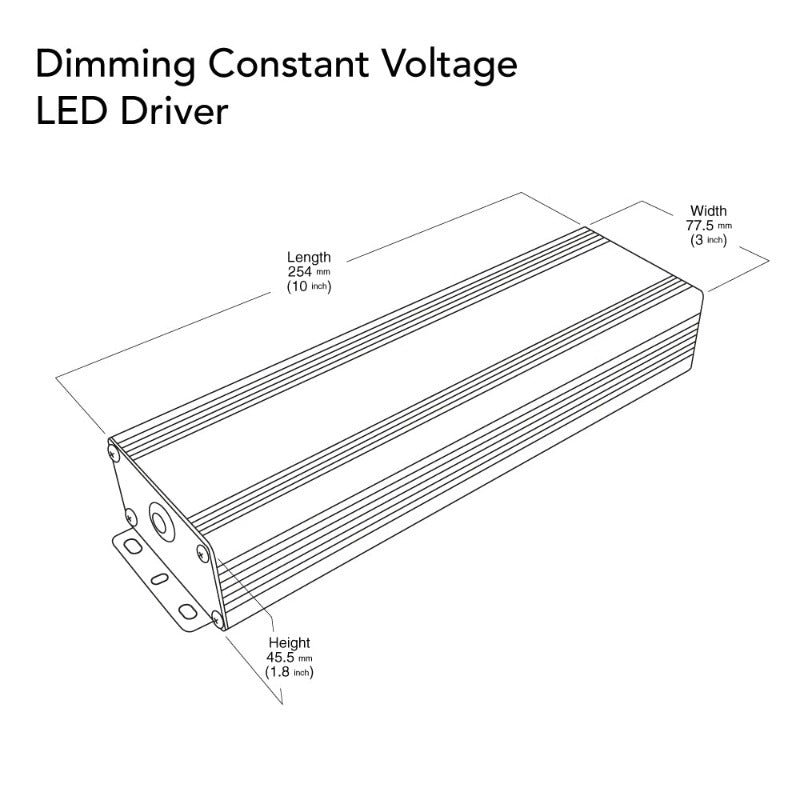

| Dimensions (Without Box) | 254x 77.5x 45.5mm(10 x 3 x 1.8 in) |

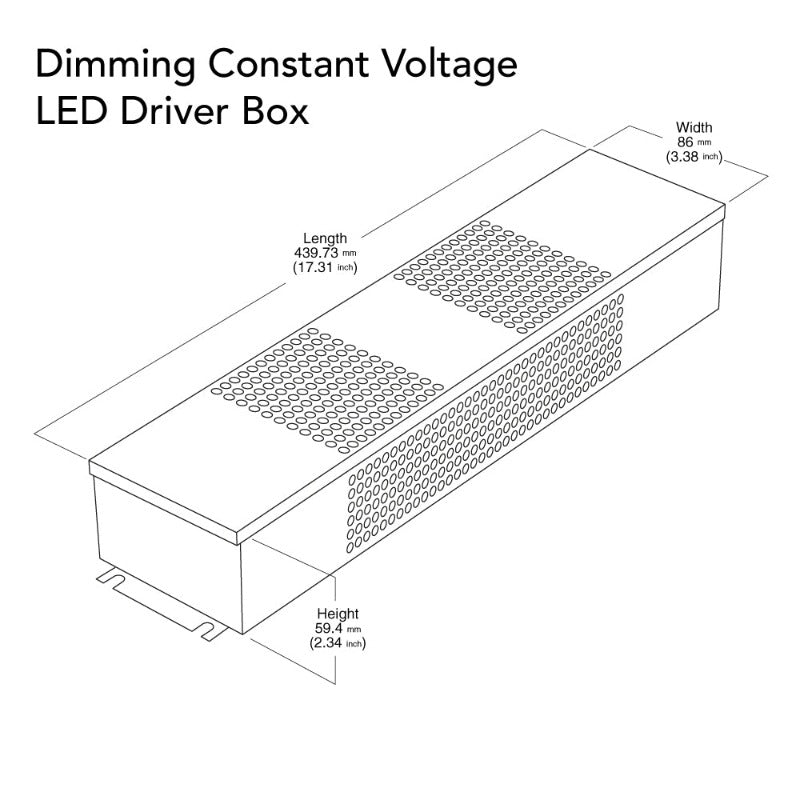

| Dimensions (Box) | 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) |
| Certifications |    |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
| Suitable for Dry, Damp, and Wet locations. |
The VBD-012-300VTHWJ Triac Dimmable Constant Voltage LED Driver Model is a power supply unit designed for use with LED lighting systems. It operates with an input voltage range of 100 – 277V AC and an input current of 3.4A, with a frequency range of 47/63Hz. The power factor of this LED driver is 0.95, indicating high energy efficiency.
This model provides a regulated output voltage of 12V DC, with a maximum output power of 300W. The output regulated current of this LED driver is 25A, making it suitable for powering a variety of LED lights.
One of the notable features of this LED driver is its dimming capability, which allows for Phase, Triac, and Magnetic Low Voltage dimming. This allows for greater flexibility in controlling the brightness of LED lights.
The VBD-012-300VTHWJ LED driver is designed to be used in outdoor environments, with an IP65 rating. This makes it suitable for use in locations where it may be exposed to moisture, dust, or other outdoor elements.
The dimensions of this LED driver are 254x 77.5x 45.5mm(10 x 3 x 1.8 in) without the box, and 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) with the box. Additionally, it has Class P Type HL/ SELV certification, which indicates that it meets certain safety standards for use in hazardous locations, and ETL certification, which is a safety certification for electrical products in North America.
Features:
- The VBD-012-300VTHWJ Triac Dimmable Constant Voltage LED Driver Model is a power supply unit designed for use with LED lighting systems.
- It operates with an input voltage range of 100 – 277V AC and an input current of 3.4A, with a frequency range of 47/63Hz.
- The power factor of this LED driver is 0.95, indicating high energy efficiency.
- This model provides a regulated output voltage of 12V DC, with a maximum output power of 300W.
- The output regulated current of this LED driver is 25A, making it suitable for powering a variety of LED lights.
- It has dimming capability, allowing for Phase, Triac, and Magnetic Low Voltage dimming.
- The VBD-012-300VTHWJ LED driver is designed for outdoor use, with an IP65 rating, making it suitable for use in locations where it may be exposed to moisture, dust, or other outdoor elements.
- The dimensions of this LED driver are 254x 77.5x 45.5mm(10 x 3 x 1.8 in) without the box, and 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) with the box.
- It has Class P Type HL/ SELV certification, indicating that it meets certain safety standards for use in hazardous locations.
- It also has ETL certification, which is a safety certification for electrical products in North America.
