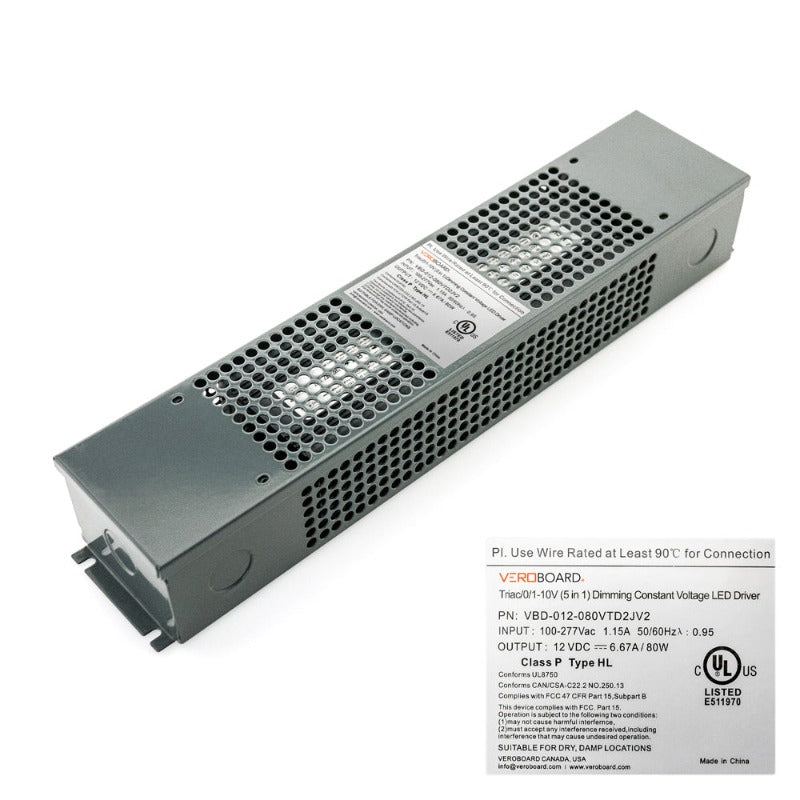

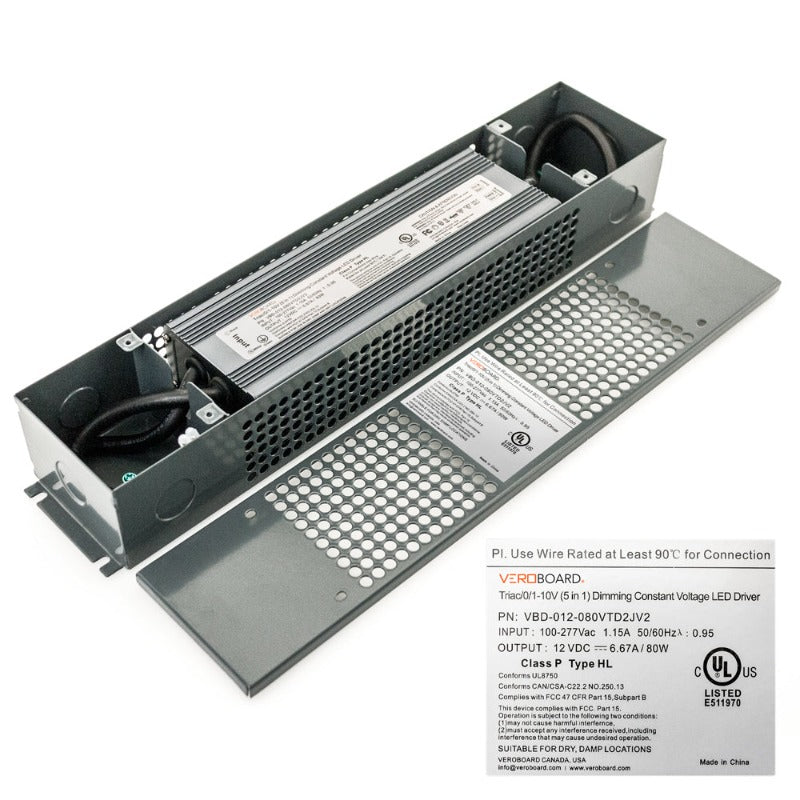

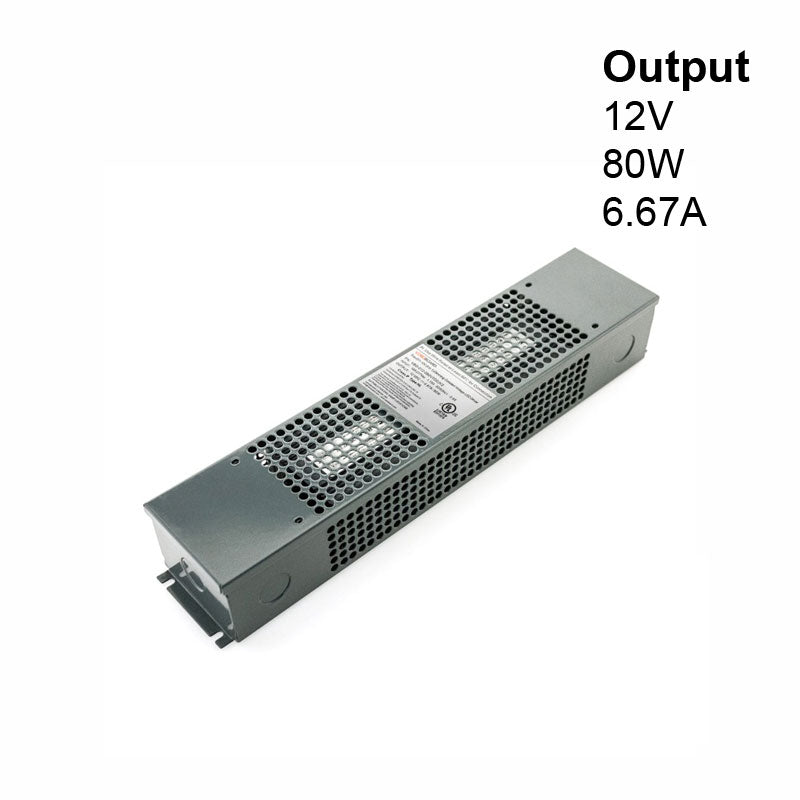

VBD-012-080VTD2JV2 Triac/0-10V Dimmable Constant Voltage LED Driver, 12V 80W 100-277V AC

  • $144.84 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561419233
Title:
We only have 22 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Model VBD-012-080VTD2JV2
Input Voltage 100-277V AC
Input Current 1.15A
Frequency 50/60 Hz
Power Factor 0.95
Output voltage 12V DC
Output regulated current 6.67A
Output Power 80W max
Dimmable Yes (Triac/0/10V Dimming)
Class Certification Class 2/ Class P/ Type HL/SELV
IP Rating IP67 (Outdoor Rated)

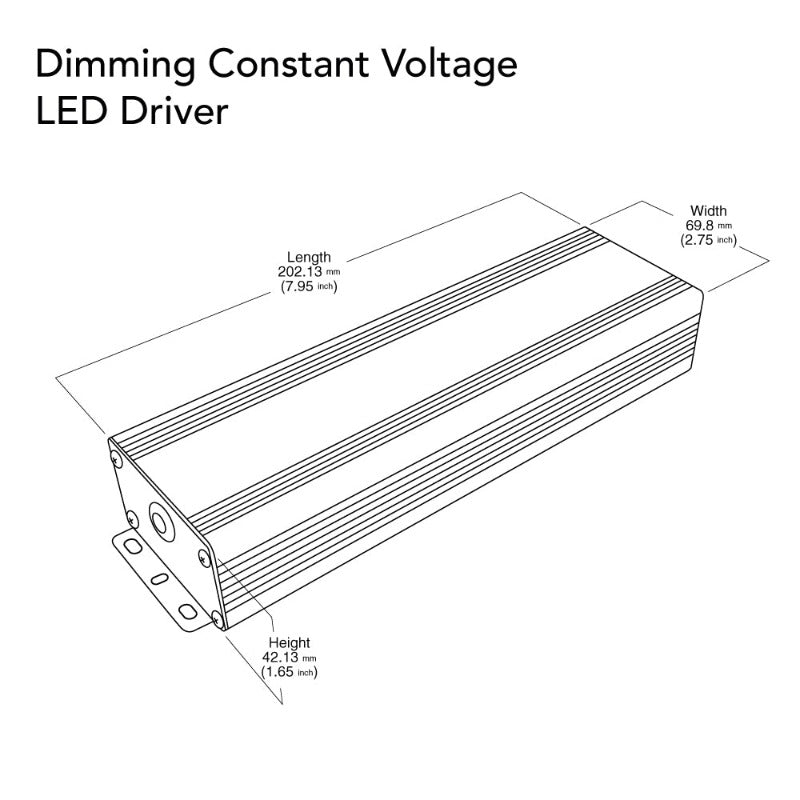

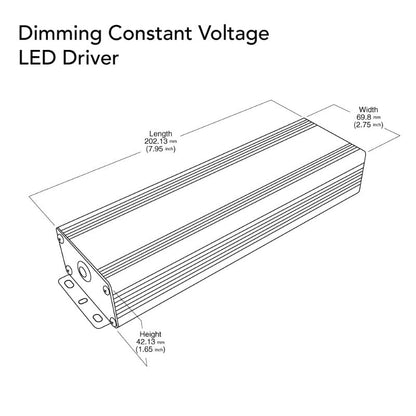

Dimensions (Without Box) 202.13 x 69.8 x 42.13mm (7.95 x 2.75 x 1.65 in)

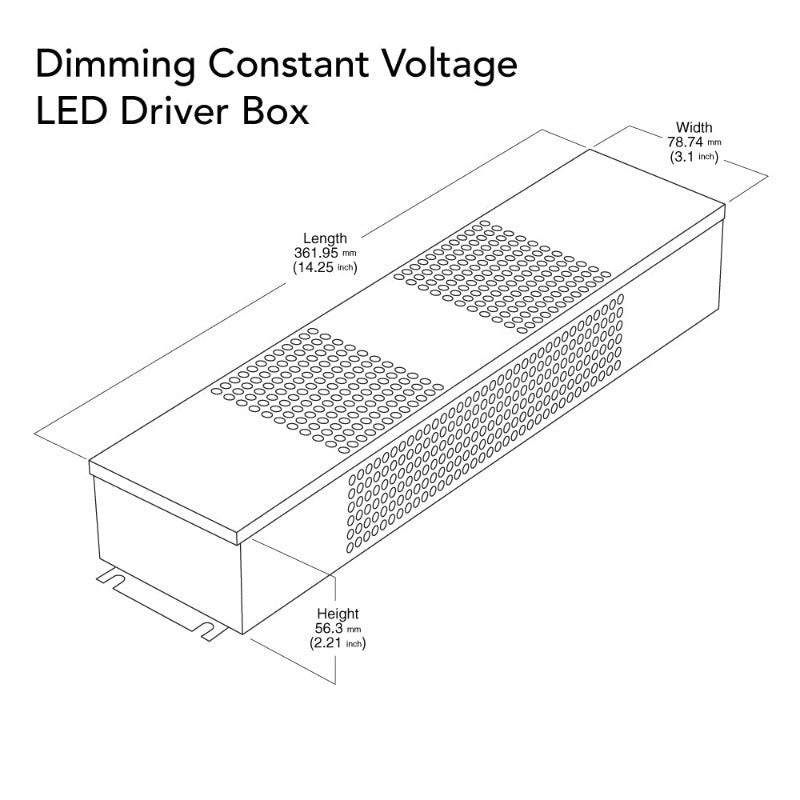

Dimensions (Box) 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in)
Certifications
Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers
Suitable for Dry, Damp, and Wet locations.



The VBD-012-080VTD2JV2 is a Triac/0-10V dimmable LED driver that operates with an input voltage range of 100-277V AC and input current of 1.15A at a frequency of 50/60 Hz. It has a high power factor of 0.95. The output voltage is 12V DC, and the output regulated current is 6.67A. The maximum output power is 80W. This LED driver is dimmable and supports 5-in-1 dimming. It has Class 2/Class P/Type HL/SELV certifications and is rated IP67 for outdoor use. The dimensions of the driver without the box are 202.13 x 69.8 x 42.13mm (7.95 x 2.75 x 1.65 in), and with the box, they are 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in). This driver is UL and FCC certified.

Features:

  • Triac/0-10V dimmable LED driver
  • Input voltage range: 100-277V AC, input current: 1.15A, frequency: 50/60 Hz
  • Output voltage: 12V DC, regulated output current: 6.67A, maximum output power: 80W
  • 5-in-1 dimming compatibility with Triac, ELV, 0-10V, PWM, and resistor control
  • High power factor of 0.95 for efficient power conversion
  • Class 2/Class P/Type HL/SELV certifications for electrical insulation, fire safety, and low voltage safety
  • IP67 rating for outdoor use
  • Dimensions without box: 202.13 x 69.8 x 42.13mm (7.95 x 2.75 x 1.65 in), with box: 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in)
  • UL and FCC certified for safety and performance standards
