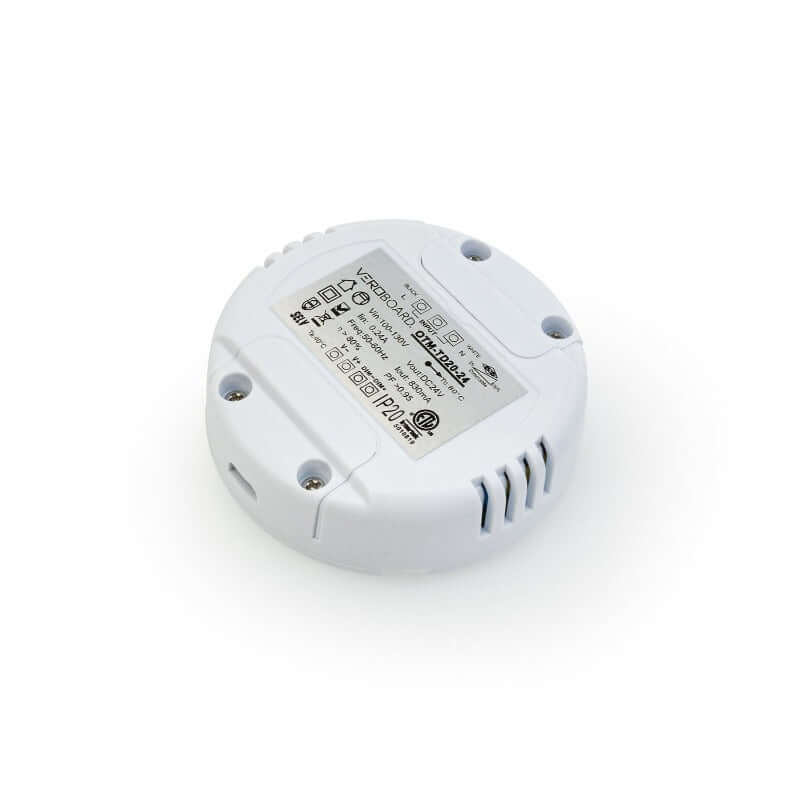

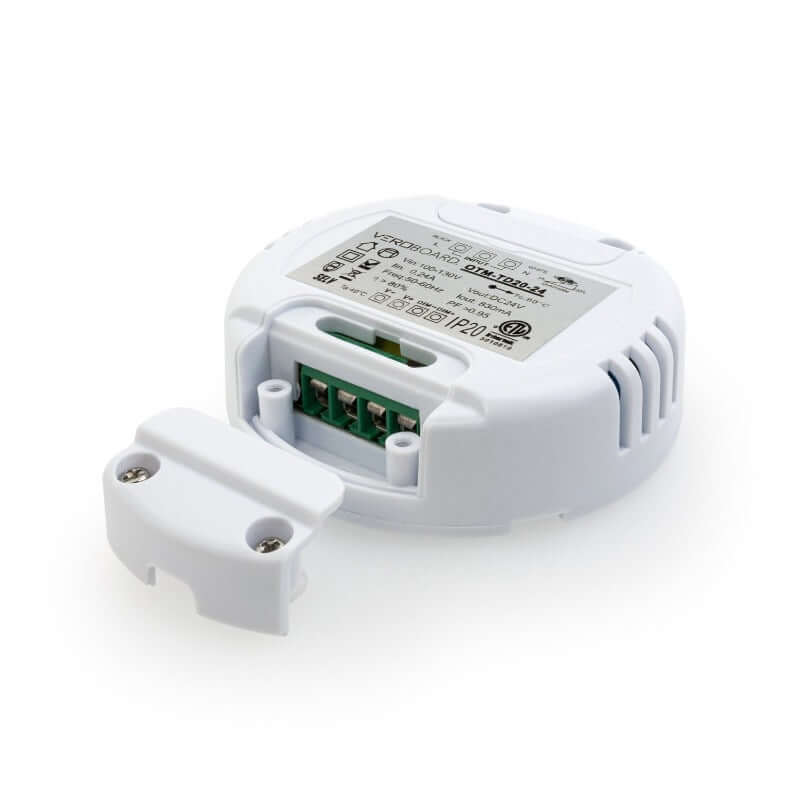

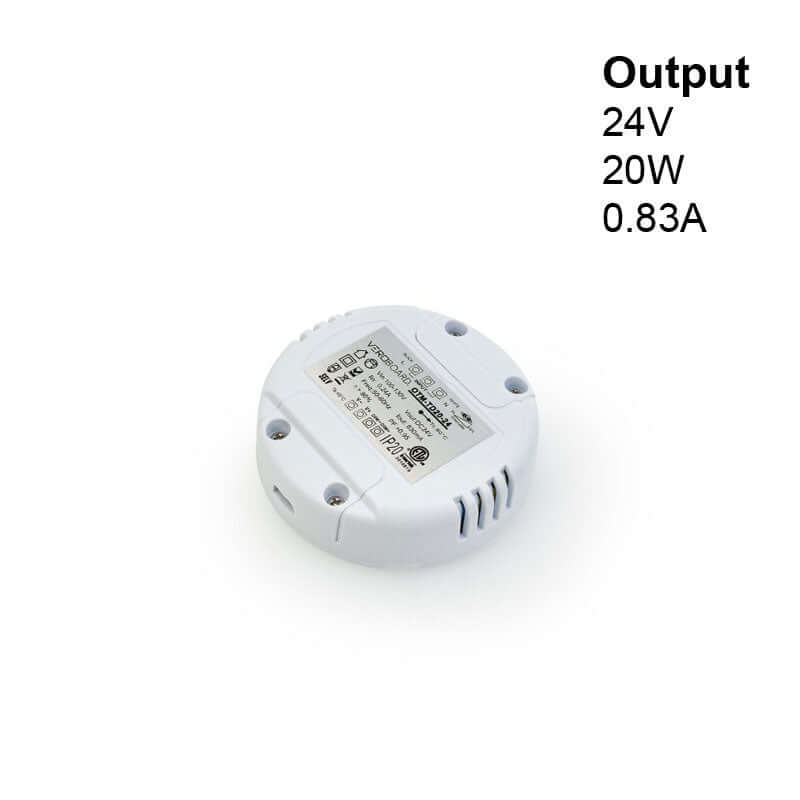

OTM-TD20-24 0-10V Dimmable Constant Voltage LED Driver, 24V 0.83A 20W

  • $42.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425524
Title:
We only have 94 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).





Product Description

Model OTM-TD20-24
Input Voltage 100-130V AC
Input Current 0.24A
Frequency 50-60Hz
Efficiency >80%
Output Voltage 24V DC
Output regulated Current 830mA
Output Power 20W max
Power Factor >0.95
Dimmable Yes (0-10V Dimming)
IP Rating IP20
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
Class Certification Class II/ SELV

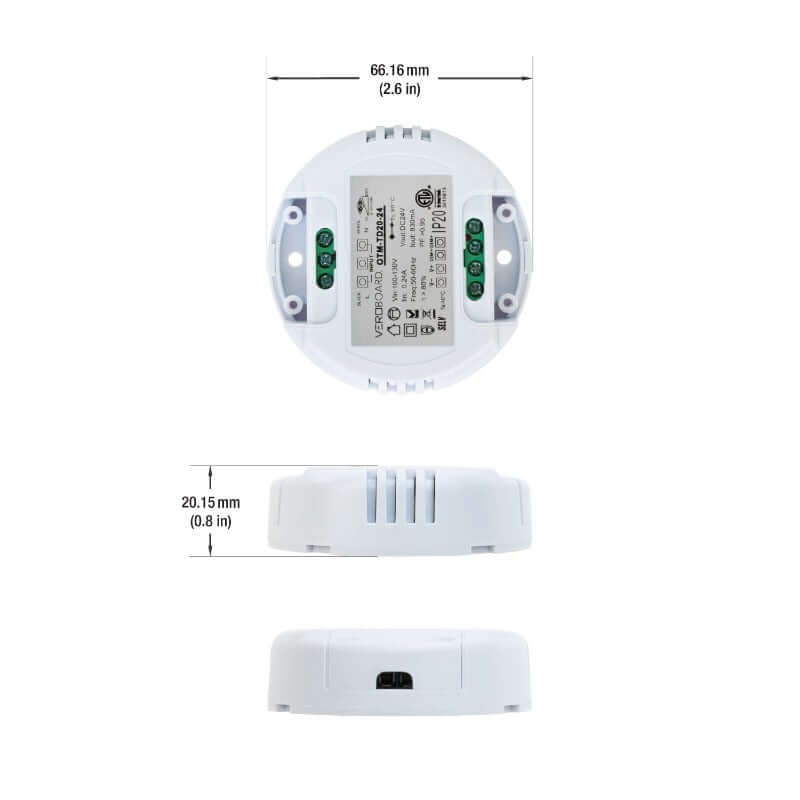

Dimensions Ø66.16mm (2.6in)
Depth 20.15mm (0.8 in)
Certification
Compatible with 0-10V Dimmers
Applicable for Dry and Damp locations
Short circuit and Overload Protected
Class II Power Supply, Double-layer insulation
Easily fits in a 1-Gang Standard Box or Single Gang Box



The OTM-TD20-24 LED driver is a dimmable constant voltage driver designed for use with LED lighting systems. It has an input voltage range of 100-130V AC, an input current of 0.24A, and a frequency of 50-60Hz. The driver has an efficiency rating of greater than 80% and an output voltage of 24V DC. It can regulate output current up to 830mA and has a maximum output power of 20W. The power factor is greater than 0.95, indicating high power efficiency. The driver is dimmable, allowing for 0-10V dimming control. The driver is rated IP20 for indoor use only and can operate in ambient temperatures up to 40°C, with a case temperature limit of 80°C. It is Class II/SELV certified for electrical safety and has dimensions of 66.16mm x 20.15mm, making it a compact driver. The driver is ETL certified, indicating it has met relevant safety standards.

Features:

  • Dimmable constant voltage LED driver
  • Input voltage range: 100-130V AC, input current: 0.24A, frequency: 50-60Hz
  • Efficiency rating: >80%, output voltage: 24V DC
  • Output current regulation up to 830mA, maximum output power: 20W
  • Power factor: >0.95, indicating high power efficiency
  • Dimming control: 0-10V
  • Rated IP20 for indoor use only, operating temperature: up to 40°C, case temperature limit: 80°C
  • Class II/SELV certified for electrical safety
  • Compact dimensions: 66.16mm x 20.15mm
  • ETL certified, meeting relevant safety standards.
