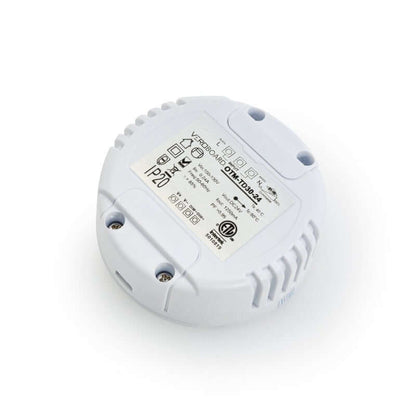

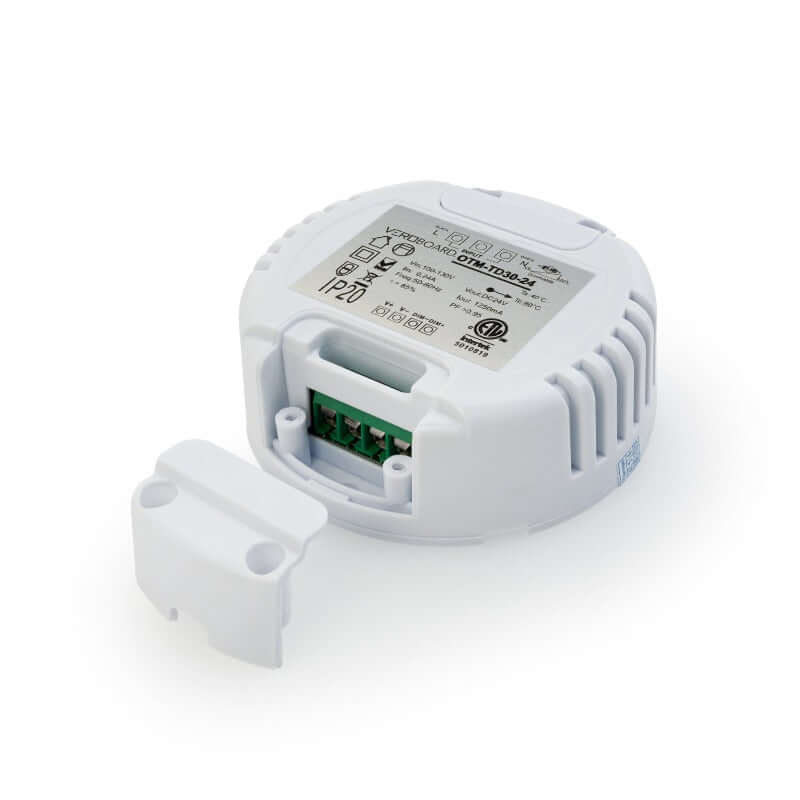

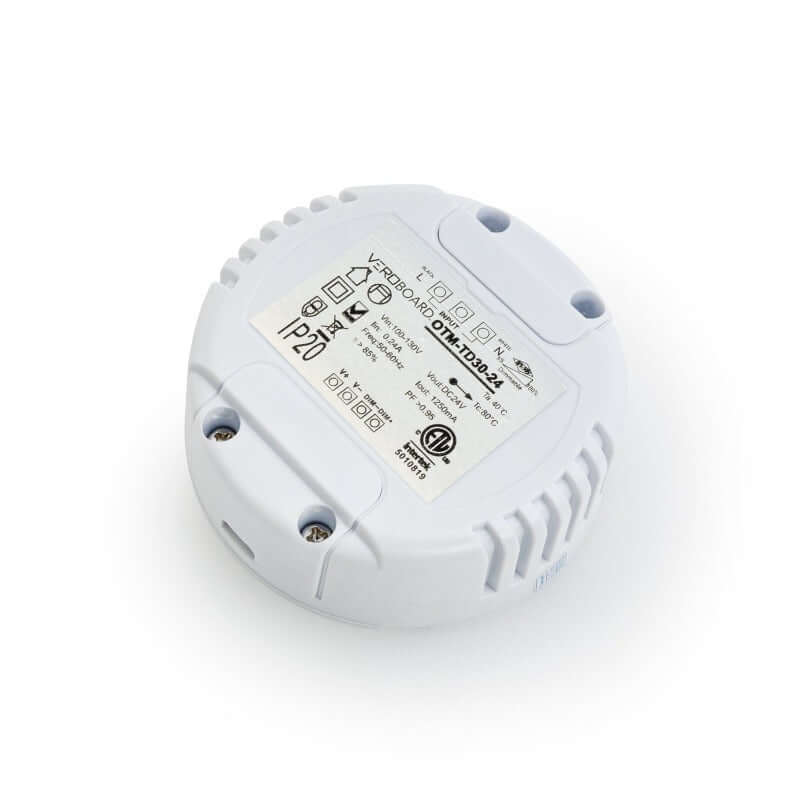

OTM-TD30-24 0-10V Dimmable Constant Voltage LED Driver, 24V 1.25A 30W
Product Description
| Model | OTM-TD30-24 |
| Input Voltage | 100-130V AC |
| Input Current | 0.24A |
| Frequency | 50-60Hz |
| Efficiency | >85% |

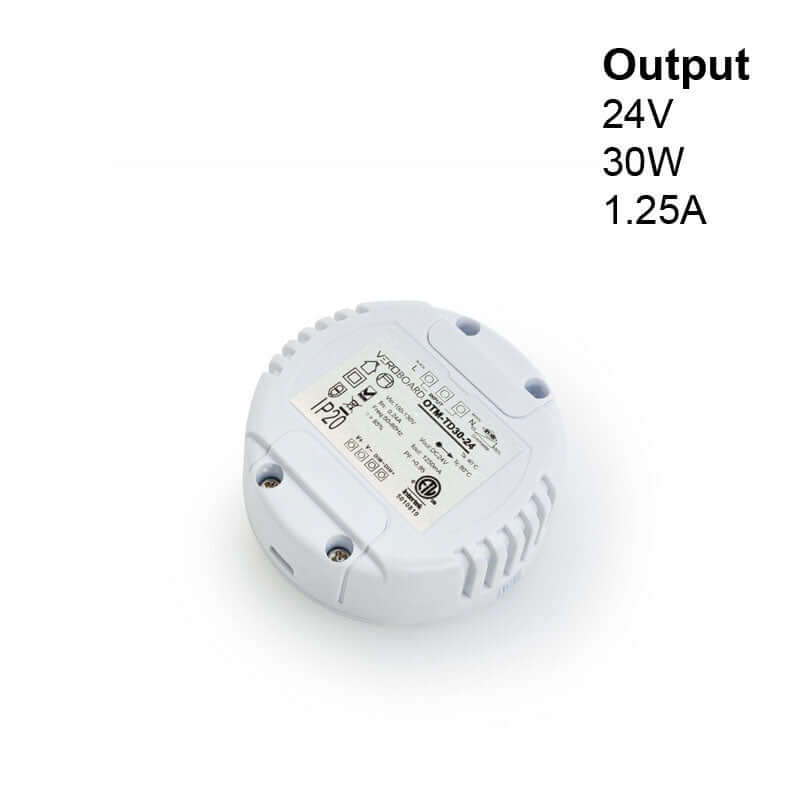

| Output Voltage | 24V DC |
| Output regulated Current | 1.25A |
| Output Power | 30W max |
| Power Factor | >0.95 |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 80°C |
| Class Certification | Class II/ SELV |

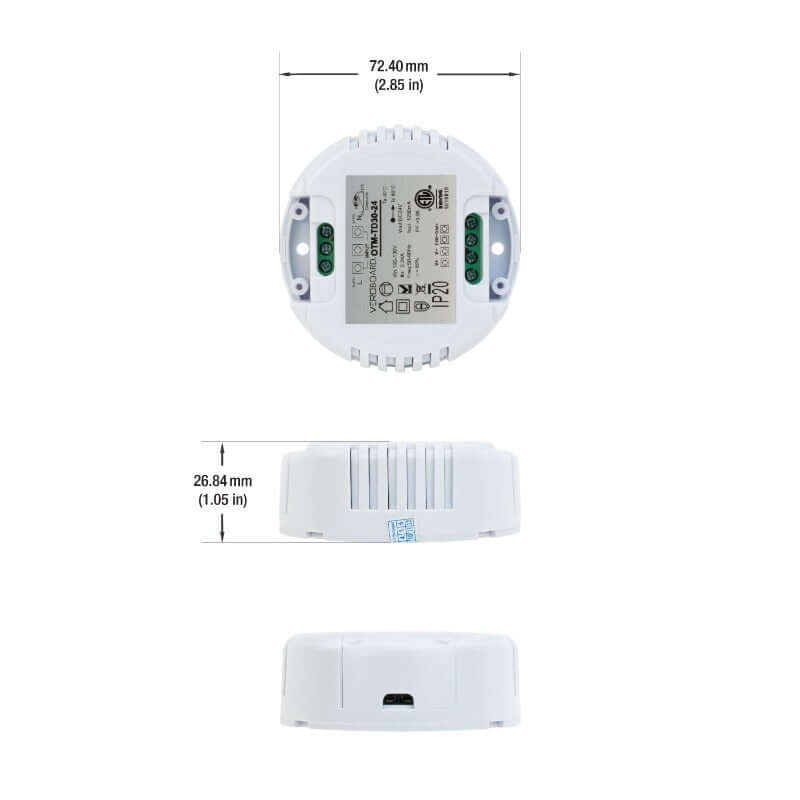

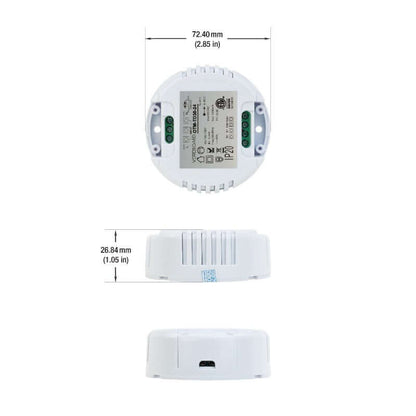

| Dimensions | 72.40 mm x 26.84mm (2.85 in) Dia x (1.05 in) Depth |
| Certification |

|
|
Compatible with 0-10V Dimmers |
| Applicable for Dry and Damp locations |
| Short circuit and Overload Protected |
| Class II Power Supply, Double-layer insulation |
Feature:
The OTM-TD30-24 LED driver is a dimmable constant voltage driver designed for use with LED lighting systems. It has an input voltage range of 100-130V AC, an input current of 0.24A, and a frequency of 50-60Hz. The driver has an efficiency rating of greater than 85% and an output voltage of 24V DC. It can regulate output current up to 1.25A and has a maximum output power of 30W. The power factor is greater than 0.95, indicating high power efficiency. The driver is dimmable, allowing for 0-10V dimming control. The driver is rated IP20 for indoor use only and can operate in ambient temperatures up to 40°C, with a case temperature limit of 80°C. It is Class II/SELV certified for electrical safety and has dimensions of 72.40 mm x 26.84mm (2.85 in) diameter x (1.05 in) depth, making it a compact driver. The driver is ETL certified, indicating it has met relevant safety standards.
