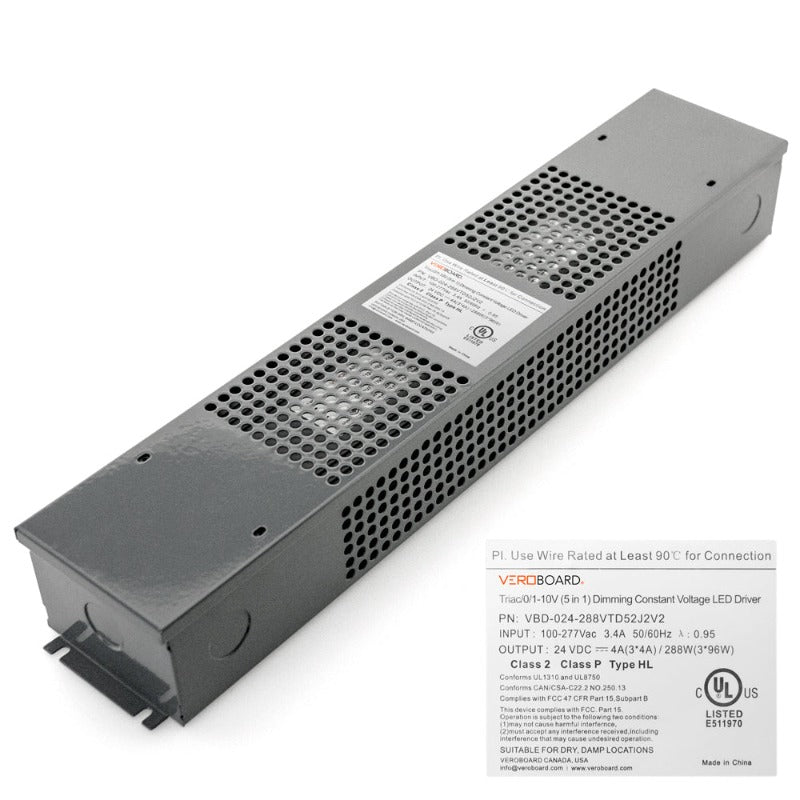

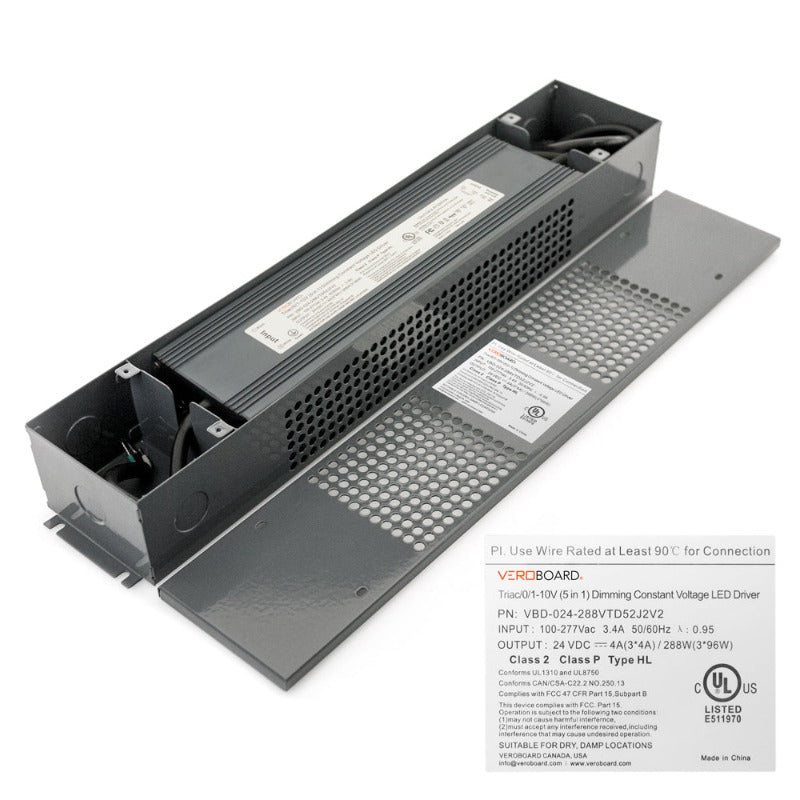

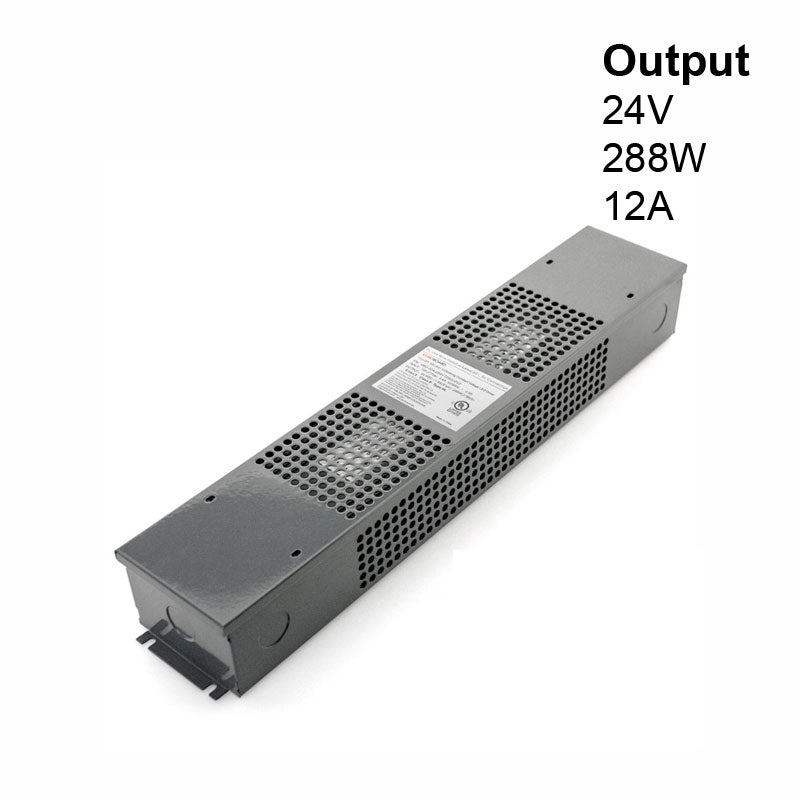

VBD-024-288VTD52J2V2 Triac/0-10V Dimmable LED Driver, 24V 288W(3x96W) 100-277V AC

  • $344.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561419288
We only have 60 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Model VBD-024-288VTD52J2V2
Input Voltage 100-277V AC
Input Current 3.4A
Frequency 50/60Hz
Power Factor 0.95
Output voltage 24V DC
Output regulated current 12A (3x4A)
Output max Power 288W (3x96W)
Dimmable Yes (Triac/0/10V Dimming)
Class Certification Class 2/ Class P/ Type HL/ SELV
IP Rating IP67 (Outdoor Rated)

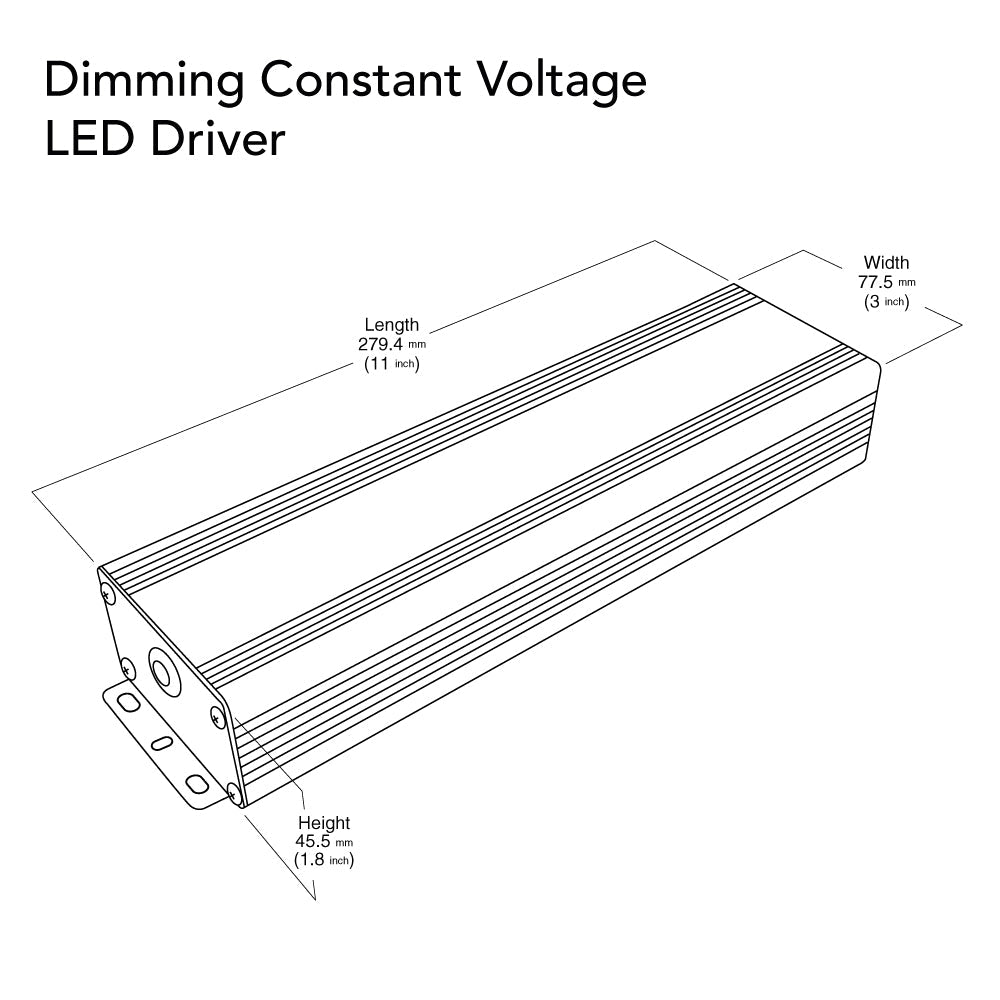

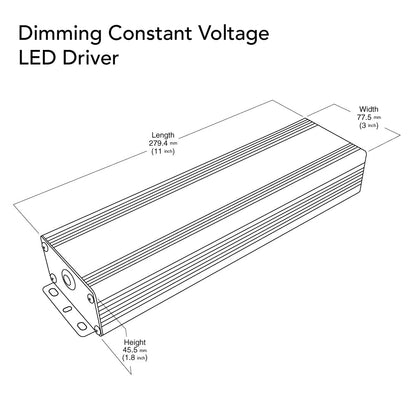

Dimensions (Without Box) 280x 77.5x 45.5mm(11 x 3 x 1.8 in)

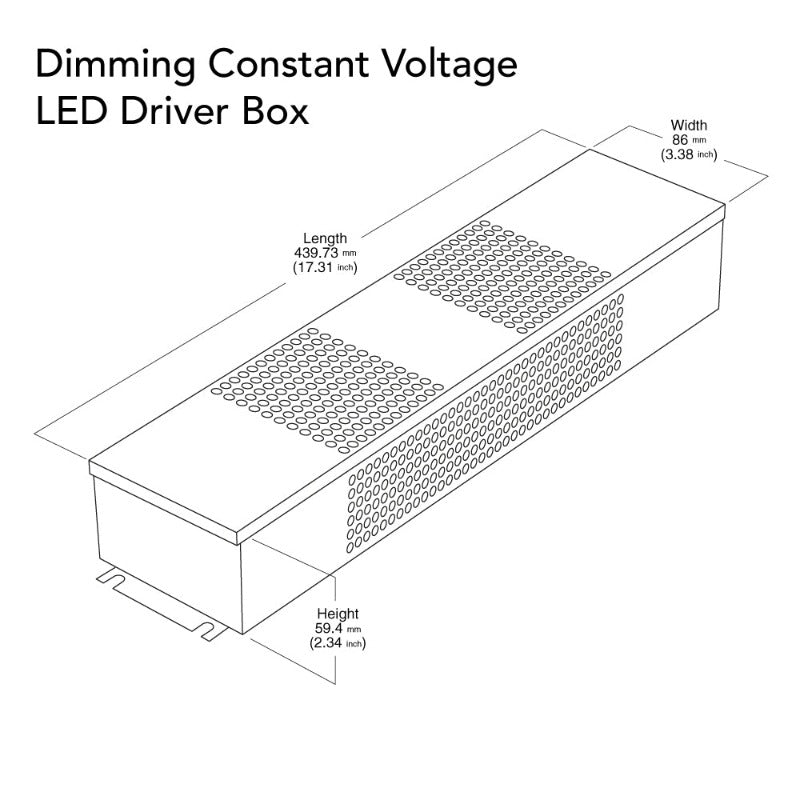

Dimensions (Box) 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in)
Certifications
Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers.
Suitable for Dry, Damp, and Wet locations.



The VBD-024-288VTD52J2V2 is a Triac/0-10V dimmable LED driver designed to power LED lights. It has an input voltage range of 100-277V AC and an input current of 3.4A with a frequency of 50/60Hz. The power factor of the driver is 0.95, which indicates high efficiency in converting AC power to DC power.

The output voltage of the driver is 24V DC, and it can regulate a maximum current of 12A (3x4A) with a maximum output power of 288W (3x96W). The driver is dimmable and supports 5 in 1 dimming. The class certification of the driver is Class 2/Class P/Type HL/SELV, indicating that it meets specific safety standards for LED lighting.

The driver has an IP67 rating, making it suitable for outdoor use, and its dimensions without the box are 280x77.5x45.5mm (11 x 3 x 1.8 in), while the dimensions with the box are 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in). The driver is FCC and UL certified, indicating that it meets the safety standards set by these organizations.

Features:

  • The VBD-024-288VTD52J2V2 is a Triac/0-10V dimmable LED driver for powering LED lights
  • It has an input voltage range of 100-277V AC and an input current of 3.4A with a frequency of 50/60Hz
  • The power factor is 0.95, indicating high efficiency in converting AC power to DC power
  • Output voltage is 24V DC, and it can regulate a maximum current of 12A (3x4A) with a maximum output power of 288W (3x96W)
  • The driver is dimmable and supports 5 in 1 dimming
  • Class certification is Class 2/Class P/Type HL/SELV, meeting specific safety standards for LED lighting
  • It has an IP67 rating, making it suitable for outdoor use
  • Dimensions without the box: 280x77.5x45.5mm (11 x 3 x 1.8 in), with the box: 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in)
  • FCC and UL certified, meeting safety standards set by these organizations
