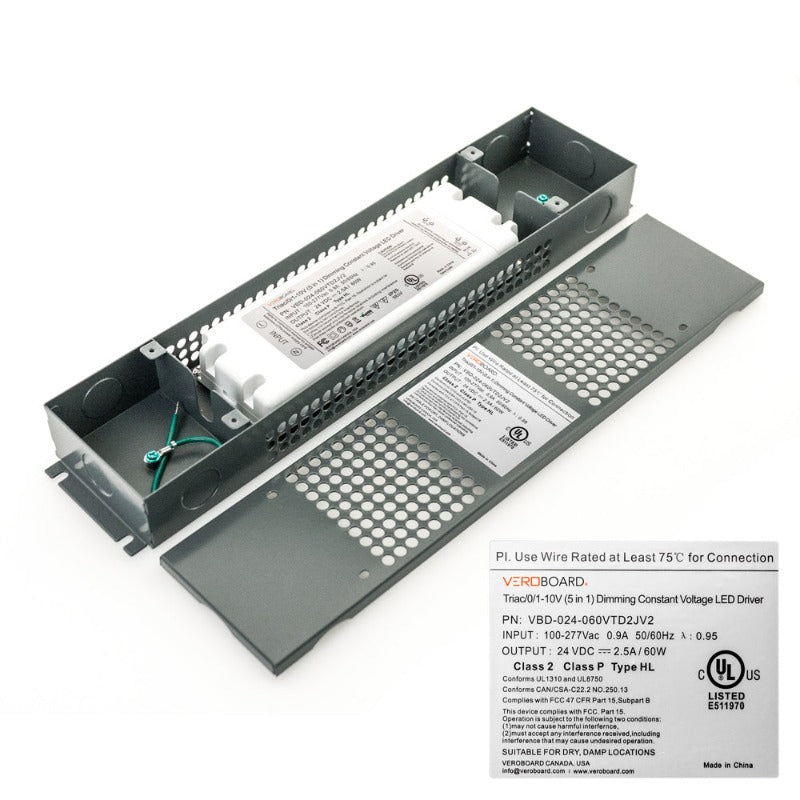

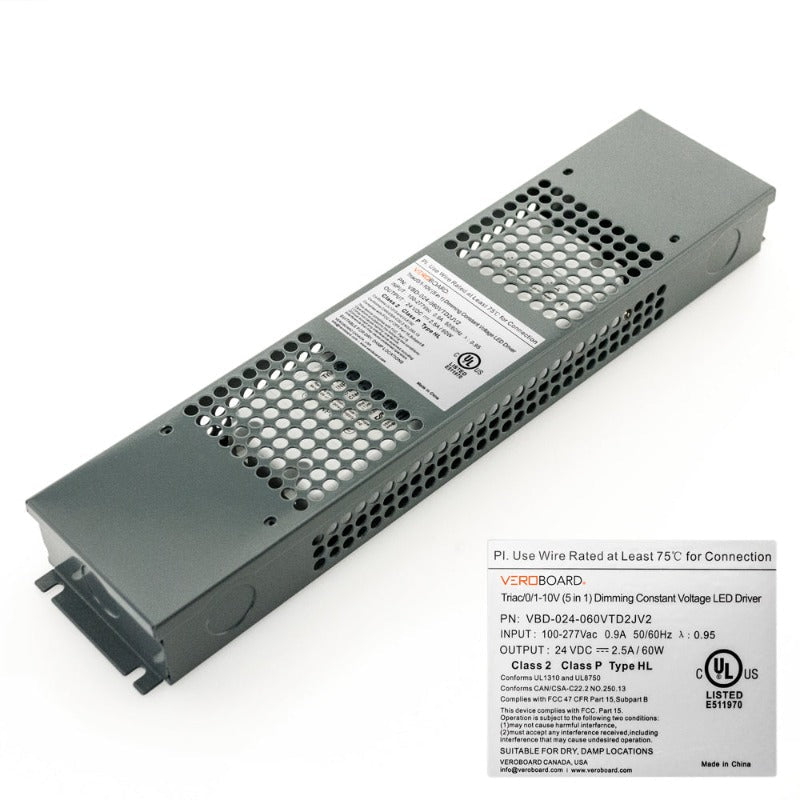

VBD-024-060VTD2JV2 Triac/0-10V Dimmable Constant Voltage LED Driver, 24V 60W 100-277V AC

  • $106.80 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561419226
We only have 21 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Model VBD-024-060VTD2JV2
Input Voltage 100-277V AC
Input Current 0.9A
Frequency 50/60Hz
Power Factor 0.95

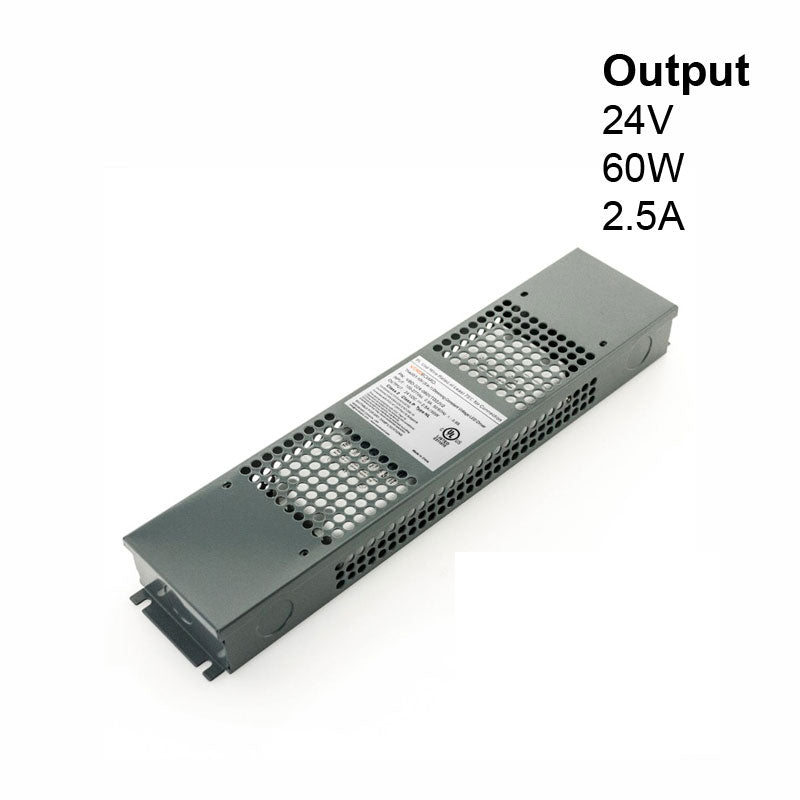

Output Voltage 24V DC
Output regulated current 2.5A
Output Power 60W max
Dimmable Yes (Triac/0/10V Dimming)
Class Certification Class 2/ Class II/ Class P/ Type HL
IP Rating IP20

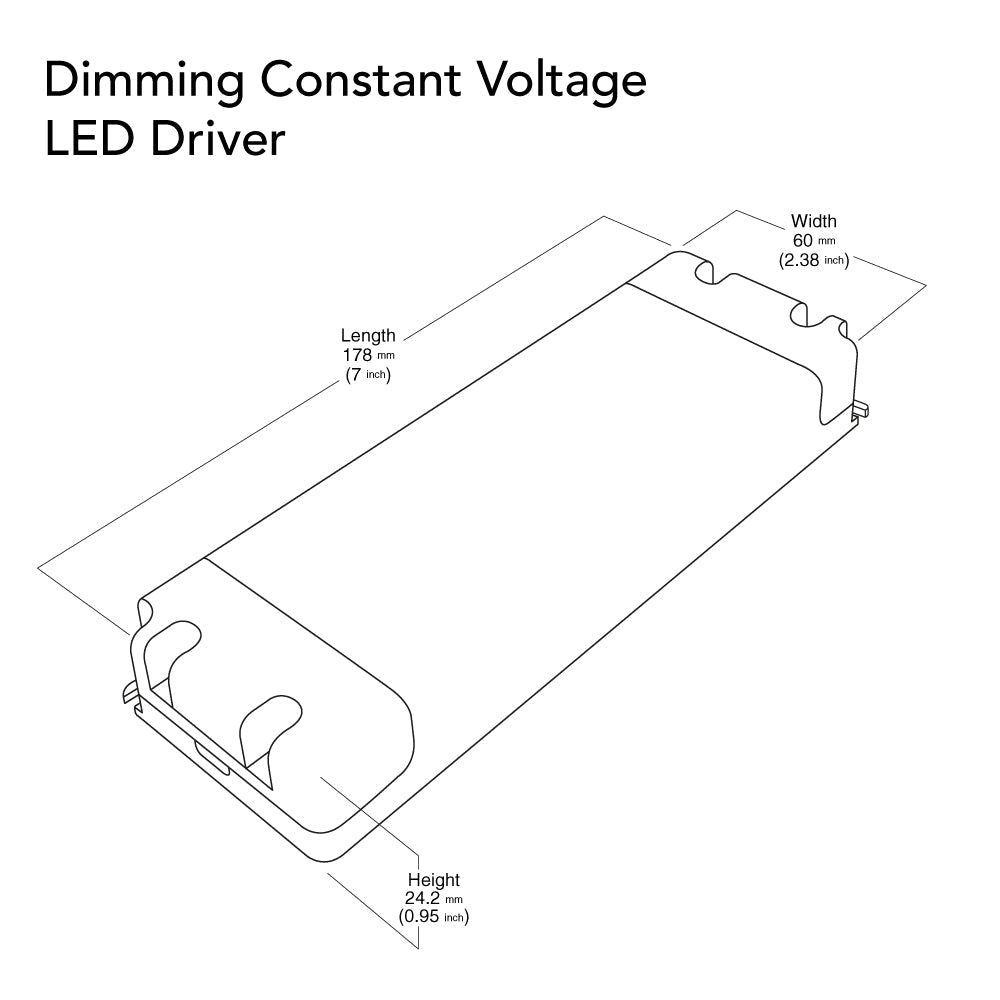

Dimensions (Without Box) 178 x 60 x 24.2mm (7 x 2.38 x 0.95 in)

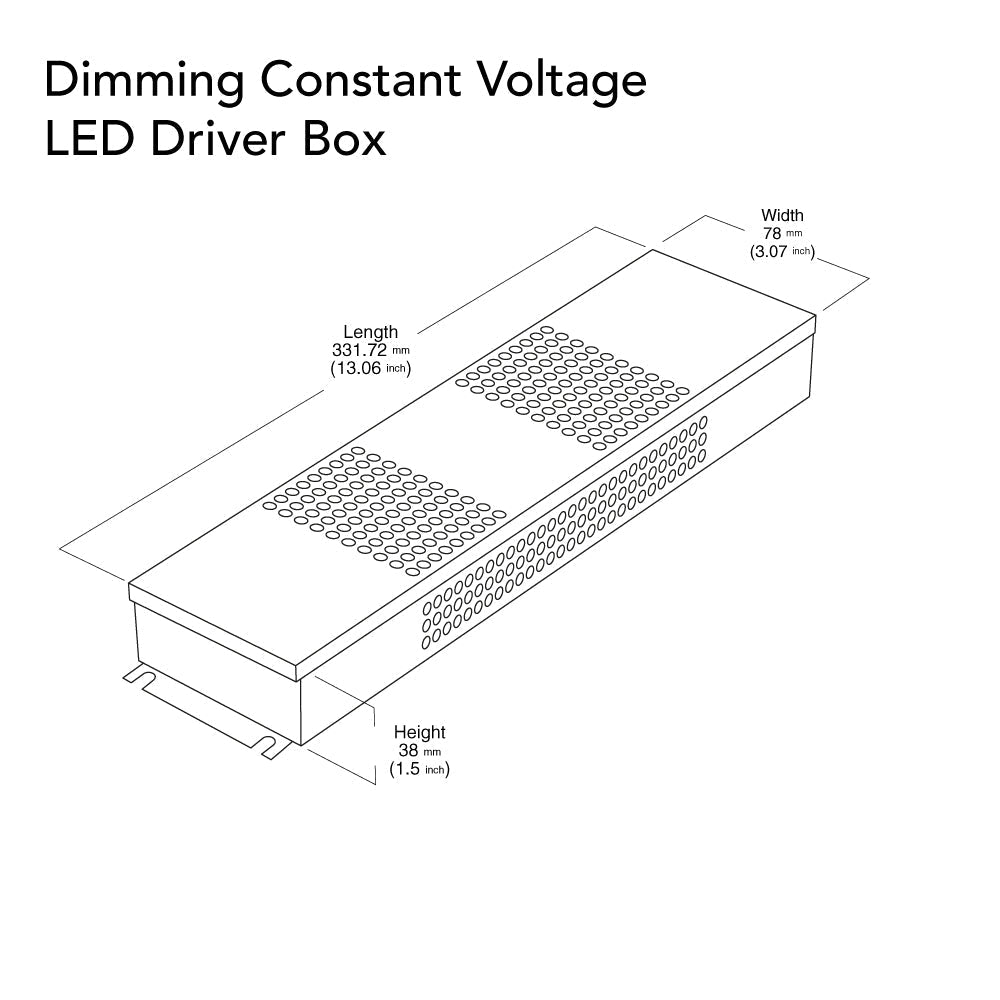

Dimensions (Box) 332 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
Certifications
Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers
Suitable for Dry and Damp locations.



The VBD-024-060VTD2JV2 is a Triac/0-10V Dimmable Constant Voltage LED Driver. It has an input voltage of 100-277V AC with an input current of 0.9A and a frequency of 50/60Hz. The power factor is 0.95. The output voltage is 24V DC with a regulated current of 2.5A and a maximum output power of 60W.

The driver is dimmable using 5 in 1 dimming. It has Class 2/ Class II/ Class P/ Type HL certifications and an IP20 rating. The dimensions without the box are 178 x 60 x 24.2mm (7 x 2.38 x 0.95 in), and with the box, it measures 332 x 78 x 38mm (13.06 x 3.07 x 1.5 in). The driver is certified by UL and FCC.

Features:

  • Triac/0-10V dimmable constant voltage LED driver
  • Input voltage: 100-277V AC, input current: 0.9A, frequency: 50/60Hz, power factor: 0.95
  • Output voltage: 24V DC, regulated output current: 2.5A, maximum output power: 60W
  • 5-in-1 dimming compatibility with Triac, ELV, 0-10V, PWM, and resistor control
  • Class 2/Class II/Class P/Type HL certifications for electrical insulation, fire safety, and hazardous location installations
  • IP20 rating for indoor use
  • Dimensions without box: 178 x 60 x 24.2mm (7 x 2.38 x 0.95 in), with box: 332 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
  • UL and FCC certified for safety and performance standards
