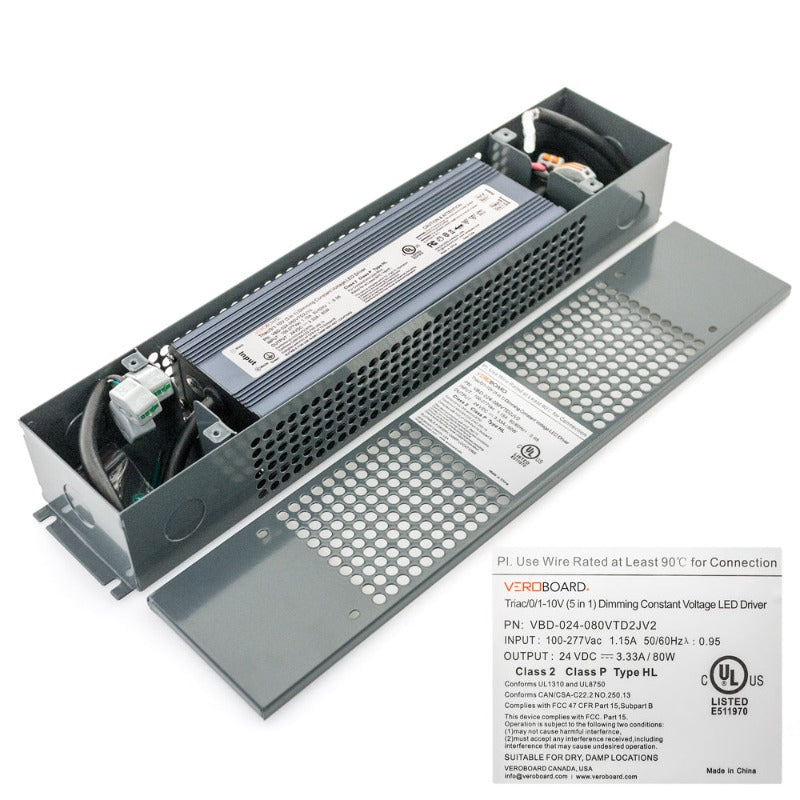

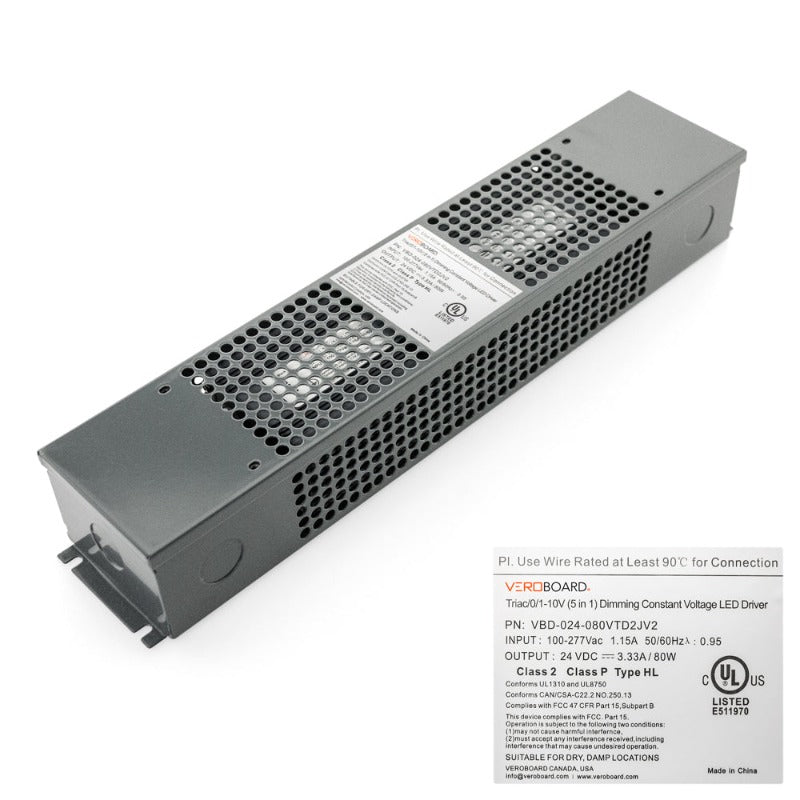

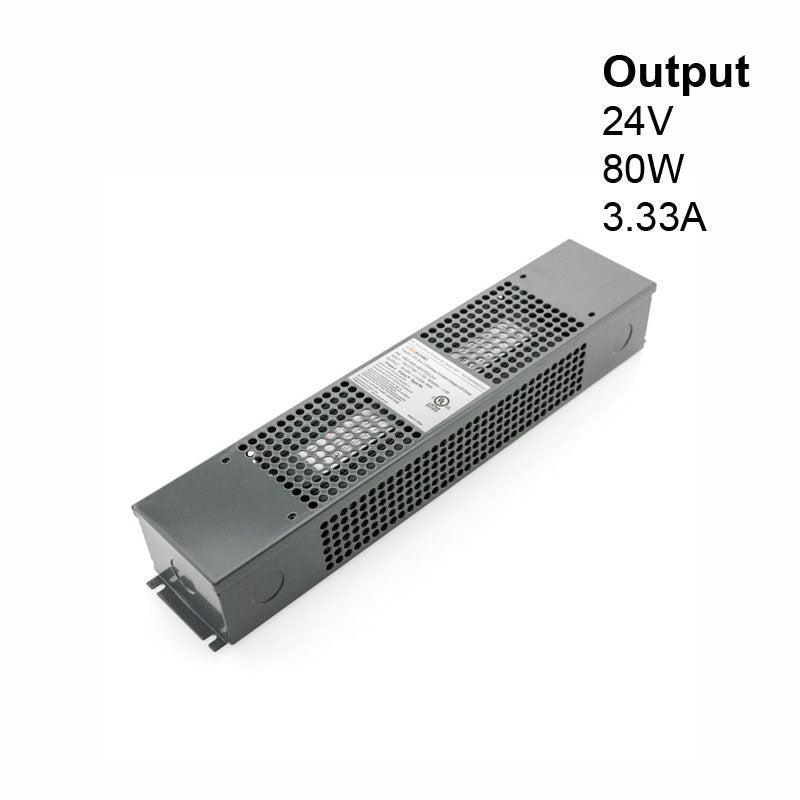

VBD-024-080VTD2JV2 Triac/0-10V Dimmable LED Driver, 24V 80W 100-277V AC
Product Description
| Model | VBD-024-080VTD2JV2 |
| Input Voltage | 100-277V AC |
| Input Current | 1.15A |
| Efficiency | 50/60Hz |
| Power Factor | 0.95 |
| Output Voltage | 24V DC |
| Output regulated Current | 3.33A |
| Output Power | 80W max |
| Dimmable | Yes (Triac/0/10V Dimming) |
| Class Certification | Class 2/ Class P/ Type HL/ SELV |
| IP Rating | IP67 (outdoor Rated) |

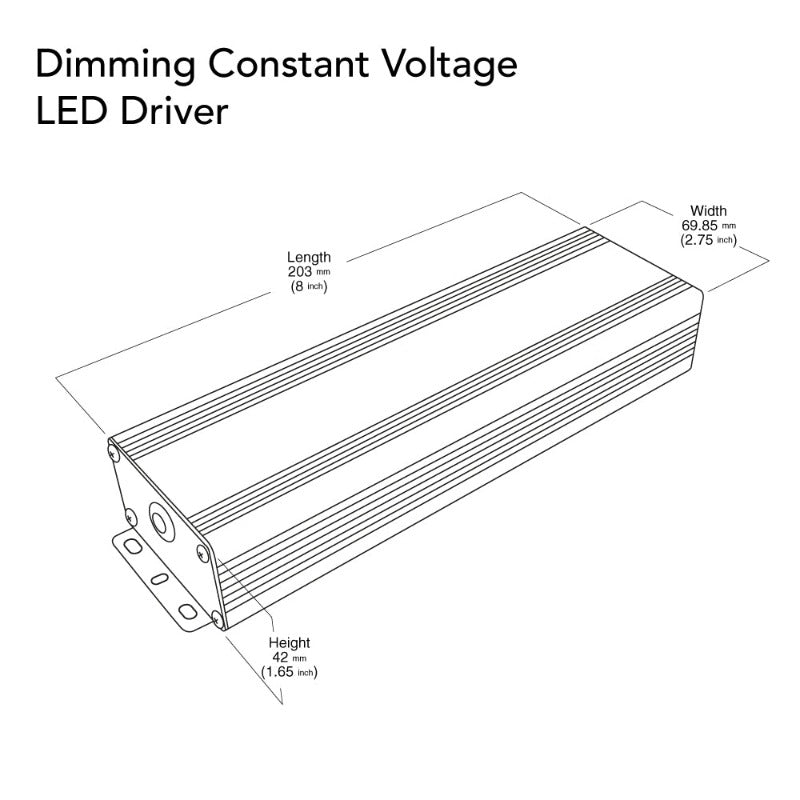

| Dimensions (Without Box) | 203 x 69.5 x 42mm (8 x 2.75 x 1.65 in) |

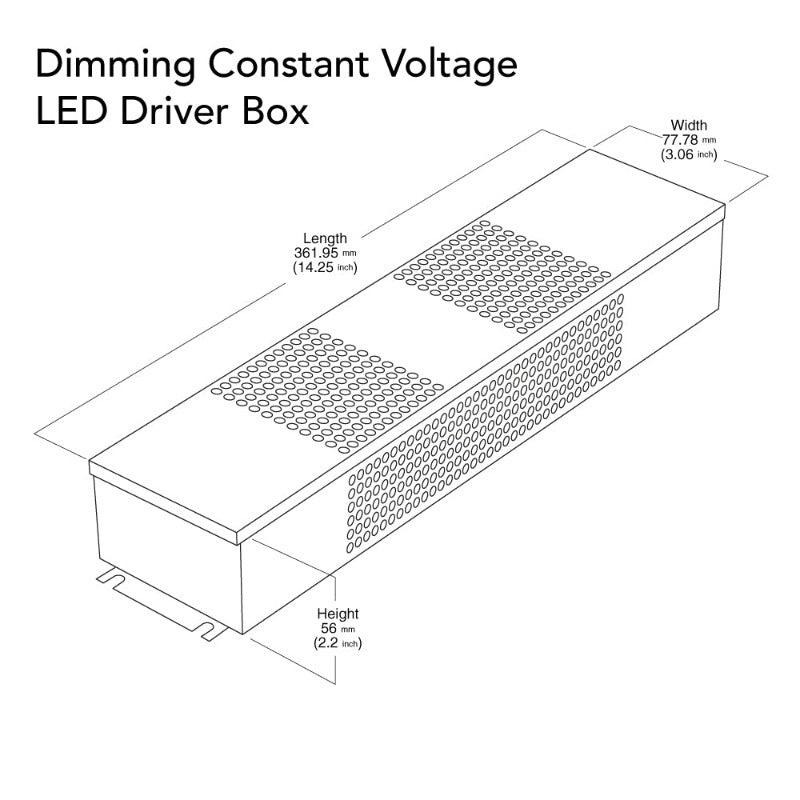

| Dimensions (Box) | 361.95 x 77.78 x 56mm (14.25 x 3.06 x 2.2 in) |
| Certifications |    |
| Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers |
| Suitable for Dry, Damp, and Wet locations. |
The VBD-024-080VTD2JV2 is a 24V, 80W, 100-277V AC input LED driver with Triac/0-10V dimming capabilities. It has a power factor of 0.95 and is highly efficient at 50/60Hz. The output voltage is regulated at 24V DC with a maximum output current of 3.33A. This driver is dimmable using 5 different dimming methods including Triac, 0-10V, and others. It is also Class 2, Class P, Type HL, and SELV certified, and has an IP67 rating making it suitable for outdoor use. The driver's dimensions without the box are 203 x 69.5 x 42mm (8 x 2.75 x 1.65 in) while the dimensions with the box are 361.95 x 77.78 x 56mm (14.25 x 3.06 x 2.2 in). It is FCC and UL certified.
Features:
- 24V, 80W, 100-277V AC input LED driver
- Triac/0-10V dimming capabilities with 5 different dimming methods
- Power factor of 0.95 and highly efficient at 50/60Hz
- Regulated output voltage of 24V DC with a maximum output current of 3.33A
- Class 2, Class P, Type HL, and SELV certified, and has an IP67 rating making it suitable for outdoor use
- FCC and UL certified
- Dimensions without the box: 203 x 69.5 x 42mm (8 x 2.75 x 1.65 in)
- Dimensions with the box: 361.95 x 77.78 x 56mm (14.25 x 3.06 x 2.2 in)
