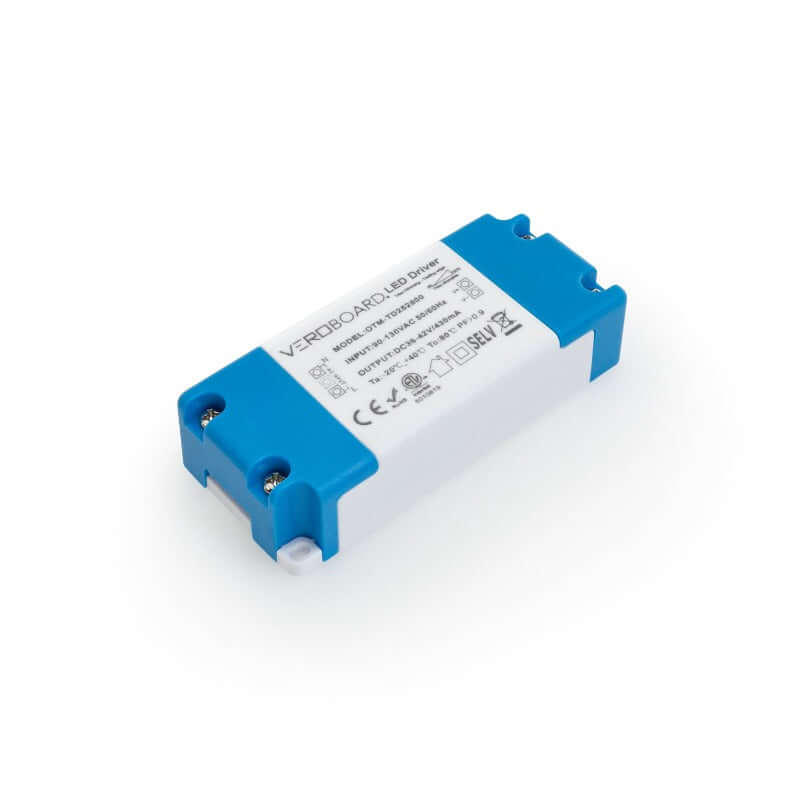

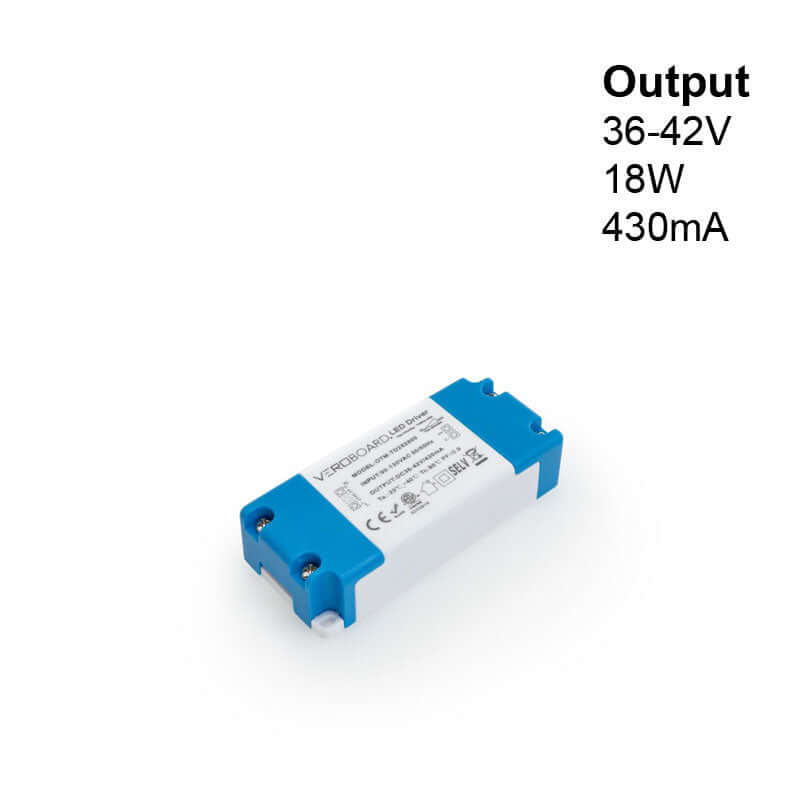

OTM-TD252800-430-18 Constant Current LED Driver, 430mA 36-42V 18W Dimmable
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD252800-430-18 |
Input Voltage | 90-130V AC |
Input Current | 0.9A |
Input Frequency | 50-60Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 430mA |
Output Power | 18W |
Output Voltage | 36-42V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Dry and Damp Locations) |

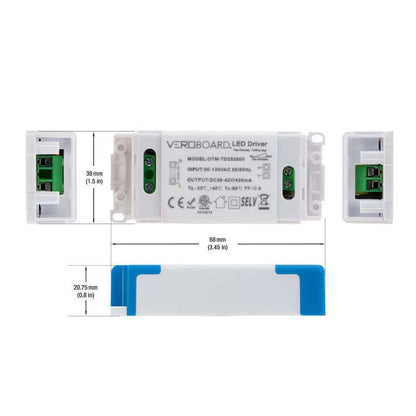

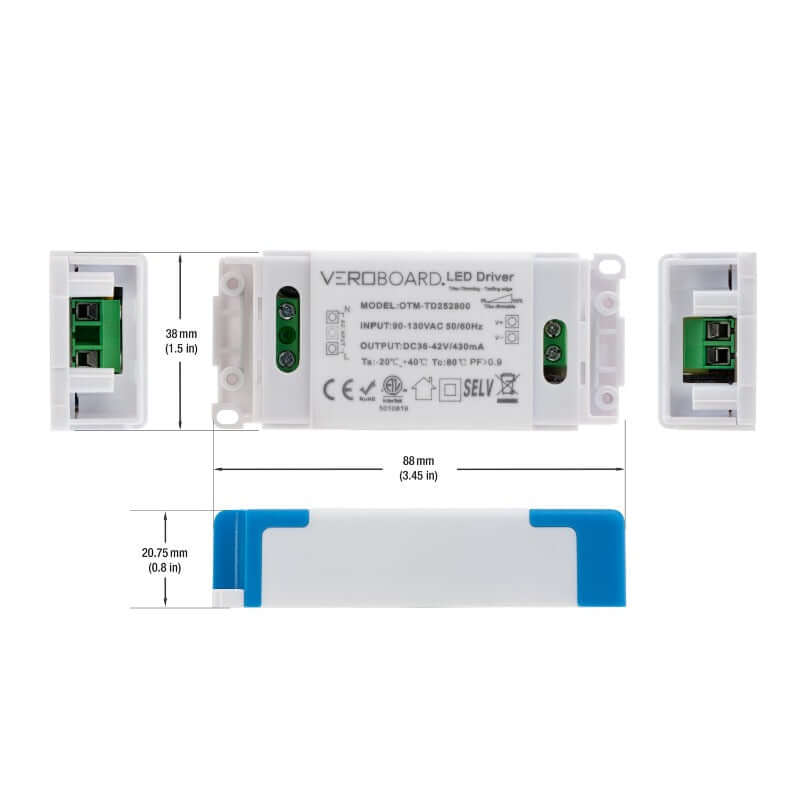

Dimensions | 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in) |
Class Certification | Class 2 |
Certification |
![]() ![]() |
The OTM-TD252800-430-18 is a Constant Current LED Driver that is designed to provide a regulated output current of 430mA and an output power of 18W to LED lighting applications. It has a dimming capability, making it suitable for use in various lighting applications that require brightness control.
The input voltage of this LED driver is 90-130V AC, with an input current of 0.9A, and an input frequency of 50-60Hz. It has a power factor of more than 0.95 and an efficiency of greater than 85%, ensuring high energy efficiency and reducing power losses.
The output voltage of the LED driver is 36-42V DC, making it compatible with most LED lighting applications. The driver is also designed to be used in dry and damp locations, with an IP20 rating, making it suitable for use in indoor lighting applications.
The LED driver is small, with dimensions of 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in), making it easy to install in tight spaces. It is classified as a Class 2 device, which means it has limited power output and is safe to use.
The LED driver can operate at an ambient temperature of up to 40°C and has a case temperature of up to 90°C, making it suitable for use in a wide range of lighting applications. The driver is also dimmable using Triac Dimming, allowing the brightness to be adjusted to suit the desired lighting conditions.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
Features:
- The OTM-TD252800-430-18 is a Constant Current LED Driver.
- It provides a regulated output current of 430mA and an output power of 18W.
- It has dimming capability, making it suitable for various lighting applications.
- The input voltage range is 90-130V AC, with an input current of 0.9A, and an input frequency of 50-60Hz.
- It has a power factor of more than 0.95 and an efficiency of greater than 85%.
- The output voltage range is 36-42V DC.
- It is designed to be used in dry and damp locations with an IP20 rating.
- The dimensions of the driver are 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in).
- It is classified as a Class 2 device.
- The LED driver can operate at an ambient temperature of up to 40°C and has a case temperature of up to 90°C.
- It is dimmable using Triac Dimming technology.
How to Install OOTM-TD252800-430-18 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.

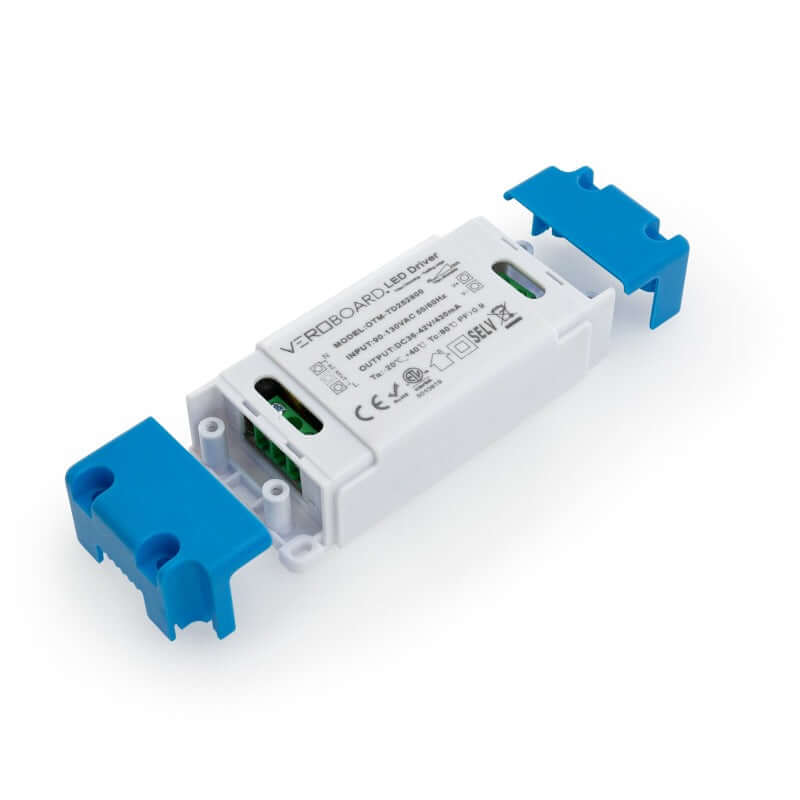

- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
