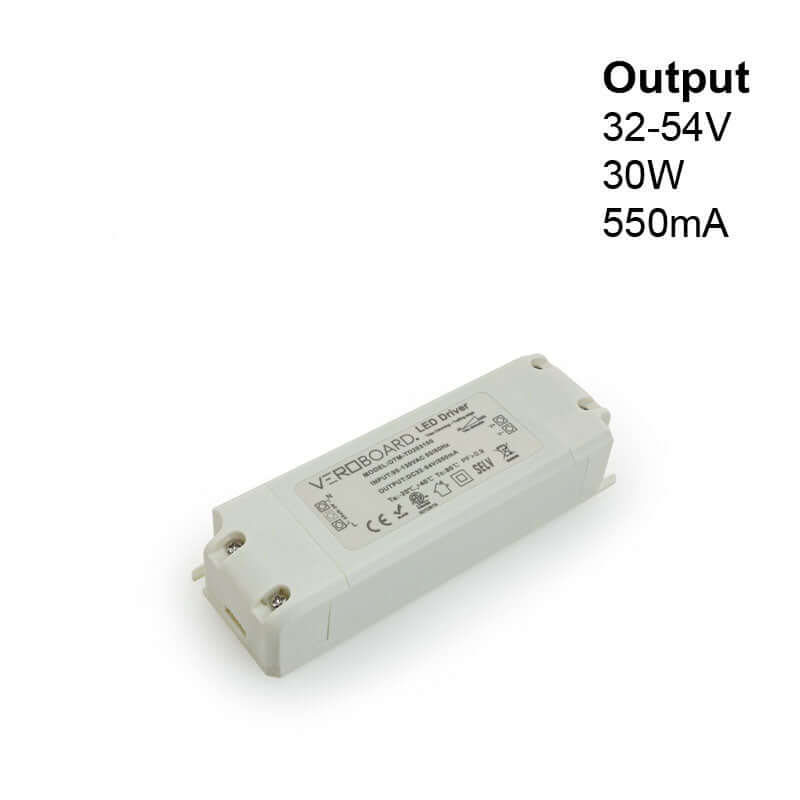

OTM-TD203100-550-30 Constant Current LED Driver, 550mA 32-54V 30W Dimmable

  • $47.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561426538
Title:
We only have 17 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Product Constant Current LED Driver
Model OTM-TD203100-550-30
Input Voltage 90-130V AC
Input Current 0.9A
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 550mA
Output Power 30W
Output Voltage 32-54V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Dry and Damp Locations)

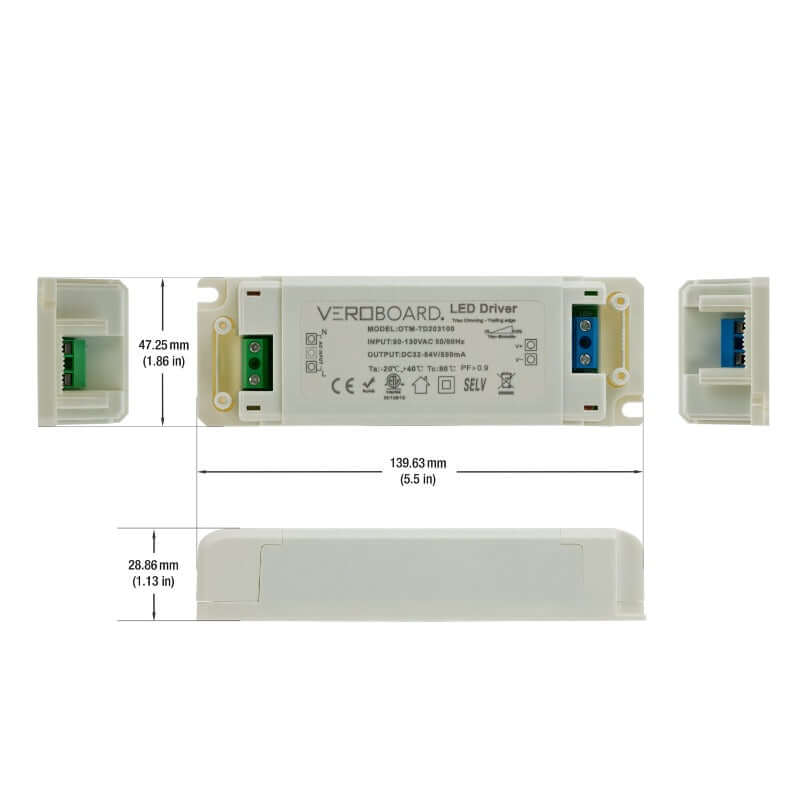

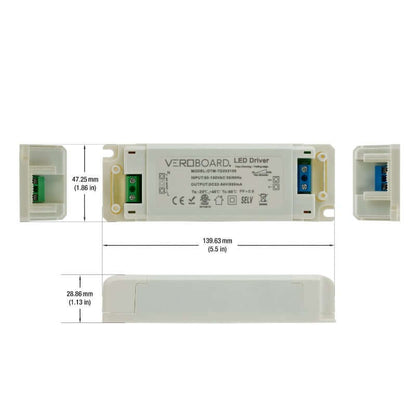

Dimensions 139.63mm x 47.25mm x 28.86mm
(5.5in x 1.86in x 1.13in)
Class Certification Class 2
Certification



The OTM-TD203100-550-30 is a constant current LED driver designed to power LED lighting fixtures. The model is equipped with a Triac dimming feature, allowing users to adjust the brightness of their lights. The driver has an input voltage range of 90-130V AC, an input current of 0.9A, and an input frequency of 50-60Hz.

The power factor of the driver is greater than 0.95, indicating that it is highly efficient in converting AC power to DC power. The efficiency of the driver is also greater than 85%, which helps to reduce energy consumption and operating costs.

The driver's output is a regulated current of 550mA, with an output power of 30W. The output voltage ranges from 32-54V DC, making it compatible with a wide range of LED lighting fixtures.

Features:

  • The OTM-TD203100-550-30 is a constant current LED driver with Triac dimming feature.
  • It has an input voltage range of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz.
  • The driver has a high power factor (>0.95) and efficiency (>85%).
  • It delivers a regulated output current of 550mA and a power output of 30W.
  • The output voltage ranges from 32-54V DC, making it compatible with various LED lighting fixtures.
  • It can operate in ambient temperatures up to 40°C and has an IP20 rating for dry and damp locations.
  • The driver's dimensions are 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in).
  • It has Class 2 certification, ensuring safety standards for low voltage applications.

How to Install OTM-TD203100-550-30 Dimming Constant Current LED Driver?

  1. Ensure that the power is turned off.
  2. Verify the output current of both the light and the driver.

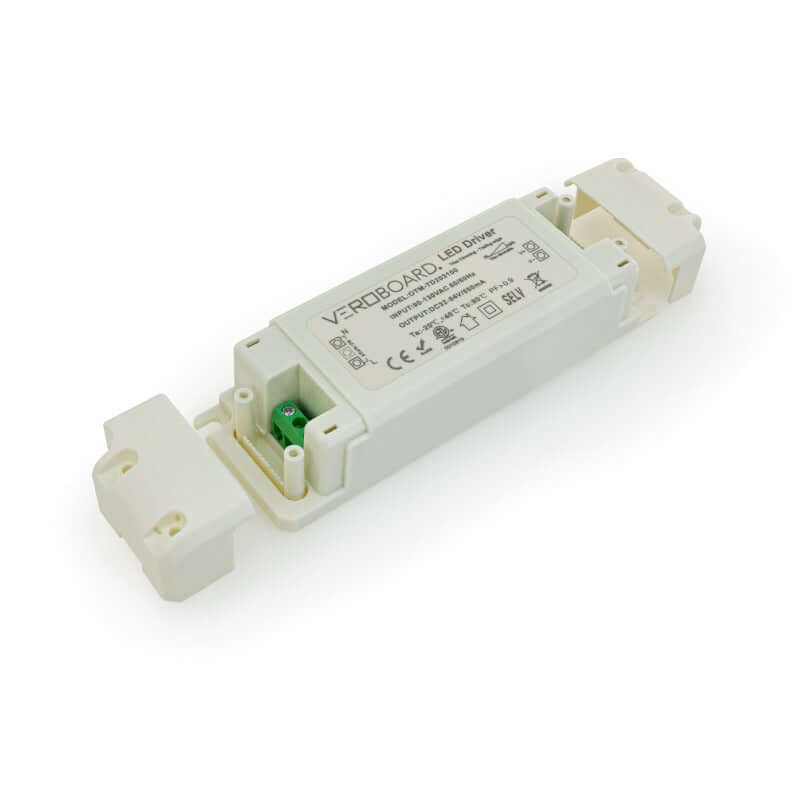

  3. Remove the caps on both sides and loosen the screws on the green terminals.
  4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
  5. Connect the positive wire of the light to V+ and the negative wire to V-.
