OTM-TD202800-560-28 Constant Current LED Driver, 560mA 42-54V 28W Dimmable
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD202800-560-28 |
Input Voltage | 90-130V AC |
Input Current | 0.9A |
Input Frequency | 50-60Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 560mA |
Output Power | 28W |
Output Voltage | 42-54V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Dry and Damp Locations) |

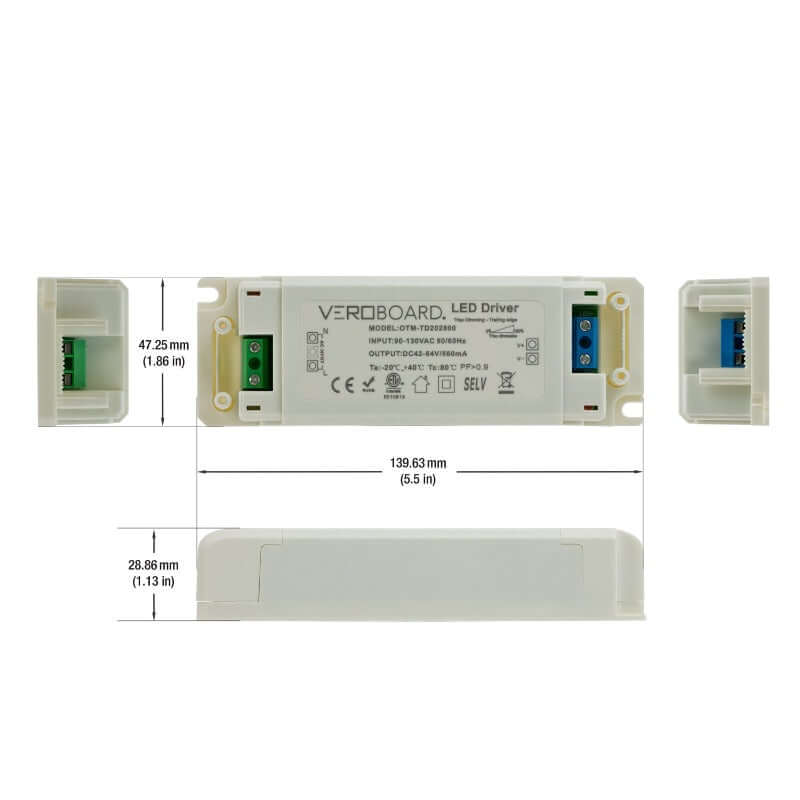

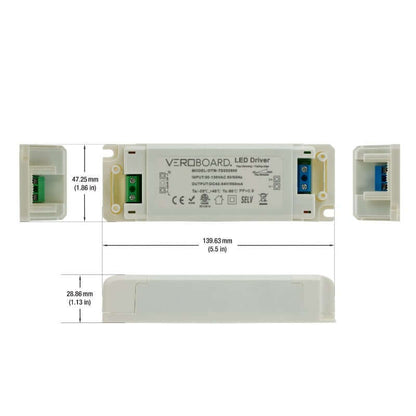

Dimensions | 139.6mm x 47.2mm x 28.8mm (5.5in x 1.86in x 1.13in) |
Class Certification | Class 2 |
Certification |
![]() ![]() |
The OTM-TD202800-560-28 is a constant current LED driver designed to power LED lighting systems with a regulated current of 560mA and an output voltage range of 42-54V DC. The input voltage of this driver is 90-130V AC with a frequency range of 50-60Hz and an input current of 0.9A.
This LED driver has a power factor of PF>0.95 and an efficiency greater than 85%, ensuring efficient power delivery to the LED lighting system. It is also dimmable using Triac dimming, providing flexible lighting control. The ambient temperature range (Ta) for this driver is 40°C, with a case temperature (Tc) of 90°C.
The OTM-TD202800-560-28 driver has an IP rating of IP20, making it suitable for use in dry and damp locations. The driver is compact in size, measuring 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in), making it suitable for use in tight spaces.
This driver is classified as Class 2, which means it meets safety standards for low voltage systems. The OTM-TD202800-560-28 driver is suitable for use in a variety of LED lighting applications, including indoor and outdoor lighting systems.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
Features:
- The OTM-TD202800-560-28 is a constant current LED driver.
- It is designed to power LED lighting systems with a regulated current of 560mA and an output voltage range of 42-54V DC.
- The input voltage range for this driver is 90-130V AC with a frequency range of 50-60Hz and an input current of 0.9A.
- This LED driver has a power factor of PF>0.95 and an efficiency greater than 85%.
- It is dimmable using Triac dimming, providing flexible lighting control.
- The ambient temperature range (Ta) for this driver is 40°C, with a case temperature (Tc) of 90°C.
- The OTM-TD202800-560-28 driver has an IP rating of IP20, making it suitable for use in dry and damp locations.
- It is compact in size, measuring 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in), making it suitable for use in tight spaces.
- This driver is classified as Class 2, which means it meets safety standards for low voltage systems.
- The OTM-TD202800-560-28 driver is suitable for use in a variety of LED lighting applications, including indoor and outdoor lighting systems.
How to Install OTM-TD202800-560-28 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.

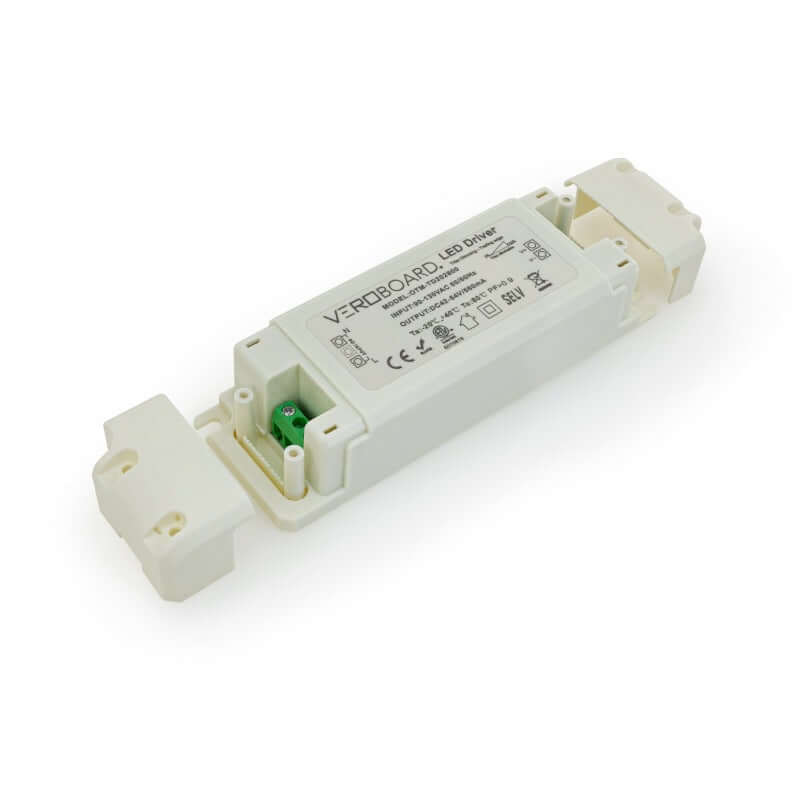

- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
