OTM-TDJ20 Triac dimmable Constant Voltage LED Driver, 12V 1.66A 20W
OTM-TDJ20 Triac dimmable Constant Voltage LED Driver, 12V 1.66A 20W
SKU: SKU:666561425456
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Model | OTM-TDJ20 |
| Input Voltage | 100-130V AC |
| Input Frequency | 50-60Hz |
| Output Voltage | 12V DC |
| Input Current | 0.26A |
| Output regulated Current | 1.66A |
| Output max Power | 20W |
| Dimmable | Yes (Triac/Phase Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |

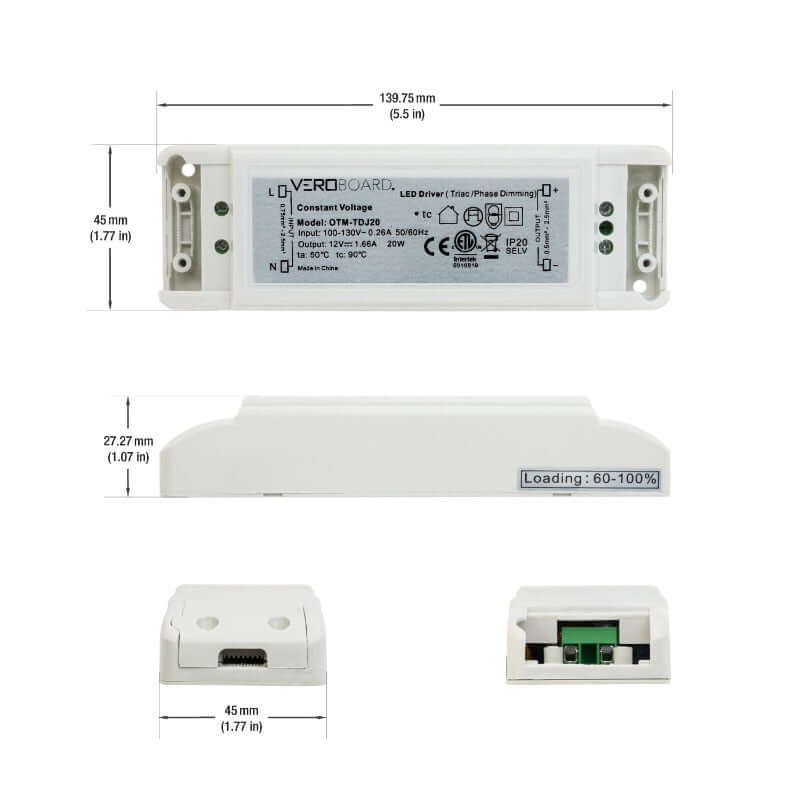

| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |

|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
The OTM-TDJ20 is a Triac dimmable constant voltage LED driver that is designed to convert 100-130V AC input voltage to 12V DC output voltage. It has an input current of 0.26A and an output regulated current of 1.66A, which allows it to provide a maximum output power of 20W.
The driver is dimmable using Triac/Phase Dimming technology and has an IP20 rating, making it suitable for indoor use only. It has a Class II/ SELV certification and can operate in an ambient temperature of up to 50°C while maintaining a case temperature of 90°C. The dimensions of the driver are 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in), and it is ETL certified.
Features:
- The OTM-TDJ20 is a Triac dimmable constant voltage LED driver designed for converting 100-130V AC input voltage to 12V DC output voltage.
- It has an input current of 0.26A and an output regulated current of 1.66A, providing a maximum output power of 20W.
- The driver is dimmable using Triac/Phase Dimming technology and has an IP20 rating, suitable for indoor use only.
- It has a Class II/ SELV certification and can operate in an ambient temperature of up to 50°C while maintaining a case temperature of 90°C.
- The dimensions of the driver are 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in).
- It is ETL certified for safety and compliance.
