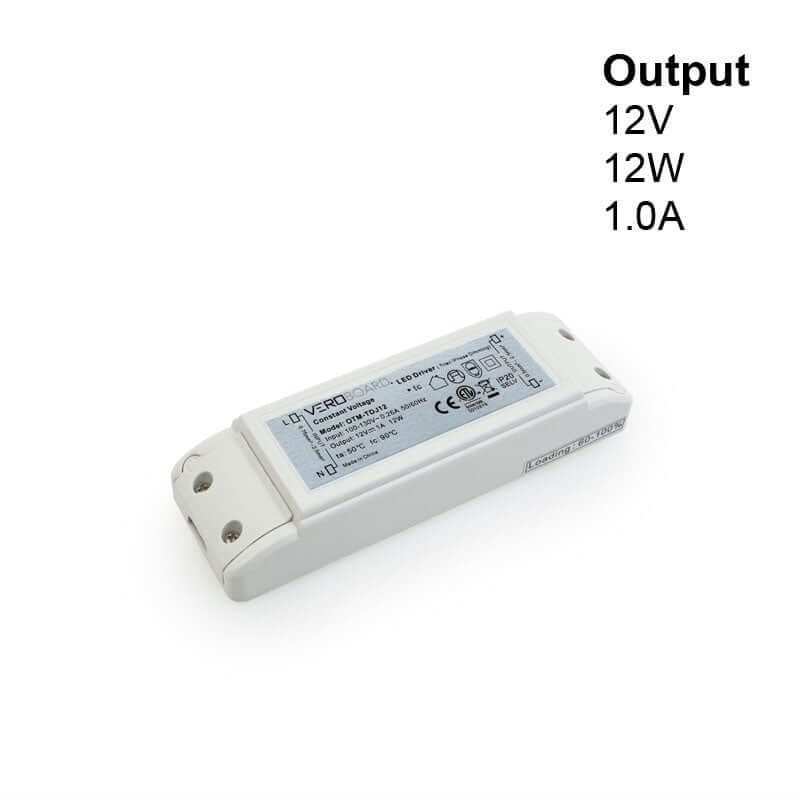

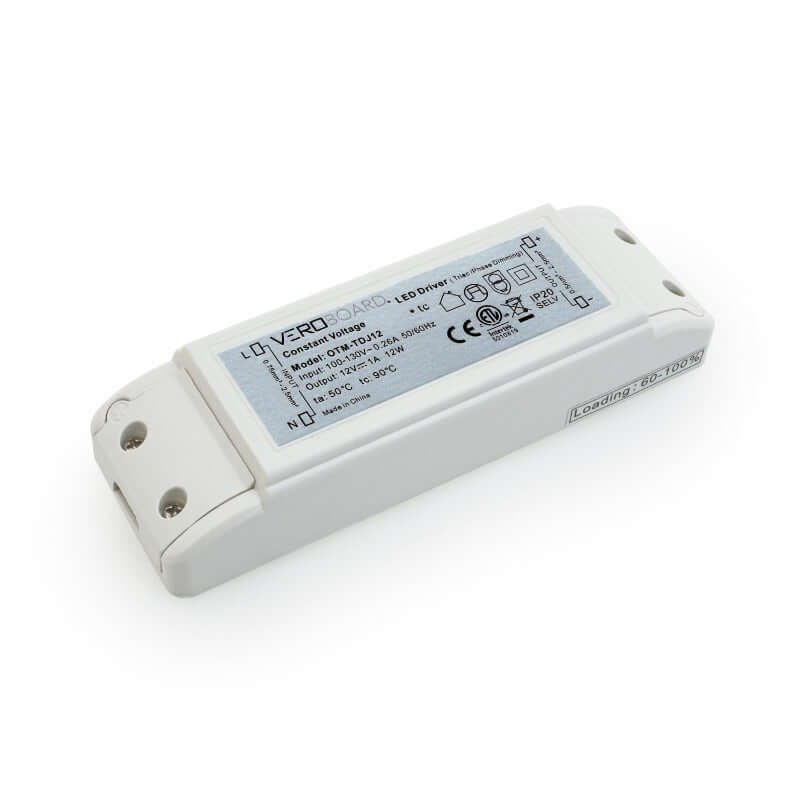

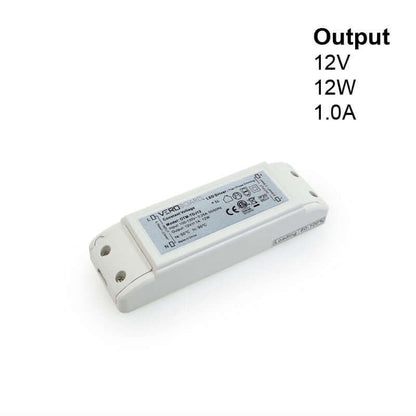

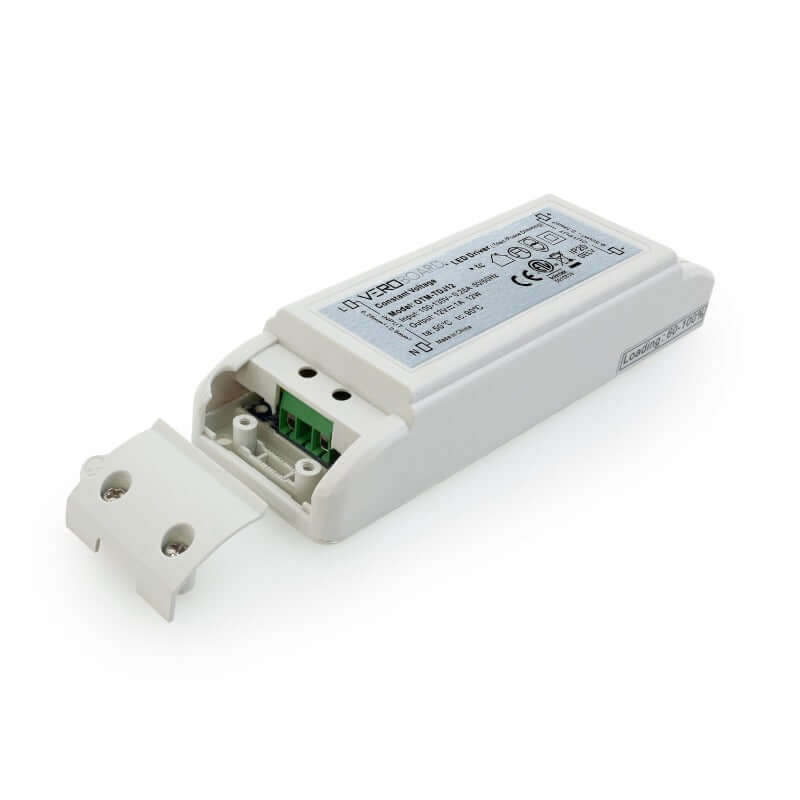

OTM-TDJ12 Triac Dimmable Constant Voltage LED Driver, 12V 1.0A 12W
OTM-TDJ12 Triac Dimmable Constant Voltage LED Driver, 12V 1.0A 12W
SKU: SKU:666561425432
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product description
| Model | OTM-TDJ12 |
| Input Voltage | 100-130V AC |
| Input Current | 0.26A |
| Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 1.0A |
| Output Power | 12W |
| Dimmable | Yes (Triac/Phase Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |

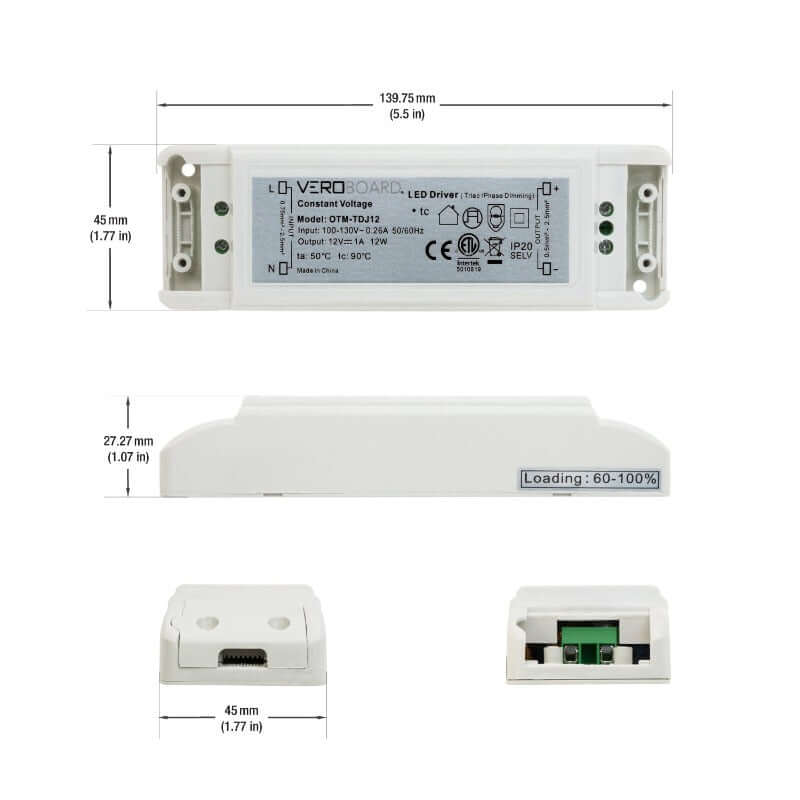

| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |

|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
The OTM-TDJ12 Triac Dimmable Constant Voltage LED Driver is a compact and efficient power supply designed for use with LED lighting systems. It has an input voltage range of 100-130V AC, an input current of 0.26A, and a frequency of 50/60Hz, making it suitable for use in various locations.
The output voltage of the driver is 12V DC, and it can regulate an output current of up to 1.0A, making it ideal for low-power LED lighting applications. With a maximum output power of 12W, it can power a single LED light or a small array of lights. The driver is also dimmable, using Triac/Phase dimming technology, allowing for adjustable brightness levels.
The driver has an IP rating of IP20, indicating that it is suitable for indoor use only. It has a maximum ambient temperature (Ta) of 50°C and a case temperature (Tc) of 90°C, which ensures that it remains within a safe temperature range during operation. The driver has Class II and SELV certifications, indicating that it meets specific safety standards for low-voltage applications.
Features:
- The OTM-TDJ12 Triac Dimmable Constant Voltage LED Driver is a compact and efficient power supply designed for use with LED lighting systems.
- Input voltage range of 100-130V AC, an input current of 0.26A, and a frequency of 50/60Hz, making it suitable for use in various locations.
- Output voltage of 12V DC and can regulate an output current of up to 1.0A, ideal for low-power LED lighting applications.
- Maximum output power of 12W, capable of powering a single LED light or a small array of lights.
- Dimmable using Triac/Phase dimming technology, allowing for adjustable brightness levels.
- IP rating of IP20, indicating that it is suitable for indoor use only.
- Maximum ambient temperature (Ta) of 50°C and a case temperature (Tc) of 90°C, ensuring safe temperature range during operation.
- Class II and SELV certifications, indicating compliance with specific safety standards for low-voltage applications.
- Dimensions of 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in), making it easy to install in a variety of locations.
- ETL certified for safety and compliance, indicating rigorous testing and certification by Intertek, ensuring it meets stringent safety standards and has been tested for reliability and performance.
