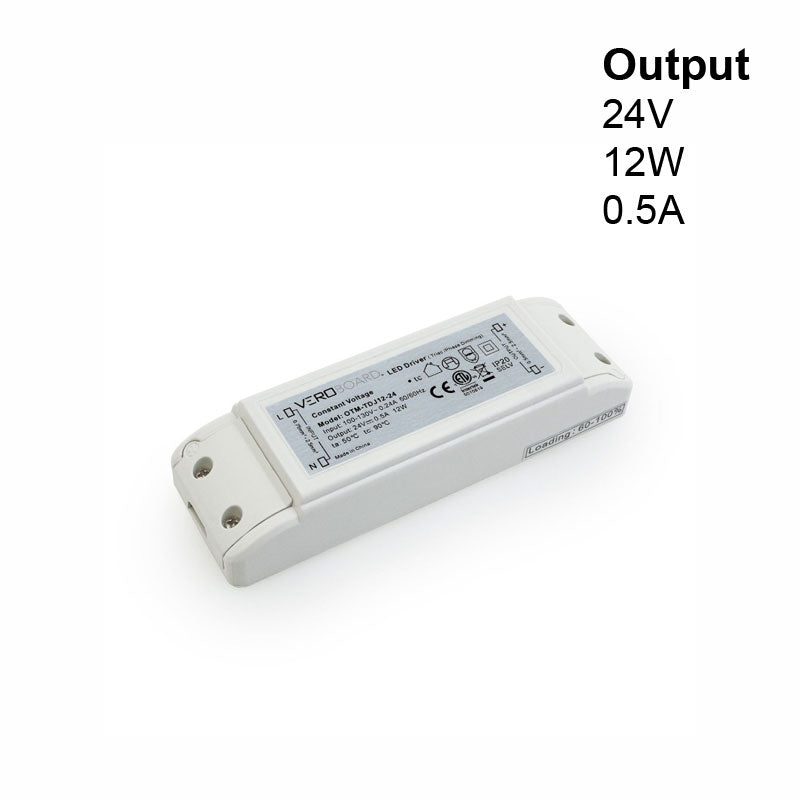

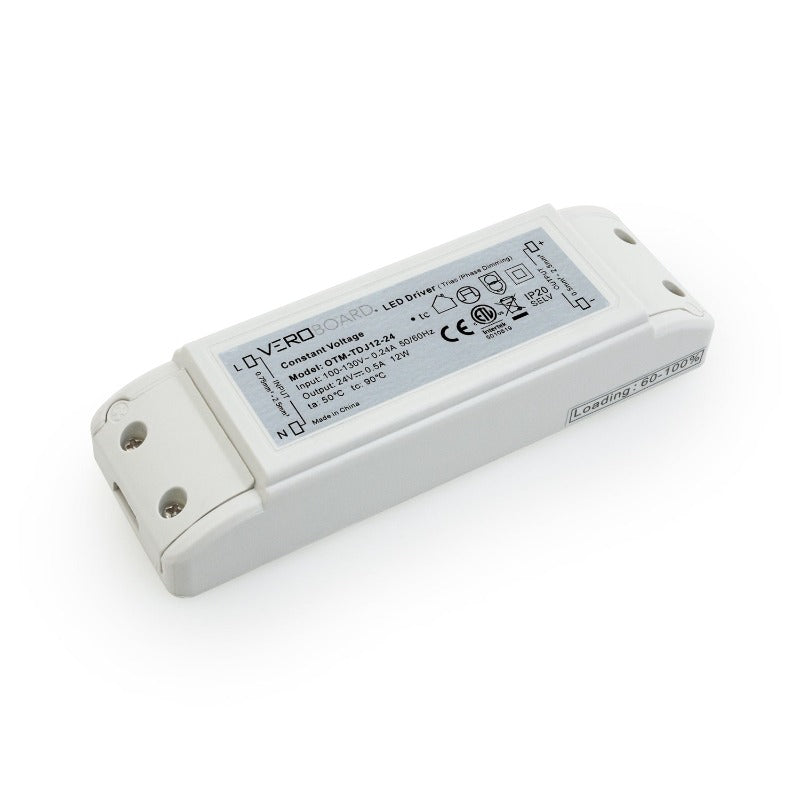

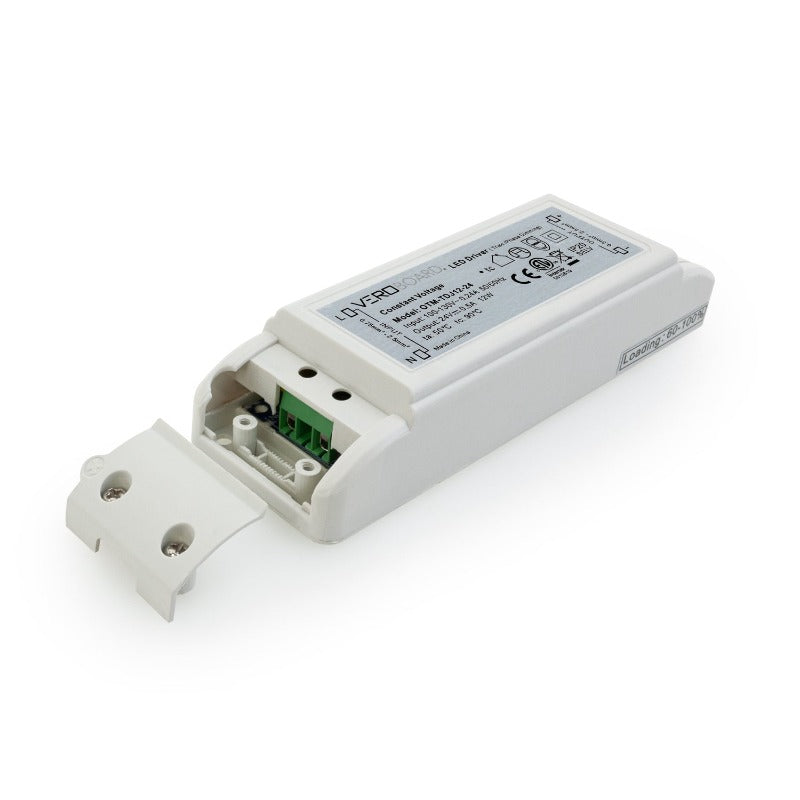

OTM-TDJ12-24 Triac dimmable Constant Voltage LED Driver, 24V 0.5A 12W

  • $31.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425449
Title:
We only have 140 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).





Product Description

Model OTM-TDJ12-24
Input Voltage 100-130V AC
Frequency 50/60Hz
Output Voltage 24V DC
Input Current 0.24A
Output regulated Current 0.5A
Output max Power 12W
Dimmable Yes (Triac/Phase Dimming)
IP Rating IP20 (Indoor Rated)
Class Certification Class II/ SELV
Ambient Temperature (Ta) 50°C
Case Temperature (Tc) 90°C

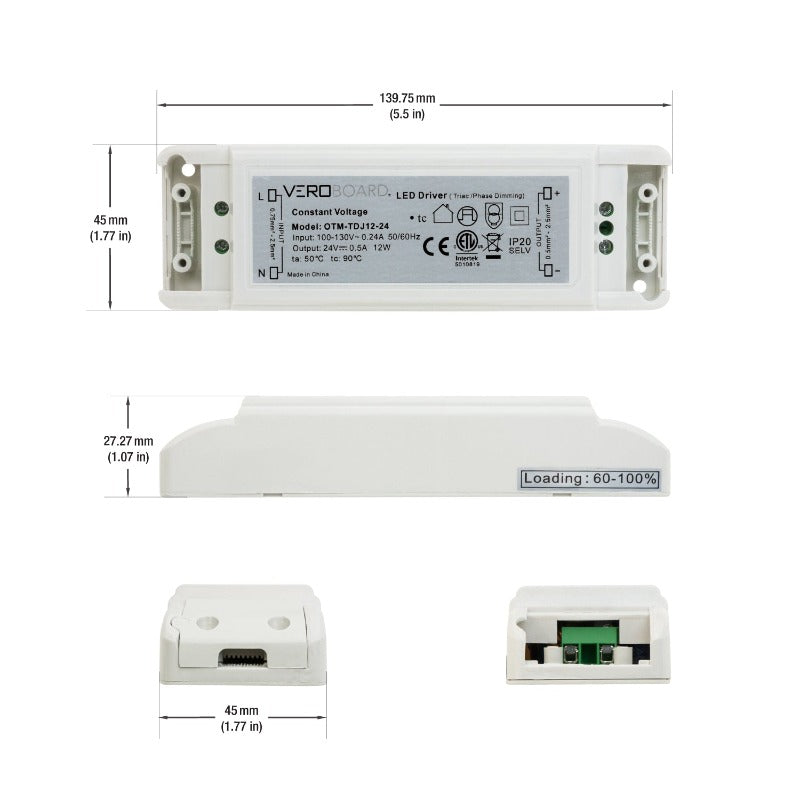

Dimensions 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
Certification

Compatible with Forward-Phase & Triac dimmers
Short circuit and overload protected
Applicable for Dry and Damp locations
Class II certified, Double-layer insulation



The OTM-TDJ12-24 is a Triac dimmable Constant Voltage LED Driver designed to power LED lighting systems with 24V DC output voltage. It has an input voltage range of 100-130V AC and operates at a frequency of 50/60Hz. The driver is capable of delivering a maximum output power of 12W and is equipped with an output regulated current of 0.5A.

It is designed for indoor use with an IP20 rating and has a Class II/SELV certification. The driver is dimmable with Triac/Phase Dimming and can operate at an ambient temperature of up to 50°C with a maximum case temperature of 90°C. Its dimensions are 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) and it is ETL certified.

Features:

  • The OTM-TDJ12-24 is a Triac dimmable Constant Voltage LED Driver designed for LED lighting systems with 24V DC output voltage.
  • Input voltage range of 100-130V AC and operates at a frequency of 50/60Hz.
  • Maximum output power of 12W and equipped with an output regulated current of 0.5A.
  • Designed for indoor use with an IP20 rating and has a Class II/SELV certification.
  • Dimmable with Triac/Phase Dimming and can operate at an ambient temperature of up to 50°C with a maximum case temperature of 90°C.
  • Dimensions of 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in).
  • ETL certified for safety and compliance.
