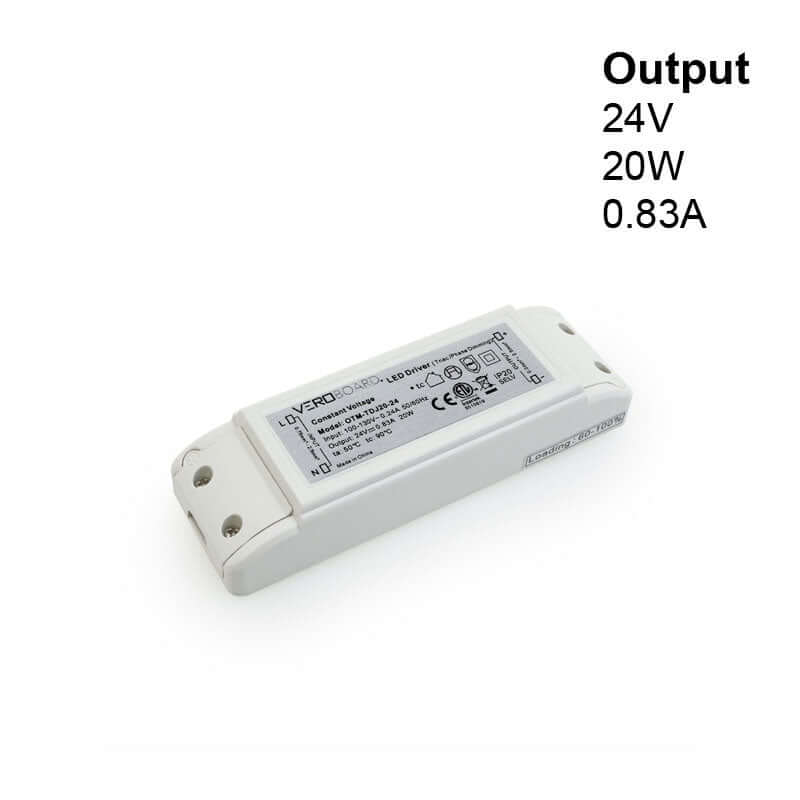

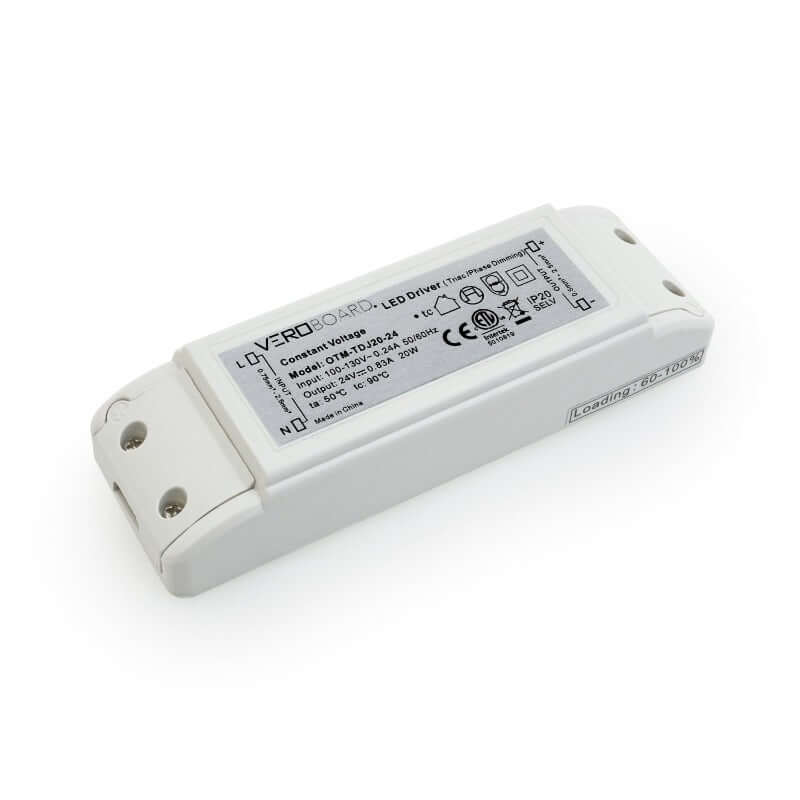

OTM-TDJ20-24 Triac Dimmable Constant Voltage LED Driver, 24V 0.83A 20W

  • $35.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425463
Title:
We only have 122 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Model OTM-TDJ20-24
Input Voltage 100-130V AC
Input Frequency 50-60Hz
Output Voltage 24V DC
Input Current 0.24A
Output regulated Current 0.83A
Output max Power 20W
Dimmable Yes (Triac/Phase Dimming)
IP Rating IP20 (Indoor Rated)
Ambient Temperature (Ta) 50°C
Case Temperature (Tc) 90°C
Class Certification Class II/ SELV

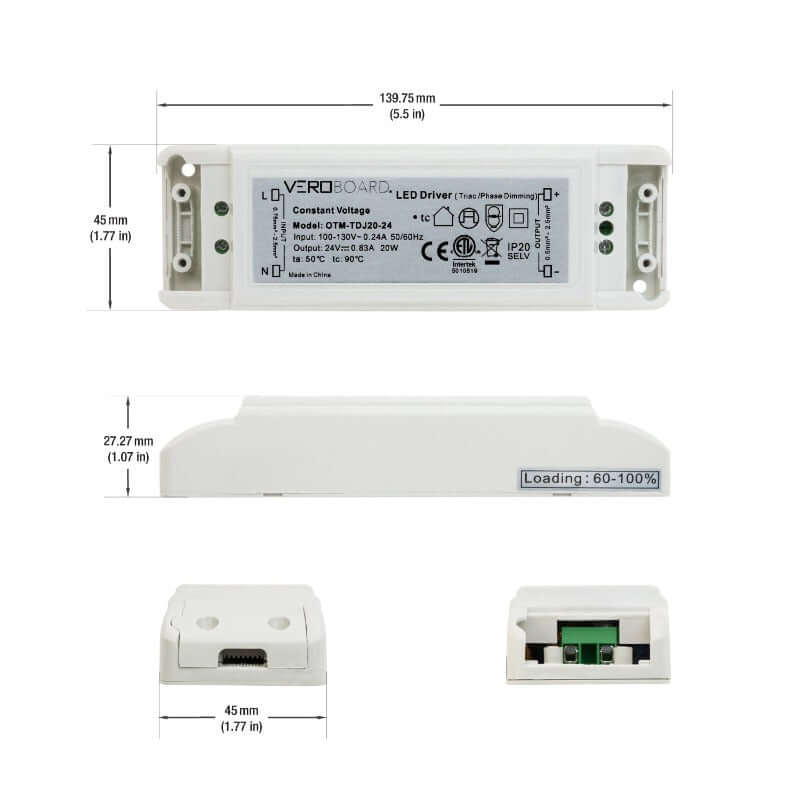

Dimensions 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
Certification

Compatible with Forward-Phase & Triac dimmers
Short circuit and overload protected
Applicable for Dry and Damp locations
Class II certified, Double-layer insulation


The OTM-TDJ20-24 Triac Dimmable Constant Voltage LED Driver is an electronic device that converts 100-130V AC input voltage and frequency of 50-60Hz to 24V DC output voltage, with an input current of 0.24A and output regulated current of 0.83A. It has a maximum output power of 20W and is dimmable using Triac/Phase Dimming method.

This LED driver has an IP20 rating, which means it is suitable for indoor use only and offers protection against solid objects larger than 12.5mm. The ambient temperature (Ta) it can withstand is up to 50°C, while the case temperature (Tc) should not exceed 90°C.

The driver has a Class II/ SELV certification, which means it offers double insulation protection and operates at Safety Extra Low Voltage (SELV) levels, ensuring additional safety. It has dimensions of 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) and is certified by ETL.

Features:

  • The OTM-TDJ20-24 is a Triac Dimmable Constant Voltage LED Driver
  • It converts 100-130V AC input voltage and 50-60Hz frequency to 24V DC output voltage
  • It has an input current of 0.24A and an output regulated current of 0.83A
  • The driver has a maximum output power of 20W
  • It is dimmable using Triac/Phase Dimming method
  • The driver has an IP20 rating, suitable for indoor use and protection against solid objects larger than 12.5mm
  • The ambient temperature (Ta) it can withstand is up to 50°C, while the case temperature (Tc) should not exceed 90°C
  • It has a Class II/ SELV certification for double insulation protection and operates at Safety Extra Low Voltage (SELV) levels for additional safety
  • The dimensions of the driver are 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
  • It is certified by ETL.
