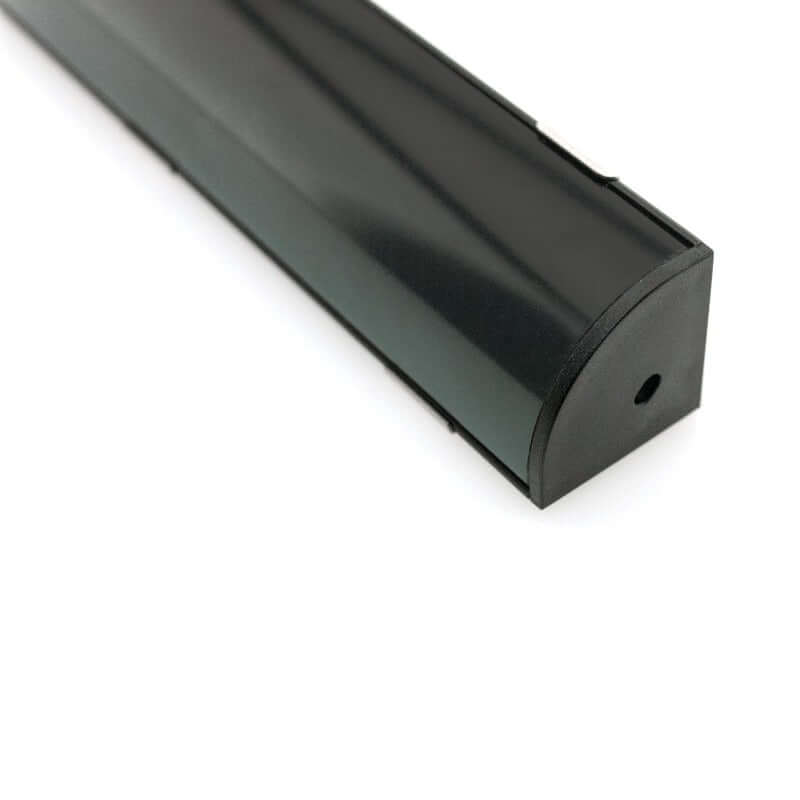

VEROBOARD Corner Mount (Curve) Linear Aluminum Channel Black for LED Strips 1Meter(3.2ft) VBD-CH-C3B


  • $48.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561429430

Longer than 1 meter long(3.2ft) Ask for a Quote

We only have 100 left! Get it now before it's completely gone.

FREE Shipping over $70 USD


VEROBOARD VBD-CH-C3B Corner Mount (Curve) Linear Aluminum Channel Black are popular for cabinets, shelves, closets, staircase, decorative and, vanity lighting applications. These are popular channels for projecting lights at a 45-degree angle of the LED strip useful for illuminating light at the adjacent sides. They are also available in Silver Grey color in the same size.

Product Description

Model VBD-CH-C3B
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Black

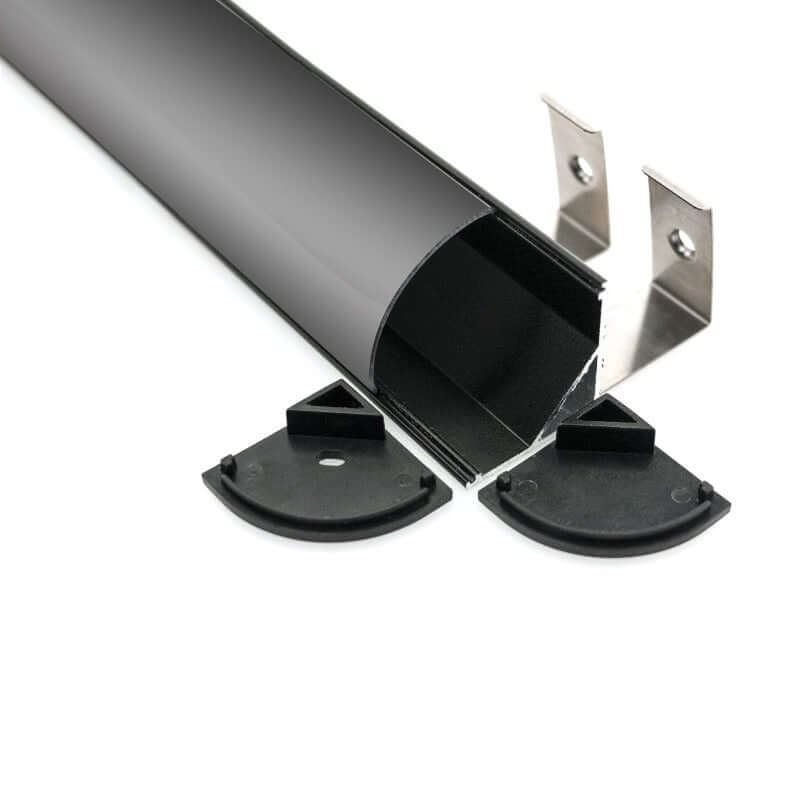

Package content

1 meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)
2 pieces of Mounting Brackets with mounting screws

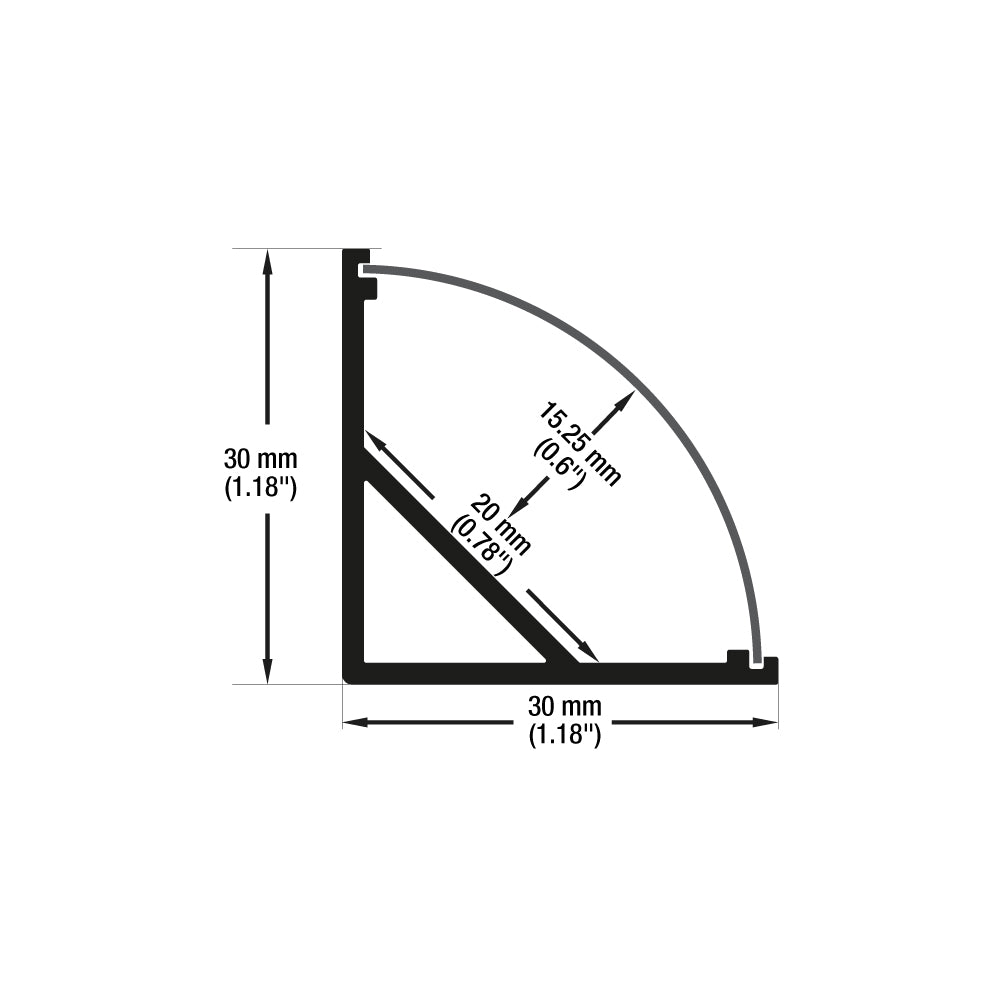

Dimensions 1000mm x 30mm x 30mm
(39.3in x 1.18in x 1.18in)
  • Mount using a 3M Double-sided tape
  • Directly screw or groove into the mounting surface

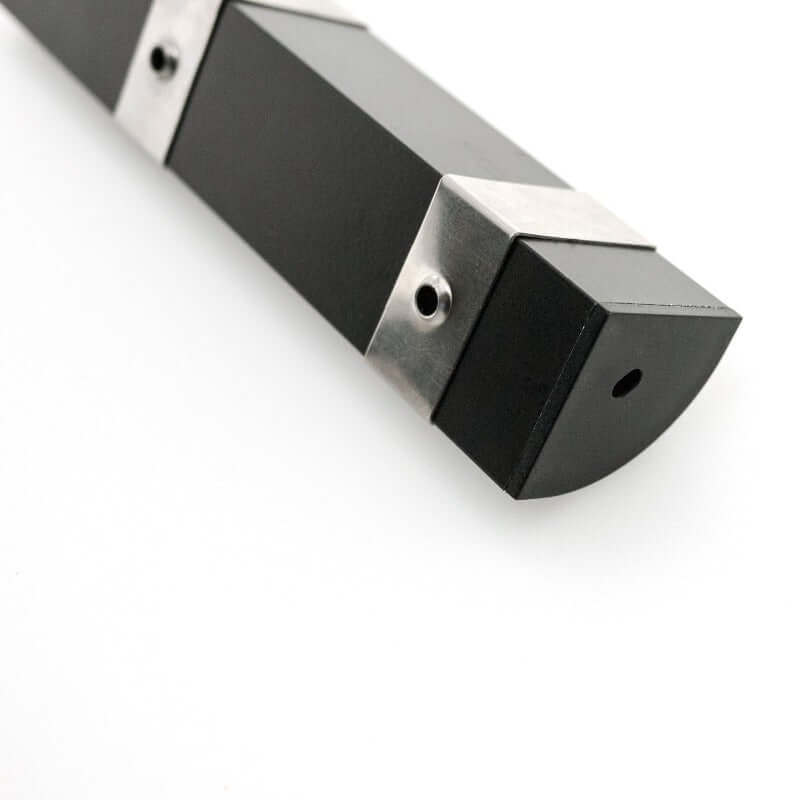

  • Mount using mounting clips

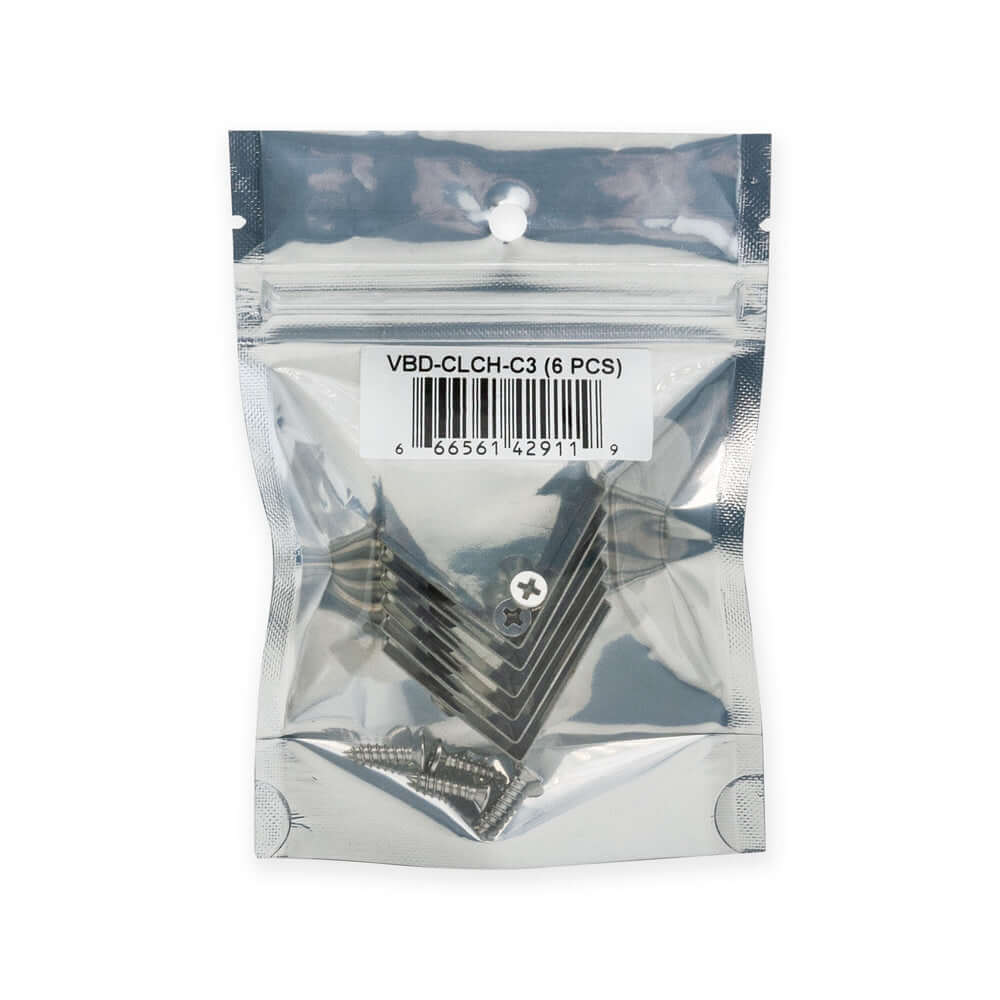

Accessories (Sold Separately) 6 pcs Mounting Clips VBD-CLCH-C3 SKU:666561429119

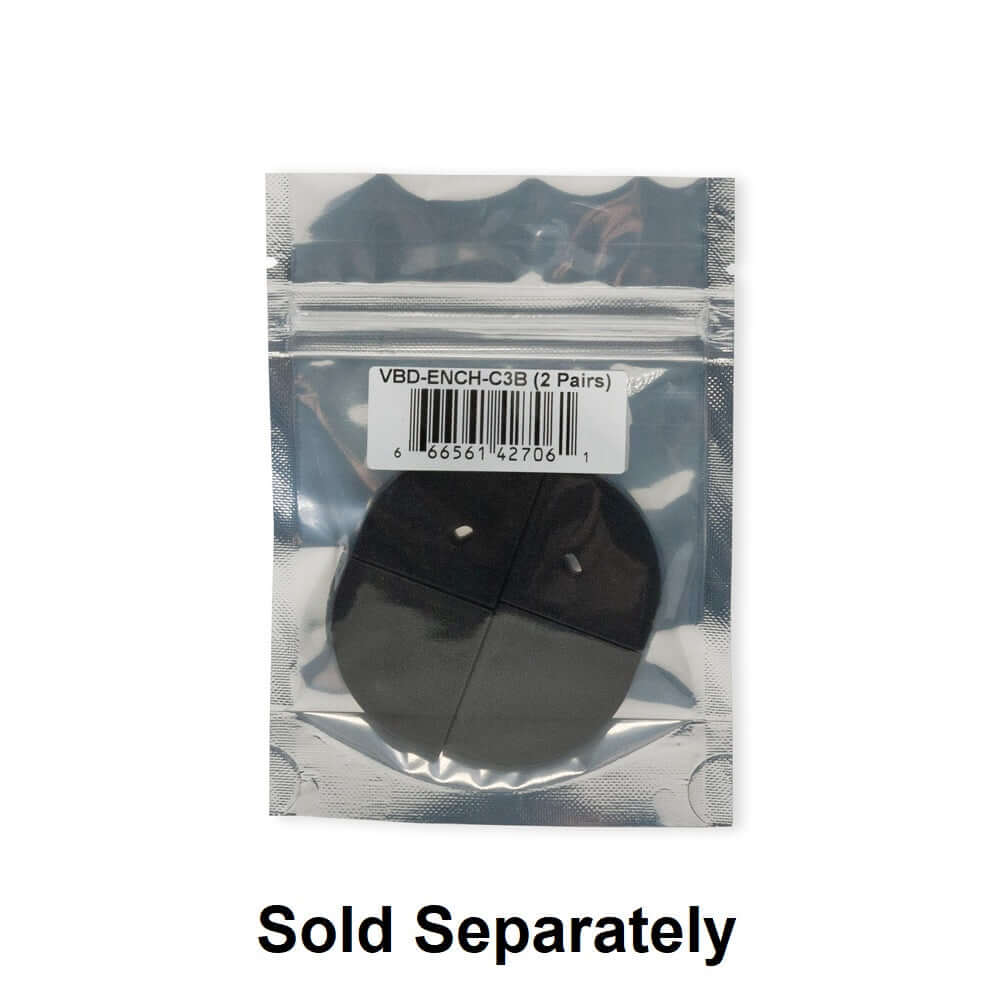

2 pairs Endcaps VBD-ENCH-C3B SKU:666561427061



  • The Aluminum extrusions are anodized and can be spray painted to any desired color.
  • Several lengths can be positioned together.
  • The channel project lights at a 45-degree angle useful for projecting light at the adjacent sides.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of the LEDs.
  • Applicable for closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, etc.
  • It comes with a frosted diffuser along with the end caps with wiring holes and brackets for mounting.
  • The extrusion can also be mounted using double-sided tape.
  • Some projects require smaller-width channel shooting at a 45-degree angle. Our corner mount is the solution.
  • It gives a linear light without any visibility of the aluminum channel when recessed.
  • Endcaps can be easily mounted at the end of the project.
  • With inside width, 20 mm, 2 layers strips can be installed for more brightness depending upon the job.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • Lightweight and environment-friendly channel.

Contact us for more details.
