VEROBOARD Diffuser Linear Aluminum Channel for LED Strips 1Meter(3.2ft) VBD-CH-R2B

Veroboard

  • $57.60 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561429447

Longer than 1 meter long(3.2ft) Ask for a Quote

We only have 100 left! Get it now before it's completely gone.

FREE Shipping over $70 USD



Overview

VEROBOARD VBD-CH-R2B Aluminum Channels are popular for offices, libraries, closets, ceiling applications. Can be hanged using Aircraft cables or can also be mounted on the ceiling using mounting brackets. Moreover, with your desired color temperature LED strips, this linear LED profile provides versatile interior lighting options and makes it elegant and modern in any application

Product Description

Model VBD-CH-R2B
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Black

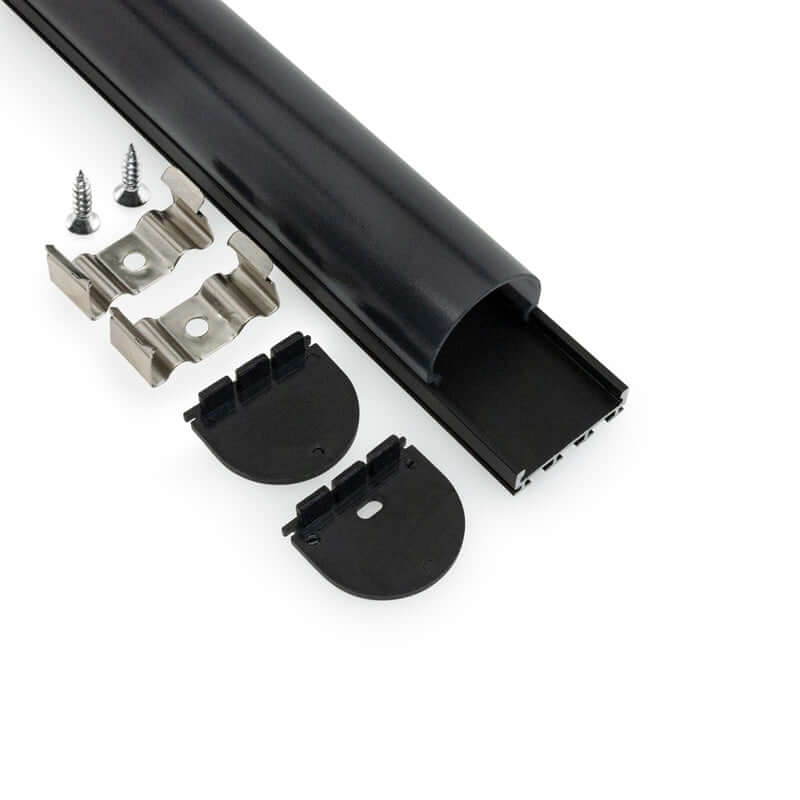

Package content

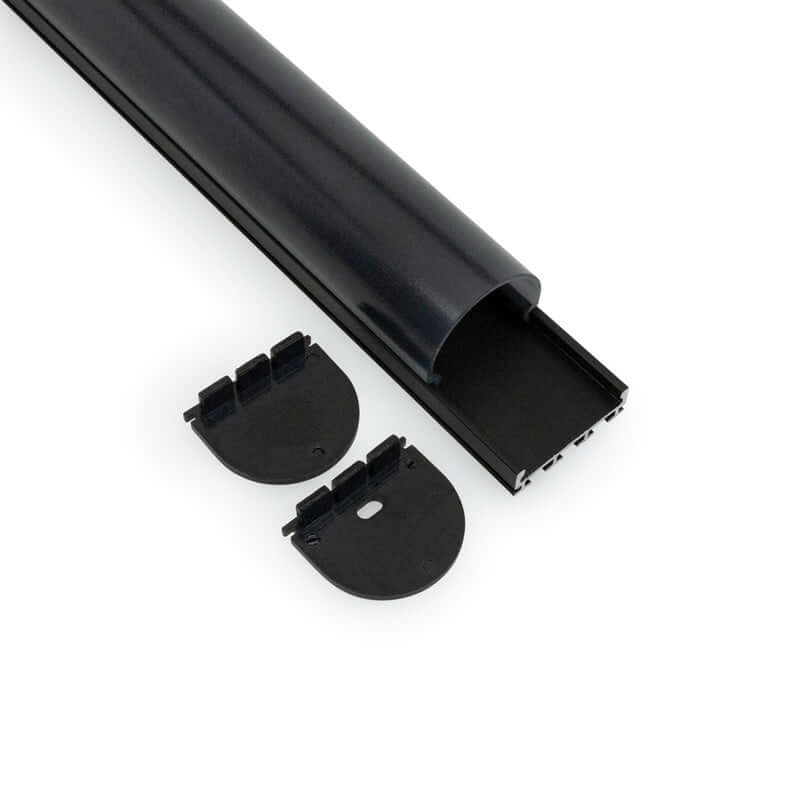

1 meter Aluminum channel with frosted Diffuser (lens)

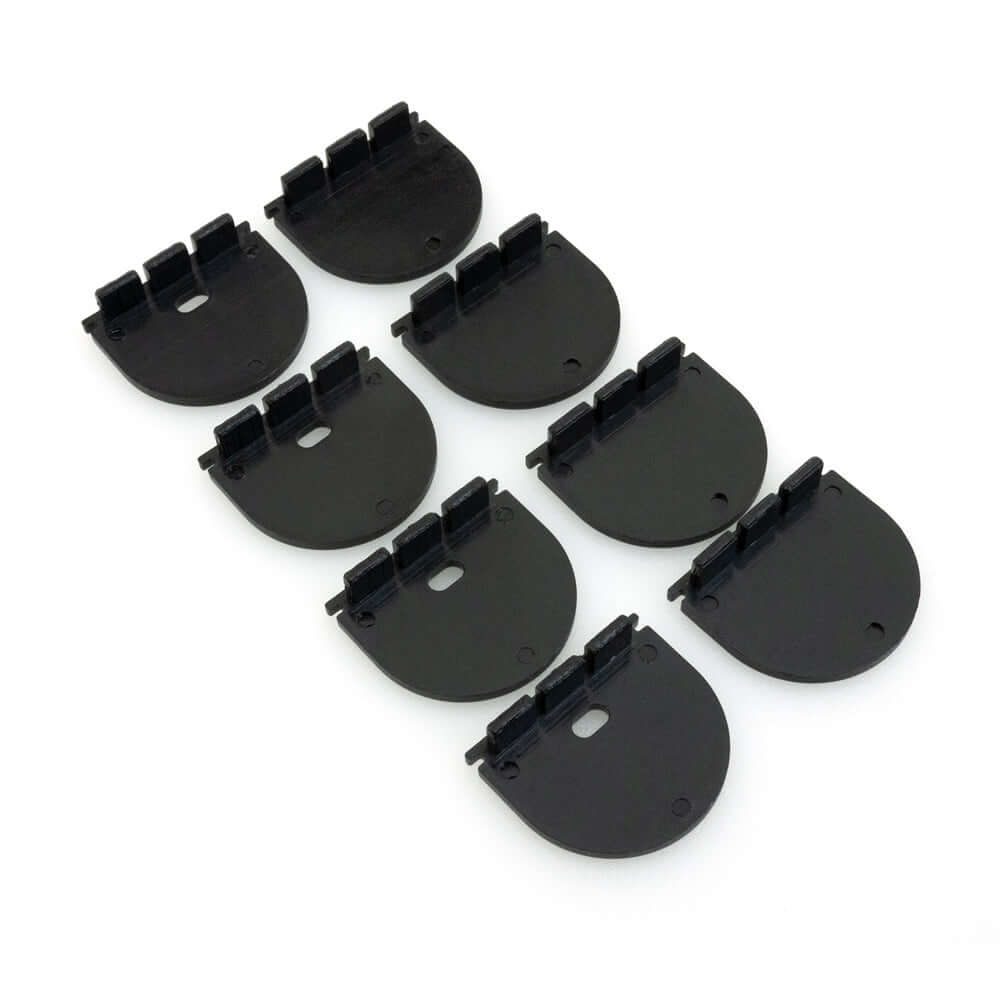

1 pair of Endcaps (with and without holes)
2 pieces of Mounting Brackets with mounting screws.

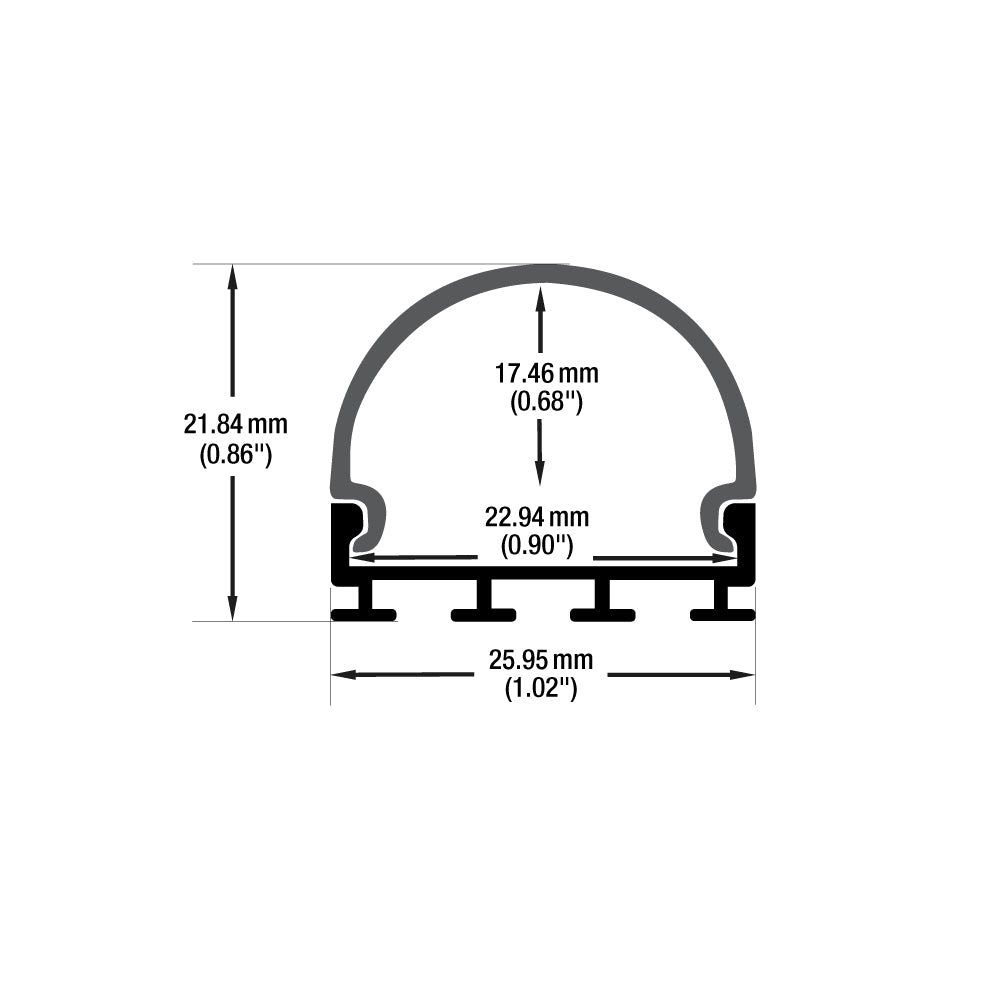

Dimensions 1000mm x 25.95mm x 21.84mm
(39in x 1.02in x 0.85in)
Mounting
  • Directly screw or groove into the mounting surface.

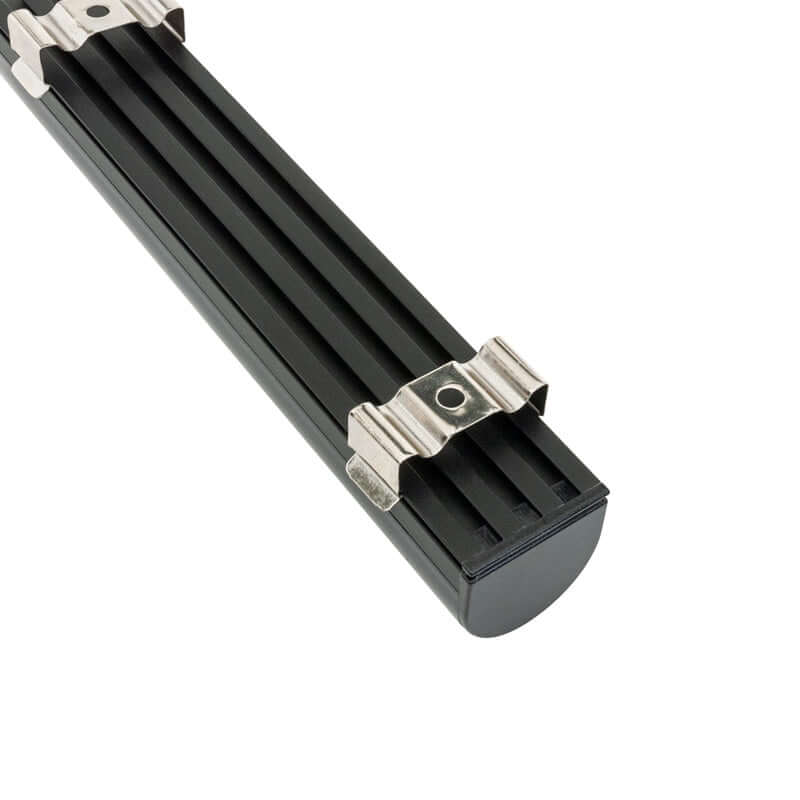

  • Mount using mounting clips.




Features:

  • Can be powder coated to any desired colors.
  • Several lengths can be positioned together.
  • Acts as a heat sink for the LED Strip installed in it.
  • It comes with a frosted diffuser along with the end caps and mounting brackets.
  • The Product can be cut into custom sizes using a regular hacksaw.
  • Diffusers help in reducing light glaring and also giving protection from dust and avoiding any kind of damage to the LEDs, which in turn increases the life span of the LEDs.
  • Applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, etc, and much more.
  • Hides the dots of the LED strip light, gives you smooth illumination.
  • Material aluminum being corrosion free can be used even for outdoor purpose with waterproof strip lights (IP 66 and higher rating)
  • The endcaps should be sealed with silicon to avoid water.
  • Lightweight and environment-friendly channel.

Contact us for more details.
