Product Description

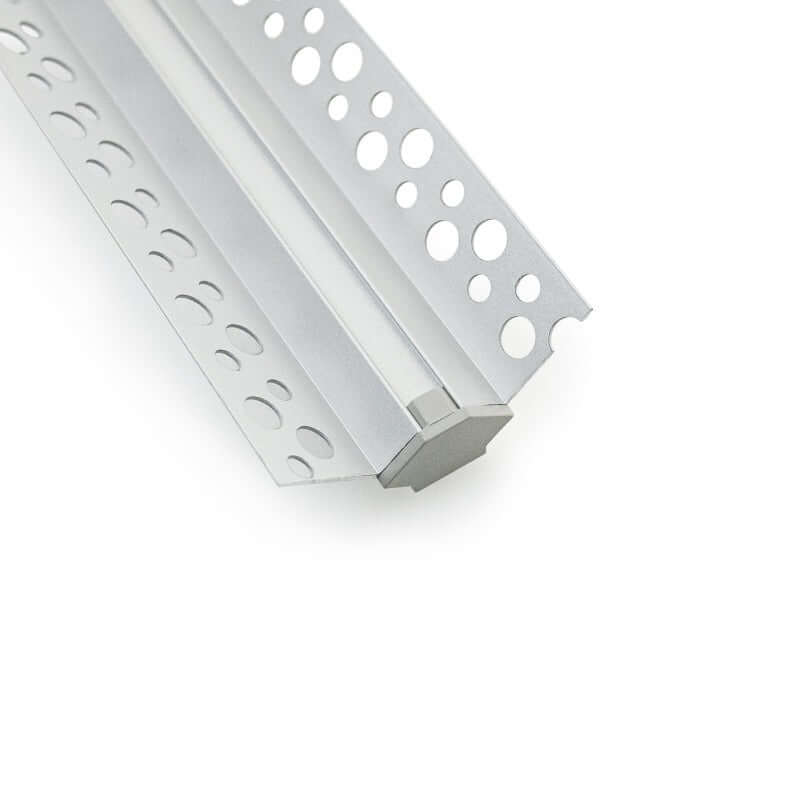

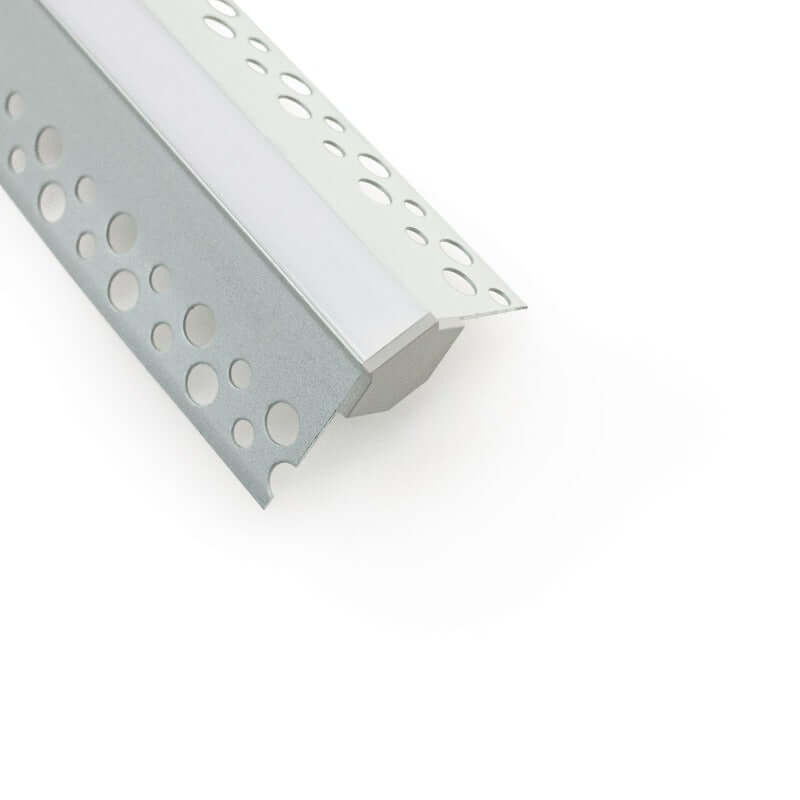

The VEROBOARD VBD-CH-D3 Aluminum Channel is a popular choice for recessing in drywall applications, particularly for outside corners. This linear LED extrusion can be installed using gypsum or mounting adhesive, providing a versatile and elegant lighting solution for any indoor application.

Made of high-quality aluminum, the VBD-CH-D3 comes with a frosted diffuser made of polycarbonate (PC) that reduces light glare and protects the LEDs from dust and damage. The fixture color finish is silver grey, giving it a modern and sleek appearance.

This LED channel can be cut using a regular hack saw and can be recessed in a groove or mounted onto the surface using double-sided tape or screw-in. Several lengths can be positioned together to create a continuous lighting effect.

With an inside width of 17mm, this channel can accommodate LED strips up to 12mm wide. The channel also acts as a heat sink for the LED strip, increasing the lifetime of the LEDs.

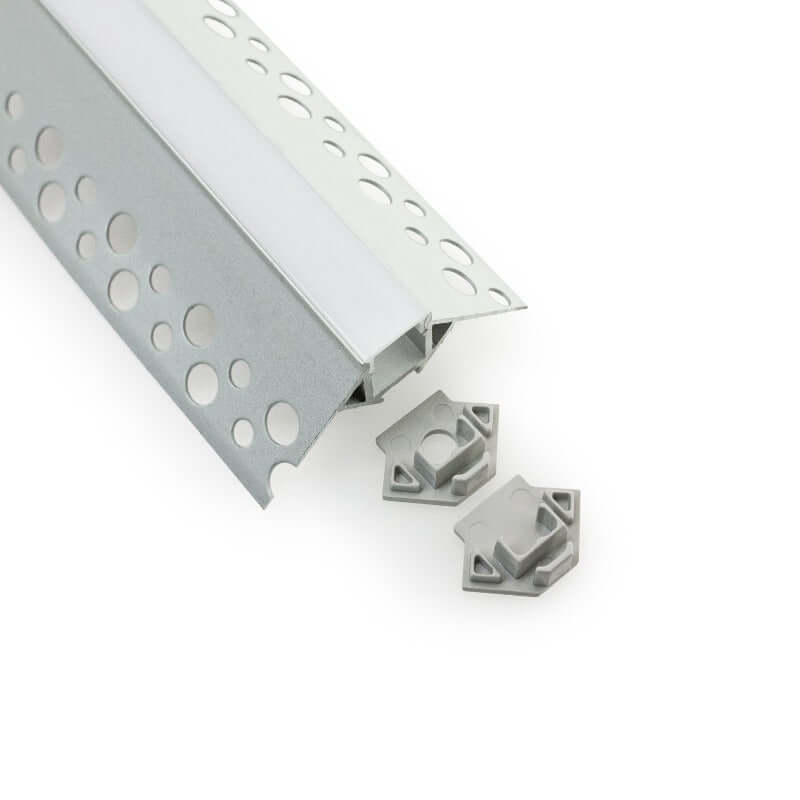

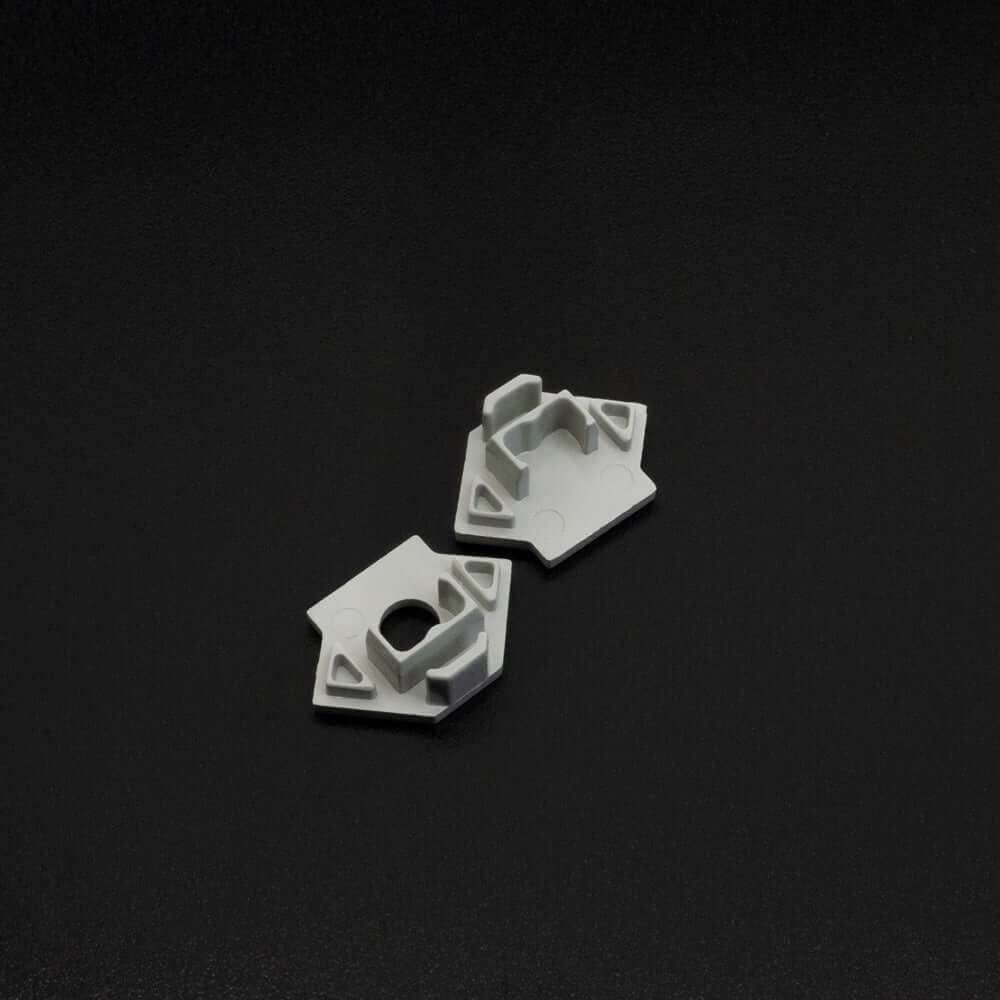

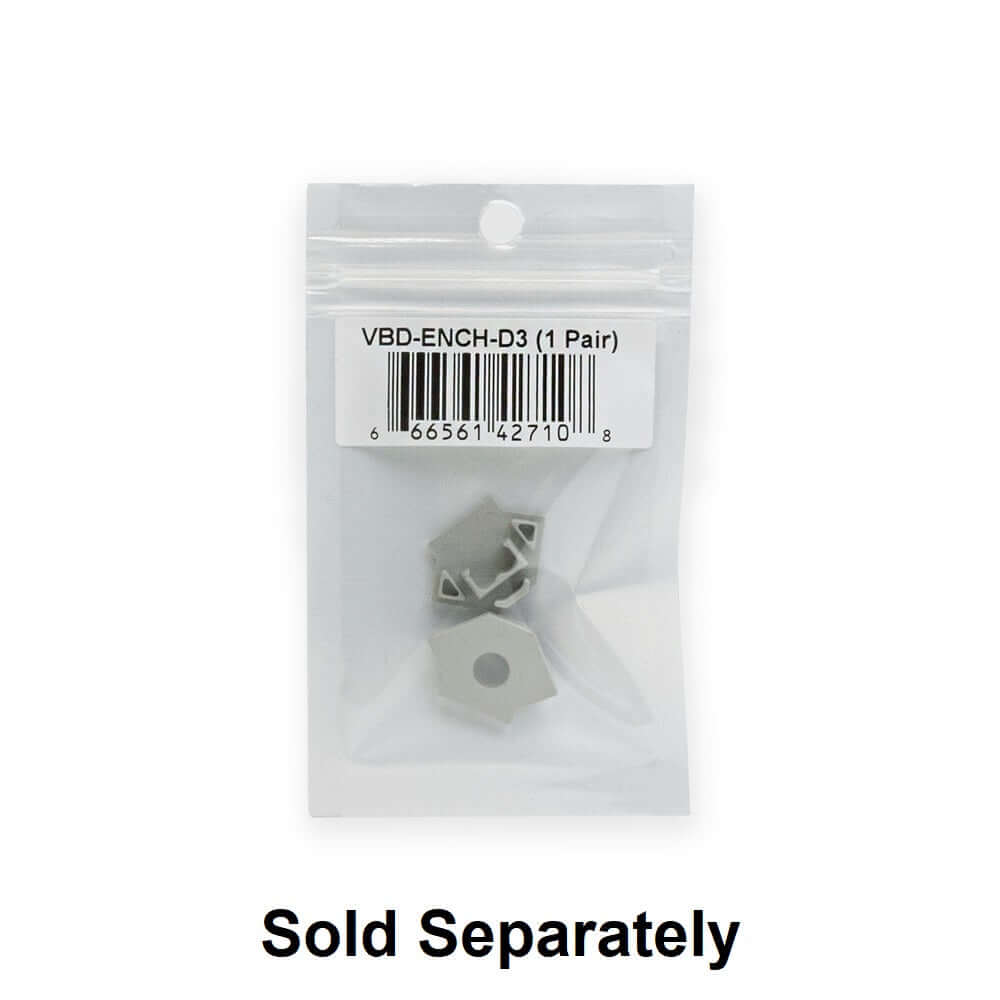

The package includes a 1-meter aluminum channel with frosted diffuser (lens) and a pair of endcaps (with and without holes). The endcaps with wiring holes can be easily mounted at the end of the project.

Overall, the VBD-CH-D3 LED channel is a reliable and high-quality solution for recessed drywall applications that require a clean and modern look. It can also be used for outdoor purposes with waterproof strip lights (IP 66 and higher rating) by sealing the endcaps with silicon to avoid contact with water.

Features:

• Popular choice for recessing in drywall applications, particularly for outside corners
• Can be installed using gypsum or mounting adhesive for versatile and elegant indoor lighting
• Made of high-quality aluminum with a silver grey finish for a modern and sleek appearance
• Frosted polycarbonate (PC) diffuser reduces light glare and protects LEDs from dust and damage
• Can be cut using a regular hack saw and mounted using double-sided tape or screw-in
• Accommodates LED strips up to 12mm wide with an inside width of 17mm
• Acts as a heat sink for the LED strip, increasing the lifetime of the LEDs
• Package includes a 1-meter aluminum channel with frosted diffuser and a pair of endcaps (with and without holes)
• Endcaps with wiring holes can be easily mounted at the end of the project
• Suitable for outdoor use with waterproof strip lights (IP 66 and higher rating) by sealing endcaps with silicon to avoid water contact
