Linear Aluminum LED Channel for LED Strips 2Meters(6.5ft) VBD-CH-R1-2

Veroboard

  • $69.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561413453
Mounting:
We only have 50 left! Get it now before it's completely gone.


Product Description

* Also available in 2.4m(7.8ft), 3m(9.8ft), Custom Lengths and Custom Color.

Product LED Channel / LED Extrusion
Model VBD-CH-R1-2
Material Aluminum
Diffuser Material Opal
Fixture color Finish Silver Grey
(Available in Custom Color)
Package content

2 meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)
2 pieces of Mounting Brackets with mounting screws
1 pair Suspension Kit (SKU: 666561417468)

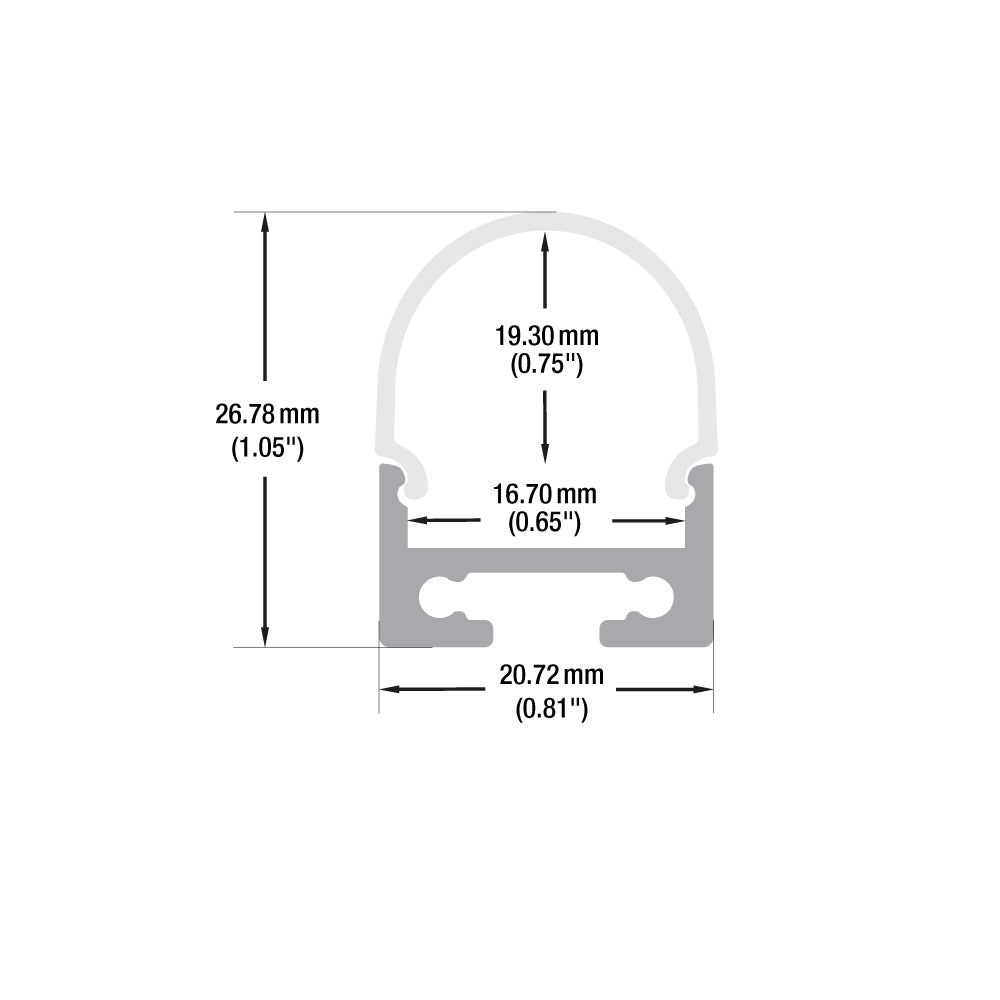

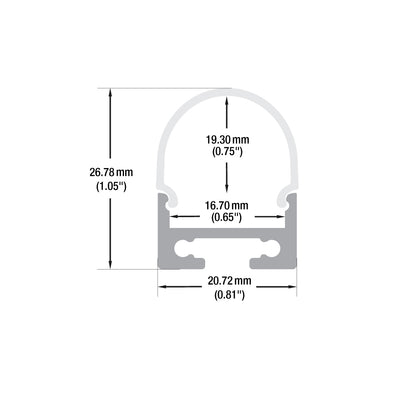

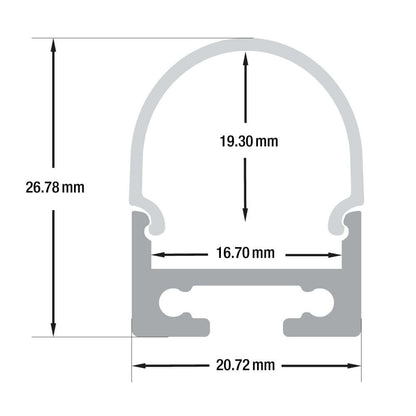

Dimensions 2000mm x 20.72mm x 26.78mm
(78.7in x 0.815in x 1.05in)
Mounting
  • Mount using Mounting Clips
  • Suspended Mount using an aircraft cable
Accessories (Sold Separately) 4 pairs Endcaps VBD-ENCH-R1 SKU:666561426729
4 pcs Mounting Clips VBD-CLCH-R1 SKU:666561429034
1 pair Adjustable Suspension Kits SKU: 666561417468
1 pair Adjustable Angle Bracket SKU: 666561425821




VBD-CH-R1-2 Aluminum Channels are popular for offices, libraries, closets, ceiling applications. Can be hanged using Aircraft cables or can also be mounted on the ceiling using mounting brackets. Moreover, with your desired color temperature LED strips, this linear LED profile provides versatile interior lighting options and makes it elegant and modern in any application.

The VBD-CH-R1-2 Linear Aluminum LED Channel for LED Strips is an excellent choice for a variety of lighting applications. It is designed for use in offices, libraries, closets, and other areas where a sleek and modern lighting solution is desired. This product comes with one meter of aluminum channel with a frosted opal diffuser lens, one pair of end caps (with and without holes), and two mounting brackets with mounting screws.

This linear LED profile is highly versatile and can be used with LED strips of various color temperatures to provide elegant and modern interior lighting options. The channel can be powder coated to any desired color, and several lengths can be positioned together for a continuous linear light effect.

Features:

  • Ideal for use in offices, libraries, closets, and other areas where a sleek and modern lighting solution is desired
  • Comes with one meter of aluminum channel with a frosted opal diffuser lens, one pair of end caps (with and without holes), and two mounting brackets with mounting screws
  • Can be mounted using mounting clips or suspended using aircraft cables, providing versatile installation options
  • Aluminum channel acts as a heat sink for the LED strip installed in it, increasing the lifetime of the LEDs
  • Frosted diffuser helps reduce glare and protect the LEDs from dust and damage
  • End caps with wiring holes make installation clean and easy
  • Highly versatile and can be used with LED strips of various color temperatures to provide elegant and modern interior lighting options
  • Channel can be powder coated to any desired color, and several lengths can be positioned together for a continuous linear light effect
  • With its 20mm width, two layers of strips with a width of 10mm or less can be installed for even greater brightness
