VEROBOARD Low Profile Linear Aluminum Channel for LED Strips 1Meter(3.2ft) VBD-CH-S55B


  • $32.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430061

Longer than 1 meter long(3.2ft) Ask for a Quote

We only have 100 left! Get it now before it's completely gone.

FREE Shipping over $70 USD


VEROBOARD VBD-CH-S55B Low Profile Aluminum Channels are popular for under cabinet lighting, staircase, vanity lighting applications. They are also available in the Silver Grey color in the same size.

Product Description

Model Type 141B (VBD-CH-S55B)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Diffuser Type Frosted
Fixture color Finish Black

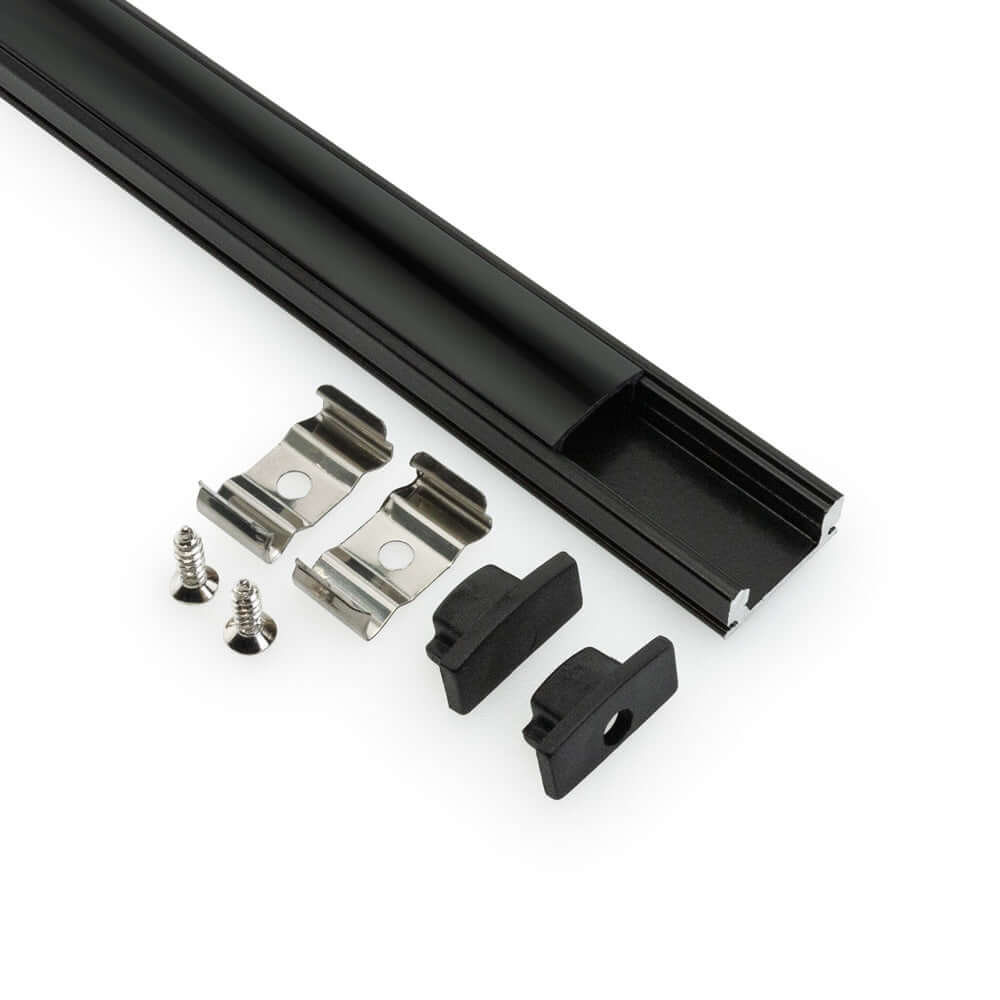

Package content

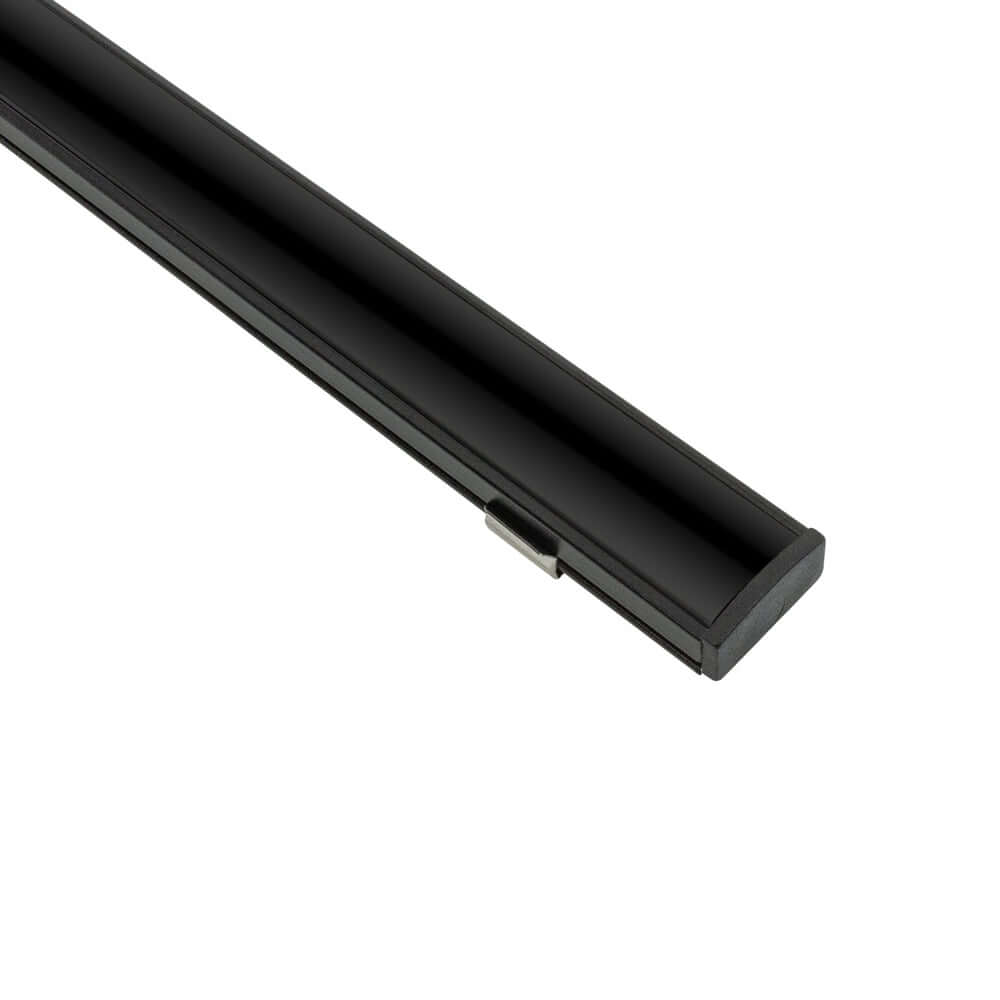

1 meter Aluminum channel with frosted Diffuser (lens)

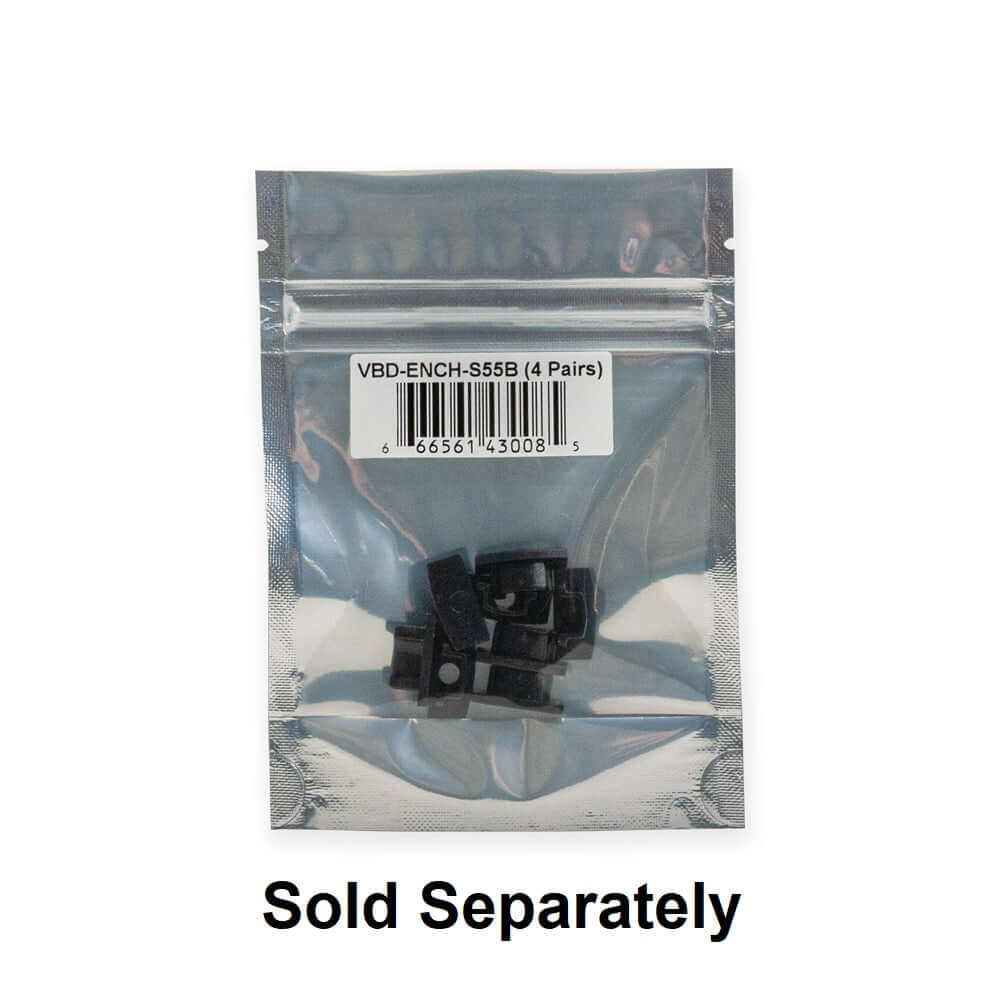

1 pair of Endcaps (with and without holes)

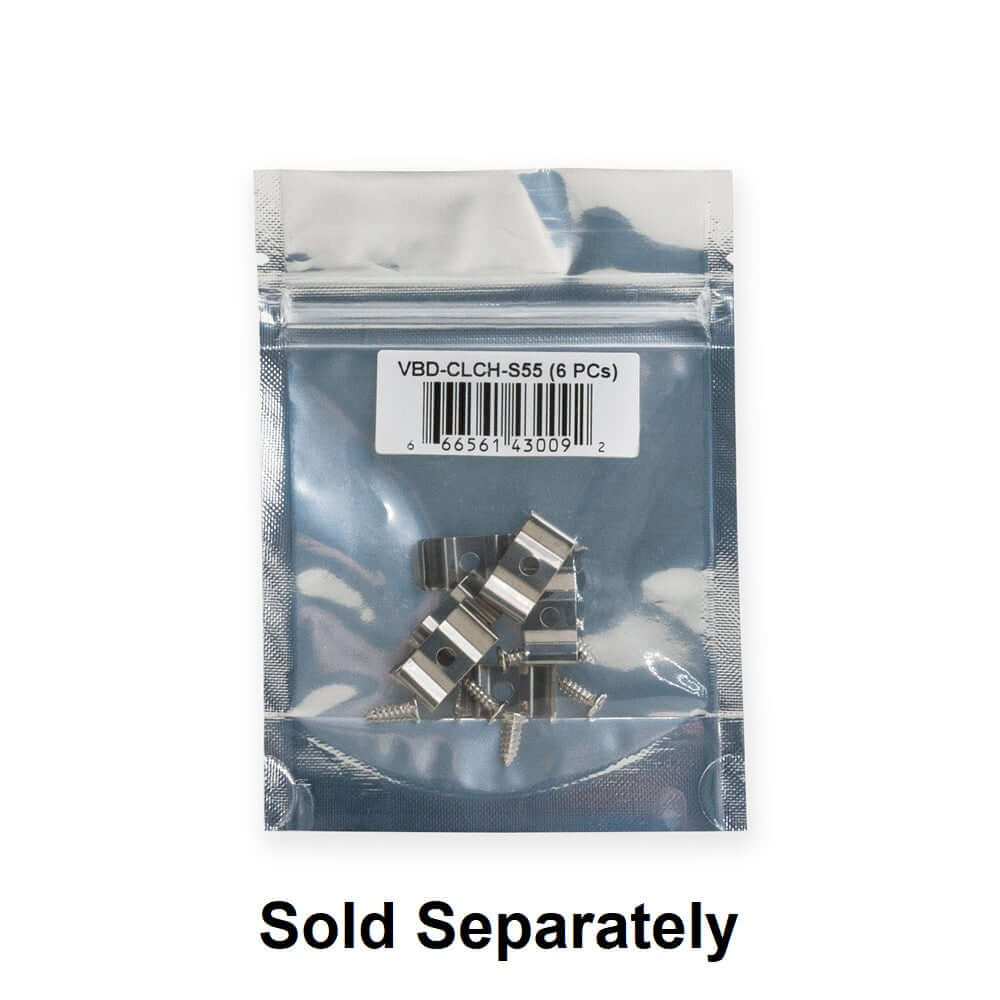

2 pcs Mounting Clips

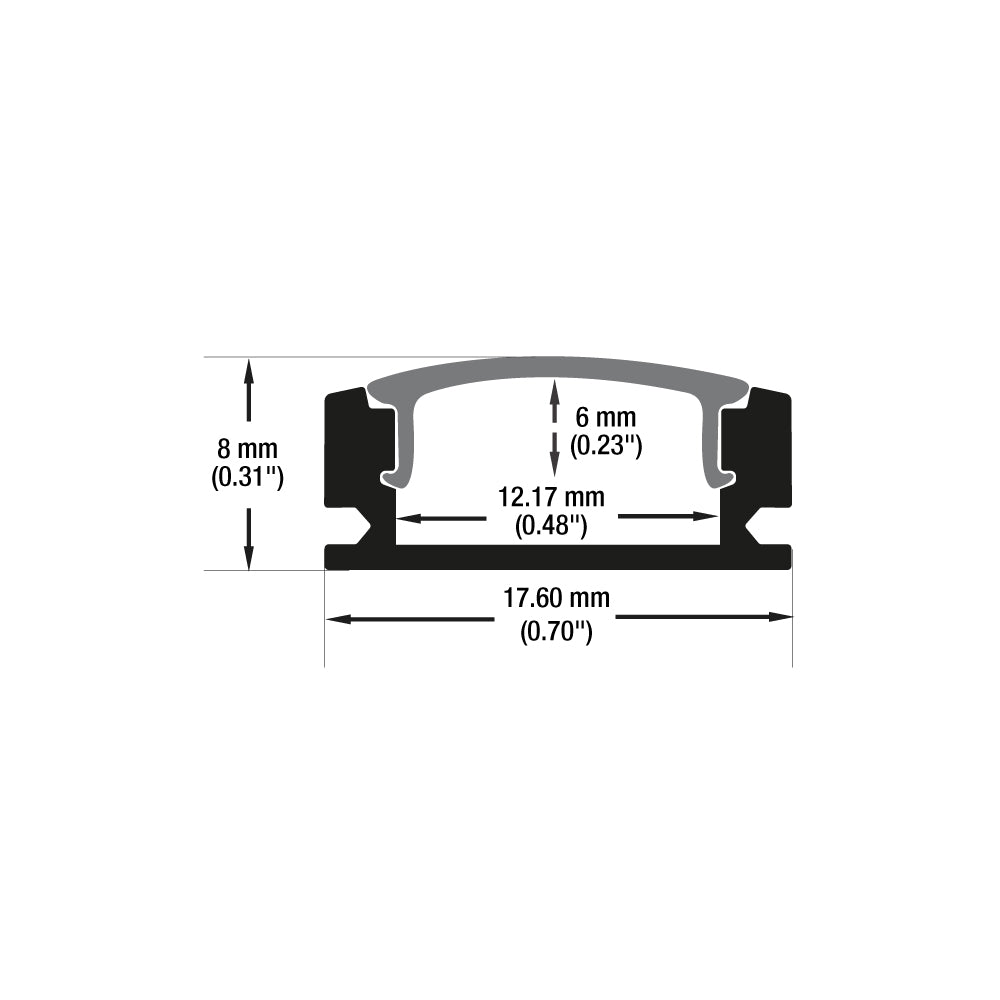

Dimensions 1000mm x 17.53mm x 8mm
(39.3in x 0.69in x 0.31in)

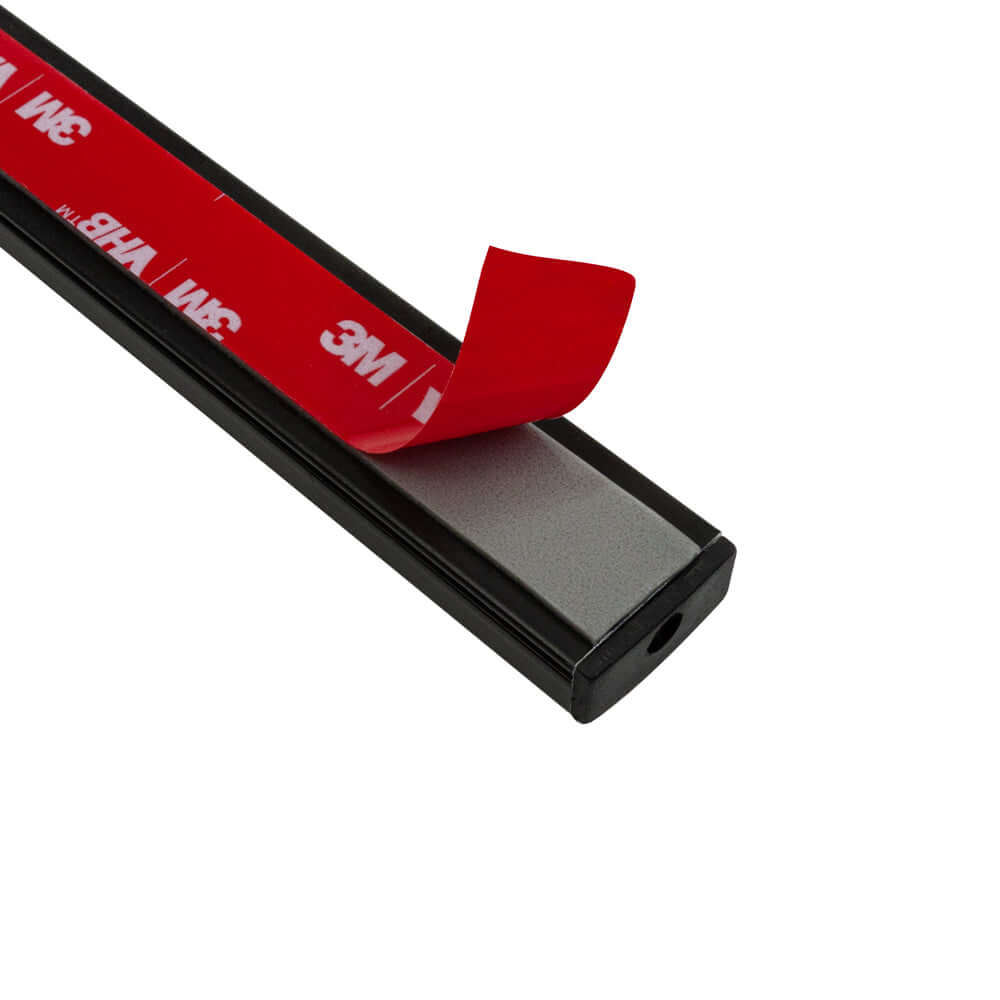

  • Mount using a 3M Double-sided tape
  • Directly screw or groove into the mounting surface.

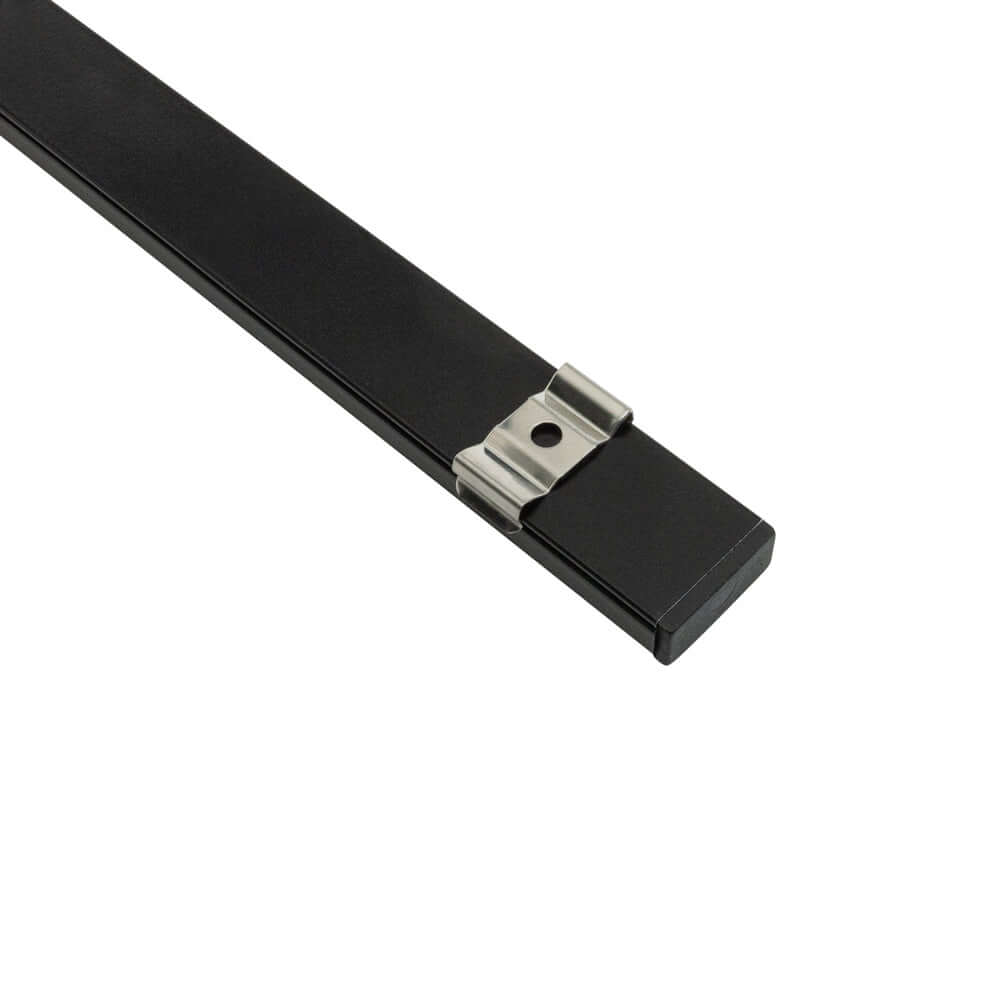

  • Mount using mounting clips.



  • Can be easily cut using a regular hack saw.
  • We carry in both Black and Silver color in different lengths.
  • This aluminum channel is a low profile and is designed for flexible strip lights.
  • Includes end caps and mounting clips made of plastic.
  • Several lengths can be positioned together.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of the LEDs.
  • Can be recessed in a groove or can also be mounted onto the surface using brackets or double-sided tape.
  • Used for mounting on surfaces such as ceramic tiles using double-sided tape.
  • Applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, etc.
  • Due to its closed packed dimensions mostly used for bathroom, shower, floor applications, stair lighting, etc.
  • Can use silicon at the end caps to seal the channel to make it waterproof.
  • Comes with a frosted diffuser along with the end caps. we also carry clear diffusers for this channel.
  • The diffuser helps in reducing light glaring and also gives protection from dust and avoids any kind of damage to the LEDs.
  • Material aluminum being corrosion-free can be used even for outdoor purposes with waterproof strip lights (IP 66 and higher rating) the endcaps should be sealed with silicon to avoid getting in contact with water.
  • Lightweight and environment-friendly channel.
