Product Description
| Model | VBD-012-060VTSP |
| Input Voltage | 100-277V AC |
| Input Current | 0.9A |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 5.0A |
| Output Power | 60W |
| Dimmable | Yes (Triac/Phase-cut Dimming) |
| Waterproof | No |
| IP Rating | IP20 |
| Class Certification | Class 2/ Class P/ Type HL/Class II |

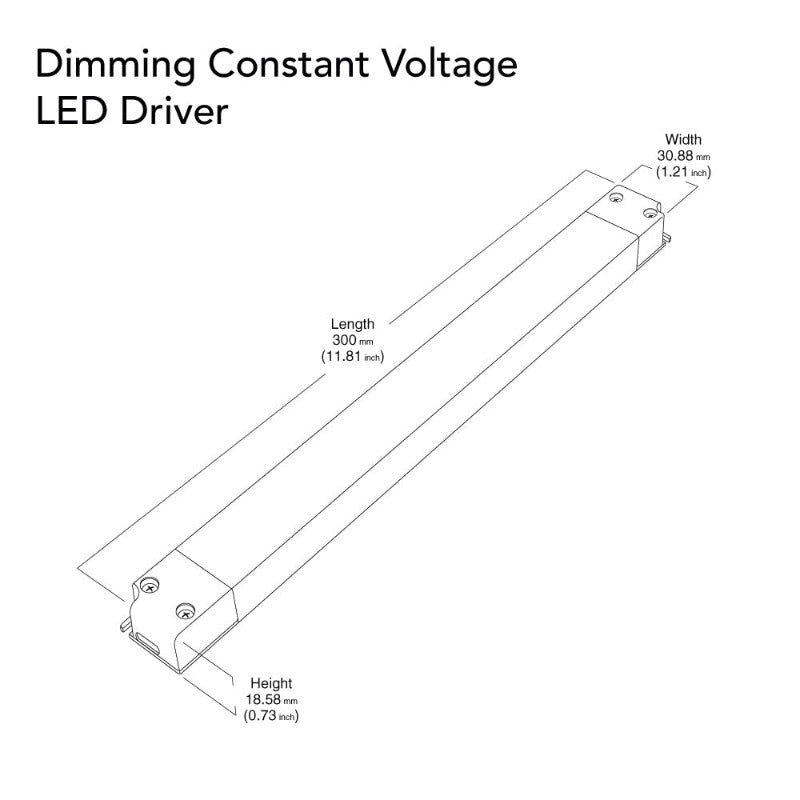

| Dimensions | 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) |
| Certifications |    |
| Suitable for DRY and DAMP Locations |
| Compatible with Forward-Phase, MLV, ELV, & Triac dimmers |

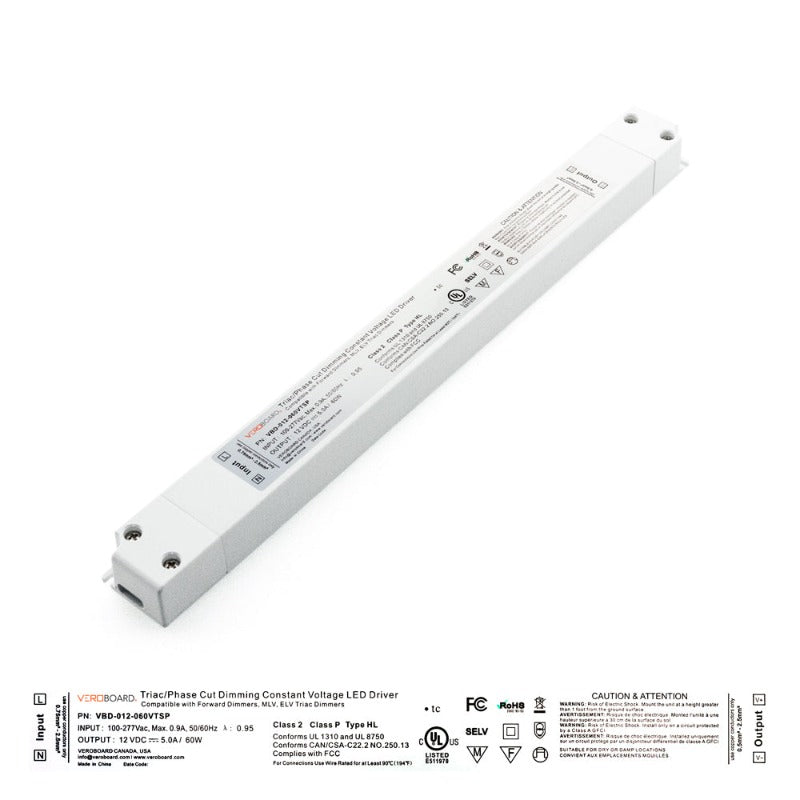

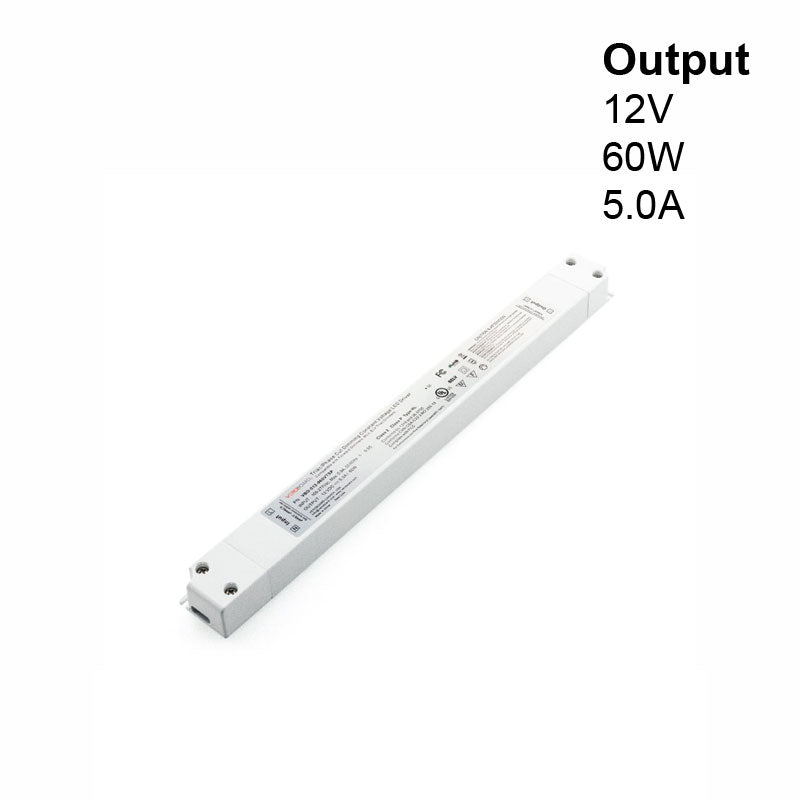

The Super Slim VBD-012-060VTSP Triac Dimmable Constant Voltage LED Driver is a compact and versatile power supply designed for use with LED lighting systems. With an input voltage range of 100-277V AC and input current of 0.9A, this driver can be used with a wide range of power sources. The power factor of 0.95 indicates that it operates at high efficiency.
The output voltage of the driver is 12V DC, and it can regulate an output current of up to 5.0A, making it suitable for a range of LED lighting applications. With a maximum output power of 60W, it can power multiple LED lights at once. The driver is also dimmable, using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
The driver is not waterproof, with an IP rating of IP20, so it is suitable for indoor use only. It has several class certifications, including Class 2, Class P, Type HL, and Class II, indicating that it is designed to meet specific safety and performance standards. The compact dimensions of 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) make it easy to install in a variety of locations, and it is certified by the FCC for safety and compliance.
Features:
- The Super Slim VBD-012-060VTSP Triac Dimmable Constant Voltage LED Driver is designed for use with LED lighting systems.
- It has an input voltage range of 100-277V AC and an input current of 0.9A, with a power factor of 0.95 indicating high efficiency.
- The driver provides a constant voltage output of 12V DC, with an output current of up to 5.0A and a maximum output power of 60W.
- It is dimmable using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels.
- The driver is not waterproof, with an IP rating of IP20, so it is suitable for indoor use only.
- It has several class certifications, including Class 2, Class P, Type HL, and Class II, indicating that it is designed to meet specific safety and performance standards.
- The compact dimensions of 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) make it easy to install in a variety of locations.
- The driver is certified by the FCC for safety and compliance.
