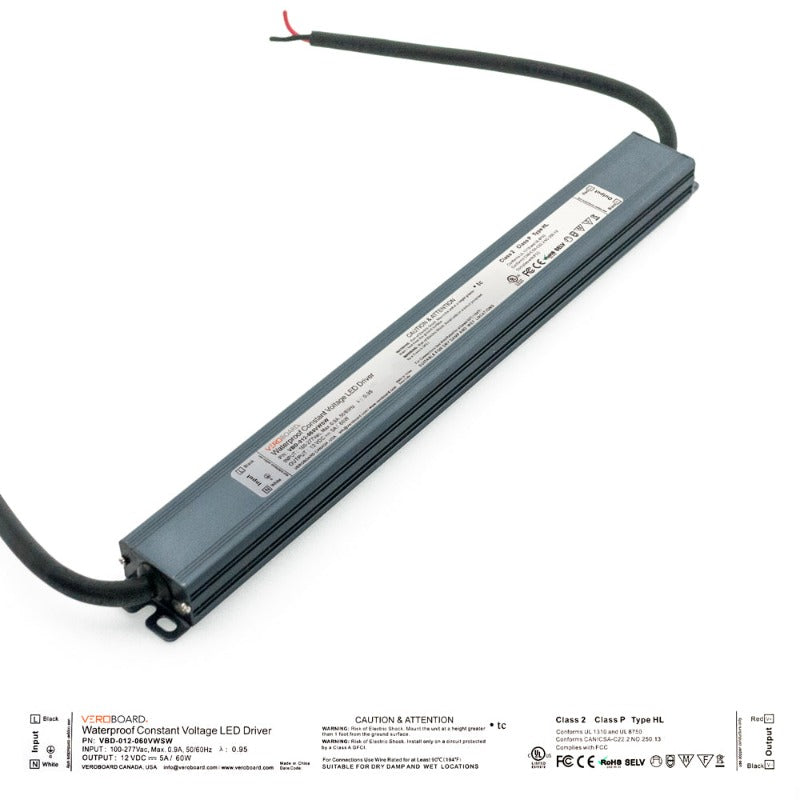

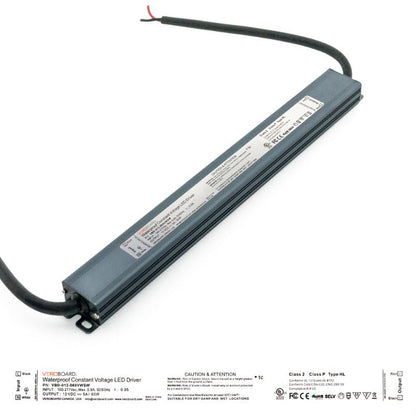

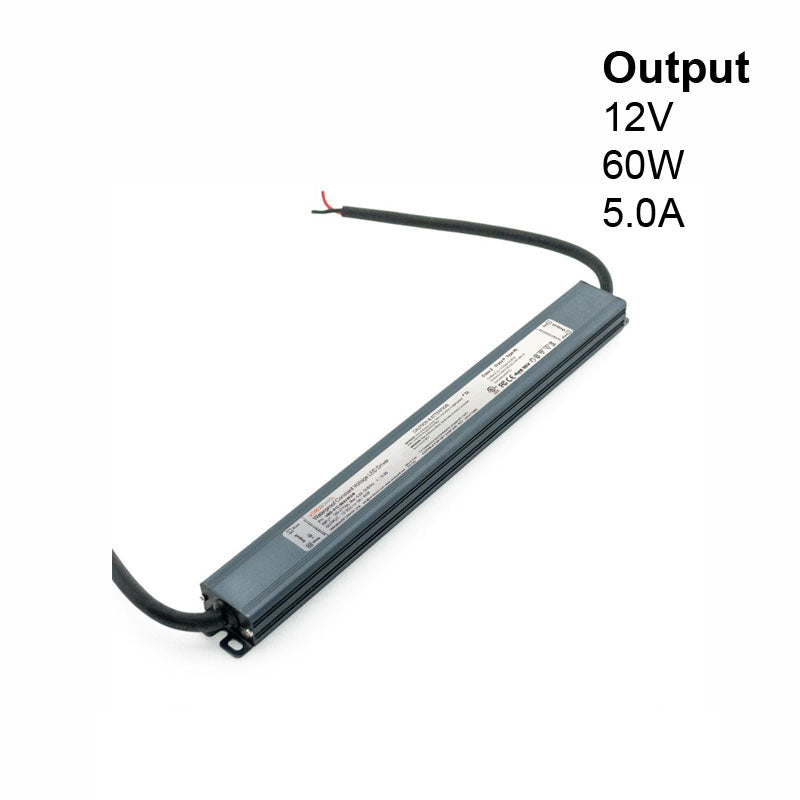

Super Slim VBD-012-060VWSW Non-Dimmable LED Driver, 12V 5A 60W
Product Description
| Model | VBD-012-060VWSW |
| Input voltage | 100-277V AC |
| Input Current | 0.9A |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 5.0A |
| Output Power | 60W |
| Dimmable | No |
| Waterproof | Yes |
| IP Rating | IP67 (Outdoor Rated) |
| Class Certification | Class 2/ Class P/ Type HL |

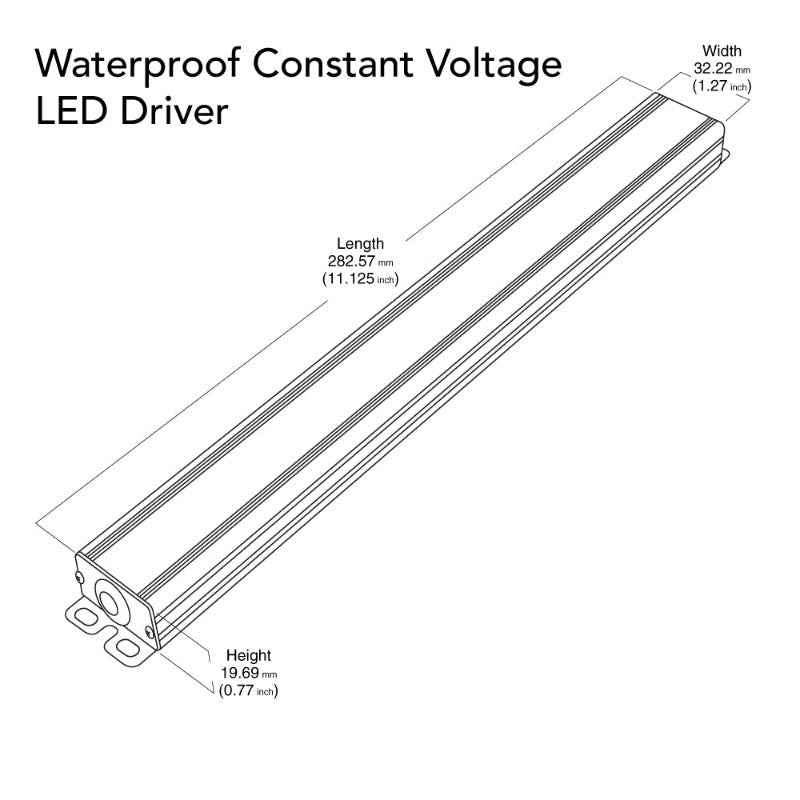

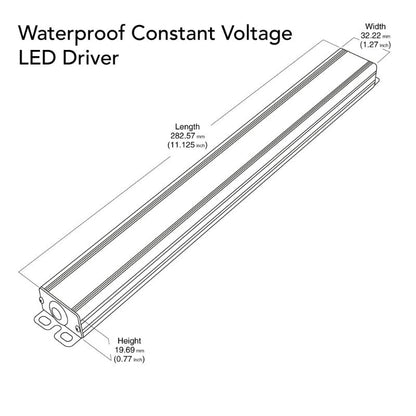

| Dimensions | 282.57 x 32.22 x 19.69mm (11.125 x 1.27 x 0.77 in) |
| Certification |

|
| Suitable for dry, damp, and wet locations |
The VEROBOARD Super Slim VBD-012-060VWSW Non-Dimmable LED Driver is a high-quality device designed to provide a reliable and efficient power supply for LED lighting systems and other low voltage devices. With an input voltage range of 100-277V AC and an input current of 0.9A, this LED driver is capable of delivering a maximum output power of 60W with an output regulated current of 5.0A and an output voltage of 12V DC.
The device operates at a frequency of 50/60Hz with a power factor of 0.95, providing efficient and reliable performance. It is designed to be waterproof with an IP67 rating, making it suitable for use in dry, damp, and wet locations. Additionally, the VEROBOARD Super Slim VBD-012-060VWSW is Class 2/ Class P/ Type HL certified, indicating that it is specifically designed for use with LED lighting fixtures.
With dimensions of 282.57 x 32.22 x 19.69mm (11.125 x 1.27 x 0.77 in), this LED driver is super slim and easy to install in tight spaces. It is also UL certified for safety and performance standards set by the electrical safety testing organization.
Overall, the VEROBOARD Super Slim VBD-012-060VWSW Non-Dimmable LED Driver is a reliable and high-quality device suitable for various LED lighting applications. It provides excellent performance and durability, making it an ideal choice for both indoor and outdoor lighting applications.
Features:
- High-quality Non-Dimmable LED Driver
- Input voltage range of 100-277V AC, output voltage of 12V DC
- Maximum output power of 60W with an output regulated current of 5.0A
- Frequency of 50/60Hz and power factor of 0.95 for efficient and reliable performance
- Waterproof with an IP67 rating, suitable for dry, damp, and wet locations
- Class 2/ Class P/ Type HL certified for use with LED lighting fixtures
- Super slim with dimensions of 282.57 x 32.22 x 19.69mm (11.125 x 1.27 x 0.77 in)
- UL certified for safety and performance standards
