Product Description
| Model | VBD-012-100VTSP |
| Input Voltage | 100-277V AC |
| Input Current | 1.4A |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Output Voltage | 12V DC |
| Output Current | 8.33A |
| Output Power | 100W |
| Dimmable | Yes (Triac/Phase-cut Dimming) |
| Class Certification | Class P/ Type HL/Class II |
| IP Rating | IP20 |

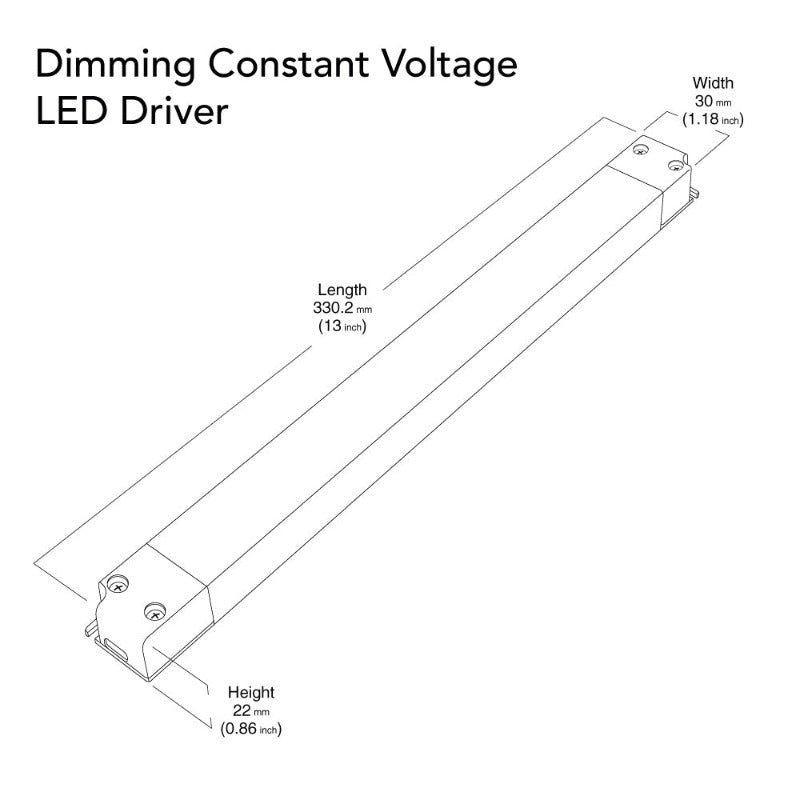

| Dimensions | 330.2 x 30 x 22mm (13 x 1.18 x 0.86 in) |
| Certifications |

|
| Suitable for DRY and DAMP Locations |
| Compatible with Forward-Phase, MLV, ELV, & Triac dimmers |

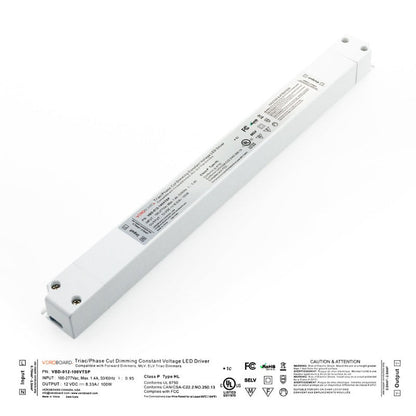

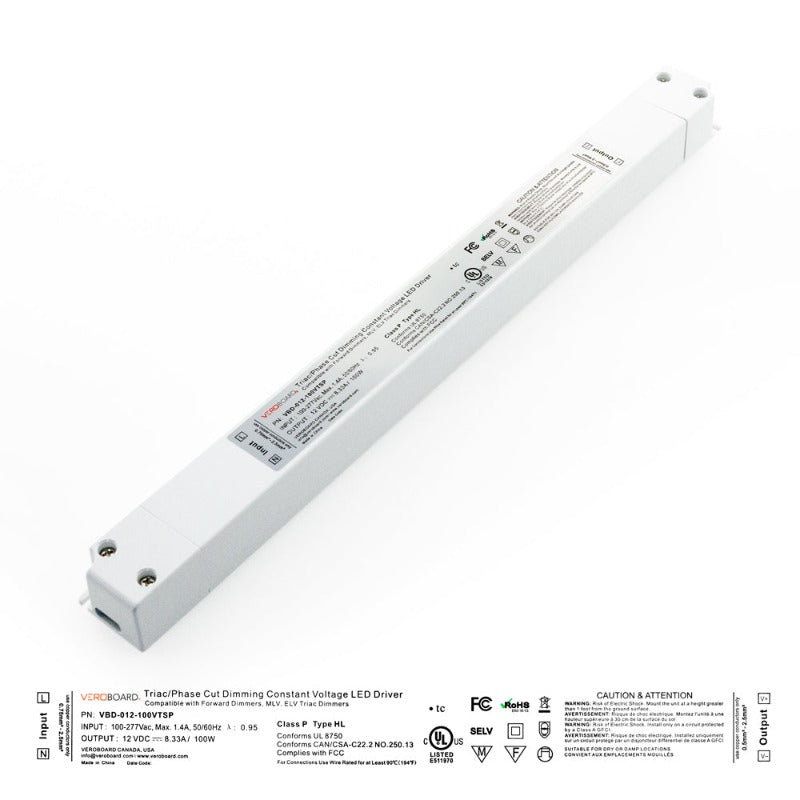

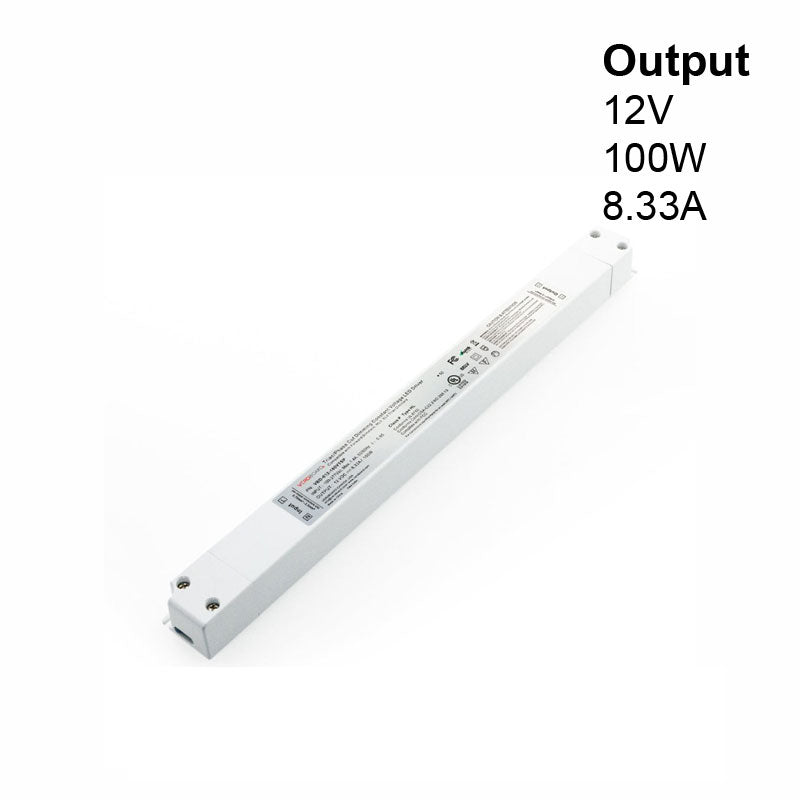

The Super Slim VBD-012-100VTSP Triac Dimmable Constant Voltage LED Driver is a high-powered and compact power supply designed for use with LED lighting systems. With an input voltage range of 100-277V AC and input current of 1.4A, this driver can be used with a wide range of power sources. The power factor of 0.95 indicates that it operates at high efficiency.
The output voltage of the driver is 12V DC, and it can regulate an output current of up to 8.33A, making it suitable for a range of high-powered LED lighting applications. With a maximum output power of 100W, it can power multiple LED lights at once. The driver is also dimmable, using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
The driver has several class certifications, including Class P, Type HL, and Class II, indicating that it is designed to meet specific safety and performance standards. The IP20 rating means that it is not waterproof, and it is suitable for indoor use only. The compact dimensions of 330.2 x 30 x 22mm (13 x 1.18 x 0.86 in) make it easy to install in a variety of locations.
The driver is UL listed for safety and compliance, meaning that it has been tested and certified by Underwriters Laboratories, a global safety consulting and certification company. This ensures that it meets stringent safety standards and has undergone rigorous testing to ensure its reliability and performance.
Features:
- Super Slim VBD-012-100VTSP Triac Dimmable Constant Voltage LED Driver
- Input voltage range of 100-277V AC and input current of 1.4A
- Output voltage of 12V DC, can regulate an output current of up to 8.33A
- Maximum output power of 100W, suitable for high-powered LED lighting applications
- Triac/Phase-cut dimming technology for adjustable brightness levels
- Class P, Type HL, and Class II certified for safety and performance
- IP20 rating for indoor use only
- Compact dimensions of 330.2 x 30 x 22mm (13 x 1.18 x 0.86 in) for easy installation in various locations
- UL listed for safety and compliance, tested and certified by Underwriters Laboratories.
