Super Slim VBD-012-100VWSW Non-Dimmable LED Driver, 12V 8.33A 100W

  • $96.60 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561419738
We only have 75 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Model VBD-012-100VWSW
Input voltage 100-277V AC
Input Current 1.4A
Frequency 50/60Hz
Power Factor 0.95
Output voltage 12V DC
Output regulated current 8.33A
Output Power 100W
Dimmable No
Waterproof Yes
IP Rating IP67 (Waterproof driver)
Class Certification Class P/ Type HL

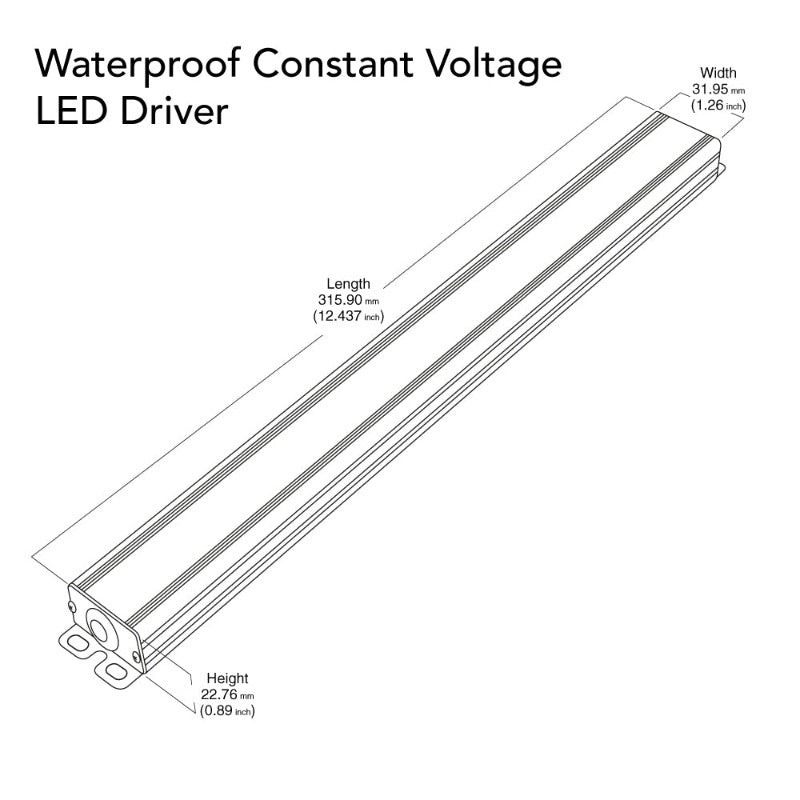

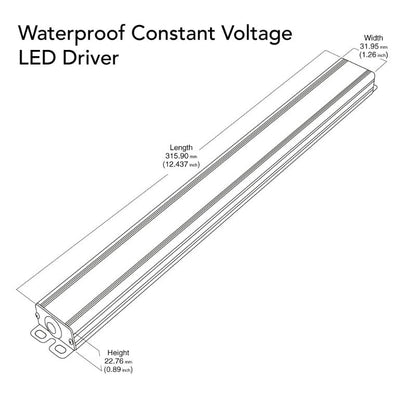

Dimensions 316 x 31.95 x 22.86mm (12.43 x 1.26 x 0.89 in)
Certifications

 Suitable for dry, damp, and wet locations

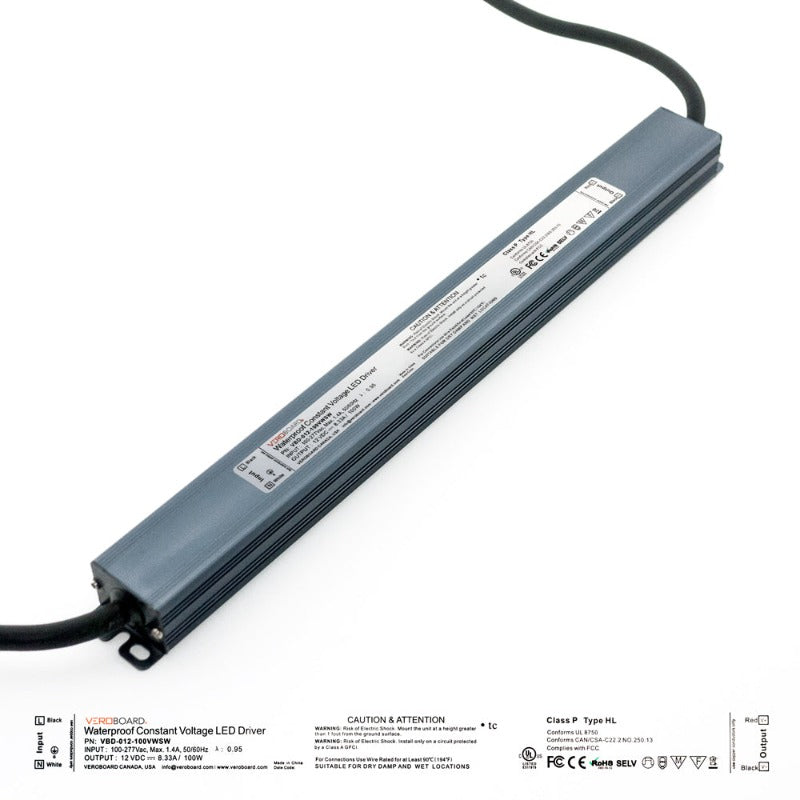

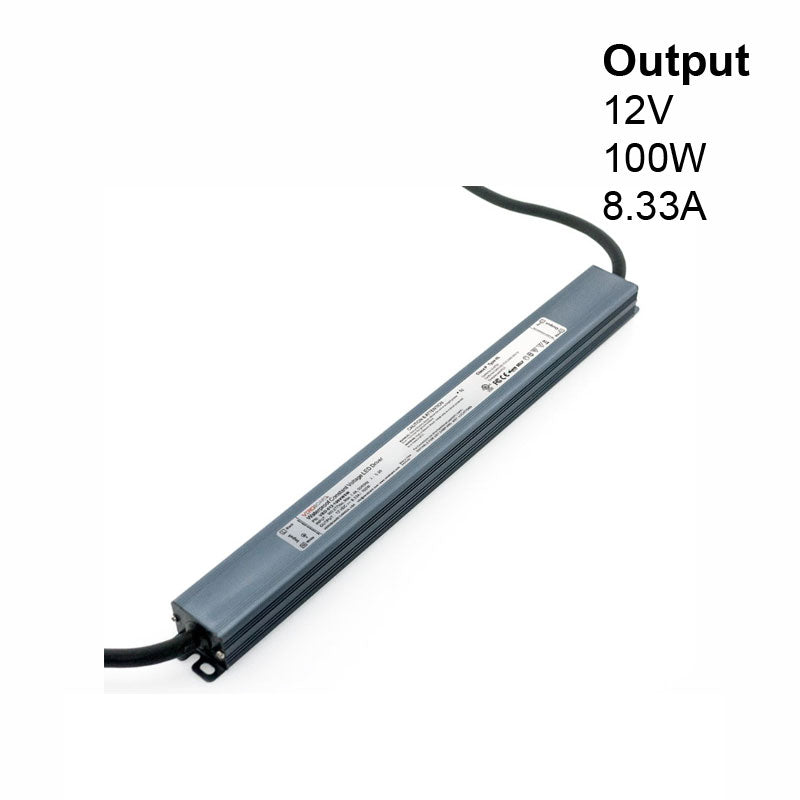

The VEROBOARD Super Slim VBD-012-100VWSW is a Non-Dimmable LED Driver that can convert an input voltage range of 100-277V AC to a regulated 12V DC output voltage. The device operates at a frequency of 50/60Hz and has a power factor of 0.95.

The LED driver can deliver a maximum output power of 100W with an output regulated current of 8.33A, making it suitable for powering LED lighting systems and other low voltage devices.

The device is not dimmable and has an IP67 rating, making it waterproof and suitable for use in damp and wet locations. It is also Class P/Type HL certified, indicating that it is designed for use with LED lighting fixtures.

The dimensions of the device are 316 x 31.95 x 22.86mm (12.43 x 1.26 x 0.89 in), making it super slim and easy to install. It is also UL certified, which confirms that it meets safety and performance standards set by the electrical safety testing organization.

Features:

  • Input voltage range of 100-277V AC to 12V DC output voltage
  • Frequency of 50/60Hz and power factor of 0.95
  • Maximum output power of 100W and output regulated current of 8.33A
  • Non-dimmable and IP67 rated for waterproof use in damp and wet locations
  • Class P/Type HL certified for use with LED lighting fixtures
  • Super slim design with dimensions of 316 x 31.95 x 22.86mm (12.43 x 1.26 x 0.89 in)
  • UL certified for safety and performance standards
  • Suitable for use in dry, damp, and wet locations, making it versatile for various LED applications.
