Super Slim VBD-024-060VTSP Triac Dimmable Constant Voltage LED Driver, 24V 2.5A 60W
Product Description
Model | VBD-024-060VTSP |
Input Voltage | 100-277V AC |
Input Current | 0.9A |
Frequency | 50/60Hz |
Power Factor | 0.95 |
Output Voltage | 24V DC |
Output regulated Current | 2.5A |
Output Power | 60W |
Dimmable | Yes (Triac/Phase-cut Dimming) |
Waterproof | No |
IP Rating | IP20 |
Class Certification | Class 2/ Class P/ Type HL. Class II |

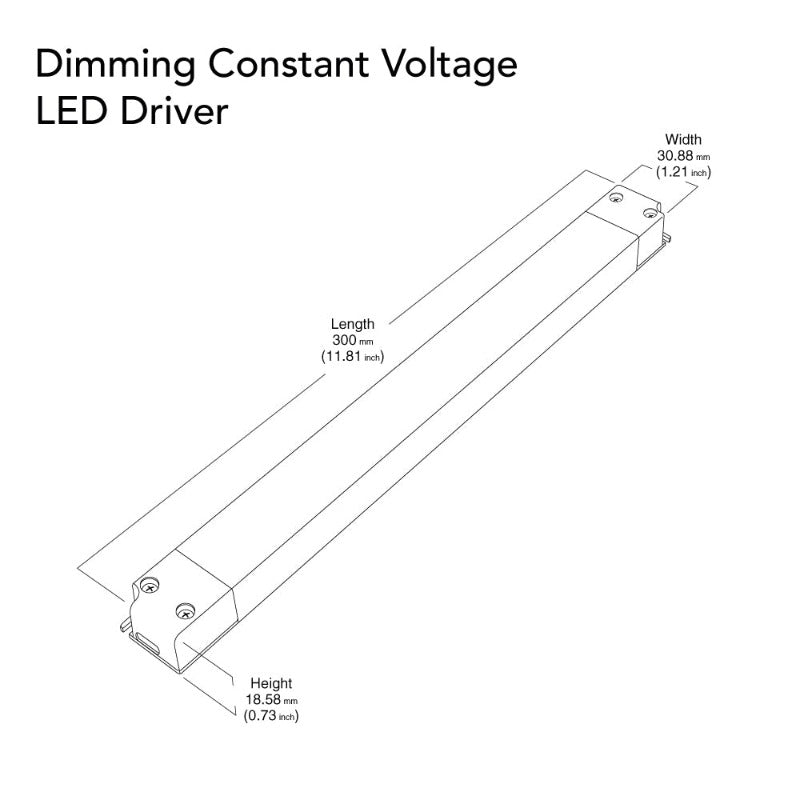

Dimensions | 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) |
Certifications | ![]() ![]() ![]() |
Suitable for DRY and DAMP Locations |
Compatible with Forward-Phase, MLV, ELV, & Triac dimmers |
The Super Slim VBD-024-060VTSP Triac Dimmable Constant Voltage LED Driver is a compact and efficient power supply designed for use with LED lighting systems. With an input voltage range of 100-277V AC and input current of 0.9A, this driver can be used with a wide range of power sources. The power factor of 0.95 indicates that it operates at high efficiency.
The output voltage of the driver is 24V DC, and it can regulate an output current of up to 2.5A, making it suitable for a range of LED lighting applications. With a maximum output power of 60W, it can power multiple LED lights at once. The driver is also dimmable, using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
The driver is not waterproof, with an IP rating of IP20, so it is suitable for indoor use only. It has several class certifications, including Class 2, Class P, Type HL, and Class II, indicating that it is designed to meet specific safety and performance standards. The compact dimensions of 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) make it easy to install in a variety of locations.
The driver is UL listed for safety and compliance, meaning that it has been tested and certified by Underwriters Laboratories, a global safety consulting and certification company. This ensures that it meets stringent safety standards and has undergone rigorous testing to ensure its reliability and performance.
Features:
- The Super Slim VBD-024-060VTSP Triac Dimmable Constant Voltage LED Driver is a compact and efficient power supply designed for use with LED lighting systems.
- It has an input voltage range of 100-277V AC and input current of 0.9A, which makes it suitable for a wide range of power sources.
- The power factor of 0.95 indicates that it operates at high efficiency.
- The output voltage of the driver is 24V DC, and it can regulate an output current of up to 2.5A, making it suitable for a range of LED lighting applications.
- With a maximum output power of 60W, it can power multiple LED lights at once.
- The driver is dimmable, using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
- The driver has several class certifications, including Class 2, Class P, Type HL, and Class II, indicating that it is designed to meet specific safety and performance standards.
- The driver is not waterproof, with an IP rating of IP20, so it is suitable for indoor use only.
- The compact dimensions of 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) make it easy to install in a variety of locations.
- The driver is UL listed for safety and compliance, meaning that it has been tested and certified by Underwriters Laboratories, a global safety consulting and certification company, to ensure its reliability and performance.
