Super Slim VBD-024-060VWSW Non-Dimmable LED Driver, 24V 2.5A 60W
Product Description
| Model | VBD-024-060VWSW |
| Input voltage | 100-277V AC |
| Input Current | 0.9A |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Output voltage | 24V DC |
| Output regulated current | 2.5A |
| Output Power | 60W |
| Dimmable | No |
| Waterproof | Yes |
| IP Rating | IP67 (Outdoor Rated) |
| Class Certification | Class 2/ Class P/ Type HL |

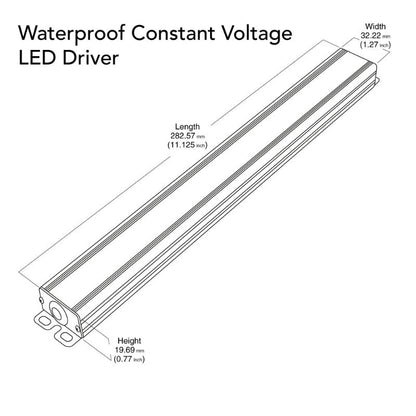

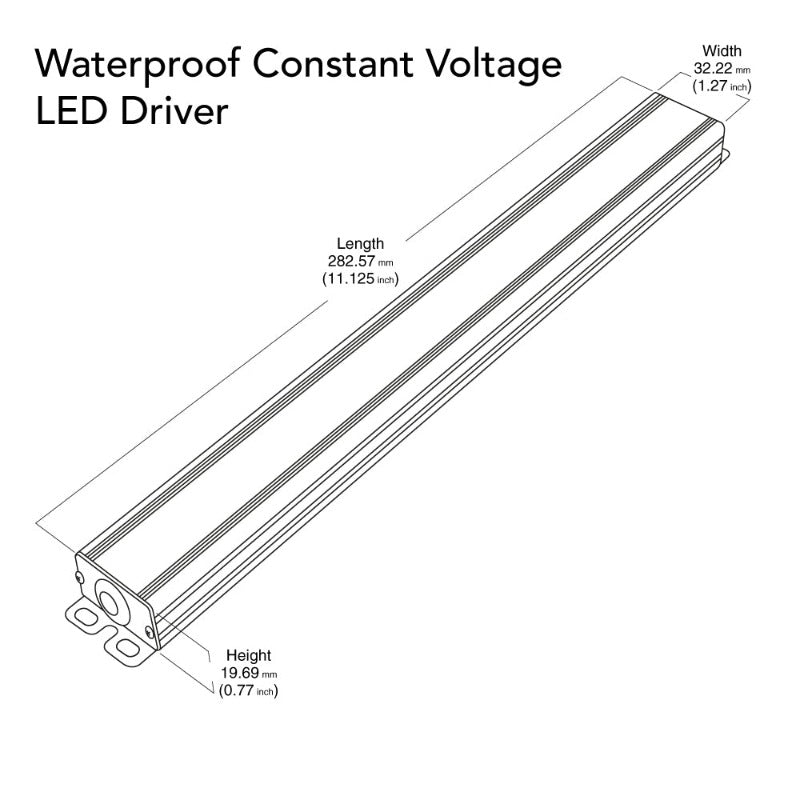

| Dimensions | 282.57 x 32.22 x 19.69mm (11.125 x 1.27 x 0.77 in) |
| Certification |

|
| Suitable for dry, damp, and wet locations |

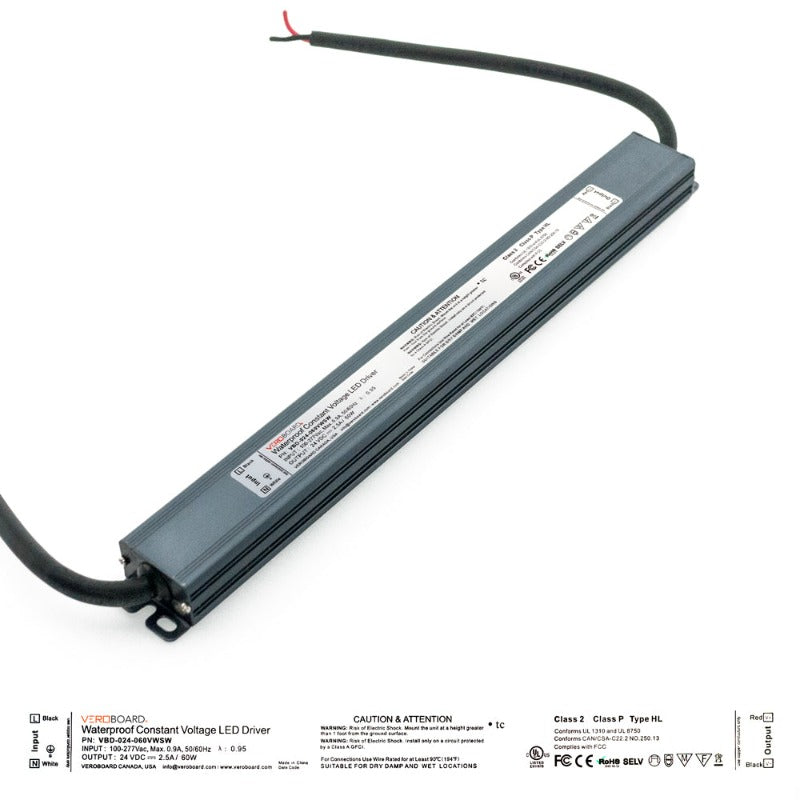

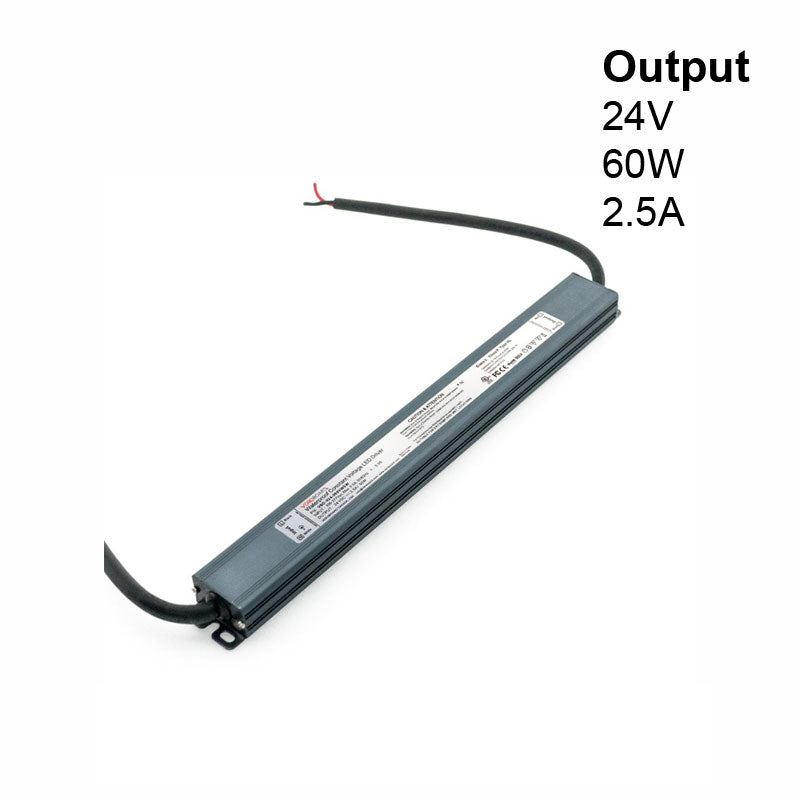

The VEROBOARD Super Slim VBD-024-060VWSW is a high-quality Non-Dimmable LED Driver designed to convert an input voltage range of 100-277V AC to a regulated 24V DC output voltage. The device has a compact and super slim design, with dimensions of 282.57 x 32.22 x 19.69mm (11.125 x 1.27 x 0.77 in), making it easy to install in tight spaces.
With a frequency of 50/60Hz and a power factor of 0.95, this LED driver is capable of delivering a maximum output power of 60W, with an output regulated current of 2.5A. It is ideal for powering LED lighting systems and other low voltage devices.
The VEROBOARD Super Slim VBD-024-060VWSW is designed with an IP67 rating, which makes it waterproof and suitable for use in damp and wet locations. It is also Class 2/ Class P/ Type HL certified, indicating that it is specifically designed for use with LED lighting fixtures.
This LED driver is not dimmable, but it is UL certified for safety and performance standards set by the electrical safety testing organization. Moreover, the device is suitable for use in dry, damp, and wet locations, making it a versatile choice for various LED applications.
Overall, the VEROBOARD Super Slim VBD-024-060VWSW is a reliable and high-quality LED driver that is suitable for both indoor and outdoor lighting applications, providing excellent performance and durability.
Features:
- Converts input voltage range of 100-277V AC to a regulated 24V DC output voltage
- Compact and super slim design with dimensions of 282.57 x 32.22 x 19.69mm (11.125 x 1.27 x 0.77 in)
- Capable of delivering a maximum output power of 60W with an output regulated current of 2.5A
- Designed with an IP67 rating, making it waterproof and suitable for use in damp and wet locations
- Class 2/ Class P/ Type HL certified for use with LED lighting fixtures
- UL certified for safety and performance standards set by the electrical safety testing organization
- Suitable for use in dry, damp, and wet locations, making it versatile for various LED applications
