Super Slim VBD-024-096VWSW Non-Dimmable LED Driver, 24V 4A 96W

  • $96.60 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561419745
Title:
We only have 113 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Model VBD-024-096VWSW
Input Current 1.3A
Input voltage 100-277V AC
Frequency 50/60Hz
Power Factor 0.95
Output Voltage 24V DC
Output regulated Current 4.0A
Output Power 96W
Dimmable No
Waterproof Yes
IP Rating IP67 (Waterproof driver)
Class Certification Class 2/ Class P/ Type HL

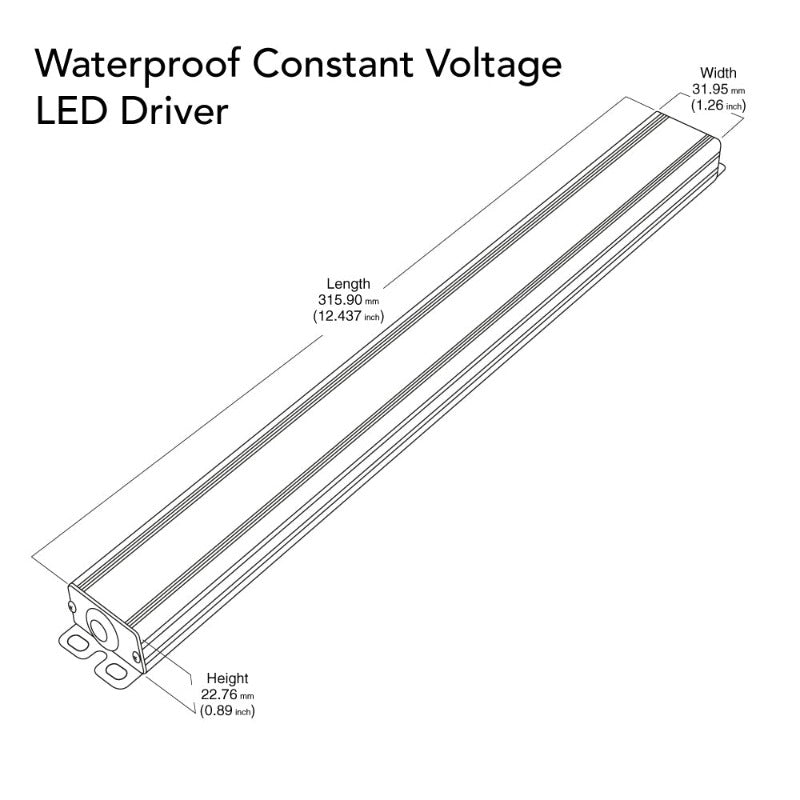

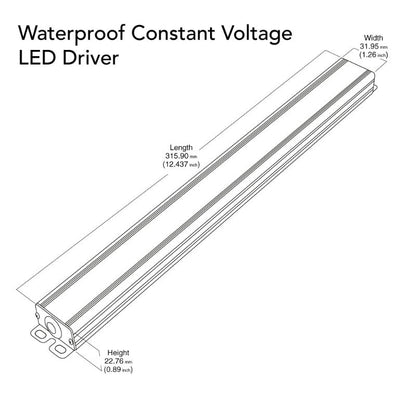

Dimensions 316 x 31.95 x 22.86mm (12.43 x 1.26 x 0.89 in)
Certification

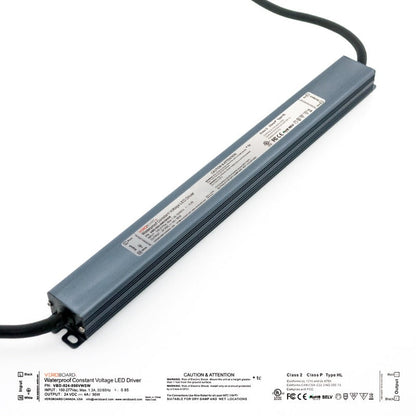

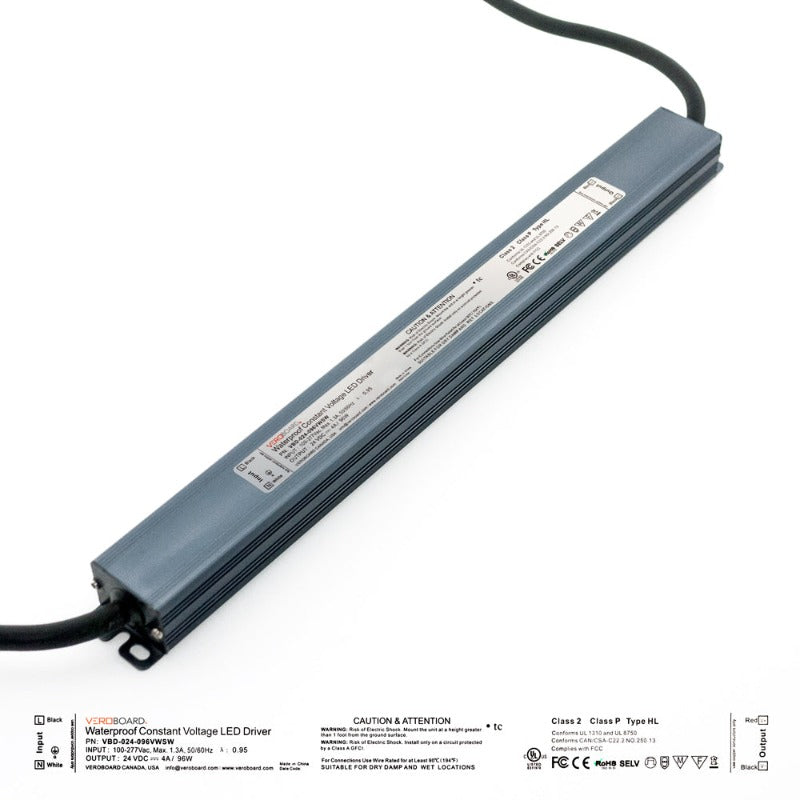

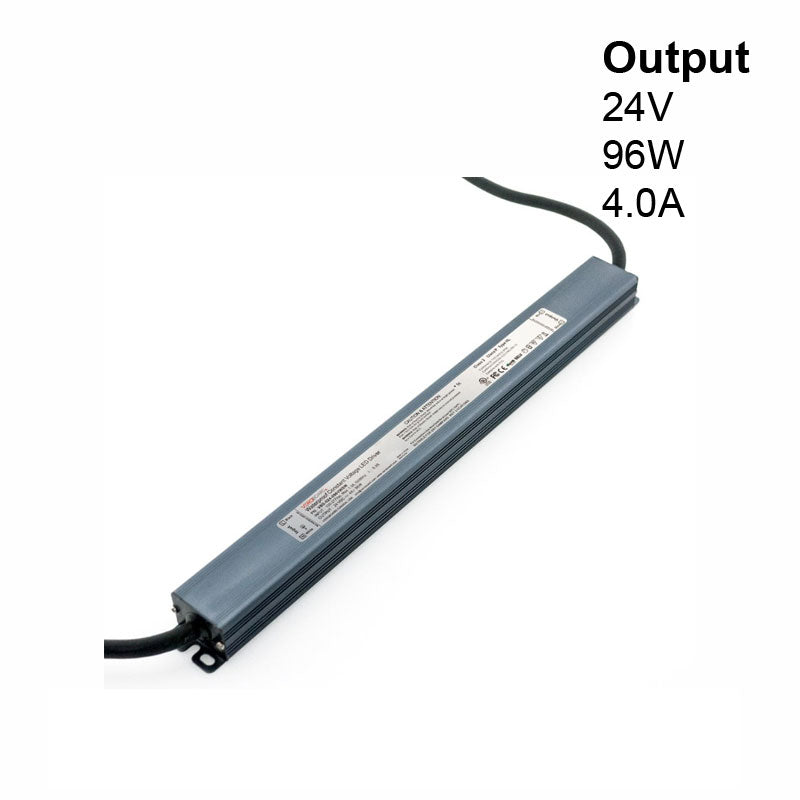

The Veroboard Super Slim VBD-024-096VWSW is a high-quality Non-Dimmable LED Driver designed to convert an input voltage range of 100-277V AC to a regulated 24V DC output voltage. The device is capable of delivering a maximum output power of 96W with an output regulated current of 4.0A, making it suitable for powering LED lighting systems and other low voltage devices.

With a frequency of 50/60Hz and a power factor of 0.95, this LED driver provides efficient and reliable performance. It is not dimmable but is designed to be waterproof with an IP67 rating, making it suitable for use in damp and wet locations. The Veroboard Super Slim VBD-024-096VWSW is also Class 2/ Class P/ Type HL certified, indicating that it is specifically designed for use with LED lighting fixtures.

This LED driver has dimensions of 316 x 31.95 x 22.86mm (12.43 x 1.26 x 0.89 in), which makes it super slim and easy to install in tight spaces. It is also UL certified for safety and performance standards set by the electrical safety testing organization.

Overall, the Veroboard Super Slim VBD-024-096VWSW is a reliable and high-quality LED driver suitable for various LED applications. It provides excellent performance and durability, making it an ideal choice for both indoor and outdoor lighting applications.

Features:

  • High-quality Non-Dimmable LED Driver
  • Input voltage range of 100-277V AC, output voltage of 24V DC
  • Maximum output power of 96W, output regulated current of 4.0A
  • Frequency of 50/60Hz and a power factor of 0.95
  • Waterproof with an IP67 rating, suitable for use in damp and wet locations
  • Class 2/ Class P/ Type HL certified, designed for use with LED lighting fixtures
  • Super slim with dimensions of 316 x 31.95 x 22.86mm (12.43 x 1.26 x 0.89 in)
  • UL certified for safety and performance standards
  • Reliable and durable for indoor and outdoor LED lighting applications
