22 inch Slim ZEGA LED Module SLM 22-025W-930-120-S3-Z1B, 120V 25W 3000K(Warm White)

  • $44.11 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428174
We only have 10 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).

Product Description

Product LED Module
Model No SLM22-025W-930-120-S3-Z1B
No of LEDs 80
Wattage 25W
Voltage 120V AC
Luminous Flux 2300 lumens
Color Temperature 3000K (Warm White)
Rendering Index >90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

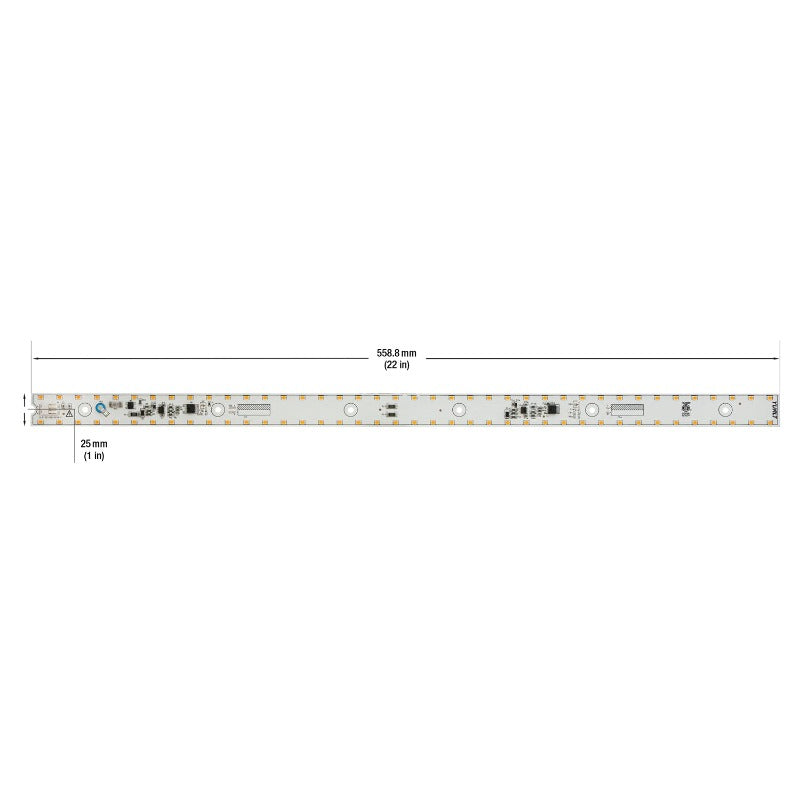

Dimensions 558.8mm x 25mm (22 x 1 in)
Diameter of the screw hole 3.9mm (0.15 in)
Height 6mm (0.23in)


The SLM 22-025W-930-120-S3-Z1B is a 22-inch slim LED module that provides high-quality and energy-efficient lighting suitable for various applications. It contains 80 LEDs and has a wattage of 25W, powered by 120V AC.

The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant. With a luminous flux of 2300 lumens, this LED module provides bright and efficient lighting suitable for various applications such as under-cabinet lighting, task lighting, and display lighting.

The dimensions of the module are 558.8mm x 25mm (22 x 1 in), and the diameter of the screw hole is 3.9mm (0.15 in). This LED module is also dimmable and comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module.

In addition, the SLM 22-025W-930-120-S3-Z1B comes with a 6-inch black and white power feed for easy installation. It is a high-quality light engine that produces up to 2300 lumens of exceptional light while consuming low power and providing high energy efficiency. It is an excellent DIY product for replacing a ceiling light or bulb source.

It is certified by ETL for safe and reliable use. The SLM 22-025W-930-120-S3-Z1B is an ideal choice for anyone looking for a high-quality, energy-efficient, and long-lasting LED lighting solution in a slim profile.


  • 22-inch slim LED module with 80 LEDs and 25W wattage
  • Provides warm white light at 3000K and high CRI over 90 for natural and vibrant colors
  • Luminous flux of 2300 lumens for bright and efficient lighting suitable for various applications
  • Comes with a thermal silicon pad for even heat distribution and longer lifespan
  • Dimmable and easy to install with a 6-inch black and white power feed included
  • Dimensions of 558.8mm x 25mm (22 x 1 in) and screw hole diameter of 3.9mm (0.15 in)
  • Certified by ETL for safe and reliable use
  • Ideal for under-cabinet lighting, task lighting, display lighting, and as a replacement for ceiling lights or bulb sources
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.

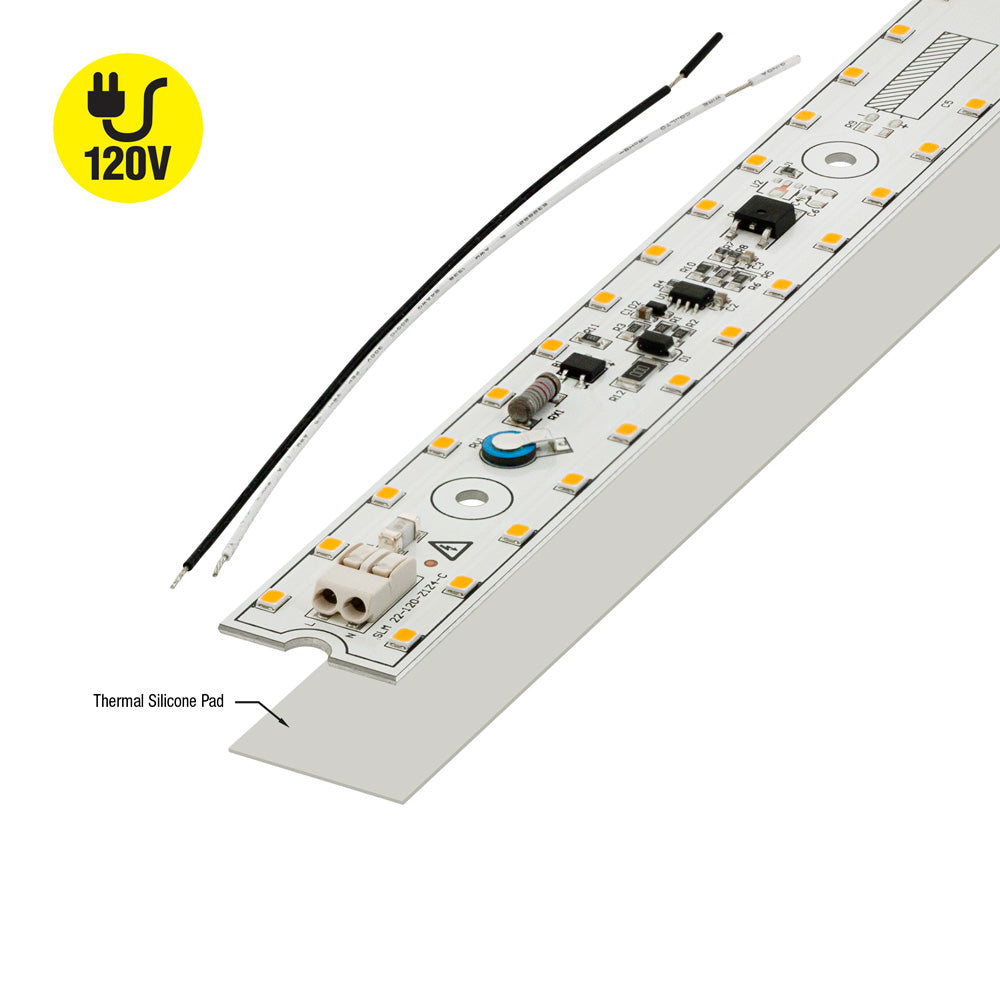

  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
