ANTRON AC1600S91D-D3 Constant Current LED Driver with Selectable Current 1050-1400-1600mA 91W

Antron

  • $115.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561420215
We only have 11 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)



Product Description

Product Constant Current LED Driver with Selectable Current
Model AC1600S91D-D3
Input Voltage 120-277V AC
Input Current 0.86A-0.38A
Input Frequency 50/60 Hz
Efficiency 88%
Output Voltage 34-56V
Output Power 91W max
Output Regulated Current Selectable current from 1050mA/1400mA/1600mA
Dimmable Yes (0-10V dimming)
IP Rating IP64 (Indoor Rated)

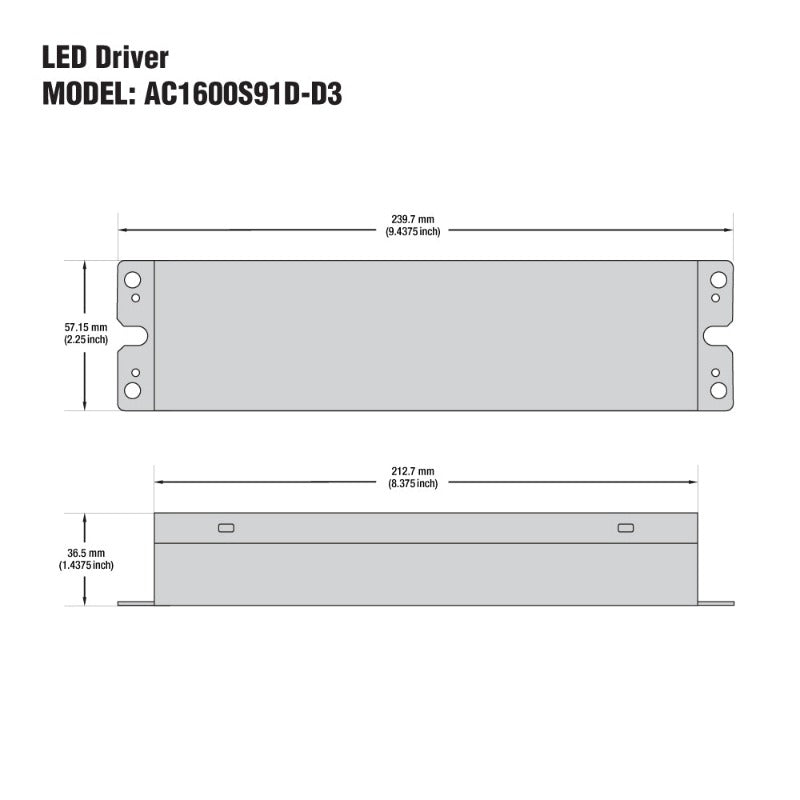

Dimensions 240 × 57.1 × 36.5 mm (9.43 x 2.2 x 1.4 in)
Class Certification Class 2
Certification




The ANTRON AC1600S91D-D3 is a Constant Current LED Driver that provides a selectable output current of 1050mA, 1400mA, or 1600mA. It has a maximum output power of 91W and a regulated output voltage of 34-56V. The input voltage can range from 120-277V AC, and the input current ranges from 0.86A-0.38A. The driver is also dimmable with 3 in 1 dimming capability, including PWM, resistance, and 0-10V.

This product has an efficiency rating of 88% and is designed for indoor use with an IP64 rating, which means it is protected against dust and splashing water from any direction. It is classified as Class 2, meaning that it is a low voltage device that is double insulated and does not require a ground connection.

The dimensions of the ANTRON AC1600S91D-D3 are 24 × 5.71 × 3.65 cm (9.43 x 2.2 x 1.4 in), making it a compact and versatile LED driver suitable for a range of indoor lighting applications that require constant current output with selectable current levels.

Features:

  • The ANTRON AC1600S91D-D3 is a Constant Current LED Driver
  • Provides a selectable output current of 1050mA, 1400mA, or 1600mA
  • Maximum output power of 91W and a regulated output voltage of 34-56V
  • Input voltage range of 120-277V AC, and the input current ranges from 0.86A-0.38A
  • Dimmable with 3 in 1 dimming capability, including PWM, resistance, and 0-10V
  • Efficiency rating of 88%
  • Designed for indoor use with an IP64 rating, protecting against dust and splashing water from any direction
  • Classified as Class 2, meaning that it is a low voltage device that is double insulated and does not require a ground connection
  • Dimensions are 24 × 5.71 × 3.65 cm (9.43 x 2.2 x 1.4 in)
  • Suitable for a range of indoor lighting applications that require constant current output with selectable current levels.

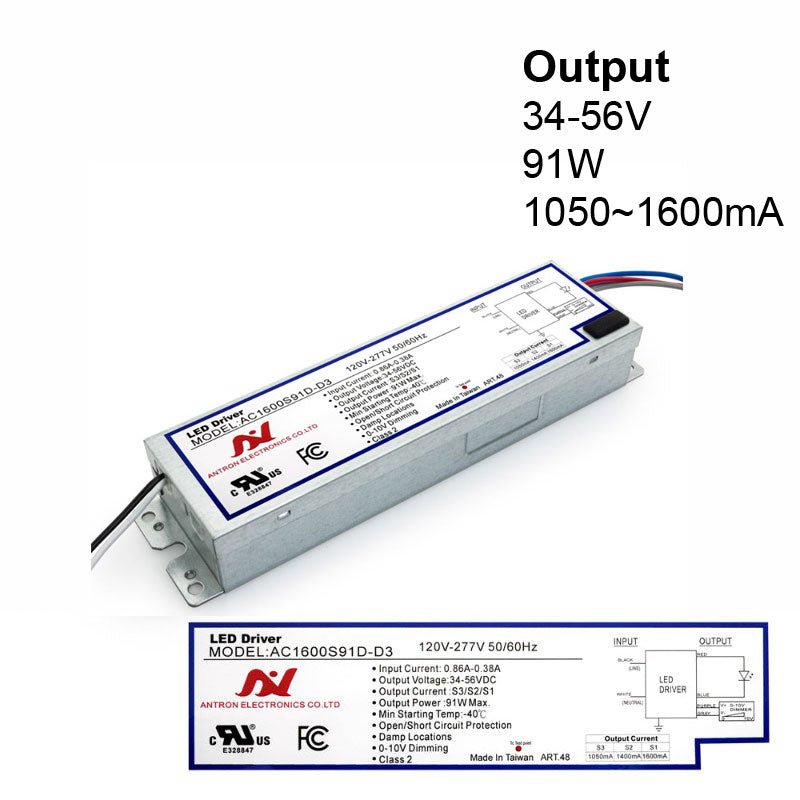

Wiring Diagram:
