Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC3000S150D-D3 |
| Input Voltage | 120-277V AC |
| Input Current | 1.45-0.64A |
| Input Frequency | 50/60 Hz |
| Efficiency | 88% |

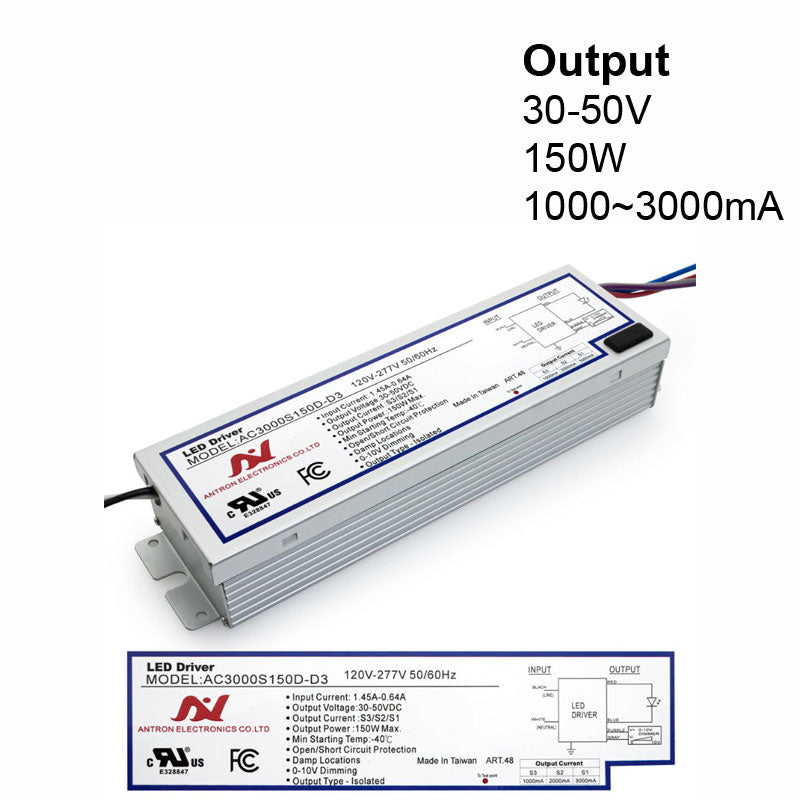

| Output Voltage | 30-50V |
| Output Power | 150W |
| Output Regulated Current | Selectable current from 1000mA/ 2000mA/ 3000mA |
| Dimmable | Yes (3 in 1 Dimming -PWM, Resistance, 0-10V) |
| IP Rating | IP20 (Indoor Rated) |
| Weight | 1 kg |
| Dimensions | 241.3 × 66.1 × 41.1mm (9.5 x 2.6 x 1.62 in) |
| Surge Rating | 2KV |
| Certification |
   |
Features:
- The model number of the driver is LD011D-CA03036-M9F (also known as LD009D-CU03036-M9).
- It provides a regulated current output of 300mA with an output voltage range of 21-36V.
- The input voltage range is 120V AC, with an input current of 0.2A and an input frequency of 60Hz.
- The maximum output power of the driver is 10.8W, and it is dimmable with a compatible dimming system.

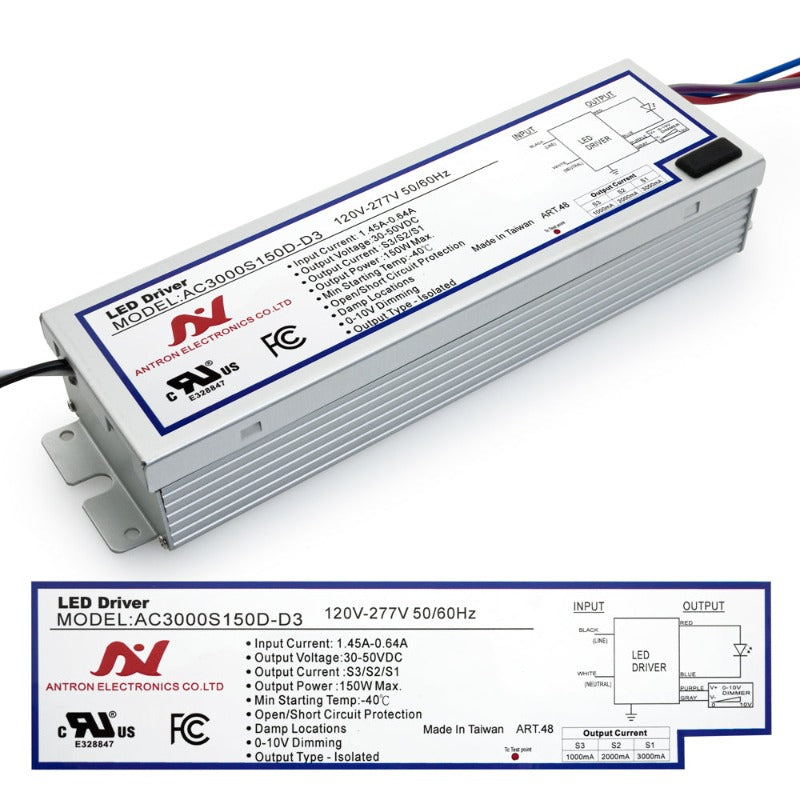

- ANTRON Selectable Constant Current LED Driver 30-50V 150W 1000-2000-3000mA, AC3000S150D-D3
Wiring Diagram:
