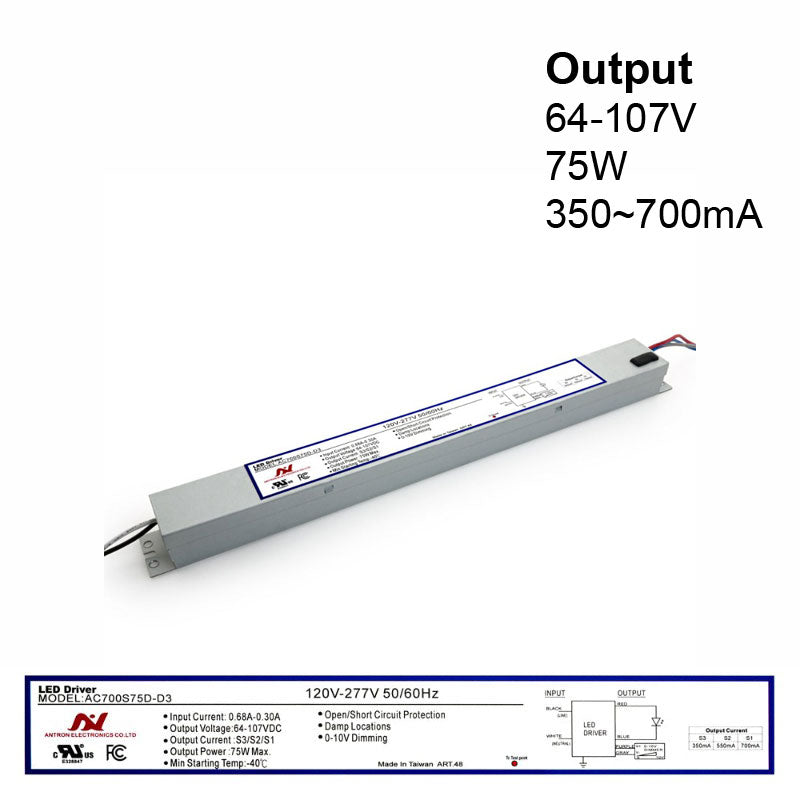

ANTRON AC700S75D-D3 Constant Current LED Driver with Selectable Current 350-550-700mA 64-107V 75W
Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC700S75D-D3 |
| Input Voltage | 120-277V AC |
| Input Frequency | 50/60 Hz |
| Input Current | 0.68-0.30A |
| Output Voltage | 64-107V |
| Output Power | 75W max |
| Output Regulated Current | Selectable current from 350mA/550mA/700mA |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 (Indoor Rated) |

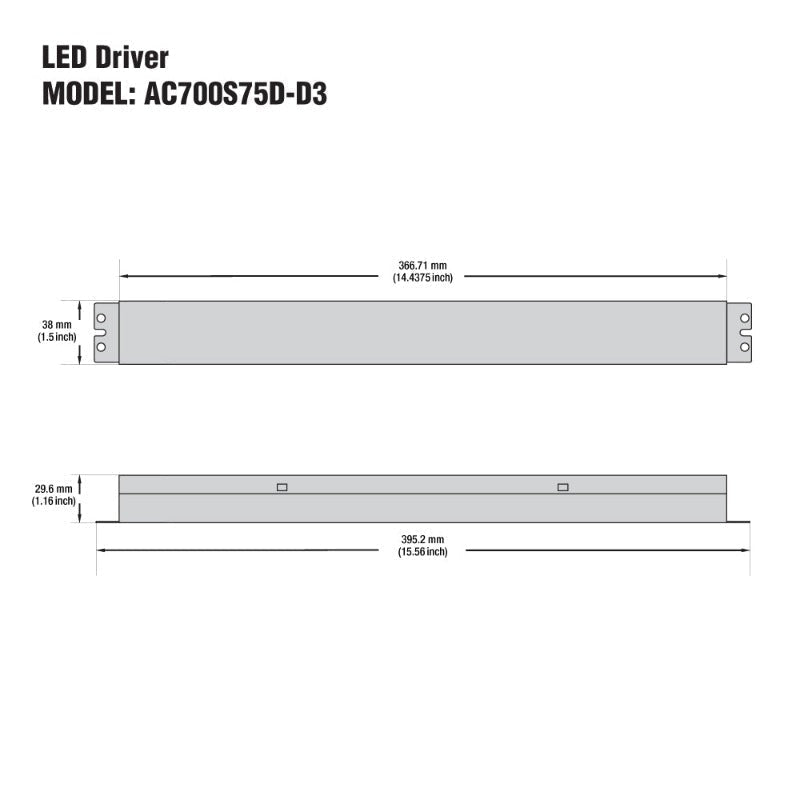

| Dimensions | 395 × 38 × 30 mm (15.56 x 1.5 x 1.16 in) |
| Certification |

|
The ANTRON AC700S75D-D3 Constant Current LED Driver is a power supply device designed to provide a constant output current to LED lighting systems. It features selectable current options of 350mA, 550mA, and 700mA, allowing for greater flexibility in driving different LED configurations. The output voltage range is 64-107V, with a maximum output power of 75W.
This LED driver has an input voltage range of 120-277V AC with an input current range of 0.68-0.30A and a frequency of 50/60 Hz. It is also dimmable with 0-10V dimming capabilities, enabling greater control over the connected LED lighting system.
The AC700S75D-D3 LED driver is rated IP20 for indoor use only, making it suitable for use in commercial, residential, and industrial environments. Its compact form factor measures 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in), allowing for easy installation and integration into existing lighting systems.
Overall, the ANTRON AC700S75D-D3 Constant Current LED Driver is a versatile and reliable solution for powering LED lighting systems, offering selectable current options, dimming capabilities, and a compact form factor suitable for indoor use.
Features:
- The ANTRON AC700S75D-D3 is a power supply device for LED lighting systems, providing a constant output current with selectable current options of 350mA, 550mA, and 700mA.
- It has an output voltage range of 64-107V with a maximum output power of 75W.
- The input voltage range is 120-277V AC with an input current range of 0.68-0.30A and a frequency of 50/60 Hz.
- It is dimmable with 0-10V dimming capabilities, enabling greater control over the connected LED lighting system.
- The AC700S75D-D3 LED driver is rated IP20 for indoor use only and is suitable for use in commercial, residential, and industrial environments.
- It has a compact form factor measuring 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in) and is easy to install and integrate into existing lighting systems.
Wiring Diagram:
