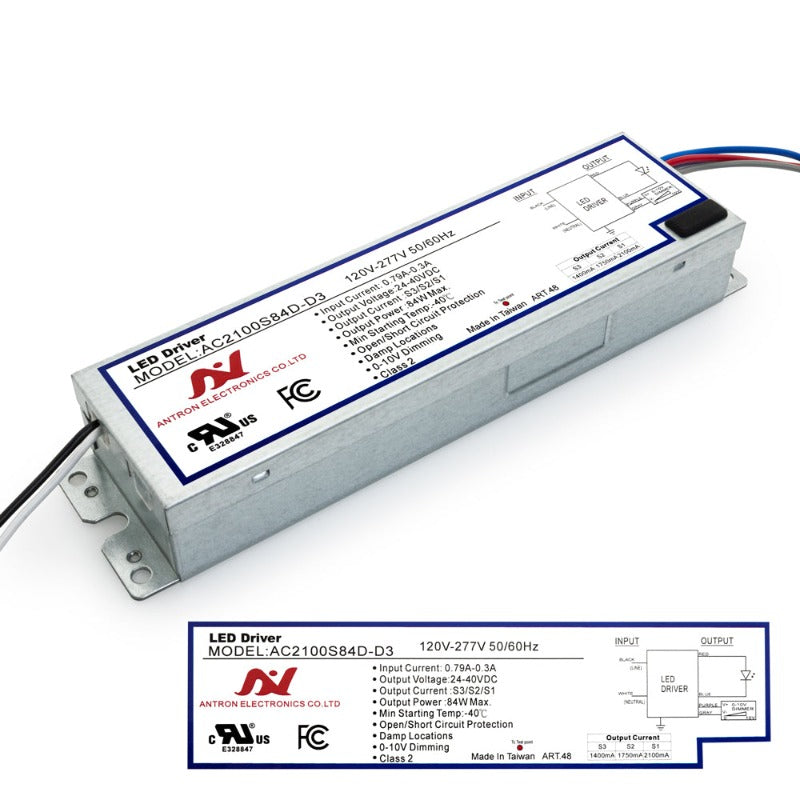

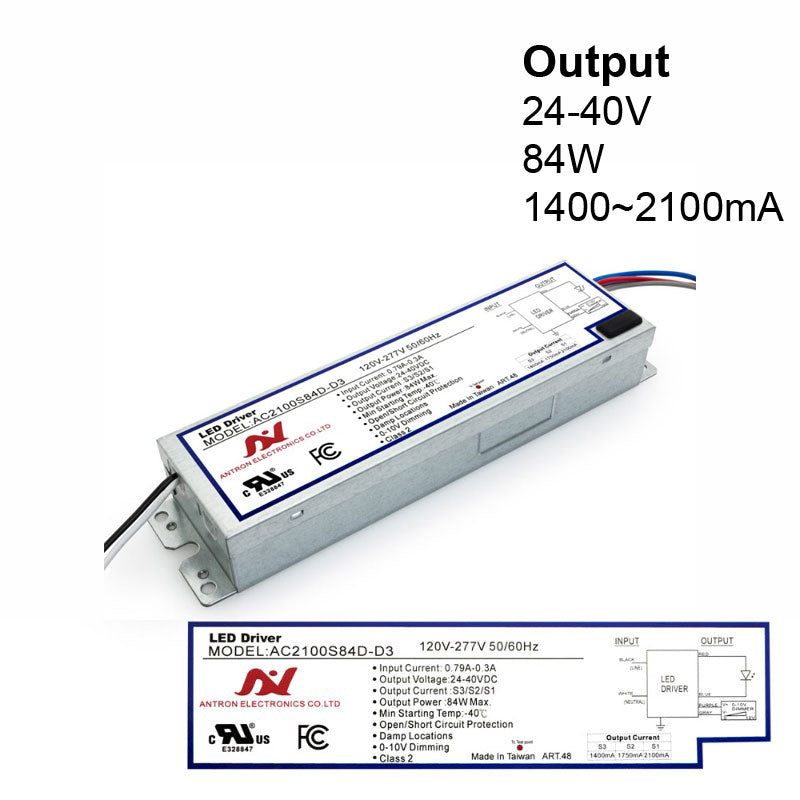

ANTRON AC2100S84D-D3 Constant Current LED Driver with Selectable Current 1400-1750-2100mA 84W
ANTRON AC2100S84D-D3 Constant Current LED Driver with Selectable Current 1400-1750-2100mA 84W
SKU: SKU:666561420222
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Return Policy
Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above (Canada and US only).
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States and Canada Post for Canada. Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Note:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Duty Charge:
- Customers will be responsible for any duty charges incurred on a returned product by the carrier.
Note: import tax may apply to the products
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC2100S84D-D3 |
| Input Current | 0.79-0.3A |
| Input Voltage | 120-277V AC |
| Input Frequency | 50/60 Hz |
| Efficiency | 88% |
| Output Voltage | 24-40V |
| Output Power | 84W max |
| Output Current | Selectable current from 1400mA/1750mA/2100mA |
| Dimmable: | Yes (0-10V Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Dimensions | 240 × 57.1 × 36.5 mm (9.43 x 2.25 x 1.43 in) |
| Class Certification | Class 2 |
| Surge Rating | 2KV |
| Certification |
   |
The ANTRON AC2100S84D-D3 is a Constant Current LED Driver that provides a selectable output current of 1400mA, 1750mA, or 2100mA. It has a maximum output power of 84W and a regulated output voltage of 24-40V. The input voltage can range from 120-277V AC, and the input current ranges from 0.79-0.3A. The driver is also dimmable with 0-10V dimming capability.
This product has an efficiency rating of 88% and is designed for indoor use with an IP20 rating, which means it is protected against solid objects larger than 12.5mm in diameter but not against water. It is classified as Class 2, meaning that it is a low voltage device that is double insulated and does not require a ground connection.
Features:
- The ANTRON AC2100S84D-D3 is a Constant Current LED Driver that provides selectable output currents of 1400mA, 1750mA, or 2100mA.
- It has a maximum output power of 84W and a regulated output voltage of 24-40V.
- The input voltage can range from 120-277V AC, and the input current ranges from 0.79-0.3A.
- The driver is dimmable with 0-10V dimming capability.
- This product has an efficiency rating of 88% and is designed for indoor use with an IP20 rating, which means it is protected against solid objects larger than 12.5mm in diameter but not against water.
- It is classified as Class 2, meaning that it is a low voltage device that is double insulated and does not require a ground connection.
Wiring Diagram:
