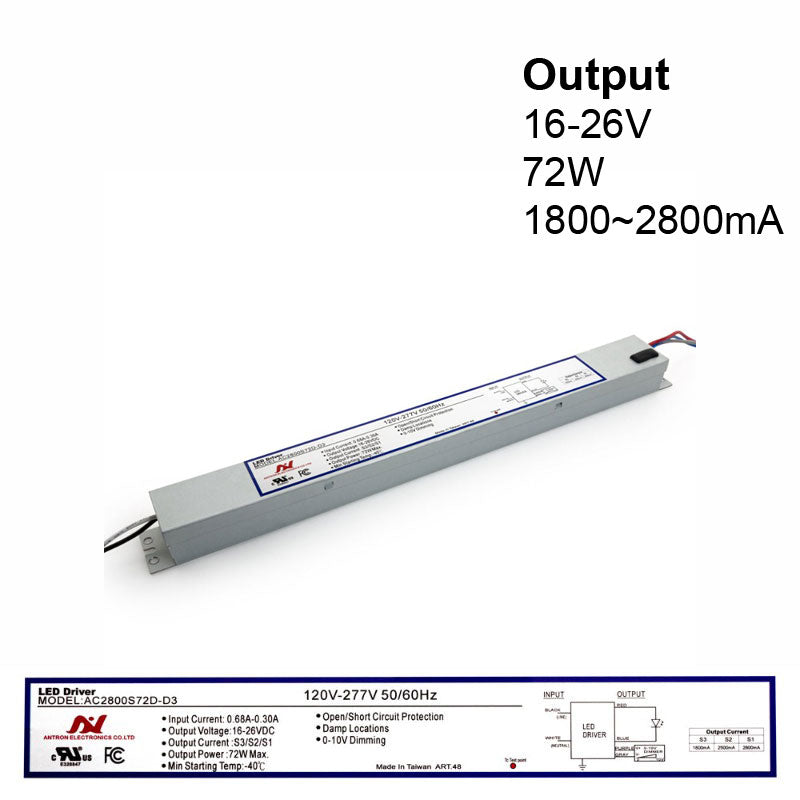

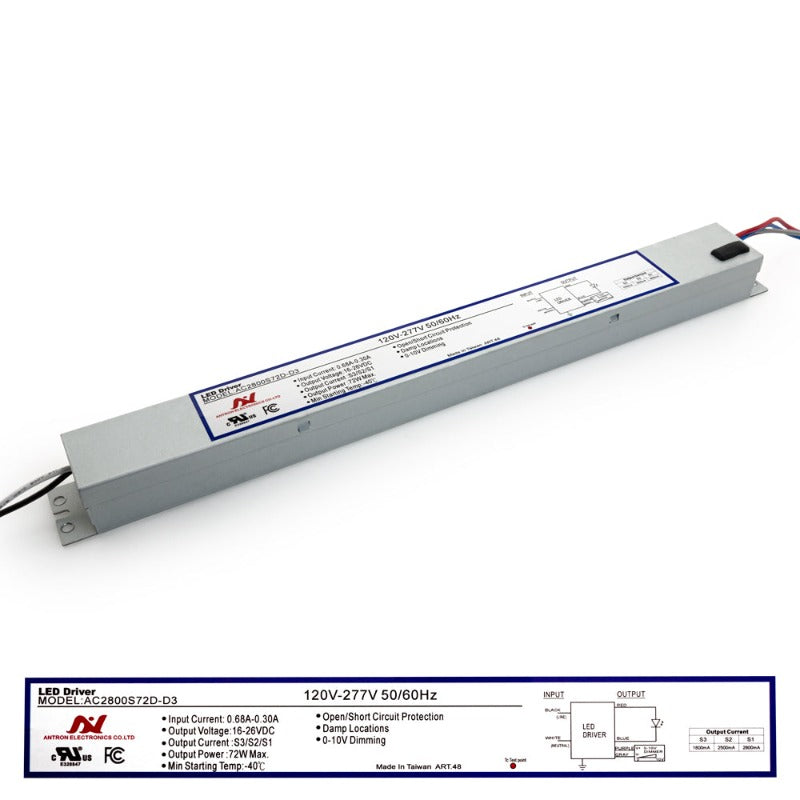

ANTRON AC2800S72D-D3 Constant Current with Selectable Current 1800-2500-2800mA 6-26V 72W
Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | AC2800S72D-D3 |
| Input Voltage | 120-277V AC |
| Input Current | 0.68-0.3A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 16-26V |
| Output Power | 72W max |
| Output Regulated Current | Selectable current from 1800mA/2500mA/2800mA |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 (Indoor Rated) |

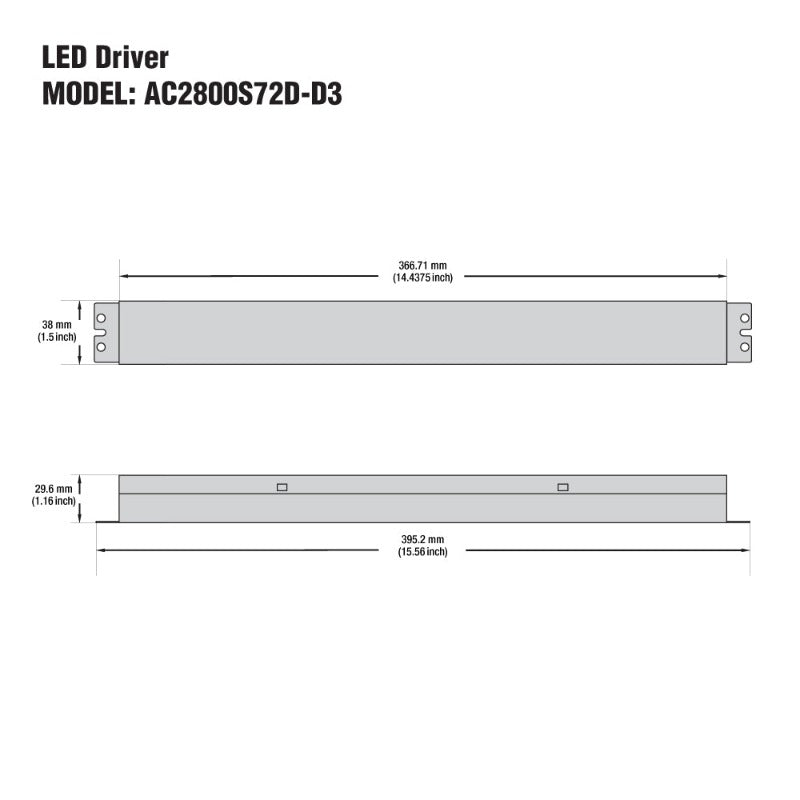

| Dimensions | 395 × 38 × 30 mm (15.56 x 1.5 x 1.16 in) |
| Certification |
   |
The ANTRON AC2800S72D-D3 Constant Current LED Driver is a power supply device designed to provide a constant output current to LED lighting systems. It features selectable current options of 1800mA, 2500mA, and 2800mA, allowing for greater flexibility in driving different LED configurations. The output voltage range is 16-26V, with a maximum output power of 72W.
This LED driver has an input voltage range of 120-277V AC with an input current range of 0.68-0.3A and a frequency of 50/60 Hz. It is also dimmable with 0-10V dimming capabilities, enabling greater control over the connected LED lighting system.
The AC2800S72D-D3 LED driver is rated IP20 for indoor use only, making it suitable for use in commercial, residential, and industrial environments. Its compact form factor measures 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in), allowing for easy installation and integration into existing lighting systems.
Overall, the ANTRON AC2800S72D-D3 Constant Current LED Driver is a versatile and reliable solution for powering LED lighting systems, offering selectable current options, dimming capabilities, and a compact form factor suitable for indoor use.
Features:
- The ANTRON AC2800S72D-D3 is a constant current LED driver that offers selectable current options of 1800mA, 2500mA, and 2800mA.
- It provides a constant output current to LED lighting systems with an output voltage range of 16-26V and a maximum output power of 72W.
- This LED driver has an input voltage range of 120-277V AC with an input current range of 0.68-0.3A and a frequency of 50/60 Hz.
- It is dimmable with 0-10V dimming capabilities, enabling greater control over the connected LED lighting system.
- The AC2800S72D-D3 LED driver is rated IP20 for indoor use only and has a compact form factor measuring 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in).
- It is suitable for use in commercial, residential, and industrial environments, offering selectable current options, dimming capabilities, and a compact form factor suitable for indoor use.
Wiring Diagram:
