ANTRON PAC1400S60DL Constant Current Programmable LED Driver with Custom Output Current 700-1400mA 27-55V 60W max
ANTRON PAC1400S60DL Constant Current Programmable LED Driver with Custom Output Current 700-1400mA 27-55V 60W max
SKU: SKU:666561420307
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Constant Current Programmable LED Driver |
| Model | PAC1400S60DL |
| Input Voltage | 120-277V AC |
| Input Current | 0.6-0.26A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 27-55V |
| Output Power | 60W max |
| Output Regulated Current Range |
Programmable Output Current 700mA, 750mA, 800mA, 850mA,900mA 950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA, 1300mA, 1350mA, 1400mA |
| Dimmable | 3 in 1 Dimming ( PWM, 1-10V, Resistance) |
| IP Rating | IP20 (Indoor rated) |

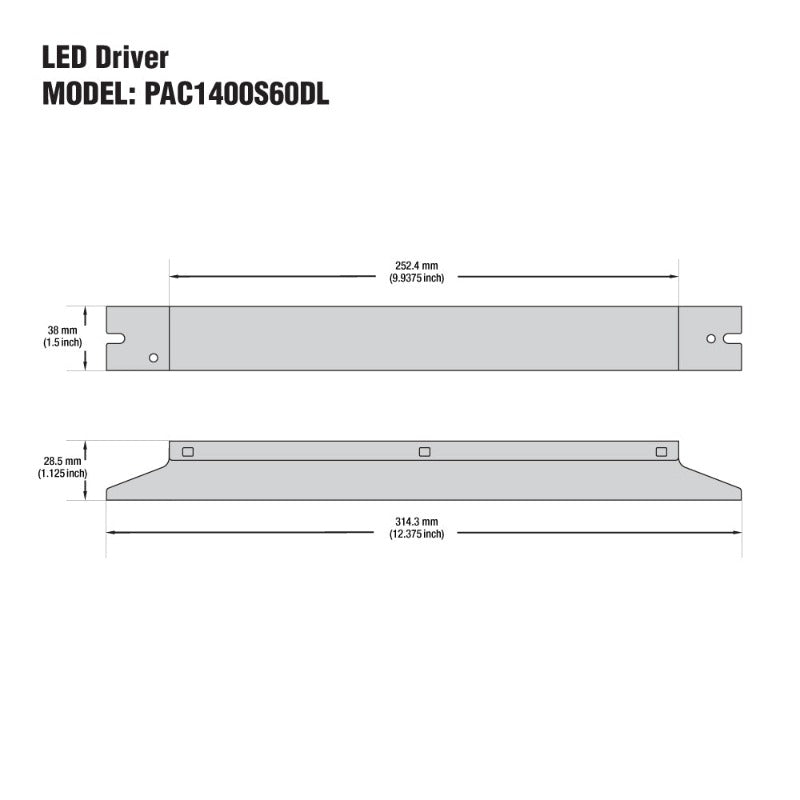

| Dimensions | 314.3 × 38 × 28.5 mm (12.3 x 1.5 x 1.1in) |
| Class Certification | Class 2 / Type HL |
| Certification |    |
The PAC1400S60DL is a constant current programmable LED driver designed to provide a custom output current range of 700-1400mA. It operates on an input voltage range of 120-277 V AC and an input frequency of 50/60 Hz. The input current ranges from 0.6-0.26A. The output voltage range is 27-55V, and the maximum output power is 60W.
The driver is equipped with 3-in-1 dimming capability, which includes PWM, 1-10V, and Resistance dimming options. The driver is IP20 rated, which means it is suitable for indoor use only.
The PAC1400S60DL has a compact size, measuring 31.43 × 3.8 × 2.85 cm, making it easy to install and integrate into lighting fixtures. It is classified as Class 2 and TypeHL certified, indicating that it has limited power output and is suitable for use in hazardous locations.
Features:
- The PAC1400S60DL is a constant current programmable LED driver
- Designed for a custom output current range of 700-1400mA
- Operates on an input voltage range of 120-277 V AC and an input frequency of 50/60 Hz
- Input current ranges from 0.6-0.26A
- Output voltage range is 27-55V, and the maximum output power is 60W
- Equipped with 3-in-1 dimming capability: PWM, 1-10V, and Resistance dimming options
- Classified as Class 2 and TypeHL certified, suitable for use in hazardous locations
- Efficient and versatile LED driver that can be customized to meet specific lighting requirements
- Suitable for a wide range of applications, including commercial, industrial, and residential lighting.
